Select Product
Voltage

Type

Design

Application

Exterior Material

Capacity

Temperature Range

Interior Material

Model

Manufacturer SKU

Capacity Range

Terra Part # Price Ships in
240 V Humidity Free Standing Climate Chamber Powder Coated Steel 2.1 cu. ft. -40°C to +180°C Stainless Steel MKF 9020-0389 <12 cubic feet 1410-22 75507 $21,174 15-21 Days 2
480 V Humidity Free Standing Climate Chamber Powder Coated Steel 8.0 cu. ft. -40°C to +180°C Stainless Steel MKF 9020-0358 <12 cubic feet 1410-24 75509 $40,582 15-21 Days 3
480 V Humidity Free Standing Climate Chamber Powder Coated Steel 25.9 cu. ft. -40°C to +180°C Stainless Steel MKF 9020-0359 >24 cubic feet 1410-25 75510 $52,957 15-21 Days 4
480 V Humidity Free Standing Climate Chamber Powder Coated Steel 4.1 cu. ft. -40°C to +180°C Stainless Steel MKF 9020-0357 <12 cubic feet 1410-23 75508 $31,434 15-21 Days 5
Voltage
Type
Design
Application
Exterior Material
Capacity
Temperature Range
Interior Material
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Material: stainless steel inner chamber
  • Temperature range: -40 °C to 180 °C
  • Humidity range: 10 % to 98 % RH
  • PT100 temperature sensor
  • Safety connection kit for water supply and drainage
  • Interface: Ethernet
  • Designed for climate testing methods in compliance with DIN and IEC standards
  • 20 liter integrated water-storage tank on select models
  • Programmable condensation protection and intuitive touchscreen controller (time-segment and real-time programming)
  • 4 zero-voltage relay contacts activated via MCS controller
  • Heated viewing window with LED light
  • Features: APT.line preheating chamber, humidity regulation with capacitative humidity sensor and vapor humidification, BINDER APT-COM Basic Edition software, troubleshooting system, visual and audible alarms, internal data logger, self-test for status analysis, adjustable ramp function, integrated chart recorder, door heating, CFC-free refrigerant R-404A, compressor cooling unit, fin evaporator
  • Includes: stainless steel rack and 4 castors (two with brakes)

Environmental Test Chambers

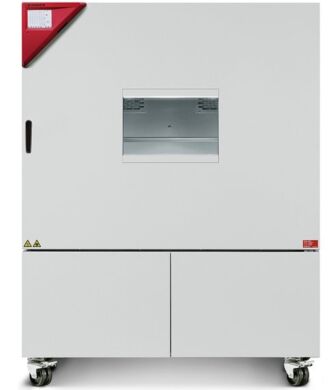

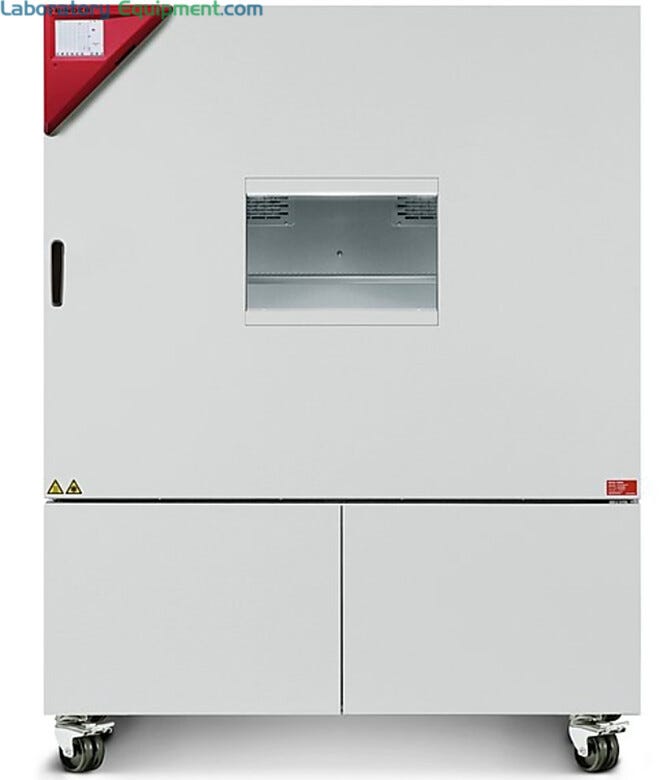

  • MKF 720 Dynamic Climate Chamber with Humidity Control by BINDER Worldwide and a 25.9 cu. ft. capacity MKF 720 Dynamic Climate Chamber with Humidity Control, 25.9 cu. ft.
  • MKF 56 Dynamic Climate Chamber with Humidity Control by BINDER Worldwide and a 2.1 cu. ft. capacity MKF 56 Dynamic Climate Chamber with Humidity Control, 2.1. cu. ft.
  • MKF 115 Dynamic Climate Chamber with Humidity Control by BINDER Worldwide and a 4.1 cu. ft. capacity MKF 115 Dynamic Climate Chamber with Humidity Control, 4.1 cu. ft.

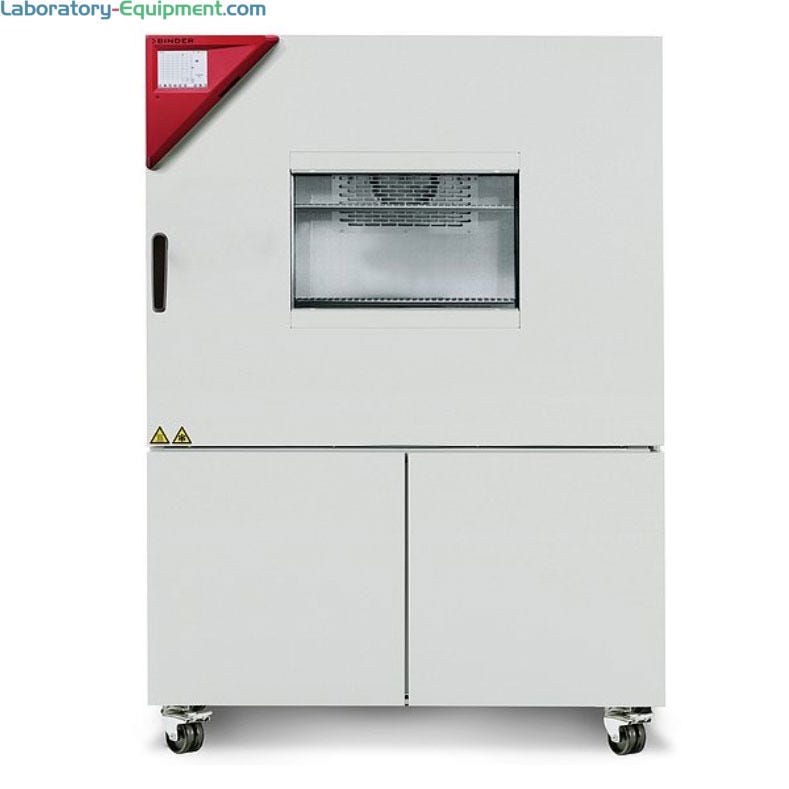

  • MKF 240 Dynamic Climate Chamber with Humidity Control by BINDER Worldwide and a 8.0 cu. ft. capacity MKF 240 Dynamic Climate Chamber with Humidity Control, 8.0. cu. ft.
Features & Benefits

Features and Benefits

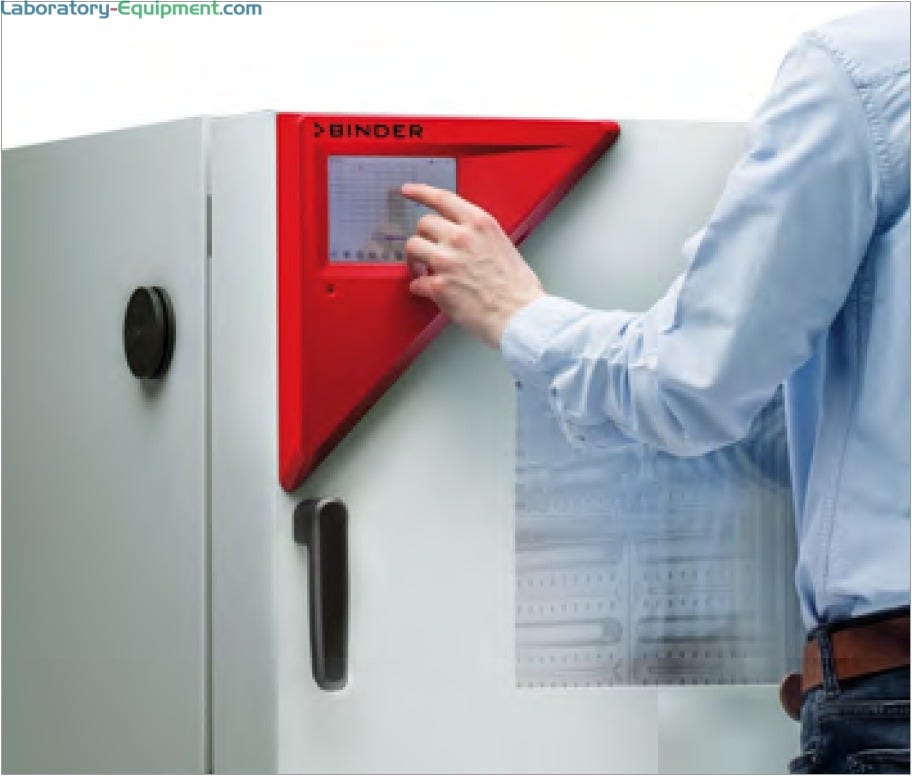

Data Management

MK, MKF, MKT and MKFT Series enable easy data management and programming via a vibrant color display; the APT.COM software allows remote access via a PC.

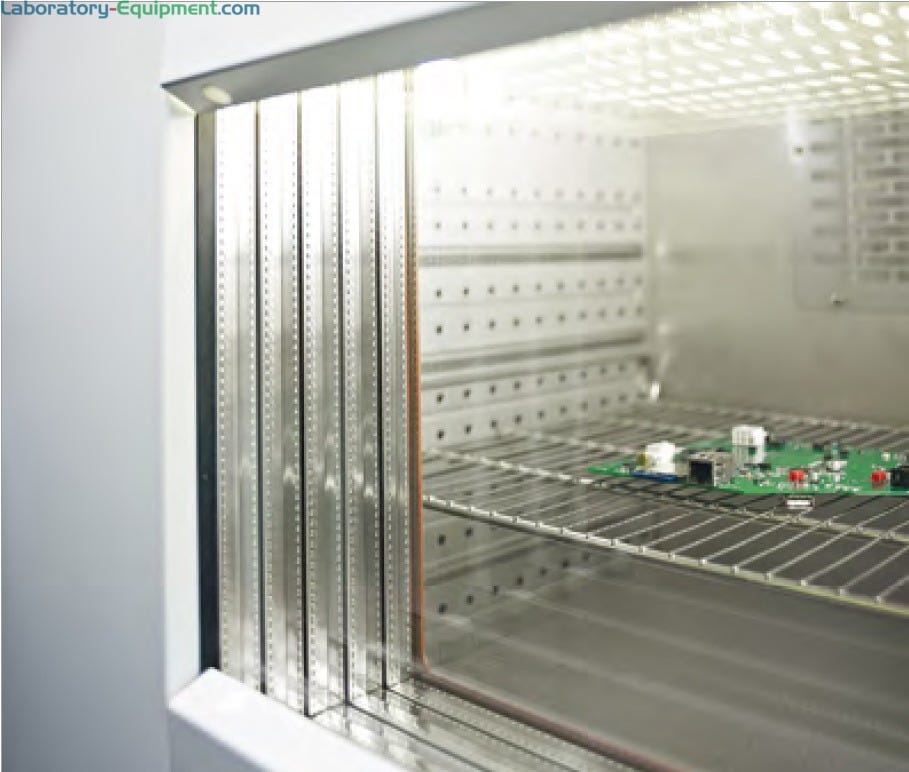

Convenient sample access

A spacious stainless steel inner chamber, heated viewing window and an LED light source provide easy access to samples.

Double Sided Air Flow

Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.
