Select Product

Voltage

Design

Exterior Material

Capacity

Temperature Range

Interior Material

Manufacturer SKU

Terra Part #PriceShips in
230 V Free Standing Powder Coated Steel 3.6 cu. ft. Ambient to 70°C Stainless Steel 9020-0320 1410-05 70457 $12,89515-21 Days2
230 V Free Standing Powder Coated Steel 8.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0322 1410-06 70458 $14,61515-21 Days3
230 V Free Standing Powder Coated Steel 24.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0324 1410-07 70459 $18,57315-21 Days4
240 V Free Standing Powder Coated Steel 36 cu. ft. Ambient to 70°C Stainless Steel 9020-0326 1410-08 70460 $20,89315-21 Days5
Voltage
Design
Exterior Material
Capacity
Temperature Range
Interior Material
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

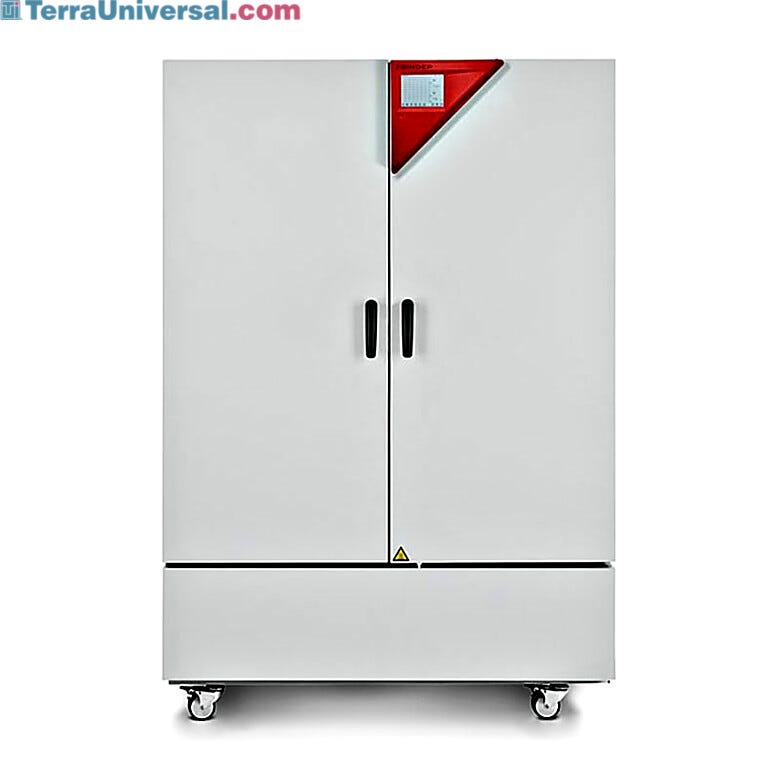

• BINDER KBF Series Humidity test chambers provide uniform temperature and humidity conditions

• Wide temperature and humidity range models create optimal test environment

• Double-sided airflow in the inner chamber delivers maximum parameter uniformity during stability and durability stress testing applications

• State-of-the-art humidity test chambers ideally suited for stability and durability stress testing

• Uniform temperature and air circulation with APT.line™ preheating chamber technology

• Intuitive touchscreen controller with time-segment and real-time programming and internal data recording

• Access port with silicone plug, 30 mm, left

• Features a steam humidity generator for fast recovery and neutral temperature effects

• Provides lowest air velocity

Environmental Test Chambers

  • BINDER Worldwide KBF 240 Humidity Test Chamber BINDER Worldwide KBF 240 Humidity Test Chamber
  • BINDER Worldwide KBF and KMF Humidity Test Chamber BINDER Worldwide KBF and KMF Humidity Test Chamber
  • Case Study of Leatherhead Food Research using Binder Chambers Case Study of Leatherhead Food Research using Binder Chambers
  • Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV
BINDER Worldwide KBF 240 Humidity Test Chamber
BINDER Worldwide KBF and KMF Humidity Test Chamber
Case Study of Leatherhead Food Research using Binder Chambers
Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV

Features & Benefits

Features and Benefits

Chamber Options and Accessories

KBF Series Humidity Test Chambers

Light Cassettes, LQC and data logger with optional ambient sensor

Binder offers a wide variety of options for the KBF Series Humidity chambers from additional stainless steel shelves and access ports to Data Logger Kits and calibration certificates

Water Source Options for KBF Series Humidity Test Chambers

Binder offers water source options for the KBF Series to satisfy various water supply preferences when using house water or BINDER Pure Aqua; external water tanks are also available

BINDER Growth Chambers Options and Accessories
  • Access port with silicone plug (right, left or top from 30 mm to 100 mm)
  • Alarm output, zero-voltage
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Calibration certificate, temperature and humidity
  • Class 3.3 independent temperature safety device
  • Converter, voltage
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • Interface converter
  • Interface converter, USB / RS422
  • Interior socket
  • LED light bars
  • pH-neutral detergent
  • PT 100 temperature sensor
  • Rack accessories
  • Rack, reinforced
  • Stainless steel racks
  • Stainless steel perforated shelves
  • RS 422 interface
  • RS 422 interface, cable (15 m)
  • RS 422 interface, cable (50 m)
  • RS 485, 2- wire
  • Software (various versions of the APT-COM communications software)
  • Water supply set
Model KBF 115 KBF 240 KBF 720 KBF 1020
Internal Volume 3.6 cu. ft. (102L) 8.72 cu. ft. (247 L) 24.72 cu. ft. (700 L) 36 cu. ft. (1020L)
External Dimensions W" x D" x H" (mm) 34.7 x 25.6 x 41.3 in. (880 x 650 x 1050 mm 36.4 x 31.5 x 57.5 in. (925 x 800 x 1460 mm) 49.21 x 35.04 x 75.79 in. (1250 x 890 x 1925 mm) 49.21 x 45.1 x 75.79 in. (1250 x 1145 x 1925 mm)
Internal Dimensions W" x D" x H" (mm) 23.6 x 13.8 x 19.0 in. (600 x 351 x 483mm) 25.59 x 19.09 x 30.91 in. (650 x 485 x 785 mm) 38.31 x 22.68 x 49.21 in (973 x 576 x 1250 mm) 38.4 x 32.9 x 49.21 in. (976 x 836 x 1250 mm)
Temperature range [°C] 0-70 0-70 0-70 0-70
Temperature variation at 40 °C [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation [± K] 0.1 0.1 0.1 0.5
Max. heat compensation at 40 °C [W] 200 300 600 600
Temperature range [°C] 10-70 10-70 10-70 10-70
Temperature variation at 25 °C and 60 % RH [± K] 0.2 0.3 0.2 0.2
Temperature variation at 40 °C and 75 % RH [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation at 25 °C and 60 % RH [± K] 0.1 0.1 0.1 0.1
Temperature fluctuation at 40 °C and 75 % RH [± K] 0.1 0.1 0.1 0.1
Humidity range [% RH] 10-80 10-80 10-80 10-80
Humidity fluctuation at 25 °C and 60 % RH ≤2 ± % RH 1.5 ± % RH 1.5 ± % RH 1.5 ± % RH
Humidity fluctuation at 40 °C and 75 % RH ≤2 ± % RH 1.5 ± % RH 1.5 ± % RH 1.5 ± % RH
Inner doors 1 1 2 2
Unit doors 1 1 2 2
permitted load [lbs.] 220 220 331 331
Load per rack [lbs.] 66 66 99 99
Energy consumption at 40 °C and 75 % RH [Wh/h] 470 650 620 650
Sound-pressure level [dB(A)] 52 52 53 56
Number of shelves (std./max.) 2/5 2/9 2/15 2/15
Electrical 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz

Double Sided Air Flow

Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.

Climate Diagram

Wide temperature and humidity range maintain maximum parameter uniformity for optimum conditions within the test chamber environment

ICH Check Points for BINDER KBF Series

Shows temperature and humidity ICH checkpoints for long-term testing, accelerated testing and stress testing of KBF Test Chambers.

Stainless steel chamber and corrosion-resistant glass inner door

KBF P Humidity test chambers feature stainless steel inner chamber and racks; the tight-sealing inner door made of ESG safety glass is coated to resist corrosion
