Incubators & Environmental Test Chambers

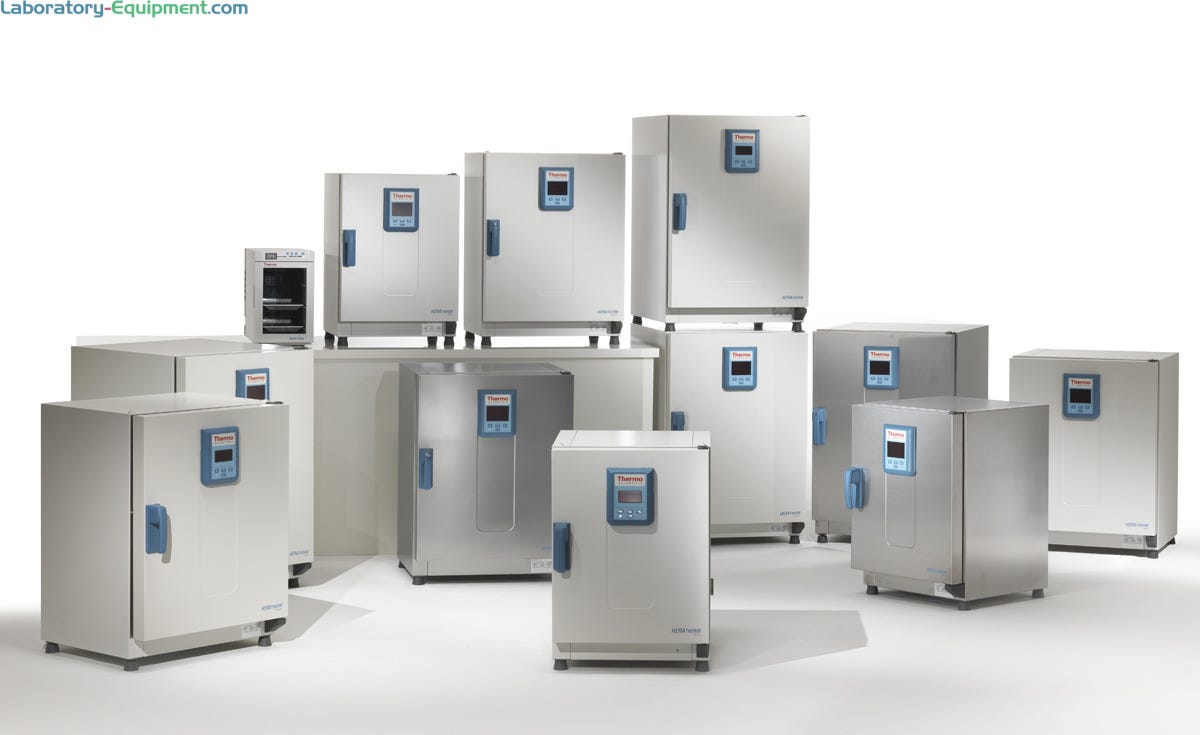

A – Lab Incubator Capacity
(back to chart)

Laboratory incubators are manufactured in a broad array of sizes, ranging from compact benchtop units smaller than 1 cubic foot to high-capacity, reach-in chambers larger than 40 cubic feet.

Compact incubators (small-footprint, counter-top models under 6 cubic feet) are designed to house samples from a single cell culture line. For labs with limited workspace, certain benchtop incubators are compatible with stacking kits that accommodate up to 3 units.

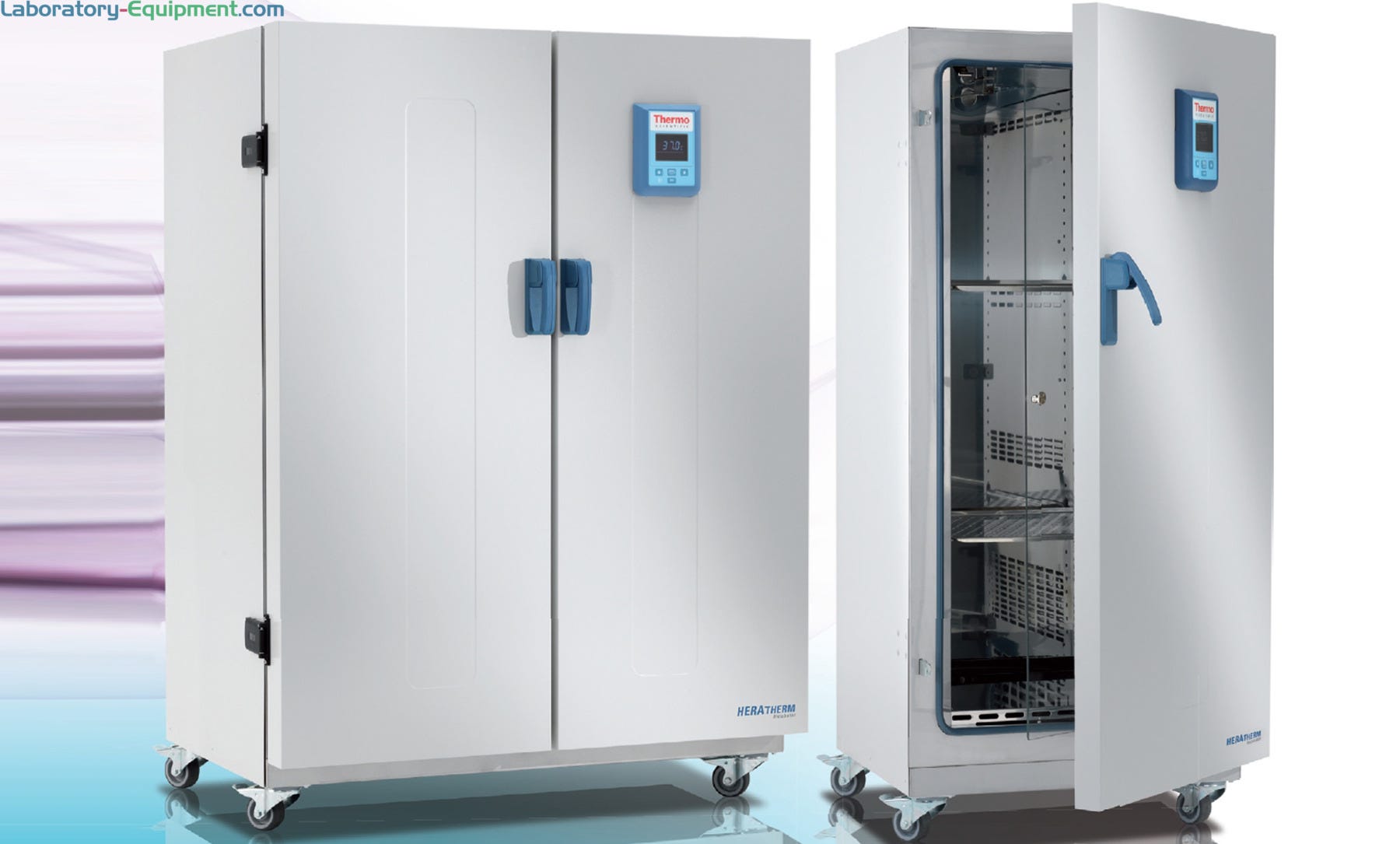

Floor-standing incubators (up to 20 cubic feet) are designed to isolate cultures from multiple cell lines, protecting the samples from cross-contamination.

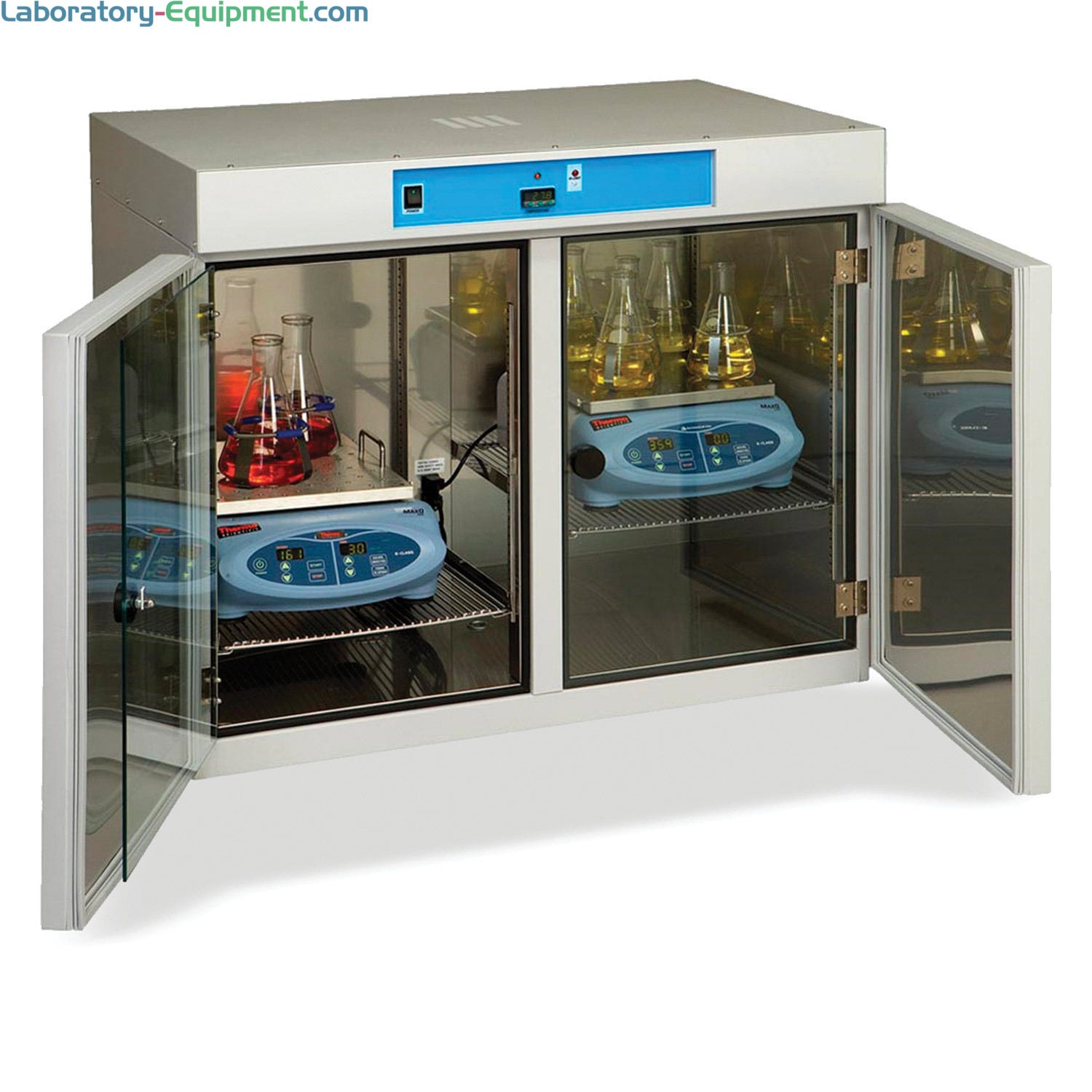

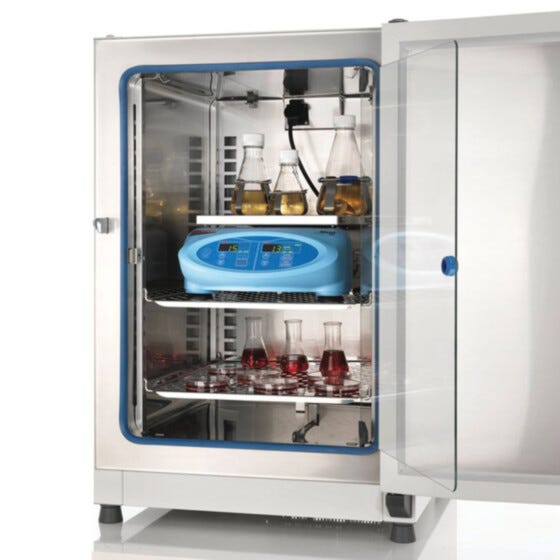

High volume reach-in models (larger than 20 cubic feet) include space for additional sample agitation equipment, such as incubator-safe shakers, for cell aeration and solubility studies.

Compare Incubator Sizes and Prices

• 13 to 20 cubic feet 7
• 6 to 12 cubic feet 12
• >20 cubic feet 6
• <6 cubic feet 28

B – Incubator Temperature Control Systems
(back to chart)

Lab incubators and environmental test chambers are designed to maintain environmental conditions ideal for growing and storing bacterial and mammalian cell cultures.

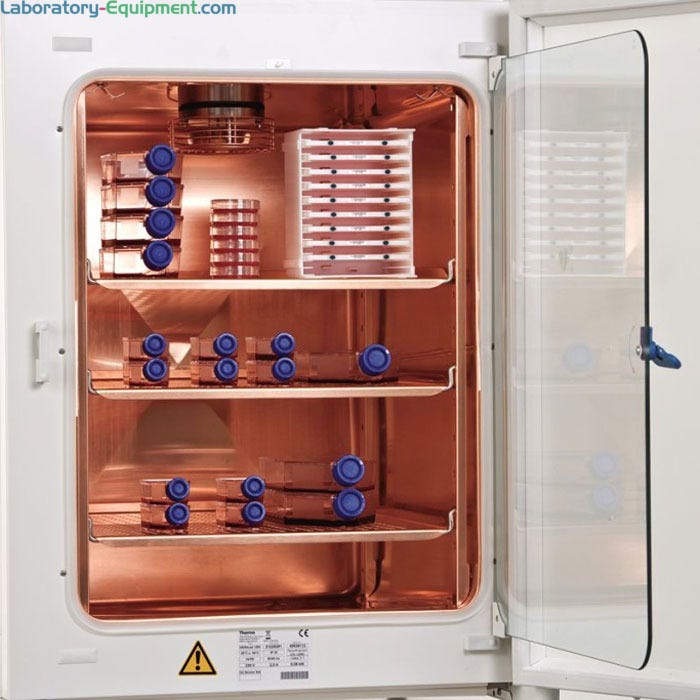

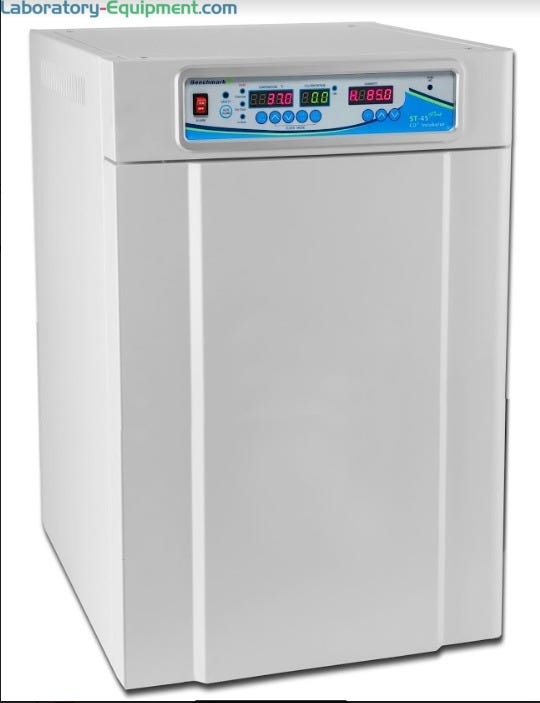

Why Use a CO2 Incubator for Cell Culture?

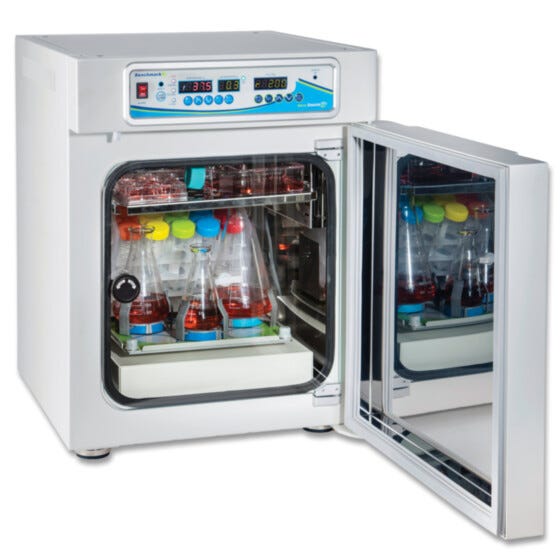

CO2 incubators, used primarily to promote human cell growth, maintain a temperature of 37 degrees Celsius and a humidity level of 95% RH. Microbiological incubators are designed to sustain temperatures between 5 degrees and 70 degrees Celsius to accommodate a variety of bacterial, viral and fungal species.

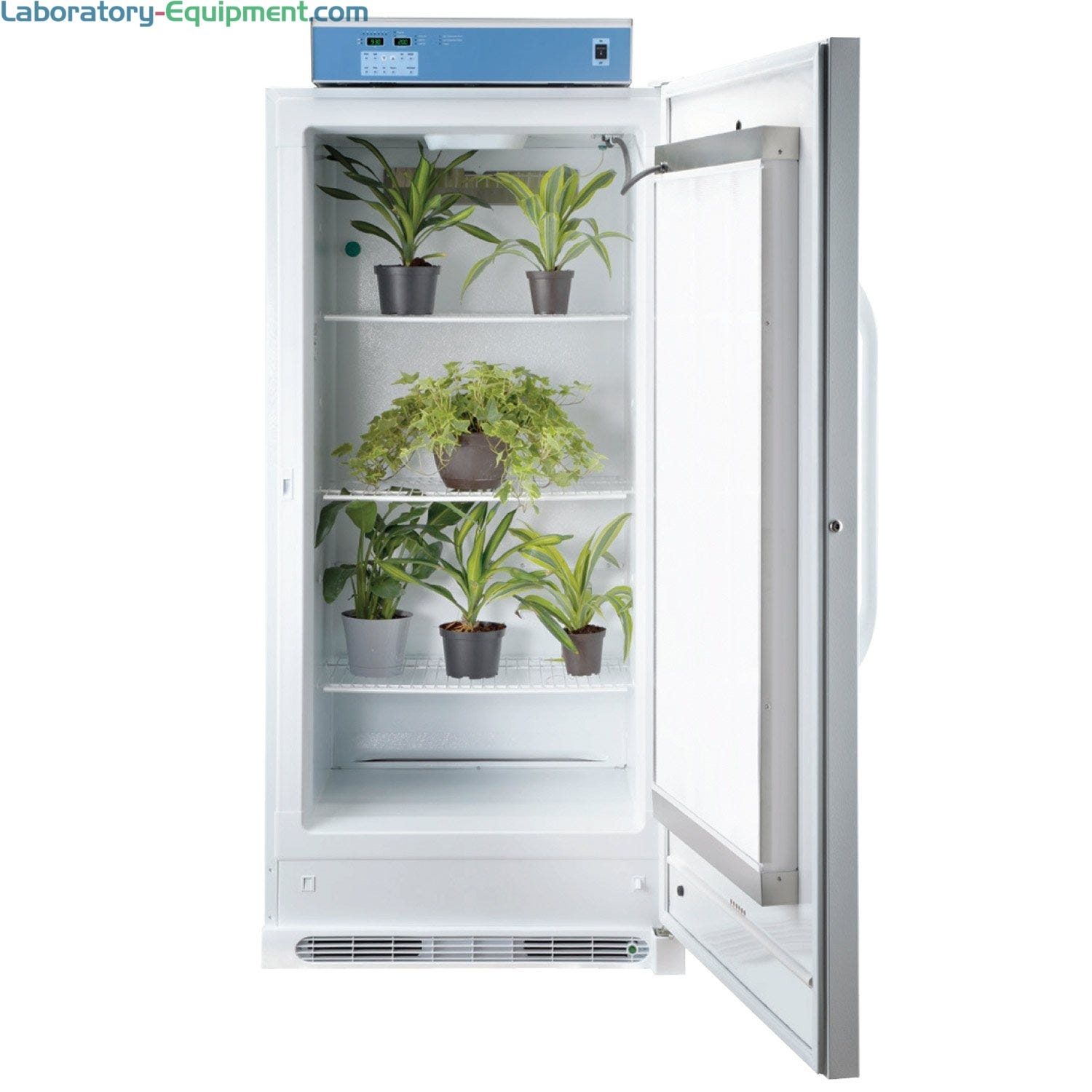

Refrigerated incubators maintain temperatures up to 40 degrees cooler than ambient conditions for fermentation studies and plant cell cultures.

C – Incubator Construction Material
(back to chart)

C1 – Aluminum Incubators

Drosophila incubators feature day/night cycling to promote fruit fly germination and include aluminum-clad interior panels for better light refraction throughout the chamber.

C2 – Epoxy-Coated Steel Incubators

Epoxy-coated steel resists the most common biocides and alcohol-based disinfectants, but may be prone to corrosion in high humidity environments.

C3 – Powder-Coated Steel Incubators

Powder-coated steel represents an economical alternative to stainless steel, resisting most sanitizers and disinfectants. However, the powder coating may crack after prolonged exposure to bleach-based cleaners.

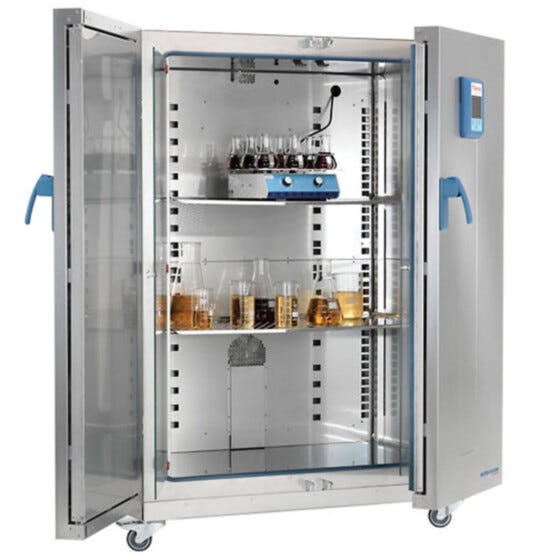

C4 – Stainless Steel Incubators

Stainless steel incubators maintain aseptic conditions within the incubator, resist all sanitizers and disinfectants, and will not corrode in high humidity environments.

D – Environmental Incubator Air Convection Method
(back to chart)

D1 – Air Jacket Incubators

Jacketed CO2 Incubators employ two primary methods of temperature control: water-jacketed and air-jacketed internal plenums. Water-jacketed incubators offer better temperature uniformity but must be drained and cleaned weekly. Air-jacketed models are lighter, easier to transport, and maintenance-free.

D2 – Dual Convection Incubators

Dual convection incubators toggle between mechanical and gravity convection modes. Gravity convection models introduce heat, through a heating element, at the bottom of the internal chamber and allow gravity to cause the warmed air to rise throughout the storage area. Mechanical convection systems utilize an internal fan to distribute heated air across the internal chamber.

D3 – Forced Air Incubators

Similar to mechanical convection systems, forced air incubator utilize an internal or external blower to distribute heated air throughout the internal chamber. Forced air and mechanical convection incubators boast reduced recovery times after the chamber is accessed, making these designs ideal for high-throughput cell culture labs.

D4 – Gravity Incubators

Gravity convection incubators introduce heat into the bottom of the internal chamber and allow gravity to distribute the warmed air across the storage area as it rises. Gravity convection systems maintain lower air change rates than mechanical or forced-air units – ideal for labs storing non-aqueous samples prone to over-drying.

D5 – Mechanical Incubators

Mechanical convection incubators yield industry-leading temperature uniformity by utilizing a fan to distribute heated air across the internal chamber. Given their higher air change rate, mechanical convection incubators quickly warm samples transferred from cold storage without evaporating the growth media.

E – Voltages
(back to chart)

E1 – 120 Incubators

120-volt connections are suitable for standard residential power outlets in the US.

E2 – 240 Incubators

240-volt connections require less current (amperage) and smaller conductors than appliances designed to operate at 120V.
