Select Product

Material

Controls

Maximum Temperature

Capacity

Convection Type

Voltage

Manufacturer SKU

PriceShips in
Powder-Coated Steel 225°C 3.4 cu. ft. Gravity 120 V SGO3 $2,10910-14 Days
Powder-Coated Steel 225°C 3.4 cu. ft. Gravity 240 V SGO3-2 $2,27410-14 Days
Powder-Coated Steel 225°C 5.4 cu. ft. Gravity 120 V SGO5 $2,59710-14 Days
Powder-Coated Steel 225°C 5.4 cu. ft. Gravity 240 V SGO5-2 $2,80010-14 Days
Stainless Steel Analog 306°C 1.4 cu. ft. Gravity 120 V $1,76415-19 Days
Stainless Steel Analog 306°C 1.4 cu. ft. Gravity 240 V $1,76415-19 Days
Material
Controls
Maximum Temperature
Capacity
Convection Type
Voltage
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

• Sturdy with triple wall construction

• Shel Lab Gravity Convection Ovens deliver precise temperature uniformity and air distribution

• Temperature and microprocessor controls and an adjustable air exhaust

• Units are well suited for a variety of drying, baking and curing applications

• Available in 3.4 and 5.4 cu. ft. capacities

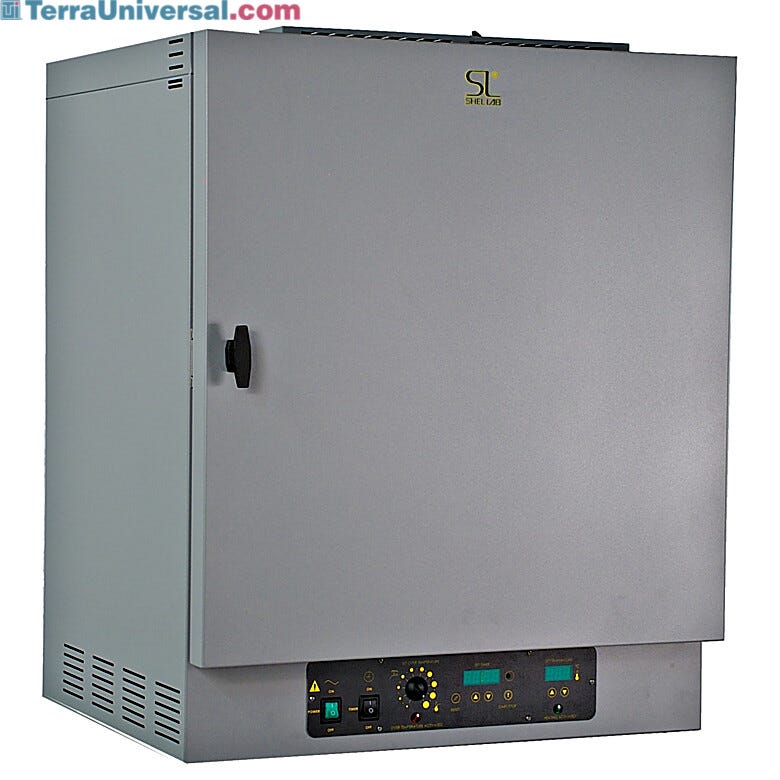

• Features: Triple wall construction, Microprocessor Controls, Superb Temperature Control and Cool Touch Damper

• Adjustable air exhaust away from heat source

• Digital timer (99hr and 59 min); power retains heating elements when times expires

• Optional reversible door

• Outer skin meets CE requirements even at 225°C; keeps applications hot without heating up workspace

• CE Approved on select models

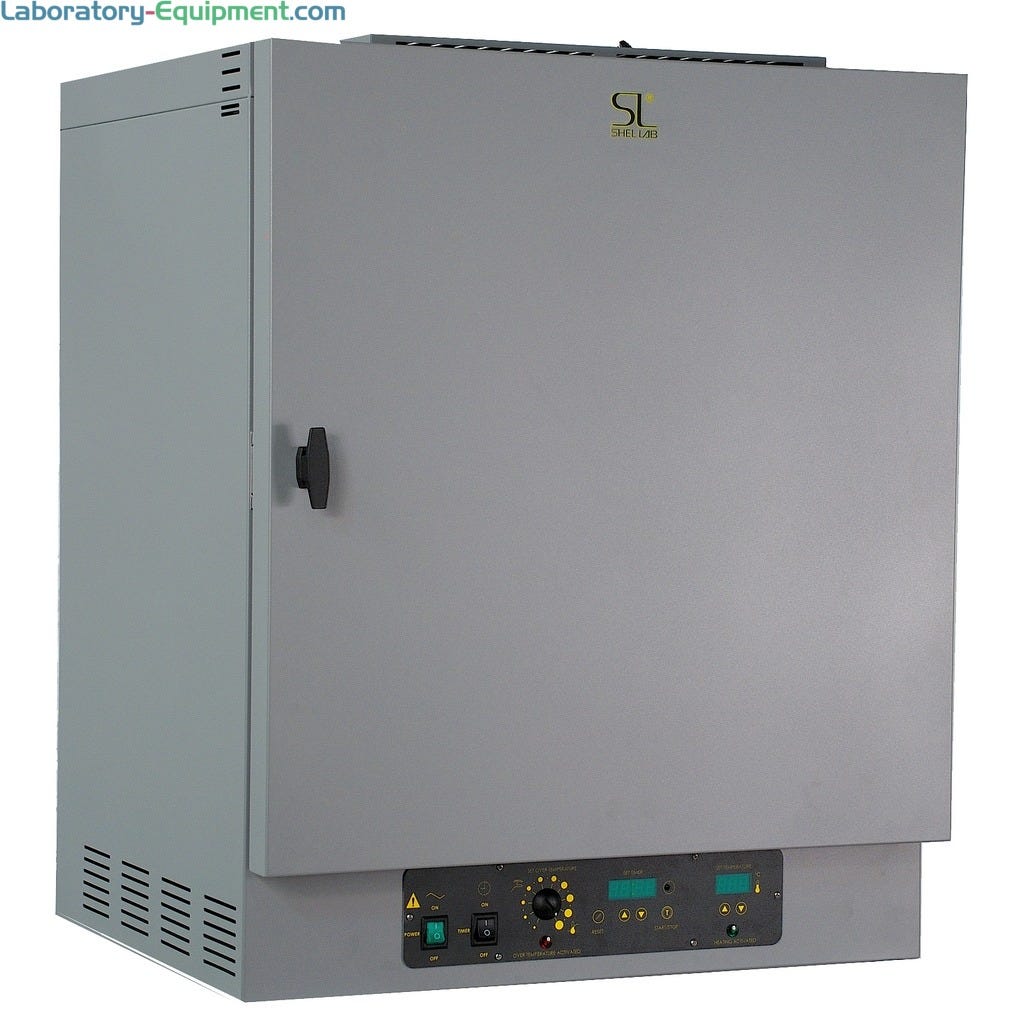

  • Shel Lab Gravity Convection Laboratory Oven Shel Lab Gravity Convection Laboratory Oven
Shel Lab Gravity Convection Laboratory Oven

Features & Benefits

Features and Benefits

Applications and Specifications

RapidVap Vacuum Dry Evaporation Systems by Labconco

Applications: drying, baking, curing; drying glassware, paper and pulp, textiles, non-flammable crystalline chemicals solid materials and tissue; biochemical research, drug metabolism research, moisture content analysis, pre-heating containers, moisture elimination, chemical precipitation, proteins starch digestion
Specifications for Gravity Convection Laboratory Ovens
Electrical 110-120V / 220-230V
Material Cold rolled mild steel; powder coated (external); 430 stainless steel (internal)
Shelves Includes 2/Holds maximum of 8
Temperature Range Ambient + 15°C to 225°C
Temperature Recovery 11 minutes at 150°C
Heat-up Time 36 minutes at 150°C
Temperature Uniformity ± 3°C at 150°C (3.4 cu. ft. models) and ± 4.0°C at 150°C (5.4 cu. f.t models)
Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodologies. Manufacturer reserves the right to change specifications at any time.

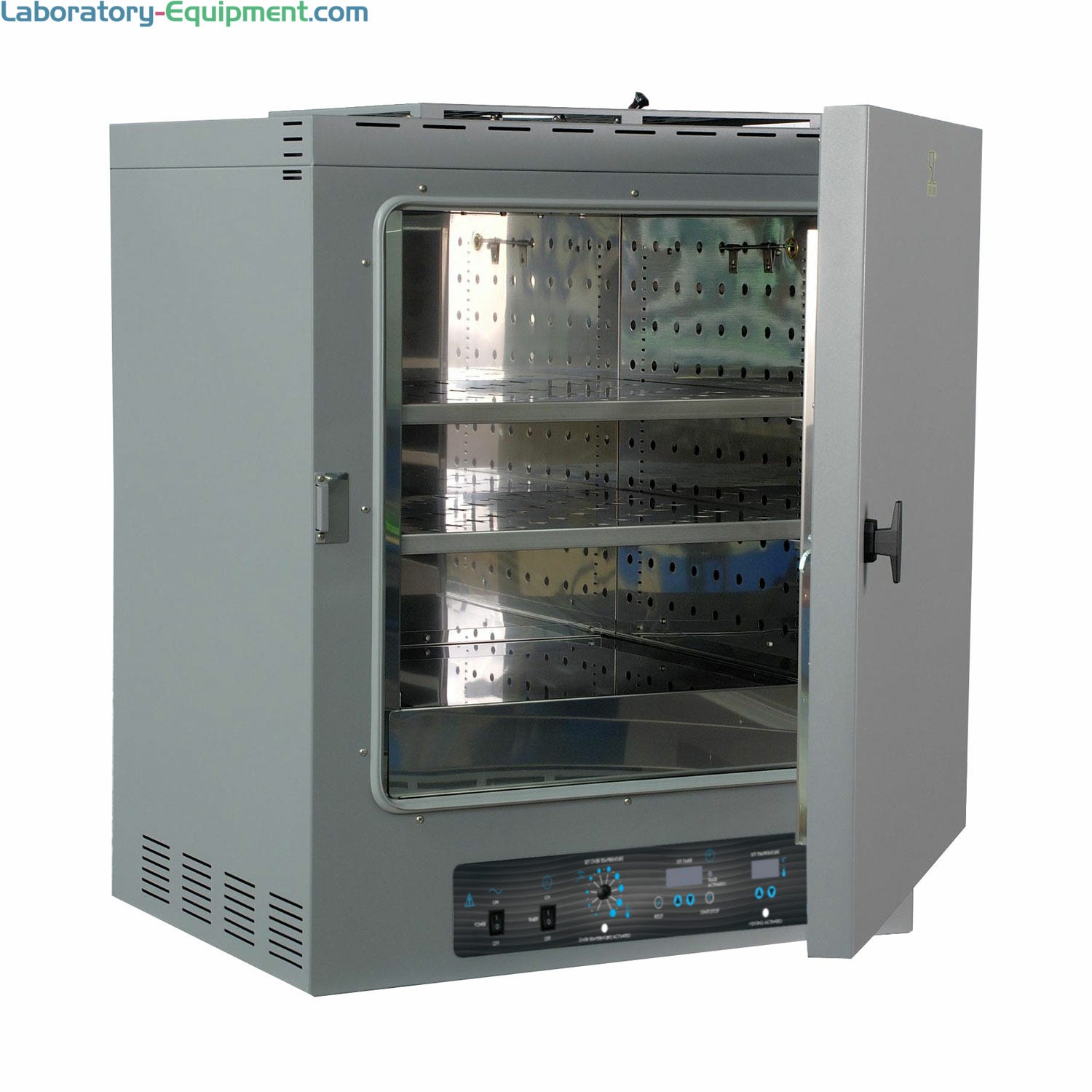

Gravity Convection Oven with adjustable shelves

Shel Lab Gravity Convection Ovens in double wall or triple wall construction models deliver gentle heating/drying and precise temperature uniformity

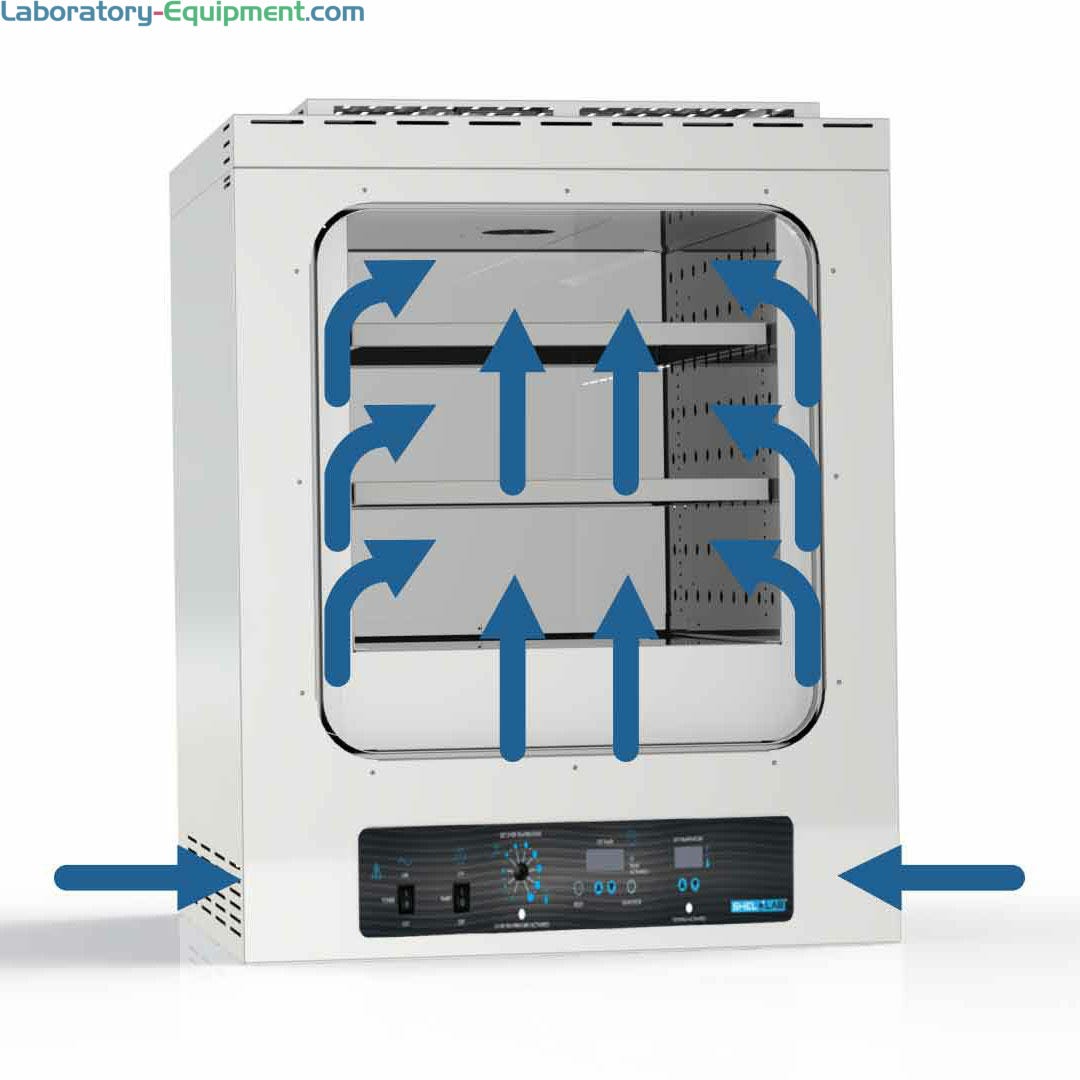

Economy Oven Airflow Chart

The Gravity Convection Economy Ovens saves energy while the double wall construction maintains uniform temperatures. Units deliver gentle heating and drying of lightweight samples such as powders, lightweight films and granular material.
