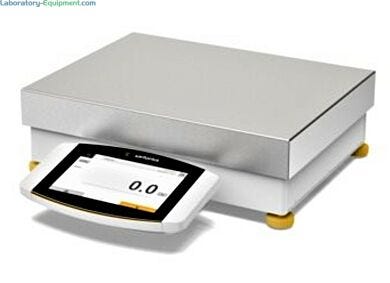

Models with an MCA display are available with a range of software options; built-inQ99 software in select models
Balances
Product Group:
5705-PP-01
5705-PP-01 71801

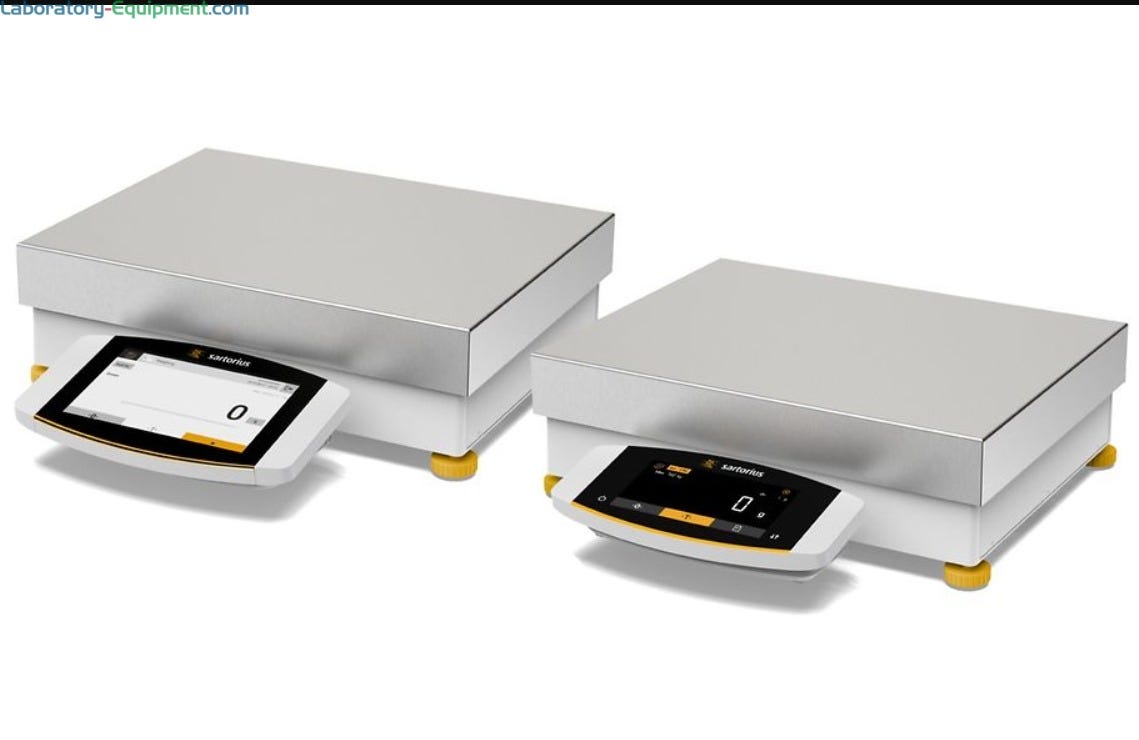

Cubis II High-Capacity Balances by Sartorius

  • Configured high-capacity models available with Advanced MCA or MCE control units
  • Weighing Capacity: 11.2 kg to 70 kg
  • Readability: 100 mg to 1000 mg
  • Weighing Pan: 400 x 300 mm
  • Minimum Sample Weight per USP: 8200 mg to 82000 mg
Read more
CE Mark Logo
Manufactured By: Sartorius
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Weighing Capacity

Sort Order:
Readability

Sort Order:
Balance Type

Sort Order:
Pan Size

Sort Order:
Model

Sort Order:
Draft Shield

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
100/240 V 12200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCE12201S0-S00 5705-52 76153 $6,086 5-7 Days 2
100/240 V 20200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCA20201S0-S00
 5705-48 76149 $11,720 5-7 Days 3
100/240 V 20200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCE20201S0-S00 5705-53 76154 $7,982 5-7 Days 4
100/240 V 32200 g 10|100 mg High-Capacity 400 x 300 mm Cubis II No MCE32202P0-S00 5705-56 76157 $16,385 5-7 Days 5
100/240 V 32200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCA32202P0-S00
 5705-50 76151 $20,123 30-40 Days 6
100/240 V 36200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCA36201S0-S00
MCA36201S0-S00
 5705-49 76150 $13,984 5-7 Days 7
100/240 V 36200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCE36201S0-S00 5705-54 76155 $10,246 5-7 Days 8
100/240 V 36200 g 1000 mg High-Capacity 400 x 300 mm Cubis II No MCE36200S0-S00 5705-55 76156 $6,929 5-7 Days 9
120/240 V 12200 g 100 mg High-Capacity 400 x 300 mm Cubis II No MCA12201S0-S00 5705-47 76148 $9,824 5-7 Days 10
100/240 V 70200 g 100 mg High-Capacity 400 x 300 mm Cubis II MCA70201S0-S00 5705-51 76152 $20,228 5-7 Days 11
Voltage
Weighing Capacity
Readability
Balance Type
Pan Size
Model
Draft Shield
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Configured high-capacity models available with Advanced MCA or MCE control units
  • Weighing Capacity: 11.2 kg to 70 kg
  • Readability:  100 mg to 1000 mg
  • Weighing Pan: 400 x 300 mm
  • Minimum Sample Weight per USP: 8200 mg to 82000 mg
  • Cubis II features: end-to-end data integrity, manual leveling, safe data transfer, electronic signatures, audit trail and alibi memory, user management
  • MCA Advanced Interface: 7” color touch display, swipe, factory installed weighing applications, climate monitoring, status center notifications, QApp software package, easy to use and navigate, ideal for complex lab weighing applications
  • MCE Essential User Interface: high-contrast touch display, factory-installed weighing applications, ideal for simple lab weighing applications
  • Compliance: 21 CFR part 11 and EU Annex 11 compliance, traceability, submission-ready data, integration of SOPs and governance
  • Modularity: 45 weighing modules available, choice of MCA or MCE user interface
  • Software: Pre-installed and modifiable QApp software packages are available to satisfy many weighing applications; cost-effective, all-inclusive QP99 package recommended
  • Regulatory requirements: ISO, FDA/USP, GxP, verified
  • Two-Year Manufacturer Warranty
Show more

Show more

Balances

  • Sartorius Cubis II Analytical and Precision Balances. Modular Cubis II Balances by Sartorius
  • Cubis II High-Capacity Balances by Sartorius Cubis II High-Capacity Balances by Sartorius
Sartorius Cubis II Analytical and Precision Balances.
Showcases the modular aspects and configurable qualities of Sartorius Cubis II Balances Modular Cubis II Balances by Sartorius Cubis II Balances by Sartorius are ideal lab weighing equipment for research and compliance labs
Cubis II High-Capacity Balances by Sartorius
Models are available with an Advanced MCA or standard MCE control unit Cubis II High-Capacity Balances by Sartorius Cubis II Balances with a weighing capacity from 11200g to 70200g include pre-installed software (on select models) for a variety of weighing applications
Features & Benefits

Features & Benefits

Learn More: Sartorius Cubis II Balances
Print Copy Copied

Additional Features

Cubis II Lab Balances by Sartorius
Sartorius Cubis II Balances are available in various configurations: Ultra-Micro, Microbalances, Semi-Micro, Analytical, Precision and High-Capacity. All Cubis II Balances are modular and can be configured to suit a variety of lab weighing applications by adding QApp software packages, draft shields and control units.
  • Ultra-Micro and Microbalances, with a maximum load of 2.1 g to 10.1 g and readability from 0.1 µg and 1 µg, are ideal for standard lab weighing applications. Models are available with an automatic glass draft shield or a manual stainless steel draft shield.
  • Semi-Micro and Analytical models, with a maximum load from 120 g to 520 g and readability from 0.01 mg to 0.1 mg, are available with an automatic glass draft shield.
  • Precision balances, with a maximum load from 320 g to 14,200 g and readability from 1 mg to 100 mg, are available with an automatic glass draft shield or a removable stainless steel draft shield.
  • High-Capacity models have a maximum load from 11.2 kg to 70 kg and readability from 100 mg to 1 g.
Cubis II Balances Compatibility with Fume Hoods

Select Cubis II balances are compatible with enclosures and fume hoods when used with the Q-Grid Pan. The Q-Grid Pan, compatible with balances with a readability of 10 mg and 100 mg (except for #52025), is ideal for use in drafty environments due to the reduced surface area design of the pan.



MCA and MCE control units are available for all Cubis II Lab Balances.

Type MCA Type MCE
Display Large high end 7" color touch TFT display in 16:9 format with new user interface Display State of the art TFT touch screen operation with brilliant, readable, display but uncomplex, easy to operate user interface
Software Factory installed basic set of essential weighing applications (license free) and Packages with special weighing applications and function extentsions (license required) Software Factory installed basic set of essnetial weighing applications
Operaton Activated by touch key, touch-free using IR sensor (draft shield M) or gesture snsor (optional), learning capability Operaton Activated by touch key, touch-free using IR sensor (draft shield M) or gesture sensor (optional) learning capability

Cubis II Balances Gesture Control

Gesture control feature enables touch-free operation; user can start, open and close the draft shield and send documents to a remote device

MCA Advanced User Interface

Features a 7” TFT touchscreen display in 16:9 format with an intuitive user interface and factory installed basic set of weighing applications

MCE Display and Control for Basic Weighing

TFT touch screen with factory installed weighing applications, enables configuration of automated draft shield and built-in ionizer; after purchase upgrade not available
