- Modular balances available with MCA or MCE control units
- Readability: 1 mg to 100 mg
- Weighing capacity: 320 g – 70200 g
- Weighing pan dimensions: 140 × 140 mm or 400 × 300 mm
- Minimum Sample Weight per USP: 8200 mg – 82000 mg
Balances
5704-PP-02
5704-PP-02 75717
Cubis II Precision Balances by Sartorius
Read more
Manufactured By: Sartorius
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
- Modular balances available with MCA or MCE control units
- Readability: 1 mg to 100 mg
- Weighing capacity: 320 g – 70200 g
- Weighing pan dimensions: 140 × 140 mm or 400 × 300 mm
- Minimum Sample Weight per USP: 8200 mg – 82000 mg
- Cubis II Precision Balances are available with automatic or manual glass draft shields or a removable flat stainless steel frame
- Precision Balance Features: assisted or automatic leveling, internal and isoCAL adjustment
- MCA Advanced Interface: 7” color touch display, swipe, factory installed weighing applications, QApp software package, climate monitoring, status center notifications, easy to use and navigate, ideal for complex lab weighing applications
- MCE Essential User Interface: high-contrast touch display, factory-installed weighing applications, ideal for simple lab weighing applications
- Compliance: 21 CFR part 11 and EU Annex 11 compliance, traceability, submission-ready data, integration of SOPs and governance
- Modularity: 45 weighing modules available, choice of MCA or MCE user interface, 7 draft shields
- Software: Pre-installed and modifiable QApp software packages are available to satisfy many weighing applications; cost-effective, all-inclusive QP99 package recommended
- Cubis II features: end-to-end data integrity, gesture sensor, assisted leveling on models with a weighing capacity of 8kg and above, climate monitoring and status center notifications, safe data transfer, electronic signatures, audit trail and alibi memory, user management
- Optional interfaces: Ethernet (MCA control unit only), RS-232 9 Pin, USB A, USB B, USB C, peripheral connector (for Sartorius accessories)
- Regulatory requirements: ISO, FDA/USP, GxP, verified
Balances
Cubis II Precision Balances by Sartorius

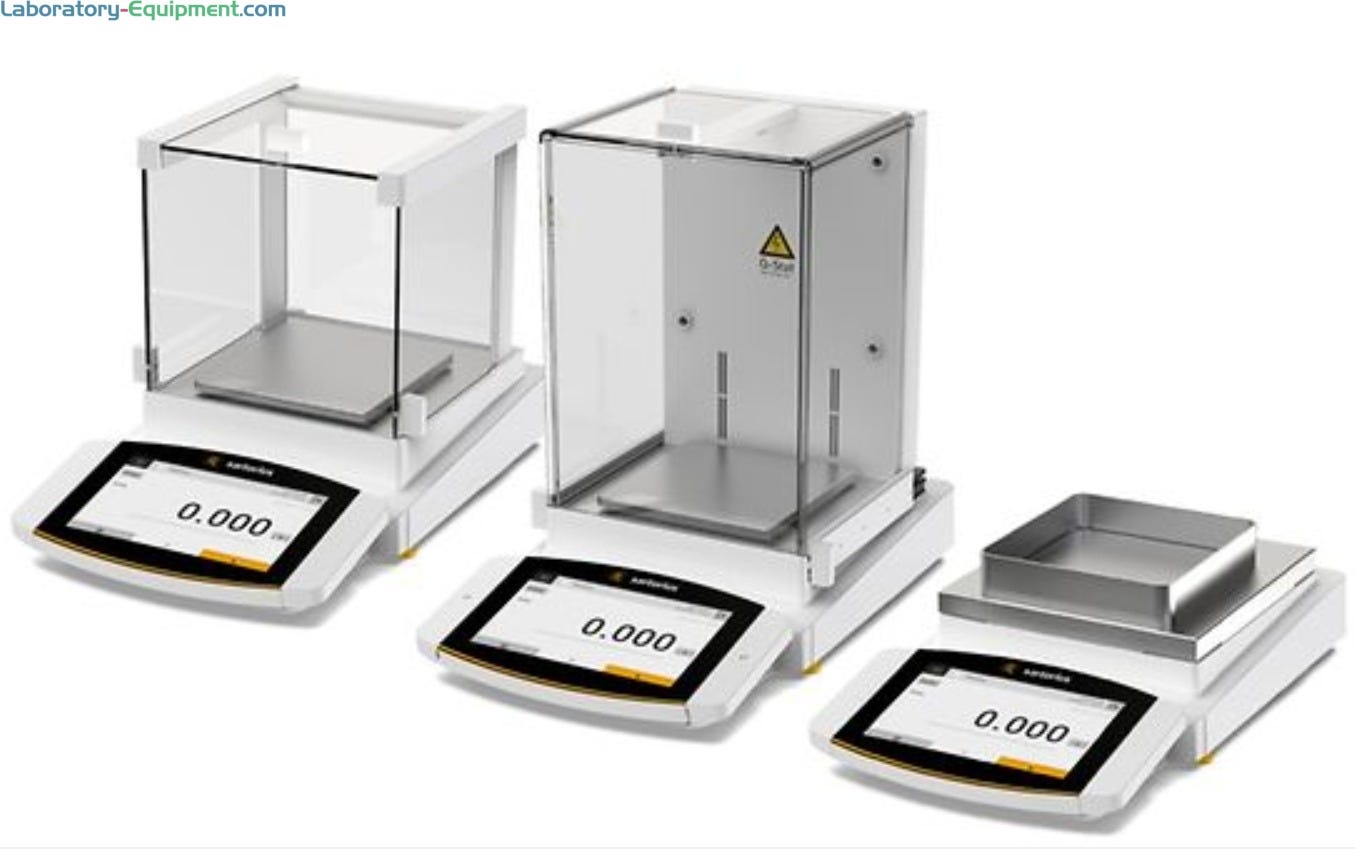

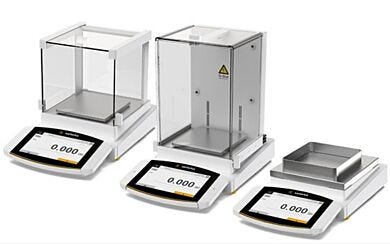

Modular Cubis II Precision Balances are available with a control unit, draft shield, ionizer or software on select models | 5704-20 displayed Cubis II Precision Balances by Sartorius Automatic and manual glass draft shields are available with an optional integrated ionizer to eliminate electrostatic charges
Features & Benefits
Features and Benefits
Learn More: Sartorius Cubis II Balances
Sartorius Cubis II Balances are available in various configurations: Ultra-Micro, Microbalances, Semi-Micro, Analytical, Precision and High-Capacity. All Cubis II Balances are modular and can be configured to suit a variety of lab weighing applications by adding QApp software packages, draft shields and control units.
Print Copy Copied
Additional Features
Cubis II Lab Balances by Sartorius
- Ultra-Micro and Microbalances, with a maximum load of 2.1 g to 10.1 g and readability from 0.1 µg and 1 µg, are ideal for standard lab weighing applications. Models are available with an automatic glass draft shield or a manual stainless steel draft shield.
- Semi-Micro and Analytical models, with a maximum load from 120 g to 520 g and readability from 0.01 mg to 0.1 mg, are available with an automatic glass draft shield.
- Precision balances, with a maximum load from 320 g to 14,200 g and readability from 1 mg to 100 mg, are available with an automatic glass draft shield or a removable stainless steel draft shield.
- High-Capacity models have a maximum load from 11.2 kg to 70 kg and readability from 100 mg to 1 g.
Cubis II Balances Compatibility with Fume Hoods
Select Cubis II balances are compatible with enclosures and fume hoods when used with the Q-Grid Pan. The Q-Grid Pan, compatible with balances with a readability of 10 mg and 100 mg (except for #52025), is ideal for use in drafty environments due to the reduced surface area design of the pan.
MCA and MCE control units are available for all Cubis II Lab Balances.
 |  | ||
|---|---|---|---|
| Type | MCA | Type | MCE |
| Display | Large high end 7" color touch TFT display in 16:9 format with new user interface | Display | State of the art TFT touch screen operation with brilliant, readable, display but uncomplex, easy to operate user interface |
| Software | Factory installed basic set of essential weighing applications (license free) and Packages with special weighing applications and function extentsions (license required) | Software | Factory installed basic set of essnetial weighing applications |
| Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture snsor (optional), learning capability | Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture sensor (optional) learning capability |

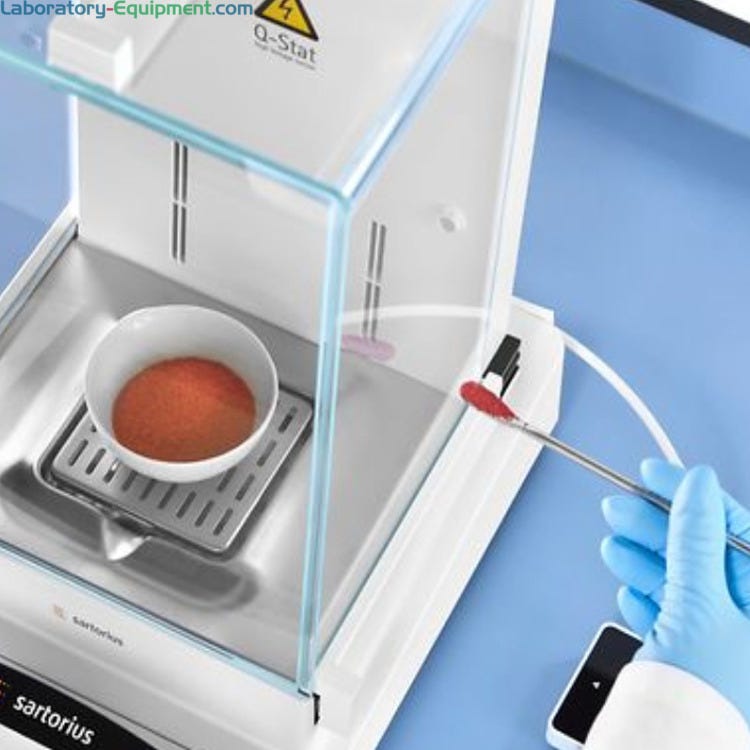

Cubis II Balances Gesture Control
Gesture control feature enables touch-free operation; user can start, open and close the draft shield and send documents to a remote device

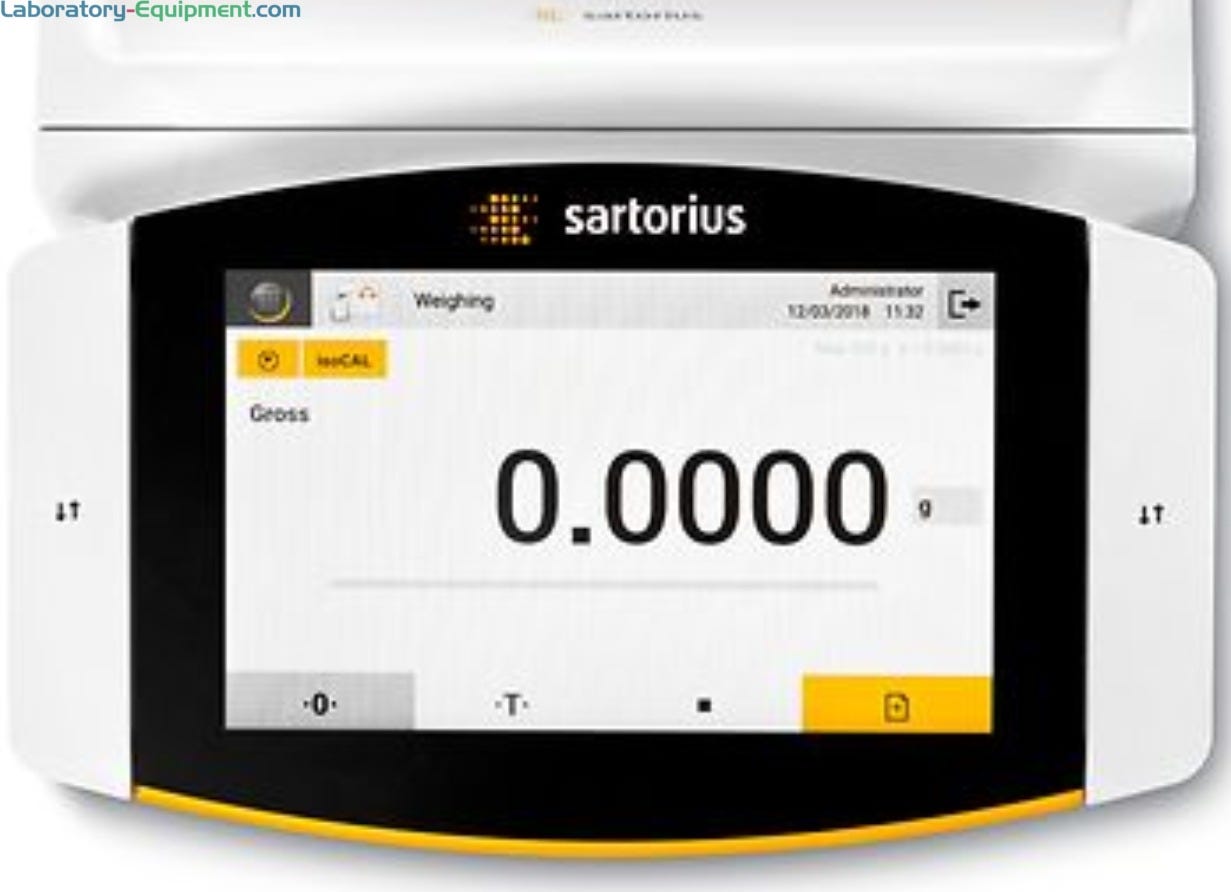

MCA Advanced User Interface
MCA Advanced User Interface features a high resolution 7" color touch display with swipe functionality

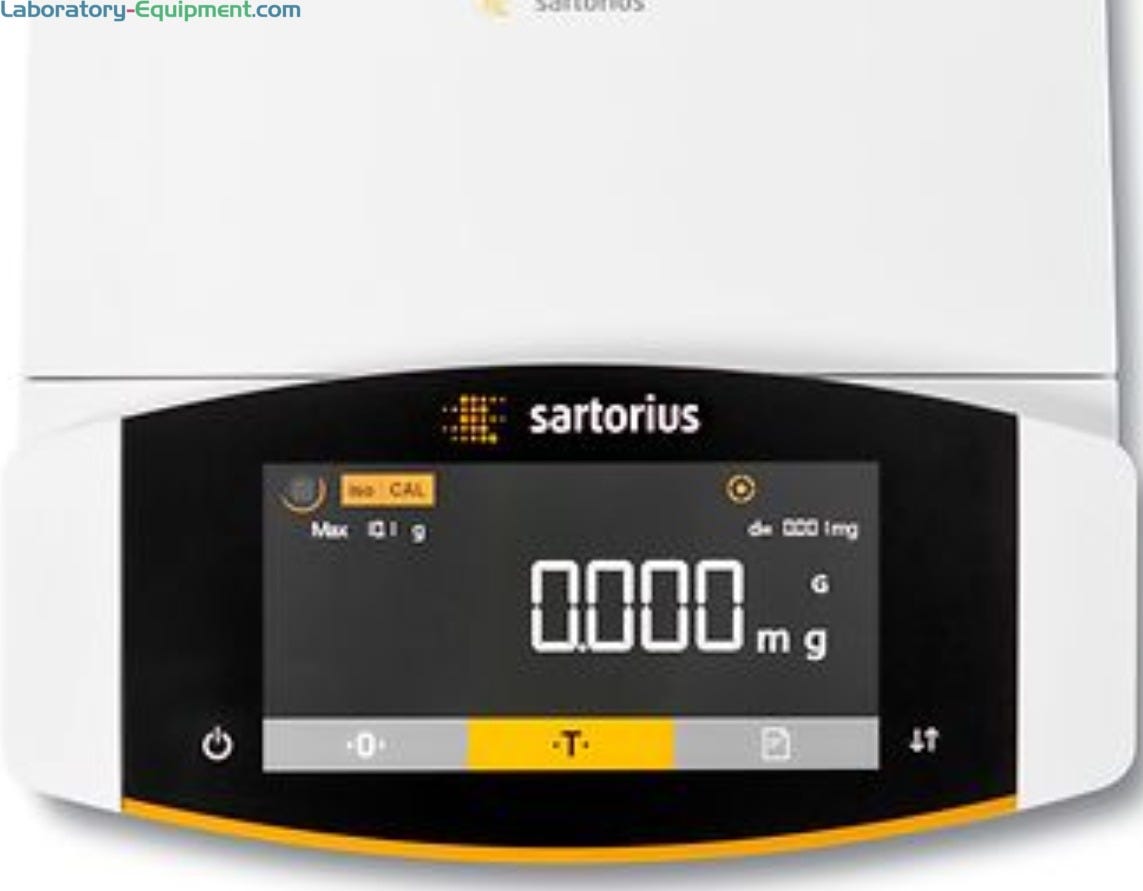

MCE Display and Control for Basic Weighing
MCE display and control with touch screen operation features an easy to read display and interface

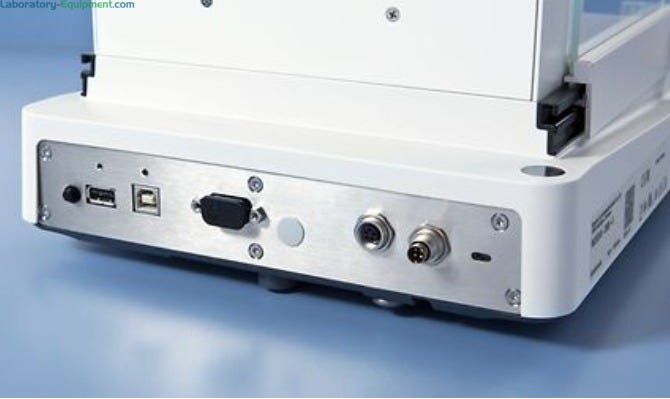

Efficient Connectivity
Cubis II balances with an MCA interface feature USB A, B and C ports enabling efficient data transfer with external software systems

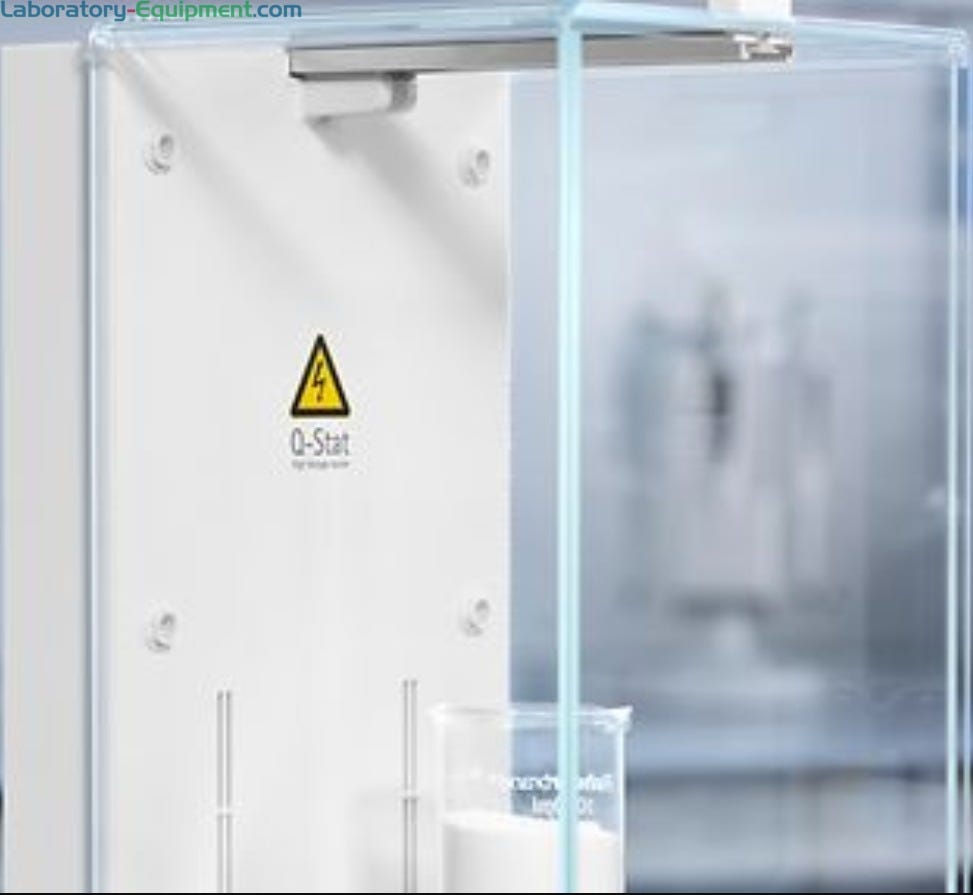

Neutralizes Electrostatic Charges
Select Cubis II Lab Balances feature an integrated ionizer and conductive glass panels that neutralize electrostatic charges

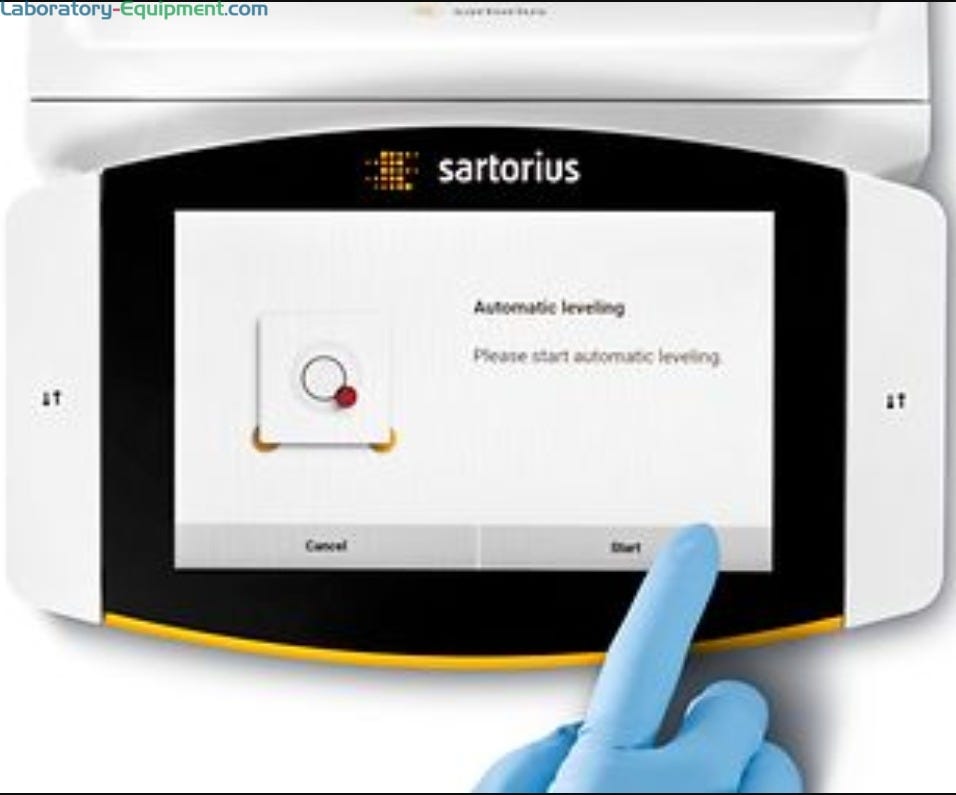

Automatic Motorized Leveling
Models with a ≤ 8.2 kg weighing capacity feature built-in motors for automatic leveling and alerts when re-leveling is required
