- Readability: 0.01 mg – 0.1 mg
- Weighing capacity: 120 g – 520 g
- Weighing pan dimensions: 85 × 85 mm
- MCA models include QApp software
- Integrated ionizer in glass draft shield eliminates electrostatic charges
Balances
5704-PP-05 75812

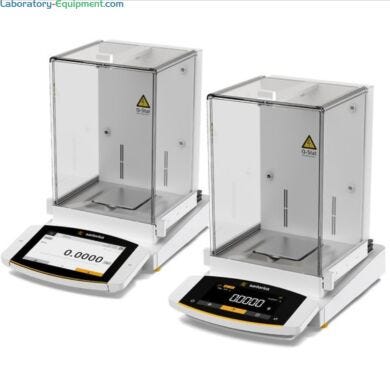

Cubis II Semi-Micro Balances by Sartorius
Read more
Manufactured By: Sartorius
Warranty: Two-year manufacturer warranty
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
- Readability: 0.01 mg – 0.1 mg
- Weighing capacity: 120 g – 520 g
- Weighing pan dimensions: 85 × 85 mm
- MCA models include QApp software
- Integrated ionizer in glass draft shield eliminates electrostatic charges
- Minimum Sample Weight per USP: 8.2 mg
- Weighing Pan Size: 85 x 85 mm
- Weighing pan material: Titanium
- Cubis II features: end-to-end data integrity, gesture sensor, automatic leveling, safe data transfer, electronic signatures, audit trail and alibi memory, user management
- Optional interfaces: Ethernet (MCA control unit only), RS-232 9 Pin, USB A, USB B, USB C, peripheral connector (for Sartorius accessories)
- MCA Advanced Interface: 7” color touch display, swipe, factory installed weighing applications, climate monitoring and status center notifications,QApp software package, easy to use and navigate, ideal for complex lab weighing applications
- MCE Essential User Interface: high-contrast touch display, factory-installed weighing applications, ideal for simple lab weighing applications
- Compliance: 21 CFR part 11 and EU Annex 11 compliance, traceability, submission-ready data, integration of SOPs and governance
- Modularity: 45 weighing modules available, choice of MCA or MCE user interface, draft shields
- Software: Pre-installed and modifiable QApp software packages are available to satisfy many weighing applications; cost-effective, all-inclusive QP99 package recommended
- Regulatory requirements: ISO, FDA/USP, GxP, verified
Features & Benefits
Features and Benefits
Cubis II Series Balances by Sartorius
Sartorius Cubis II Balances are available in various configurations: Ultra-Micro, Microbalances, Semi-Micro, Analytical, Precision and High-Capacity. All Cubis II Balances are modular and can be configured to suit a variety of lab weighing applications by adding QApp software packages, draft shields and control units.
Print Copy Copied
Additional Features
Cubis II Lab Balances by Sartorius
- Ultra-Micro and Microbalances, with a maximum load of 2.1 g to 10.1 g and readability from 0.1 µg and 1 µg, are ideal for standard lab weighing applications. Models are available with an automatic glass draft shield or a manual stainless steel draft shield.
- Semi-Micro and Analytical models, with a maximum load from 120 g to 520 g and readability from 0.01 mg to 0.1 mg, are available with an automatic glass draft shield.
- Precision balances, with a maximum load from 320 g to 14,200 g and readability from 1 mg to 100 mg, are available with an automatic glass draft shield or a removable stainless steel draft shield.
- High-Capacity models have a maximum load from 11.2 kg to 70 kg and readability from 100 mg to 1 g.
Cubis II Balances Compatibility with Fume Hoods
Select Cubis II balances are compatible with enclosures and fume hoods when used with the Q-Grid Pan. The Q-Grid Pan, compatible with balances with a readability of 10 mg and 100 mg (except for #52025), is ideal for use in drafty environments due to the reduced surface area design of the pan.
MCA and MCE control units are available for all Cubis II Lab Balances.
 |  | ||
|---|---|---|---|
| Type | MCA | Type | MCE |
| Display | Large high end 7" color touch TFT display in 16:9 format with new user interface | Display | State of the art TFT touch screen operation with brilliant, readable, display but uncomplex, easy to operate user interface |
| Software | Factory installed basic set of essential weighing applications (license free) and Packages with special weighing applications and function extentsions (license required) | Software | Factory installed basic set of essnetial weighing applications |
| Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture snsor (optional), learning capability | Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture sensor (optional) learning capability |
Cubis II Balances Gesture Control
Gesture control feature enables touch-free operation; user can start, open and close the draft shield and send documents to a remote device
MCA Advanced User Interface
MCA Advanced User Interface features a high resolution 7" color touch display with swipe functionality
Neutralizes Electrostatic Charges
Select Cubis II Lab Balances feature an integrated ionizer and conductive glass panels that neutralize electrostatic charges
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
