Select Product
Voltage

Weighing Capacity

Readability

Balance Type

Pan Size

Model

Draft Shield

Draft Shield Type

Manufacturer SKU

Terra Part # Price Ships in
120/240 V 2.1 g 0.0001 mg Ultra-Micro 20 mm Cubis II Yes Glass/ Automatic MCA2.7SM-S00 5704-43 75762 $46,878 5-7 Days 2
Ships Free In stock
120/240 V 2.1 g 0.0001 mg Ultra-Micro 20 mm Cubis II Yes Stainless Steel MCA2.7SF-S00 5704-42 75761 $48,058 5-7 Days 3
Ships Free In stock
120/240 V 3.1 g 0.005 mg Micro 30 mm Cubis II Yes Glass/ Automatic MCA3.6PM-S00 5704-45 75765 $29,455 5-7 Days 4
Ships Free In stock
120/240 V 10.1 g 0.001 mg Micro 30 mm Cubis II Yes Glass/ Automatic MCA10.6SM-S00 5704-44 75763 $45,260 5-7 Days 5
Ships Free In stock
120/240 V 6.1 g 0.001 mg Micro 30 mm Cubis II Yes Stainless Steel MCA6.6SF-S00 5704-46 75766 $38,600 5-7 Days 6
Ships Free In stock
120/240 V 6.1 g 0.001 mg Micro 30 mm Cubis II Yes Glass/ Automatic MCA6.6SM-S00 5704-47 75767 $37,421 5-7 Days 7
Ships Free In stock
120/240 V 3.1 g 0.005 mg Micro 30 mm Cubis II Yes Glass/ Automatic MCE3.6PM-S00 5704-48 75778 $25,886 5-7 Days 8
Ships Free In stock
Voltage
Weighing Capacity
Readability
Balance Type
Pan Size
Model
Draft Shield
Draft Shield Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Modular Cubis II Ultra-Micro and Microbalances with glass or stainless steel draft shield
  • Available with MCA or MCE control units
  • Readability: 0.0001 mg - 0.001 mg
  • Weighing capacity: 2.1 g - 10.1 g
  • Weighing pan dimensions: 20 mm diameter
  • Filter weighing pan: 50 mm diameter
  • Minimum Sample Weight per USP: 0.082 to 0.82 mg
  • Weighing pan material: Titanium
  • Select models feature multiple weighing capacities and readability
  • Ultra-Micro and Micro Balance Features: assisted leveling, internal and isoCAL adjustment
  • MCA Advanced Interface: 7” color touch display, swipe, factory installed weighing applications, QApp software package, easy to use and navigate
  • MCE Essential User Interface: high-contrast touch display, factory-installed weighing applications
  • Compliance: 21 CFR part 11 and EU Annex 11 compliance, traceability, submission-ready data, integration of SOPs and governance
  • Modularity: 45 weighing modules available, choice of MCA or MCE user interface, 7 draft shields
  • Software: Pre-installed and modifiable QApp software packages are available to satisfy many weighing applications; cost-effective, all-inclusive QP99 package recommended
  • Cubis II features: end-to-end data integrity, gesture sensor, automated leveling on models with an 8 kg weighing capacity, climate monitoring and status center notifications, safe data transfer, electronic signatures, audit trail and alibi memory, user management
  • Optional interfaces: Ethernet (MCA control unit only), RS-232 9 Pin, USB A, USB B, USB C, peripheral connector (for Sartorius accessories)
  • Regulatory requirements: ISO, FDA/USP, GxP, verified

Balances

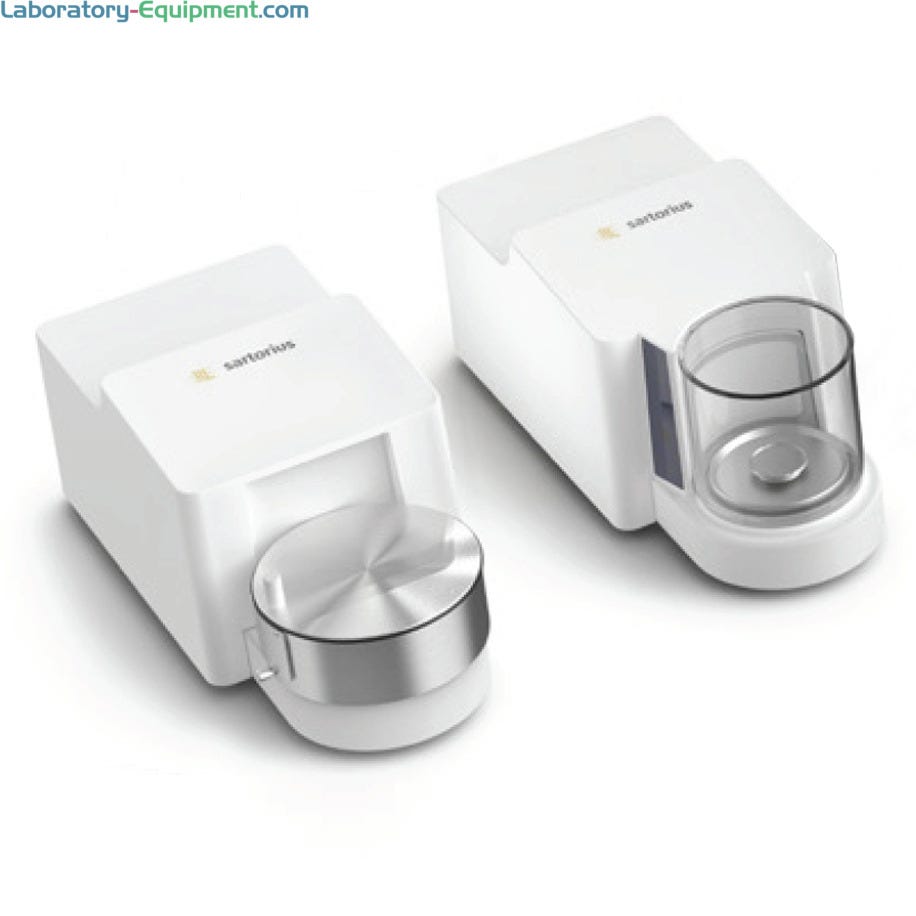

  • Configurable Cubis II Ultra-Micro and Microbalances by Sartorius shown with stainless steel and glass draft shield Cubis II Ultra-Micro and Microbalances by Sartorius

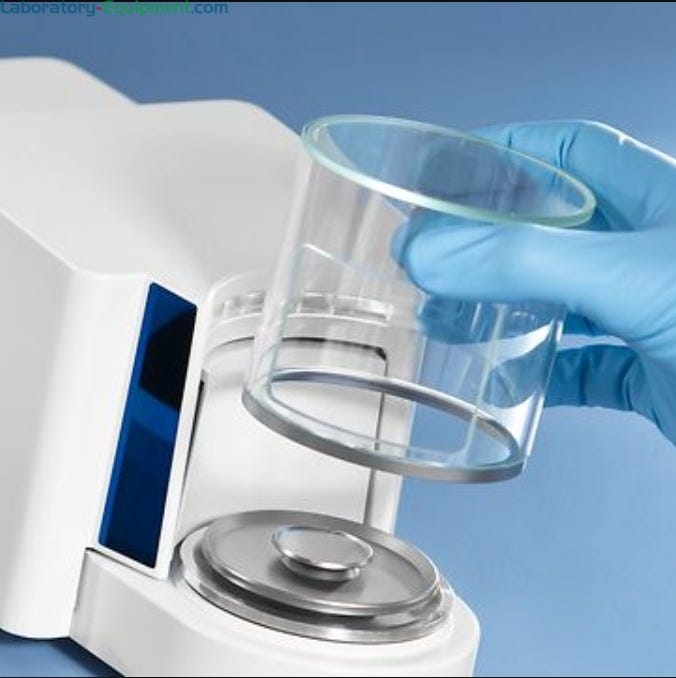

  • Removable Glass draft shield of Cubis II Ultra-Micro and Microbalances by Sartorius for easy cleaning Removable Glass Draft Shield
Features & Benefits

Features and Benefits

Learn More: Sartorius Cubis II Balances

Additional Features

Cubis II Lab Balances by Sartorius
Sartorius Cubis II Balances are available in various configurations: Ultra-Micro, Microbalances, Semi-Micro, Analytical, Precision and High-Capacity. All Cubis II Balances are modular and can be configured to suit a variety of lab weighing applications by adding QApp software packages, draft shields and control units.
  • Ultra-Micro and Microbalances, with a maximum load of 2.1 g to 10.1 g and readability from 0.1 µg and 1 µg, are ideal for standard lab weighing applications. Models are available with an automatic glass draft shield or a manual stainless steel draft shield.
  • Semi-Micro and Analytical models, with a maximum load from 120 g to 520 g and readability from 0.01 mg to 0.1 mg, are available with an automatic glass draft shield.
  • Precision balances, with a maximum load from 320 g to 14,200 g and readability from 1 mg to 100 mg, are available with an automatic glass draft shield or a removable stainless steel draft shield.
  • High-Capacity models have a maximum load from 11.2 kg to 70 kg and readability from 100 mg to 1 g.
Cubis II Balances Compatibility with Fume Hoods

Select Cubis II balances are compatible with enclosures and fume hoods when used with the Q-Grid Pan. The Q-Grid Pan, compatible with balances with a readability of 10 mg and 100 mg (except for #52025), is ideal for use in drafty environments due to the reduced surface area design of the pan.



MCA and MCE control units are available for all Cubis II Lab Balances.

Type MCA Type MCE
Display Large high end 7" color touch TFT display in 16:9 format with new user interface Display State of the art TFT touch screen operation with brilliant, readable, display but uncomplex, easy to operate user interface
Software Factory installed basic set of essential weighing applications (license free) and Packages with special weighing applications and function extentsions (license required) Software Factory installed basic set of essnetial weighing applications
Operaton Activated by touch key, touch-free using IR sensor (draft shield M) or gesture snsor (optional), learning capability Operaton Activated by touch key, touch-free using IR sensor (draft shield M) or gesture sensor (optional) learning capability

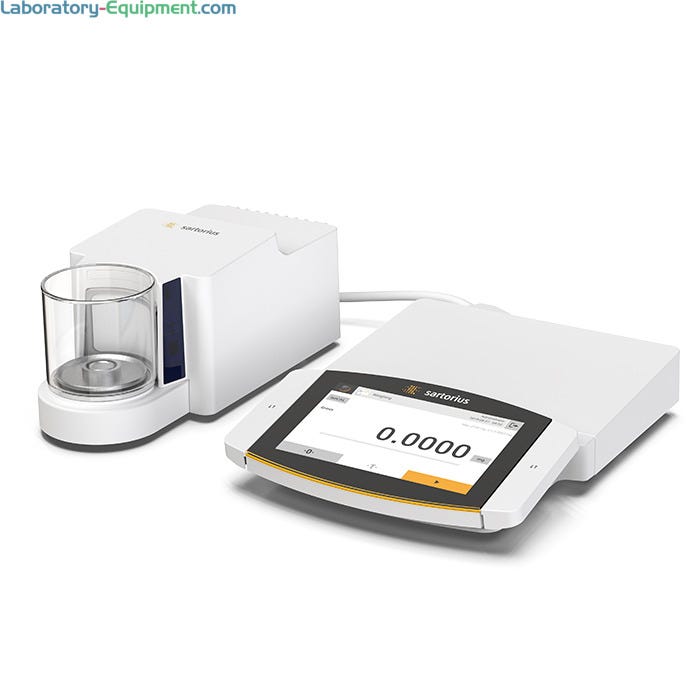

Cubis II Ultra-Micro and Microbalance with glass draft shield M

Cubis II Ultra-Micro and Microbalances with automatic glass draft shield M feature an integrated motion sensor

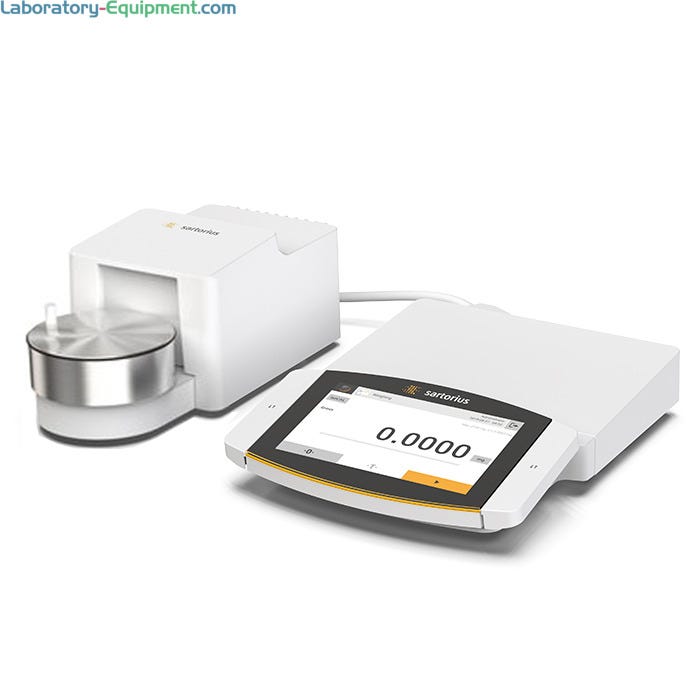

Cubis II Micro Balance Stainless Steel Draft Shield F

Cubis II Micro Balances with stainless steel draft shield F for filter weighing applications: for models with a 0.001 mg or .0001 mg readability

MCA Advanced User Interface

Features a 7” TFT touchscreen display in 16:9 format with an intuitive user interface and factory installed basic set of weighing applications
