Terra Part # 1410-04
$8,125
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Maximum Temperature: 300°C

• Internal Dimensions W" x D" x H" (mm): 23.64 x 17.14 x 17.14 in. (601 x 435 x 435 mm)

• Standard Single door 4.1 cu. ft. model with Class M6 replaceable filter cartridge

• Includes 2 chrome-plated racks

• Temperature range: 10 °C above ambient temperature to [°C]: 300

• Interior volume: 4.1 cu.ft. (116 L)

• Wall clearance back [in]: 6.3 in. (160 mm)

• Wall clearance sidewise [in]: 3.94 in. (100 mm)

• Temperature variation at 150 °C [± K]: 2.5

• Temperature fluctuation [± K]: 0.8

• Heating-up time to 150 °C [min]: 20

• Recovery time after 30 seconds door open at 150 °C [min]: 12

• Air circulation (approx.) [x/min]: 20

• Volumetric flow rate of exhaust air according to EN 1539 at 50 °C [ca. L/min]: 400

• Highest permitted solvent quantity (at T-180 °C, M-100g/mol, U-40g/m3, K=0,5) [g]: 6.65

• Nominal power [kW]: 2.9

• Phase (Nominal voltage): 1~

• Energy consumption at 150 °C [Wh/h]: 1200

• Sound-pressure level [dB(A)]: 57

• Permitted load: 132 lbs. (59.9 kg)

• Load per rack: 66 lbs. (29.9 kg)

• Number of shelves (std./max.): 2/5

• Computer interface: RS 422

• Silicone and dust-free inner chamber and symmetric airflow

• Meets EN 1439 requirements and DIN EN 1539-2010-08 standard

• Includes 2 chrome-plated racks

• Silicone and dust-free inner chamber and symmetric airflow

• Easy-to-change fresh air filter cartridges (replaceable) ensures constant fresh air quality

• Symmetrical air flow with electronic monitoring system, automatic deactivation of heating

• APT.line™ preheating technology provides optimal temperature uniformity and faster recovery times

• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

• Controller: time-segment and real-time programming

• 60-mm-thick insulation, keeping heat dissipation to a minimum

List of Options and Accessories for FDL 114

• Access port with silicone plug

• Calibration certificate, expanded

• Calibration certificate, temperature

• Cart with casters and locking brakes

• Coil coating door flap

• Door gasket

• Door lock

• Measurement of air exchange rate

• pH-neutral detergent

• Rack

• Rubber pads

• Shelf (perforated, stainless steel

• Software (Version 2 to 3, GLP, Basic, Standard and GLP DEMO editions)

• Specimen temperature display

Marks & Listings: UL

Electrical Specifications: 240 V, 50/60 Hz

Dimensions, Product: 32.7"W x 27.3"D x 31.7"H

Dimensions, Shipping: 32.727"W x 31.7"D

Weight, Shipping: 168 lb

Package Type: Pallet

Unit of Measure: EA

  • FDL 115 Safety Drying Chamber from Binder Worldwide Binder Safety Drying Chamber from Binder Worldwide
FDL 115 Safety Drying Chamber from Binder Worldwide

Features and Benefits

FDL 115 Options and Accessories

Additional Features of FDL Series Safety Drying Chamber: More Information

  • Easy-to-change fresh air filter cartridges (replaceable) ensures constant fresh air quality
  • Symmetrical air flow with electronic monitoring system and automatic deactivation of heating
  • APT.line™ preheating technology provides optimal temperature uniformity for faster recovery times
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Controller: time-segment and real-time programming
  • 60-mm-thick insulation, keeping heat dissipation to a minimum
Options and Accessories for FDL 115 Series for Specimens Containing Solvents

The FDL 115 Safety Drying Chamber is available with a range of accessories and options to satisfy a variety of applications in norm-compliant drying applications containing solvents.

  • Access port with silicone plug (for external measuring equipment; large selection of diameters and positions (left, right, or top)
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Cart with casters and locking brakes
  • Coil coating door flap ideal for coil coating tests
  • Door gasket made of high temperature resistant silicone for operational temperatures above 200 °C
  • Door lock
  • Measurement of air exchange rate
  • pH-neutral detergent
  • Rack
  • Rubber pads
  • Shelf (perforated, stainless steel
  • Software (Version 2 to 3, GLP, Basic, Standard and GLP DEMO editions)
  • Specimen temperature display
  • Services: Access our installation, maintenance, calibration, validation, and warranty services by taking out a maintenance service agreement
Model FDL 115
Interior volume 4.1 cu. ft. (116 L)

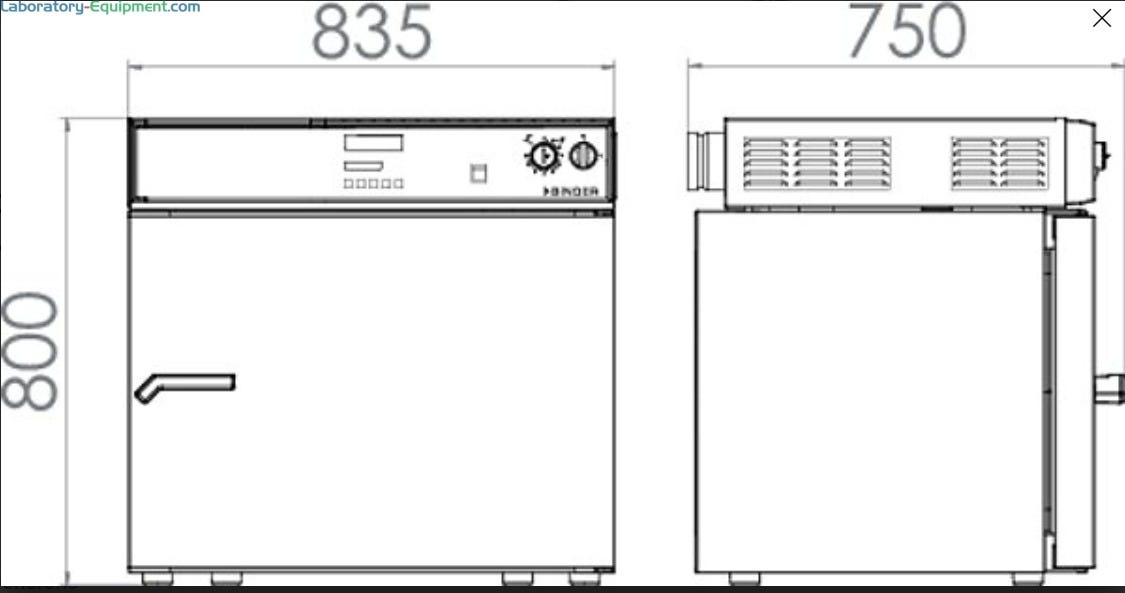

Outer dimensions (W x D x H) 32.7 x 27 x 31.7 in. (831 x 686 x 806 mm)
Internal Dimensions(W x D x H) 23.64 x 17.14 x 17.14 in. (601 x 435 x 435 mm)
Electrical data 230V, 50/60Hz
Net weight of the unit (empty) 198 lbs. (89.8 kg)
Temperature range 10 °C above ambient temperature to [°C] 300
Wall clearance back 6.3 in. (160 mm)
Wall clearance sidewise 3.94 in. (100 mm)
Temperature variation at 150 °C [± K] 2.5
Temperature fluctuation [± K] 0.8
Heating-up time to 150 °C [min] 20
Recovery time after 30 seconds door open at 150 °C [min] 12
Air circulation (approx.) [x/min] 20
Volumetric flow rate of exhaust air according to EN 1539 at 50 °C [ca. L/min] 400
Highest permitted solvent quantity (at T-180 °C, M-100g/mol, U-40g/m3, K=0,5) [g] 6.65
Nominal power [kW] 2.9
Phase (Nominal voltage) 1~
Energy consumption at 150 °C [Wh/h] 1200
Sound-pressure level [dB(A)] 57
Permitted load 132 lbs. (59.9 kg)
Load per rack 66 lbs. (29.9 kg)
Number of shelves (std./max.) 2/5

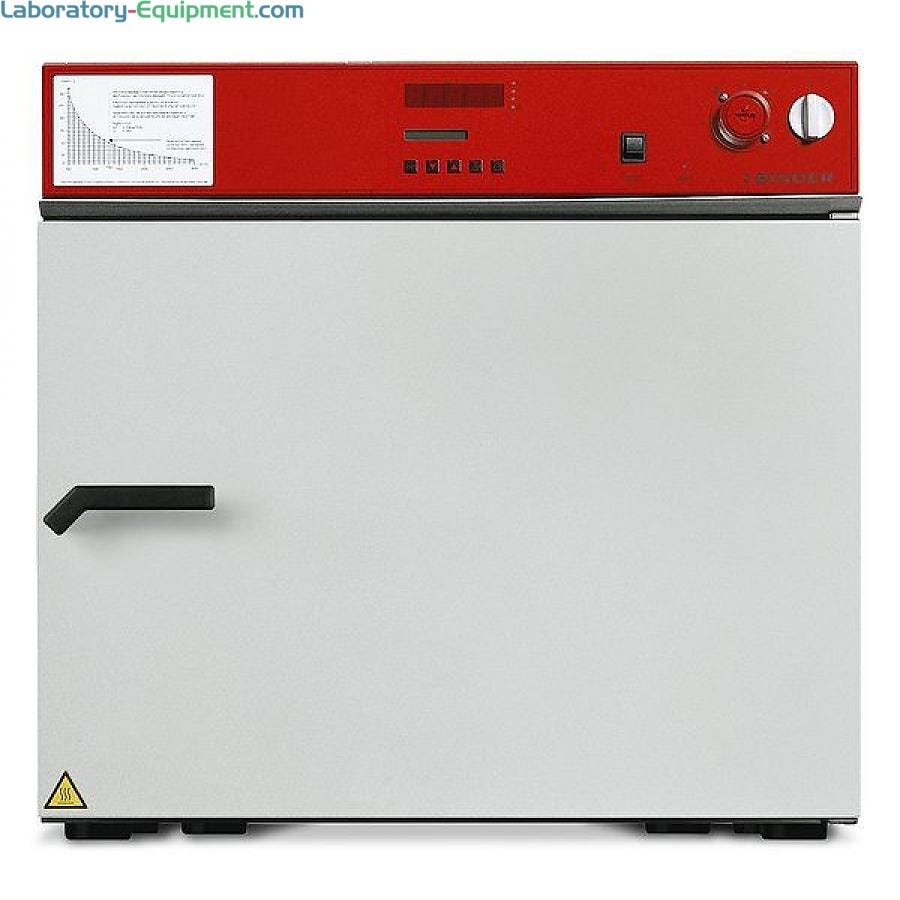

Oven; 4.1 cu. ft., Safety Heating and Drying Chamber, FDL 115, Binder, 115-230V

Oven; 4.1 cu. ft., Safety Heating and Drying Chamber, FDL 115, Binder, 115-230V

Convenient and Compliant Replaceable Filter Cartridge

Easy-to-change fresh air filter cartridges (replaceable) ensures constant fresh air quality.

Safety Drying Chamber Airflow Chart

FDL 115 features the APT.line™ preheating technology creates precise test conditions with symmetric airflow for optimal temperature uniformity and faster recovery times even with a full load.
