- Shel Lab Vacuum Ovens have a rugged construction and a cross ventilation airflow feature on select models that distribute inert gas throughout the chamber
- Spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity
- Models are ideal for samples that require gentle drying at lower temperatures.
- Economy Analog Vacuum Oven models are compact with a capacity of 0.6 or 1.67 cu. ft.
- Standard Digital Vacuum Ovens range from compact to mid-size available in three capacity sizes of 0.6, 1.67 and 4.5 cu. ft.
Ovens
3900-PP-01
3900-PP-01 71493
Vacuum Ovens by Shel Lab
Read more
Manufactured By: Shel Labs
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
- Shel Lab Vacuum Ovens have a rugged construction and a cross ventilation airflow feature on select models that distribute inert gas throughout the chamber
- Spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity
- Models are ideal for samples that require gentle drying at lower temperatures.
- Economy Analog Vacuum Oven models are compact with a capacity of 0.6 or 1.67 cu. ft.
- Standard Digital Vacuum Ovens range from compact to mid-size available in three capacity sizes of 0.6, 1.67 and 4.5 cu. ft.
- Digital Large Capacity models have the same feature of digital models, plus the addition of a mobile stand and an optional stainless steel exterior for Cleanroom applications.
- Gentle drying capabilities leaves no residue accumulation on products
- Provides fast, gentle drying of heat sensitive samples and materials
- All models feature doors with positive latch handles, spring-loaded glass, cross ventilation airflow design, stainless steel interior
- Rugged construction with stainless steel interiors
- Temperature range from 10°C above ambient to 220°C
- Vacuum Ranges from -101 to -1010 mbar
Shel Lab Large Capacity Vacuum Oven- Shel Lab Analog Economy Model Oven
- Shel Lab Digital Standard Model Vacuum Oven

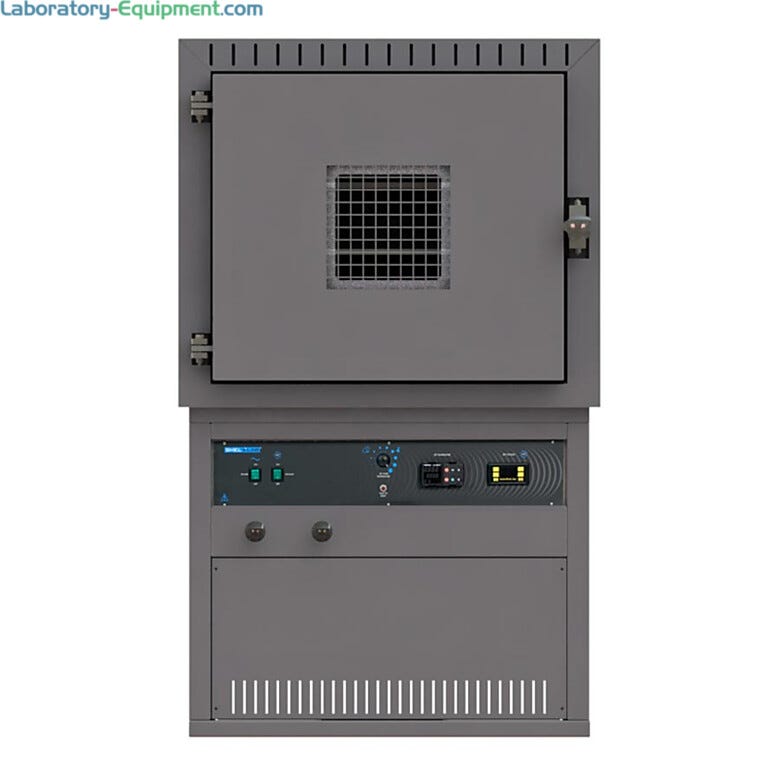

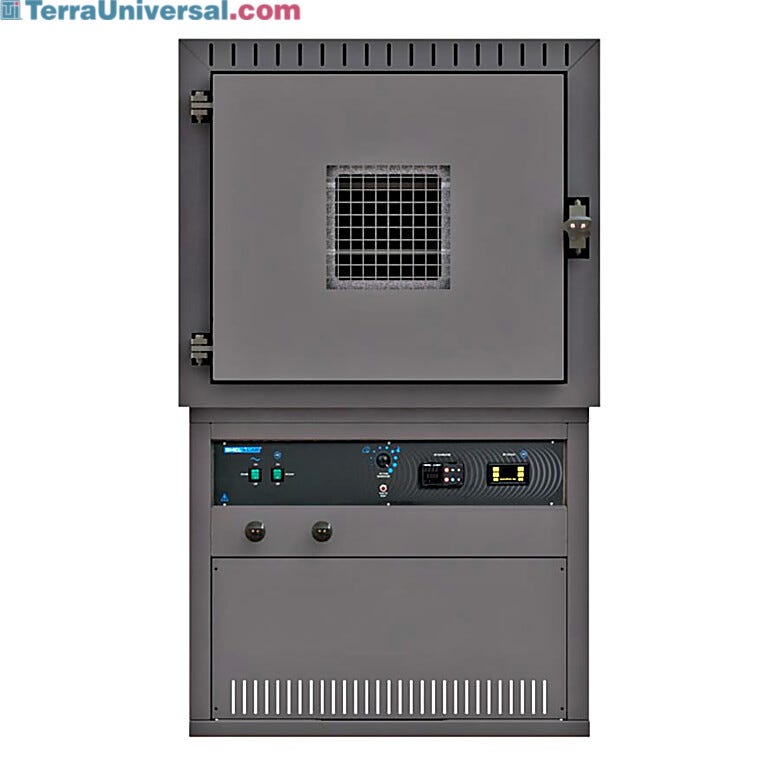

Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed Shel Lab Large Capacity Vacuum Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.
Shellab Analog Model Ovens come with an analog temperature controller and dial vacuum gauge | 3900-12 displayed Shel Lab Analog Economy Model Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.
Shellab Digital Model Ovens includes Watlow temperature control, digital vacuum gauge, built in over temperature safety and a double plenum | 3900-33 displayed Shel Lab Digital Standard Model Vacuum Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.
Features & Benefits
Features & Benefits
Compare Vacuum Ovens by Shel Lab
Print Copy Copied
Additional Features of Shel Lab Vacuum Ovens
Complete list of Applications
- Aging Tests
- Chemical Resistance Studies
- Desiccating
- Drying of Paper
- Dry Sterilization
- Electronic Process Control
- Moisture Determination
- Out Gassing Liquids
- Out Gassing Solids
- Plating
- Rubber and Textiles
- Vacuum Storage
| Model | SVAC1 | SVAC1E | SVAC2 | SVAC2E | SVAC4 | SVAC9-2 |
|---|---|---|---|---|---|---|
| External Dimensions (WxDxH) | 17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm) | 15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm) | 20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm) | 18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm) | 26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm) | 36 x 46.5 x 62 in. (915 x 1182 x 1575 mm) |
| Internal Dimensions (WxDxH) | 9 x 12 x 9 in. (228 x 304 x 228 mm) | 9 x 12 x 9 in. (228 x 304 x 228 mm) | 12 x 20 x 12 (304 x 508 x 304 mm) | 12 x 20 x 12 (304 x 508 x 304 mm) | 18 x 24 x 18 in. (457 x 609 x 457 mm ) | 28 x 24 x 24 in. (711 x 609 x 609 mm) |
| Electrical | 115V, 60 Hz | 115V, 60 Hz | 115V, 60 Hz | 115V, 60 Hz | 115V, 60 Hz | 220 - 230 volts |
| Capacity | 0.6 Cu. Ft.(16L) | 0.6 Cu. Ft. (16L) | 1.7. (47 L) | 1.7. (47 L) | 4.5. (127 L) | 9.3. (264 L) |
| Temperature Range | Ambient +10°C to 220°C | Ambient +15°C to 210°C | Ambient +10°C to 220°C | Ambient +15°C to 210°C | Ambient +10°C to 220°C | Ambient +5°C to 220°C |
| Temperature Uniformity | +/-6% of set point | +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C | +/-6% of set point | +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C | +/-6% of set point | +/- 7.0ºC at 150ºC |
| Temperature Increments | 0.1°C | Analog Control | 0.1°C | Analog Control | 0.1°C | 0.1°C |
| Number of Shelves | 3 | 2 | 3 | 2 | 3 | 3 |
| Material | SS Interior | SS Interior | SS Interior | SS Interior | SS Interior | SS interior with option for SS exterior |
| Max. Energy Consumption | 840/1080 W | 600/575 W | 1200/1320 W | 1200/1150 W | 1560/1680 W | Not Available |
| Airflow Design | Cross Ventilation | Cross Ventilation | -- | Cross Ventilation | Cross Ventilation | -- |
| Agency Approval | TUV - CUE | -- | TUV - CUE | -- | TUV- CUE | -- |
| Heat-up Time | 90 minutes to 150°C | |||||
| Vacuum Range | -101 to -1010 mbar | |||||
| Warranty | Two-Year Manufacturer Warranty | |||||
