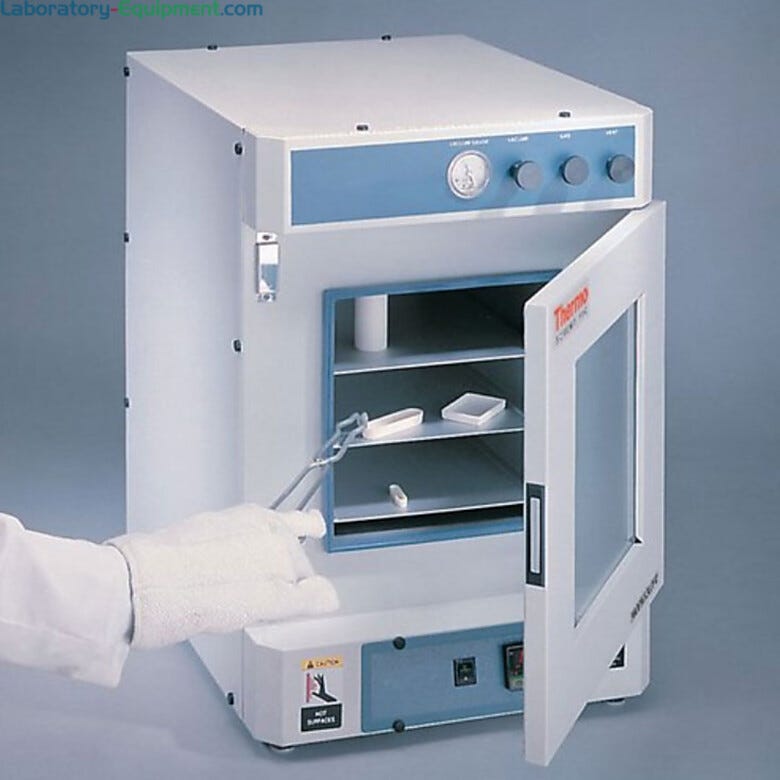

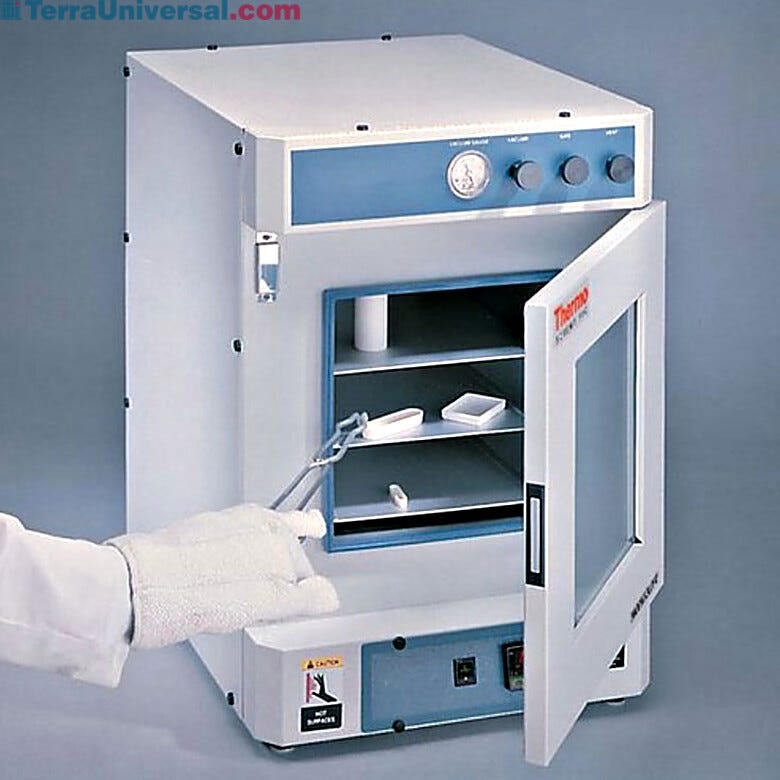

The Lindberg Blue vacuum oven provides an inert atmosphere for use in heating, drying, curing and outgassing sensitive or reactive samples | 3703-49 displayed
Ovens
Product Group:
3703-PP-01
3703-PP-01 71501

Lindberg/Blue M™ Vacuum Ovens by Thermo Fisher Scientific

  • Designed for purging and backfilling of the chamber prior to heating operations
  • Vacuum/purge/release system for reduced or inert atmospheres
  • Applications: Curing volatile material and compounds, outgassing, aging, process control
Read more
Manufactured By: Thermo Fisher
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Material

Sort Order:
Controls

Sort Order:
Maximum Temperature

Sort Order:
Capacity

Sort Order:
Convection Type

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
120 V Vacuum Painted Steel Digital 260°C 0.65 cu. ft. Vacuum Lindberg Blue-M VO914A 3703-48 64730 $4,263 60-72 Days 2
120 V Vacuum Painted Steel Digital 260°C 1.5 cu. ft. Vacuum Lindberg Blue-M VO1218A 3703-50 64732 $7,078 60-72 Days 3
120 V Vacuum Painted Steel Digital 260°C 4.5 cu. ft. Vacuum Lindberg Blue-M VO1824A 3703-52 64734 $15,872 10-20 Days 4
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Designed for purging and backfilling of the chamber prior to heating operations
  • Vacuum/purge/release system for reduced or inert atmospheres
  • Applications: Curing volatile material and compounds, outgassing, aging, process control
  • Available in 0.65, 1.5 and 4.5 cu. ft. capacities
  • Digital Microprocessor Control and over-temperature protection
  • Stainless steel finish with double door
  • Painted steel finish with single door
  • Vacuum gauge and inlet valves located on front of unit
  • Includes power cord and three aluminum shelves
Show more

Show more

  • Thermo Fisher Scientific Lindberg Blue M Vacuum Ovens Thermo Fisher Scientific Lindberg Blue M Vacuum Ovens
Thermo Fisher Scientific Lindberg Blue M Vacuum Ovens
The Lindberg Blue vacuum oven provides an inert atmosphere for use in heating, drying, curing and outgassing sensitive or reactive samples | 3703-49 displayed Thermo Fisher Scientific Lindberg Blue M Vacuum Ovens Lindberg Blue M Vacuum Ovens are designed for purging, drawing vacuum, and backfilling of the chamber prior to heating operations - ideal for applications requiring reduced or inert atmospheres.
Features & Benefits

Features & Benefits

Learn More: Lindberg Vacuum Ovens
Print Copy Copied

Additional Features for Lindberg Blue-M Small and Medium Vacuum Lab Ovens by Thermo Fisher Scientific

    Single-Setpoint Digital MicroprocessControl:
  • Max temperature 260°C (500°F) with nominal uniformity of ±3.5% of setpoint
  • Simultaneous LED display of setpoint and actual temperature with push-button view; resolution within 1°C (33.8°F)
  • Keypad data entry and pull-out control module
  • Independent factory set Overtemperature safety system
    Vacuum System:
  • 1" (25.4mm) manifold, chamber rear, exterior, connects to pump or in-house vacuum source
  • Features inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port
  • 1000 microns (1torr) capacity
  • Vacuum gauge, vacuum, gas and inlet valves located on front
    Construction:
  • Low-watt heating, high temperature silicone gasket for a positive seal
  • Magnetic latch for positive door seal
  • Viewing window: 0.5" (13mm) thick in two smaller capacity models or 0.75" (19mm) thick in 4.5 cu. ft. model; permit observation of work in progress without loss of heat
  • Vacuum manifold (rear-mounted) connects to pump (sold separately) or in-house vacuum source
  • Material: Heavy-gauge steel, dual-wall construction, fiberglass insulation minimizes heat loss in walls and door
  • Silicone gasket (high-temperature-molded for a positive seal
  • Required Vacuum Pump for Operation (Sold Separately)

Specifications for Lindberg Blue-M Vacuum Ovens
Models VO914A / VO914SA VO1218A / VO1218SA VO1824A / VO1824SA
Chamber Volume 0.64 cu. ft. (18.6 L) 1.5 cu. ft. (42.5 L) 4.5 cu. ft. (127 L)
External Dimensions 23"W x 18"D x 26"H
(580 x 460 x 660 mm) 		26"W x 21"D x 29"H
(660 x 530 x 740 mm) 		24"W x 27"D x 35"H
(610 x 690 x 890 mm)
Internal Dimensions 14"W x 9"D x 9"H
(360 x 230 x 230 mm) 		18"W x 12"D x 12"H
(460 x 310 x 310 mm) 		24"W x 18"D x 18"H
(610 x 460 x 460 mm)
Number of Doors 1 / 2 1
Number of Shelves 3 2
Shipping Weight 150 Lb. (68 kg) 250 Lb. (113 kg) 325 Lb. (147 kg)
Finish Stainless Steel or Painted Steel
Chamber Material Corrosion-resistant Stainless Steel
Electrical 120 volts, 50/60 Hz
Safety Features Built-In Overtemperature Safety System
Temperature Range +6 to 260°C (43 to 500°F)
Temperature Control Single-Setpoint Digital Microprocessor Control
Temperature Display LED: simultaneously displays setpoint and actual temperature with push-button view
Temperature Uniformity ±3.5°C (±38.3°F)
Temperature Resolution ±1°C (±33.8°F)
Vacuum Range 1 x 102 torr (10 Microns)
Certification* UL-Listed (VO914A, VO914SA, VO1218SA,  VO1218A only)
Warranty 1 year parts and labor
