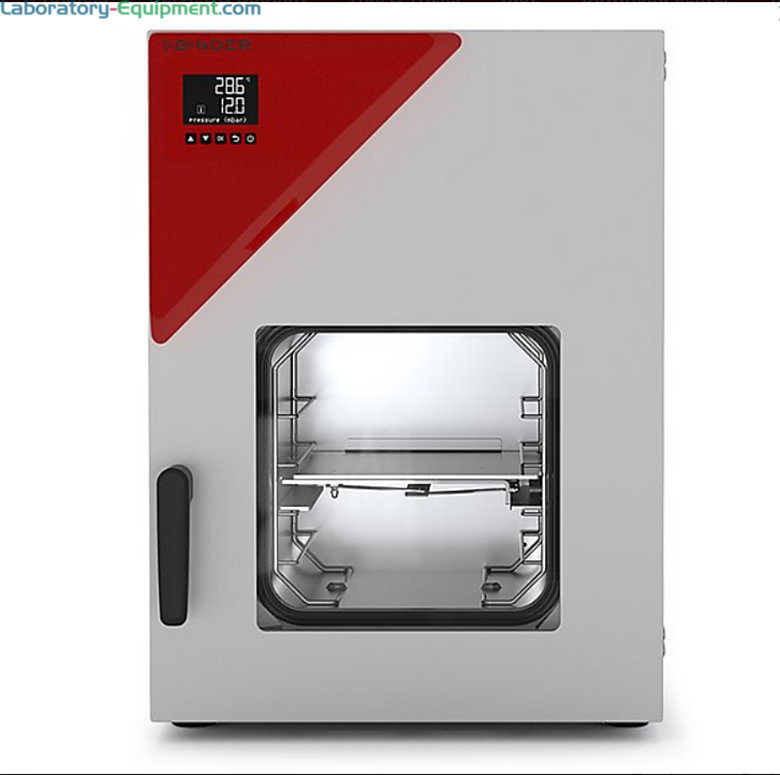

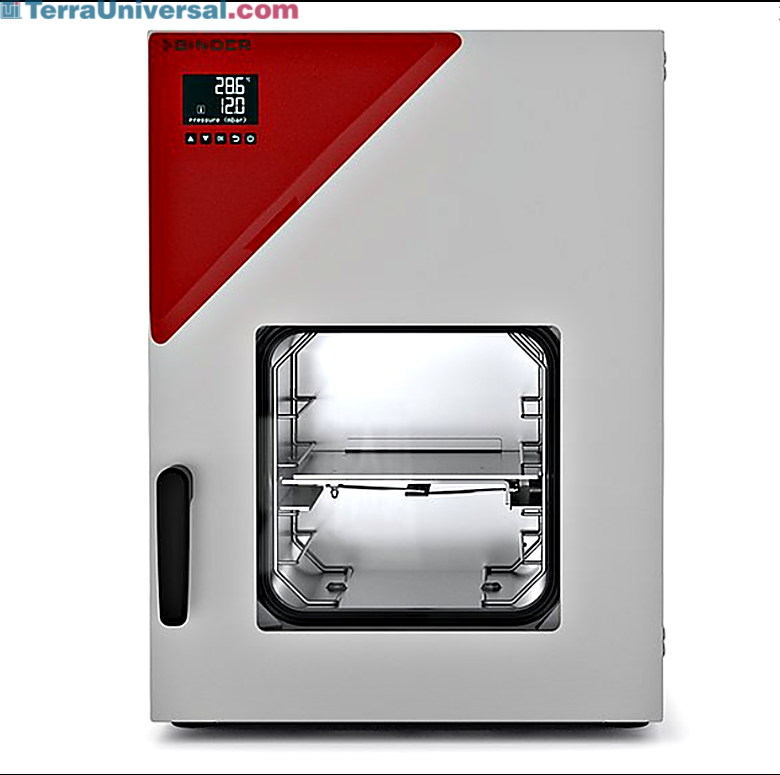

BINDER VD-23 0.8 cu. ft. Vacuum Drying Chamber provides fast, gentle drying of non-flammable solvents; includes one aluminum expansion rack
Ovens
Product Group:
2828-PP-08
2828-PP-08 77224

VD and VDL Series Vacuum Drying Chambers by Binder

  • Provides fast, gentle drying of flammable and non-flammable solvents without residue
  • Large thermal conducting plates deliver optimum heat transfer
  • VDL explosion-proof models with ATEX compliance for flammable solvents
  • Optional vacuum pump and pump chamber create a complete system
  • Includes repositionable aluminum expansion racks
Read more
cULus Logo
Manufactured By: Binder
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Controls

Sort Order:
Maximum Temperature

Sort Order:
Capacity

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
100/120 V Vacuum Digital +110 °C 0.8 cu. ft. VDL 9630-0013 2828-34 77228 $12,931 15-20 Days 2
100/120 V Vacuum Digital +110 °C 1.9 cu. ft. VDL 9630-0014 2828-35 77229 $14,049 15-20 Days 3
100/120 V Vacuum Digital +110 °C 4.2 cu. ft. VDL 9630-0015 2828-36 77230 $18,024 15-20 Days 4
100/120 V Vacuum Digital +220 °C 0.8 cu. ft. VD 9630-0005 2828-31 77225 $7,075 15-20 Days 5
100/120 V Vacuum Digital +220 °C 1.9 cu. ft. VD 9630-0006 2828-32 77226 $8,411 15-20 Days 6
100/120 V Vacuum Digital +220 °C 4.2 cu. ft. VD 9630-0007 2828-33 77227 $11,085 15-20 Days 7
Voltage
Type
Controls
Maximum Temperature
Capacity
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Provides fast, gentle drying of flammable and non-flammable solvents without residue
  • Large thermal conducting plates deliver optimum heat transfer
  • VDL explosion-proof models with ATEX compliance for flammable solvents
  • Optional vacuum pump and pump chamber create a complete system
  • Includes repositionable aluminum expansion racks
  • Standard features:
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Shatterproof, spring-mounted safety glass panel, internal data logger, measured values can be read out in open
  • format via USB, Ethernet interface,  Inert gas connection
  • VD Series features:
  • Temperature range: ambient temperature +9 °C to +220 °C
  • LCD Controller with digital display of pressure and temperature
  • Large viewing window with option of interior lighting
  • 2 relay outputs, 24 V DC (max. 0.4 A)
  • VDL Series features:
  • Temperature range: Ambient temperature +9 °C to +110 °C
  • ATEX-compliant unit: category EX II 2/3/- G IIB T3 Gb/Gc/- X
  • Explosion-proof protected interior
  • TFT intuitive touchscreen controller with graphical pressure and temperature display
  • Pressure control device for heating activated from < 100 mbar
  • Universal connection for ventilation with ambient air or inert gas
  • DN 16 universal access port with small flange and blind flange
  • Options and accessories: touchscreen controller, expansion racks, universal ventilation, analogue output for temperature and pressure, DN 40 universal access port, vacuum pumps, pump module with vacuum pumps, APT.cm software (GLP-compliant available), qualification documents
Show more

Show more
Features & Benefits

Features and Benefits

VDL Explosion-Proof Interior

ATEX-compliant unit features a pressure control device for heating activation at a vacuum of under100 mbar

Automatic Drying Detection

Program control feature detects the second pressure drop that occurs at the end of drying and automatically ventilates the interior

Jacket Heating

Delivers optimum heat transfer and precise temperature control with patented expansion racks that allow flexible placement

Safety Feature

Units provide a shatterproof, spring-mounted safety glass panel, electronic components decoupled from the interior and an inert gas connection for interior flushing

Available Options

Choose various vacuum pumps and compatible chamber for a modular complete system

Cleanroom Compatible

BINDER vacuum drying chambers are ideal for use in cleanrooms when drying components that must be delivered in an absolutely clean state
