Select Product
Voltage

Type

Capacity

Temperature Range

Convection Type

Sensor Type

Model

Manufacturer SKU

Capacity Range

Terra Part # Price Ships in
120 V Reach In 29 cu. ft. Ambient +5°C to 50°C Forced Air Thermocoupler (TC) Large Capacity 3950 >20 cubic feet 3615-38 54500 $19,201 10-20 Days 2
240 V Reach In 29 cu. ft. Ambient +5°C to 50°C Forced Air Thermocoupler (TC) Large Capacity 3951 >20 cubic feet 3615-39 54501 $17,849 10-20 Days 3
Voltage
Type
Capacity
Temperature Range
Convection Type
Sensor Type
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

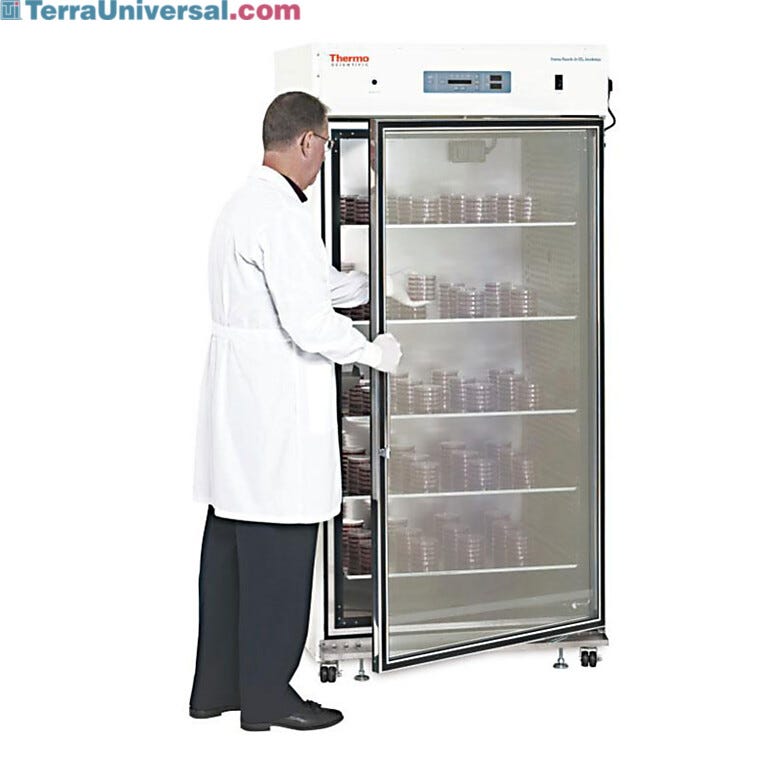

  • Large Capacity Reach-In CO2 Incubators for high-throughput labs culture large volumes of samples for bacterial growth and short-term growth studies
  • Directed horizontal laminar airflow system creates ideal growth environment; minimizes desiccation of product and supports temperature recovery and uniformity
  • Tight temperature uniformity ensures ideal culturing environment even when chamber is full or when equipment is installed in chamber
  • Heated triple-pane glass door prevents condensation
  • Convenient access ports and interior outlet for probes, sensors and power
  • Elevated RH prevents product desiccation in medium-term cultures
  • Enviro-Scan Microprocessor Message Center allows for simple parameter control via alphanumeric display of messages, processes and Humidity level indicators

Incubators

  • Forma 11 Cubic-Foot Environmental Chamber Ideal for Drug Stability Studies, Biological Research
Features & Benefits

Features and Benefits

Learn More: Reach-In CO2 Incubators

More Information

  • Leveling feet provides stability and added safety
  • Airflow prevents product desiccation
  • Easy to configure and use; audible/visual alarm and alarm silence; remote alarm contacts and available data outputs connects to in-house monitor/alarm to track chamber conditions (helps with meeting internal and regulatory documentation requirements)
  • Data outputs help meet internal and regulatory documentation requirements
  • Built-in features eliminate need for expensive add-ons
  • Interior Dimensions (W x D x H): 31 x 27 x 60 in. (787 x 686 x 1524 mm)
  • Exterior Dimensions (W x L x H): 38 x 33 x 80 in. (965 x 838 x 2032 mm)
  • Available accessories, built-in gas guards, factory-installed data outputs, 2-stage gas regulators and shelves
  • Humidity System: 15.1L pan
  • Relative Humidity Range: Off, med. >80%, high >90%
  • Temperature Control: ± 0.1°C
  • Temperature Uniformity: ± 0.3°C at 37°C
  • Temperature Range: + 5°C above ambient to 60°C
Cell Roll System

The optional cell roll system (shown installed within the incubator chamber) allows extensive production of monolayer cell cultures in standard roller culture vessels.

  • Improves oxygenation and exposure of the cells to the media growth area
  • Increases culture yields by the uniform temperature control and cellroller system's continuous, gentle rotation
  • Accommodates a cell roller up to 7 decks high with 5 positions per deck—maximum total of 35 positions or bottles.
  • Requires three tier models 4862 or 4868 to achieve maximum capacity:
  • three tier cell roller base (15 positions)
  • four add-on tiers (20 positions)
  • and a reinforced floor/ramp to achieve

Directed Horizontal Laminar Airflow System

  • Promotes ideal growth environment by releasing positive pressure feed plenum on the left side of the chamber and a negative pressure return plenum on the right side
  • The combination of airflow directs air across the surface of each solid shelf
  • Each shelf receives a consistent flow of conditioned air when filled with samples or equipment
  • Chamber contents will not block feed plenum
  • Minimizes risk of product desiccation and loss
  • The directed airflow saves time and money by minimizing the risk of product desiccation and loss

Applications for Heratherm Advanced Protocol Security Microbiological Incubators
  • Clinical and Medical labs: microbiological diagnostic testing
  • Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
  • Food: screening for bacterial contamination
  • Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins

forma_environmental_chamber_horizontal_airflow4_gal

Directed airflow passes over the surface if each shelf, ensuring temperature uniformity throughout the chamber.

Forma Environmental Chamber Airflow Diagram

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.

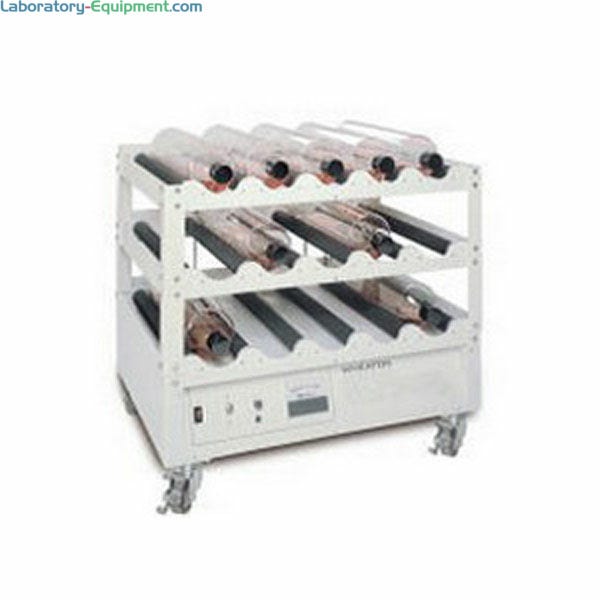

  • Three Tier Cell Roller Base for 120V Reach-In CO2 Incubator

    Three Tier Cell Roller Base by Thermo Fisher Scientific for 120V Large Capacity Reach-In CO2 Incubator accommodates 15 culture vessels; add-on tiers available.
  • 5-Position Add-On Tier for Incubator Cell Roller Base

    1619-55 Customer installed 5-Position Add-On Tier for use with Cell Roll System compatible with Large Capacity Reach-In CO2 Incubator by Thermo Fisher Scientific.

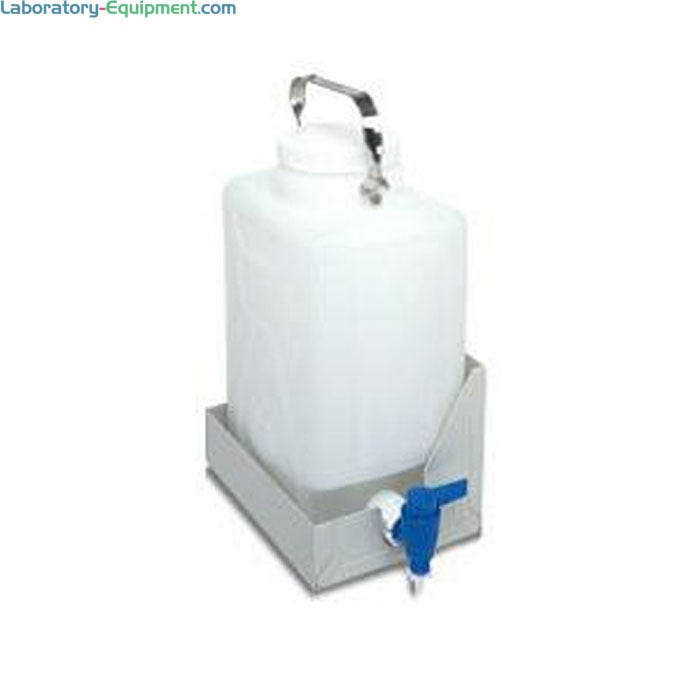

  • Carboy Kit for Large Capacity Reach-In CO2 Incubator

    Carboy Kit by Thermo Fisher Scientific can be mounted on left or right side of CO2 incubator; kit includes an autoclavable 2 gallon (7.8 liters) carboy, valve, adapter, hose, and mounting bracket.
