Terra Part # 2828-35
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2828-35

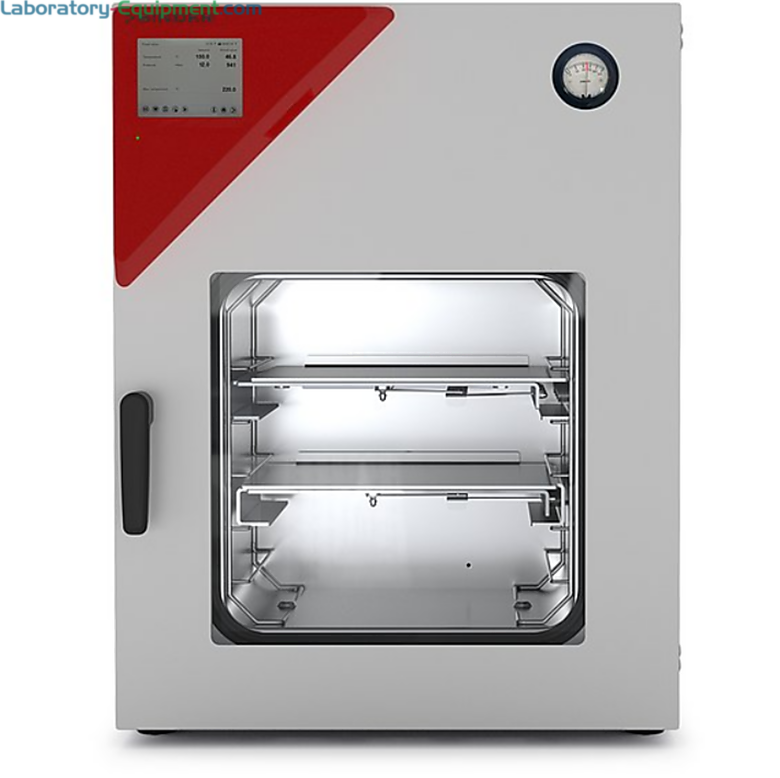

Vacuum Drying Chamber; VDL56, 1.9 cu. ft., TFT Control, Binder, 100/120 V
  • Explosion-proof, ATEX-compliant for fast, gentle drying of flammable solvents without residue
  • Large thermal conducting plates deliver optimum heat transfer
  • Internal dimensions: 15.76W x 13.51D x 15.76H in.
  • Viewing window: 15.76W x 15.76H in.
  • Includes two repositionable aluminum expansion rack (44 lb. load per rack)
  • ATEX-compliant unit: category EX II 2/3/- G IIB T3 Gb/Gc/- X
  • Explosion-proof protected interior
  • TFT intuitive touchscreen controller with graphical pressure and temperature display
  • Temperature variation at 100 °C [± K] 1.5
  • Door: one
  • Permitted load: 132 lbs.
  • Accommodates up to five shelves/racks
  • Optional vacuum pump and pump chamber create a complete system
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Shatterproof, spring-mounted safety glass panel, internal data logger, measured values can be read out in open format via USB, Ethernet interface, Inert gas connection
  • Pressure control device for heating activated from < 100 mbar
  • Universal connection for ventilation with ambient air or inert gas
  • DN 16 universal access port with small flange and blind flange
  • Options and accessories: touchscreen controller, expansion racks, universal ventilation, analogue output for temperature and pressure, DN 40 universal access port, vacuum pumps, pump module with vacuum pumps, APT.cm software (GLP-compliant available), qualification documents 2 relay outputs, 24 V DC (max. 0.4 A)
  • Sound-pressure level [dB(A)]: 40

Type: Vacuum

Maximum Temperature: +110 °C

Capacity: 1.9 cu. ft.

Controls: Digital

Model: VDL

Manufacturer SKU: 9630-0014

Capacity Range: <4 cubic feet

Unit of Measure: EA

Marks & Listings: UL

Electrical Specifications: 100/120 V, 10 A, 50/60 Hz

Weight, Product: 229 lb

Dimensions, Product: 25.14" W x 18.16" D x 32.11" H

Buy Accessories
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    Increase Down Increase Up
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Increase Down Increase Up
  3. Small 12"H powder-coated steel desiccator stand; optional casters simplify positioning and cleaning
    Increase Down Increase Up
  4. Small 12"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Increase Down Increase Up

Features and Benefits

VDL Explosion-Proof Interior

ATEX-compliant unit features a pressure control device for heating activation at a vacuum of under100 mbar

Automatic Drying Detection

Program control feature detects the second pressure drop that occurs at the end of drying and automatically ventilates the interior

Jacket Heating

Delivers optimum heat transfer and precise temperature control with patented expansion racks that allow flexible placement

Safety Feature

Units provide a shatterproof, spring-mounted safety glass panel, electronic components decoupled from the interior and an inert gas connection for interior flushing

Available Options

Choose various vacuum pumps and compatible chamber for a modular complete system

Cleanroom Compatible

BINDER vacuum drying chambers are ideal for use in cleanrooms when drying components that must be delivered in an absolutely clean state
