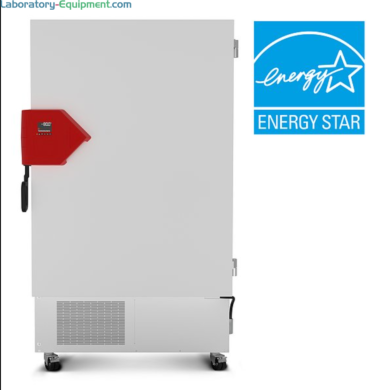

Energy-efficient 24.7 cu. ft. UFV Ultra-Low Temperature Freezer by BINDER with R-290 and R-170 with detachable inner doors and stainless steel interior |
Ultra-Low Freezers (-80°C)

Freezer Ultra-Low; 24.7 cu. ft., Upright, UF V Series, BINDER, 120 V

  • Energy-efficient UFV700UL 120V unit for safe sample storage; ideal for COVID-19 vaccine storage
  • Interior with four compartments provide temperature stability during sample retrieval
  • Suitable for labs storing samples and materials at -86°C setpoint
  • Long-term storage of biological, medical and chemical samples at ultra-low temperatures
  • Environmentally-friendly refrigerants R-290 and R-170

• Manufacturer SKU: 9020-0352

• Capacity: 24.7 cu. ft.

• Configuration: Upright

• Freezer Temperature Range: -40° to -90°C

• Brand: UF V Series

• Door Style: Solid

• Plug Type: US Plug

• Specialty: Ultra-Low

• Type: Freezer

• Set Point Temperature: -86°C

• Internal Dimensions: 35.07" W x 23.64" D x 51.2" H

• Capacity Range: >24 cubic feet

• Unit of Measure: EA of 1

Read more
Energy Star
Manufacturer SKU: 9020-0352
Manufactured By: Binder
Warranty: Five-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6707-95
Terra Part # 6707-95
$14,149
Usually ships in 20-25 business days

Want it faster ? Read about FasTrak

Terra Part # 6707-95
77861
$14,149
Usually ships in 20-25 business days

Want it faster ? Read about FasTrak

Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Energy-efficient UFV700UL 120V unit for safe sample storage; ideal for COVID-19 vaccine storage
  • Interior with four compartments provide temperature stability during sample retrieval
  • Suitable for labs storing samples and materials at -86°C setpoint
  • Long-term storage of biological, medical and chemical samples at ultra-low temperatures
  • Environmentally-friendly refrigerants R-290 and R-170
  • Freezer racks per compartment: 6
  • Permitted load: 441 lbs.
  • Includes: 3 stainless steel shelves and 12 shelf holders with screws, DIN plug, two spacers for rear wall distance and operating manual
  • Maximum shelf capacity: 13 (all models)
  • Range of temperature controller: -90 °C to -40 °C
  • Setting range: -86 °C to 20 °C
  • Lowest energy consumption in its class
  • Material: rust-proof,  stainless steel interior
  • Zero-voltage alarm contact for in-house alarm system
  • Cryobox (50 mm) capacity: 528
  • Features: Powerful cascade compressor cooling unit, efficient thermal insulation with vacuum insulation panels, door gasket reduces ice buildup, ergonomic door handle, detachable stainless steel inner doors, operating hours counter, Ethernet interface, internal data logger, measure valued read via USB, 2 access ports, Ø 28 mm, rear
  • Environment-specific data:
  • Average heat dissipation at setpoint -80 °C and ambient temperature = 21 °C [W]: 330
  • Energy consumption at setpoint -80 °C and ambient temperature = 21 °C [kWh/d]: 7.9
  • Sound-pressure level [dB(A)]: 47
  • Performance data temperature:
  • Cooling down time from 22 °C to -80 °C [min]: 450
  • Temperature fluctuation at -80 °C [± K]: 1.5
  • Temperature variation at -80 °C [± K]: 2.5
  • Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]: 250
Show more

• Manufacturer SKU: 9020-0352

• Capacity: 24.7 cu. ft.

• Configuration: Upright

• Freezer Temperature Range: -40° to -90°C

• Brand: UF V Series

• Door Style: Solid

• Plug Type: US Plug

• Specialty: Ultra-Low

• Type: Freezer

• Set Point Temperature: -86°C

• Internal Dimensions: 35.07" W x 23.64" D x 51.2" H

• Capacity Range: >24 cubic feet

• Unit of Measure: EA of 1

• Electrical Specifications: 120 V, 10 A, 1 Ph, 60 Hz

• Weight, Product: 637 lb

• Dimensions, Product: 43.7" W x 39.96" D x 77.5" H

Show more
Other products you may find relevant
  1. Platefuge microplate micro centrifuge from Benchmark has a 75° swing-out rotor and lid-controlled start/stop for spinning microplates up to 2,550 rpm | 2814-00 displayed
    Group of 2 products
    PlateFuge Microplate Micro Centrifuges by Benchmark Scientific From
    As low as $745
    Some ship in 5 - 7 days
  2. The qTower 3 Auto provides homogeneous excitation, detection and a two year device warranty | 1016-67 displayed
    Group of 4 products
    qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena From
    Request Quote
    Some ship in 10 - 16 days
  3. #845-00002-2 sample capacity of up to 16 samples in parallel | 1011-94A displayed
    Automated DNA Extractor; InnuPure C16 touch, Analytik Jena, 110/230 V
    $30,561
    Usually Ships in 20 - 24 days
  4. Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed
    Group of 4 products
    SOLO Automated Pipettor by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
  5. PlateCrane SciClops Automated Microplate Robot by Hudson Robotics | 3030-50 displayed
    Group of 2 products
    PlateCrane SciClops, Automated Microplate Robot by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
  6. Picus NxT Electronic Pipettes for use in highly regulated labs with compliance requirements; RFID enabled and certificate of 3-point calibration | 5703-PP-01 displayed
    Group of 14 products
    Picus NxT Electronic Pipettes by Sartorius From
    As low as $1,445
    Some ship in 5 - 7 days
  7. Available in four capacity sizes, models feature a single pivot turntable, a stainless steel table top for efficient LN2 storage in vapor or liquid phase | 6900-PP-03 displayed
    Group of 4 products
    TW LABS Series Cryostorage Freezer Systems by IC Biomedical From
    As low as $31,408
    Some ship in 35 - 40 days
  8. CL-3000 disinfects up to six N95 respirator masks in five minutes enabling reuse of PPE; midrange and longwave models available | 1016-77 displayed
    Group of 3 products
    UVP Crosslinker by Analytik Jena From
    As low as $1,734
    Some ship in 15 - 17 days
  9. Lightweight ultraviolet lamp with an ergonomic handle in longwave, midrange, shortwave or a combination of longwave and shortwave models
    Group of 5 products
    UVP Handheld UV Lamps by Analytik Jena From
    As low as $195
    Some ship in 3 - 5 days
  10. ISO 4 BioSafe® Pass-Throughs use a seamless, lipless design with radius corners, autoclavable doors, and an isolated interlock for a cleaner interior | 2636-79C displayed
    Group of 17 products
    BioSafe® CleanMount® Pass-Through Chambers From
    As low as $12,616
    Some ship in 0 - 2 days

  • Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER
  • BINDER UFV ULT Freezer Case Study Video UFV ULT Freezer Case Study Video
Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER
Compare capacity, voltage and included shelves and freezer racks for UF V Series Ultra-Low Temperature Upright Freezers by BINDER | 6707-PP-13 displayed Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER
BINDER UFV ULT Freezer Case Study Video
Shows storage of samples in pharmaceutical and research sectors UFV ULT Freezer Case Study Video Using UFV ULT Freezers as a solution for GLP compliance

Features and Benefits

Suited for Vaccine Storage

-86°C temperature setpoint, efficient thermal insulation and low energy consumption deliver an excellent solution for coronavirus vaccine storage

Climate-Neutral Refrigerants

State-of-the-art cooling technology and large vacuum-based thermal insulation deliver environmentally-friendly and energy efficient models

Ergonomic Door Handle

Enables easy door opening and retrieval of samples manually or at the touch of a button

Stainless Steel Interior

Models are constructed with rust-proof stainless steel interiors and include three stainless steel shelves

Minimum Ice Build-Up

Innovative door gasket minimizes ice build-up on the door frame
