Custom-configured product: Lab Equip will quote.

• Compatible with most major COVID-19 commercial PCR kits

• Provides rapid, accurate, qualitative and quantitative COVID-19 test results

• Optional 21 CFR Part 11 software module

• Smooth integration into computer-controlled workflow

• 10 year optics/3 year overall system warranty

• Silver block technology for temperature uniformity of ±0.1 °C within the entire 96 well block capacity

• Completely maintenance and calibration free for the life of the system

• License-free control and analysis software allows for installation on multiple computers at no charge

• Sensitive detection module accepts up to six filter modules and delivers ideal detection and excitation of fluorescents up to dark red

• Suitable for use in various applications and can be retrofitted with additional Color, FRET or Protein Modules

• qTOWER 3 G Gradient Function: delivers highest specificities and easily adjusts for different assays, defines temperature in whole numbers for simple and intuitive operation;

• qTOWER 3 touch 10

• Tablet delivers standalone operation and enhanced PC control

• qPCTsoft enhances PC control or provides stand-alone operation via integrated tablet control (select models), license-free, multilingual software covers a broad range of analysis tools

• Capacity: 96-well (0.2 ml)

• Sample size: 10 - 80 ul

• Heating/Cooling: Up to 8 °C/sec (max.) / Up to 6 °C/sec (max.)

• Adjustable temperature range: 4 °C to 99 °C

• Temperature uniformity: 55 °C ± 0.15 °C after 15 sec

• Temperature control accuracy: ± 0.1 °C

• Reads 96 wells in 6 seconds

• All models include qPCRsoft, thermal block and detection module

• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])

Thermal Cyclers

  • COVID-19 Contamination Control Products by Terra Universal
  • video overview of the qTower Thermal Cycler qTower Thermal Cycler
  • Analytik Jena qTower PCR Thermal Cycler Analytik Jena qTower 3 Auto PCR Thermal Cycler

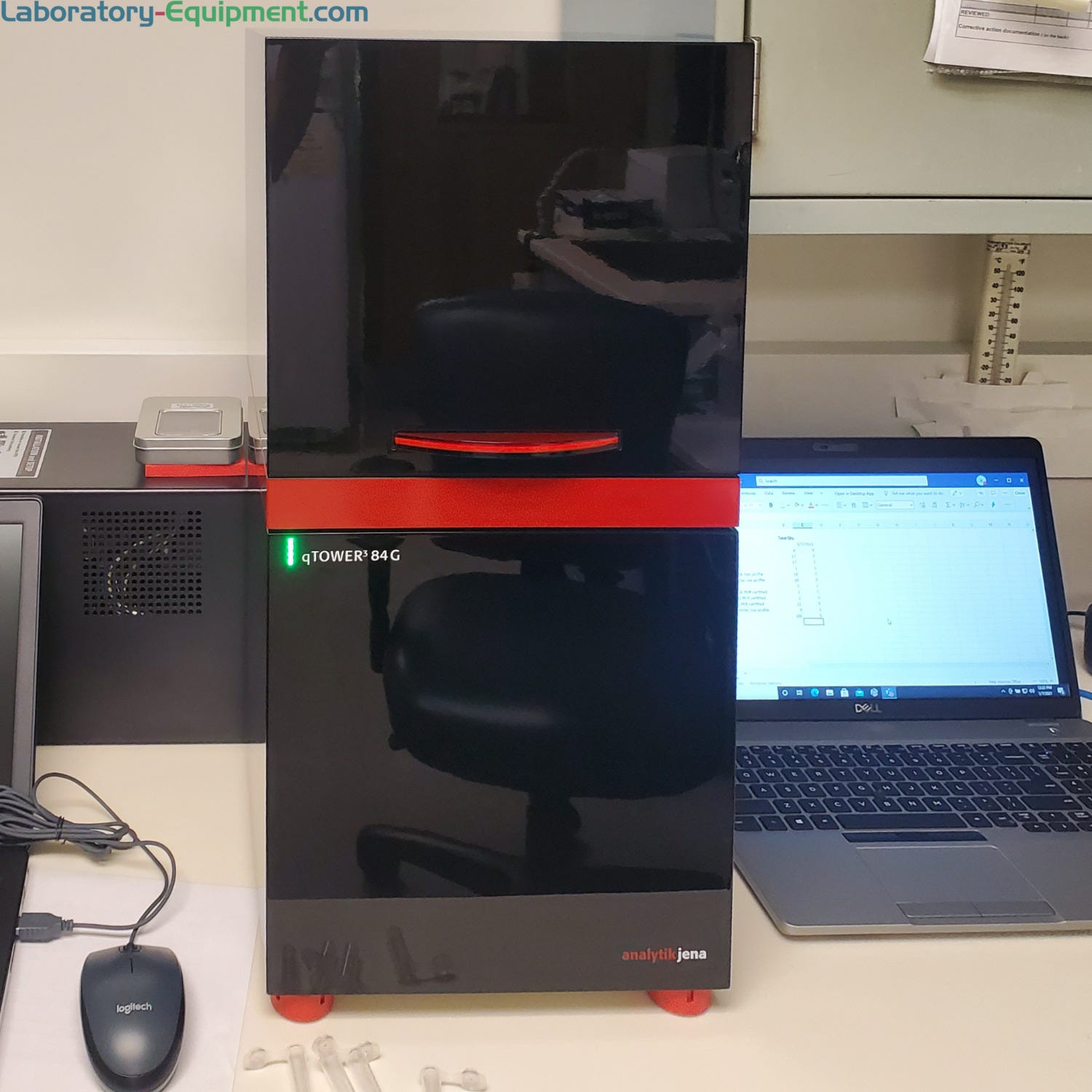

  • Analytik Jena QTOWER 3 PCR Thermal Cycler QTOWER COVID-19 PCR Detection System
  • Analytik Jena CyBio Felix Liquid Handler CyBio Felix COVID-19 Sample Preparation System
  • Analytik Jena Automated COVID-19 Patient Sample Detection System Analytik Jena’s COVID-19 patient sample processing and diagnostic testing systems at work in a clinical inpatient lab
video overview of the qTower Thermal Cycler
Analytik Jena qTower PCR Thermal Cycler
Analytik Jena QTOWER 3 PCR Thermal Cycler
Analytik Jena CyBio Felix Liquid Handler
Analytik Jena Automated COVID-19 Patient Sample Detection System

Features and Benefits

Applications and Accessories

Additional Features:

  • qTOWER 3 G Gradient Function: delivers highest specificities and easily adjusts for different assays, defines temperature in whole numbers for simple and intuitive operation
  • qTOWER 3 touch 10” Tablet Features: delivers standalone operation and enhanced PC control
  • qPCTsoft: enhances PC control or provides stand-alone operation via integrated tablet control (select models), license-free, multilingual software covers a broad range of analysis tools from Ct values to ddCT method and multi plate analysis
  • qPCR Application: Sensitivity: Detects 1 copy of target sequence in human genomic DNA
  • qPCR Application: Dynamic range: 10 orders of magnitude
  • Provides outstanding control accuracy with silver block technology
  • Patented high-performance optics with 9 filters and 4 different LEDs
  • Capacity: 96 Well á 0.2 ml for 96 x 0.2 m
  • Sample size: 10 – 80 μl
  • Heating/Cooling: Up to 8 °C/sec (max.) / Up to 6 °C/sec (max.)
  • Adjustable temperature range: 4 °C to 99 °C
  • Temperature uniformity: 55 °C ± 0.15 °C after 15 sec
  • Temperature control accuracy: ± 0.1 °C
  • Reads 96 wells in 6 seconds
  • Provides homogeneous excitation and detection
  • Models do not include PC
Color Modules and FRET Modules Compatible with qTOWER 3 PCR Thermal Cyclers

Configurable Filter Module Systems deliver optimized excitation and emission filters for detecting various fluorescent dyes. The qTOWER 3 easily adapts to a variety of available filter modules that facilitate various excitation and read out wavelengths

  • Block capacity 96 Well á 0.2 ml for 96 x 0.2 ml
  • Sample size 10 – 80 μl
  • Heating/Cooling Up to 8 °C/sec (max.) / Up to 6 °C/sec (max.)
  • Adjustable temperature range 4 °C to 99 °C
  • Temperature uniformity 55 °C plus/minus 0.15 °C after 15 sec
  • Temperature control accuracy plus/minus 0.1 °C
  • Heated Lid
    • Lid temperature: 30 °C to 110 °C
    • Contact pressure: 30 kg, automated
    Optics:
    • Fiber optic shuttle system with 8-fold scanner and color modules
    • 4 long-life, high-power LEDs (RGBW)
    • high sensitive PMT (Photo Multiplier Tuber)
    • 12 color, FRET- and protein modules (6 positions)
    • reads 96 wells in 6 seconds
  • Gradient Function Features
    • Interface: USB for data transfer, barcode reader
    • Linear Gradient Tool: 40 °C max / 0.1 °C min gradient
  • 10” Tablet Feature Display: Patented fiber optic shuttle system for fast read out of 96 wells

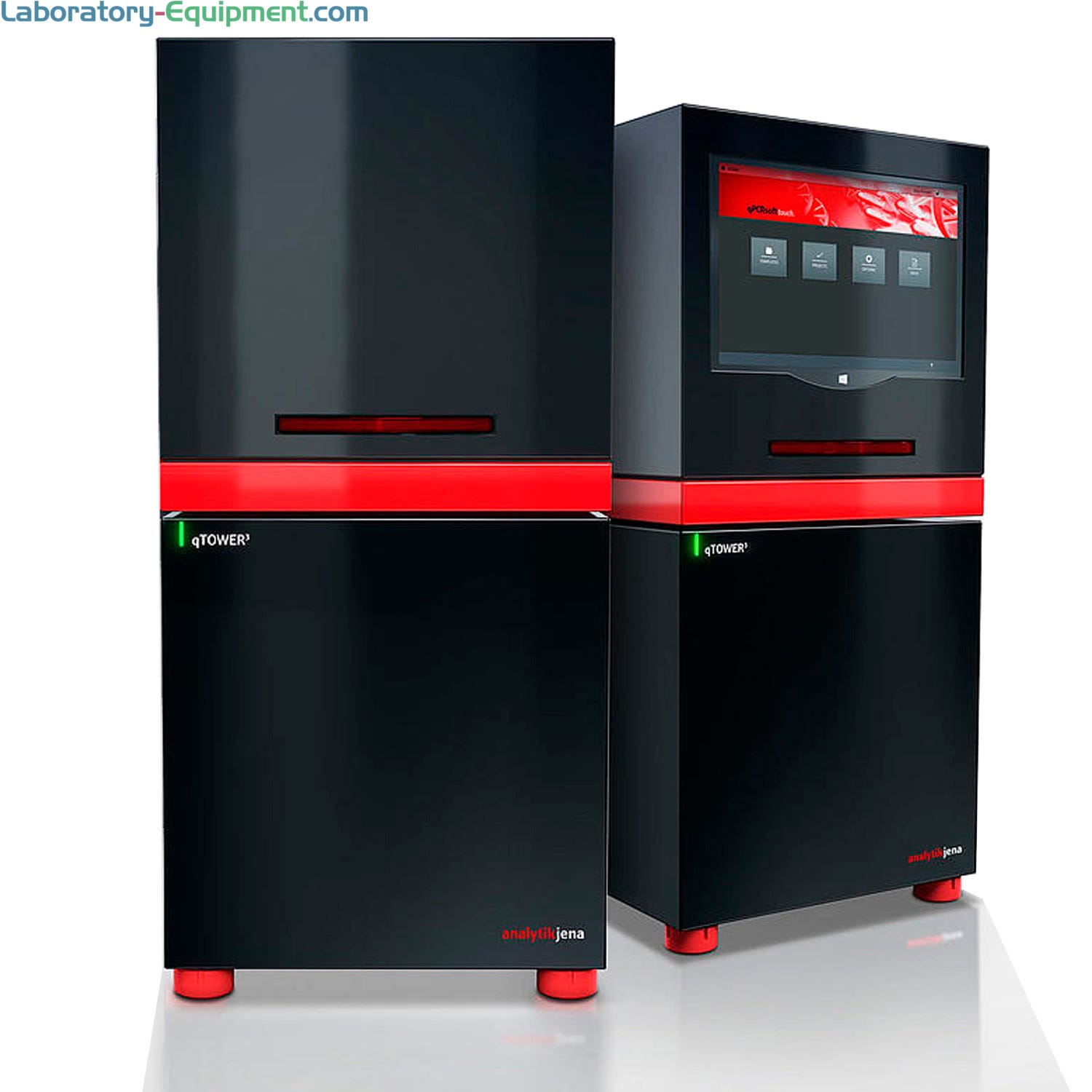

Analytik Jena qTower Real-Time PCR Thermal Cyclers

Standard, gradient and Touch models feature a patented fiber option shuttle system with 4 high-performance LEDs for ideal excitation and detection of fluorescent dyes; accepts up to 6 filter modules

Analytik Jena qTower Real-Time PCR Thermal Cycler

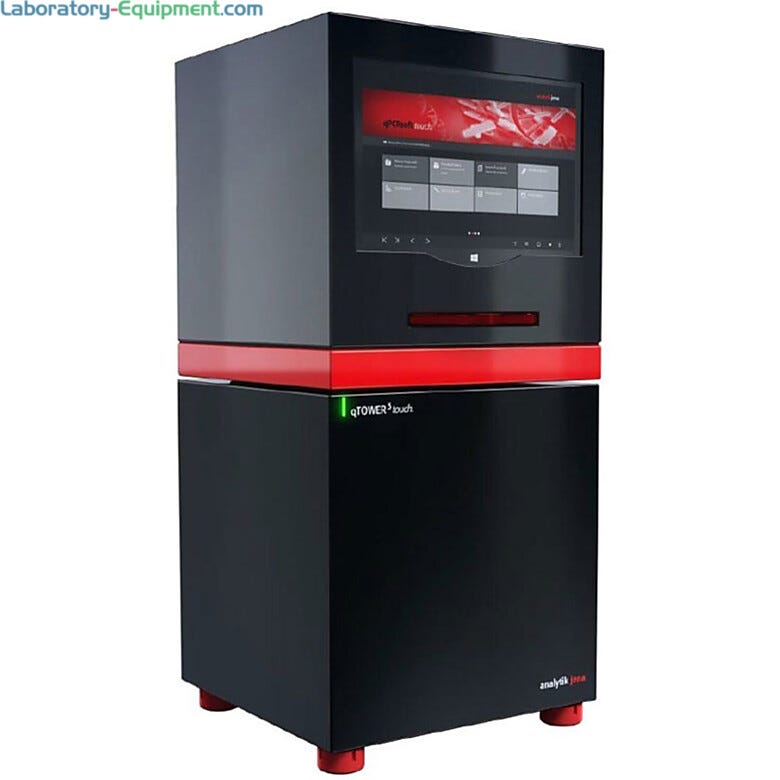

The qTOWER 3 Touch includes qPCRsoft, a thermal block and detection module and does not include PC. qTowers can be equipped with up to six color and FRET modules (sold separately).
