Terra Part # 8000-86
$13,645
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 8000-86
79152

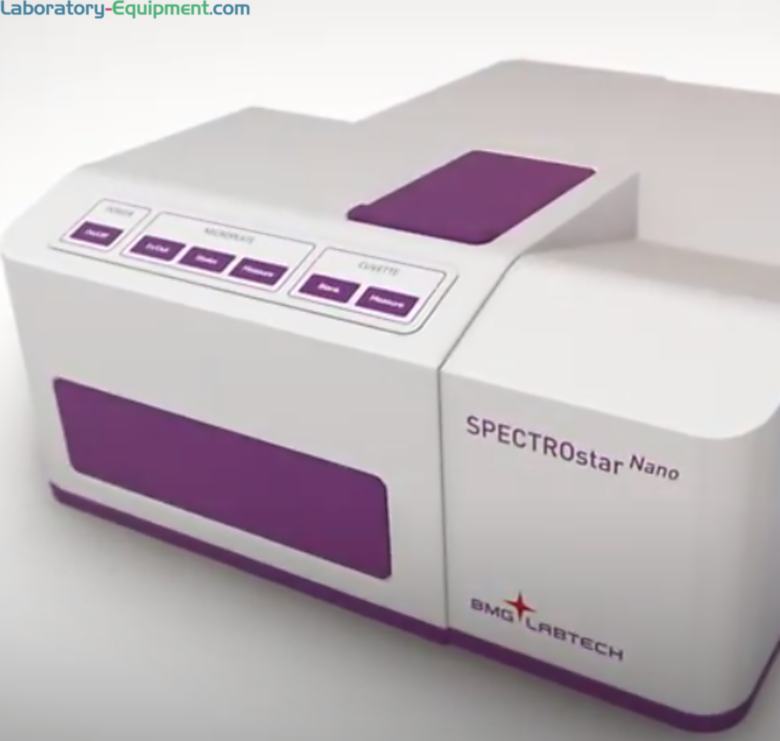

Plate Reader; SPECTROstar Nano, Absorbance, ELISA, 1536 Well, BMG LabTech

• SPECTROstar Nano with ultra-fast UV/vis spectrometer and a spectral range from 220 to 1000 nm

• Full spectrum absorbance in less than 1 second per well

• Predefined assay protocols for microplates, cuvettes or low volume samples

• Single click performance of most common assays: DNA, ELISA and Bradford

Includes: Multi-user Reader Control and MARS Data Analysis Software (FDA 21 CFR Part 11 compliant)

Optional accessories: LVis Plate, Evaluation Plate and THERMOstar microplate incubator and shaker

SPECTROstar Nano Applications: 260/280 ratio for DNA and RNA, protein quantitation, ELISA, cell-based assays, enzyme activity assays

Features: automated path length correction, well scanning, kinetic readings, assay-specific buttons, predefined calculation templates for data analysis, incubation up to 45 °C, integrated cuvette port, multiple shaking options, well scanning with up to 900 data points per well, easily integrates with automated systems; provides high-speed absorbance measurements, gas vent, robotic compliant software

• Measures low-volume samples when used with LVis Plate (2 μl)

• Detection Modes: UV/Vis absorbance spectra

• Measurement Modes: endpoint and kinetic, spectral scanning (absorbance), well scanning

• Microplate formats: 6 to 1536-well plates, user-definable LVis Plate with 16 low-volume microspots (2 μl)

• Microplate Carrier: robot compatible

• Light Sources: High energy xenon flash lamp

• Detectors: CCD Spectrometer

Wavelength Selection:

UV/vis absorbance spectrometer: Full spectra or 8 distinct wavelengths in < 1 sec/well

• Spectral Range: 220 - 1000 nm

• Wavelength precision: ≤ 0.5 nm

Sensitivity:

• Selectable spectral resolution: 1, 2, 5, and 10 nm

• OD range: 0 to 4 OD; photometric resolution: 0.001 OD

Accuracy: < 1% at 2 OD

Precision: < 0.5% at 1 OD and < 0.8% at 2 OD

• Linearity: ≤ 0.8% at 2.0 OD

Read Times: Full spectrum from 220 to 1000 nm in less than 1 sec/well

Shaking: Linear, orbital, and double-orbital with user-definable time and speed

Purge Gas Vent: System to inject an atmosphere or to pull a vacuum into the reader

Incubation:+3°C above ambient up to 45 °C (incubation chamber upper heating plate operates at 0.5ºC more than lower plate to prevent condensation build-up on sealer or lid)

Type: Plate Reader

Application: Absorbance, ELISA

Plate Configuration: 1536 Well

Reader Mode: Absorbance

Manufactured by: BMG LabTech

Manufacturer SKU: SPECTROstar Nano

Absorbance Range: 220 to 1000 nm

Unit of Measure: EA

Weight, Product: 22.04 lb

Dimensions, Product: 14.17" W x 19.68" D x 6.29" H

Manuals & Resources

Buy Accessories
  1. THERMOstar microplate incubator and orbital shaker with a 4-plate capacity, 120-700rpm and up to 56°C incubation; compatible with BMG LabTech Microplate Readers | 8000-87 displayed
    $3,400
    Increase Down Increase Up

Microplate Equipment

  • Video of SPECTROstar Nano Absorbance Plate Reader by BMG LabTech Video of SPECTROstar Nano Absorbance Plate Reader by BMG LabTech
Video of SPECTROstar Nano Absorbance Plate Reader by BMG LabTech

Features and Benefits

LVis Low-Volume Microplate

BMG LabTech UV/Vis Absorbance spectrometer-based microplate readers are compatible with LVis Low-volume Microplate with cuvette slots for 2ul Samples (Sold Separately)




Built-In Gas Vent

Provides the perfect testing environment by purging the microplate chamber with different gasses
