115/220 V Plate Handler No Base Microplates PlateCrane EX 280200A 3030-31 60339 Request Quote 20-24 Days 2
115/220 V Plate Handler One Base/Two Stacks Microplates PlateCrane EX 280200 3030-00 60336 Request Quote 20-24 Days 3
115/220 V Plate Handler One Base/Two Stacks/R-Axis Motion Microplates PlateCrane EX360 280400 3030-32 60340 Request Quote 20-24 Days 4
Voltage
Type
Configuration
Sample Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Rugged PlateCrane EX and EX360 Microplate Handlers are optimized for handling labware in the SBS footprint
  • Available in standard PlateCrane EX with 345° horizontal rotation and PlateCrane 360 with unlimited rotation
  • Provides walkaway automation for a single microplate instrument or complex workcells with multiple liquid handling instruments
  • Four axes of motion: tower rotation, vertical travel, a telescoping arm and gripper rotation
  • Automatically handles plates with over 200 different instruments
  • Loads and unloads microplate readers, automatable centrifuges, reagent dispensers, microplate washers and other automated lab instruments from removable stacks mounted on modular bases
  • Accepts 96-, 384- and 1536-well microplates, deep well plates, lidded plates and tip racks
  • Compatible with lidded or unlidded plates
  • Easy benchtop workcell set-up fits into a standard laboratory hood
  • Allows easy addition of plates to active protocols
  • Applications: DNA quantification, PCR set up and cleanup, assay development, cell biology, bioassay validation and high-throughput drug screening
  • Options: temperature controlled stacks, Easy Teaching pendant for easy set-up of plate positions in workcell and revolutionary AutoTeach machine vision teaching system
  • Includes SoftLinx lab automation software for programming and scheduling workcell operation, 5 stacks (each stack holds 25 lidded plates, 30 plates without lids, or 9 DW blocks)

Capacity: [xxx]

Features & Benefits

Features & Benefits

Learn More: PlateCrane Applications

More Information

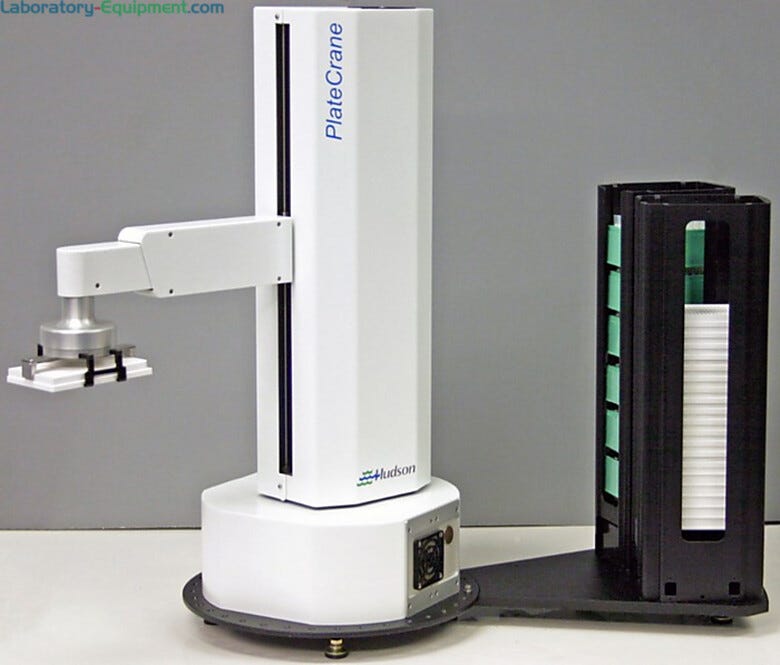

Designed for the scientist while maintaining the reliability and flexibility required by automation specialists, the PlateCrane integrates easily with automation-friendly incubators or random access stacks (plates are stacked in shelves for random selection) and Hudson’s LabLinx track-based system.

The PlateCrane EX is supplied with Hudson’s SoftLinx laboratory automation software that provides scheduling capability and an easy-to-use icon-based drag-and-drop Method Editor. SoftLinx users can access Hudson’s software interfaces for more than 150 microplate-based instruments, including liquid handlers, pipettes, washers, readers, incubators, sealers, bar code labelers, and more.

With the optional teach pendant, calibration is almost as easy as pressing a button. While servicing one instrument or an entire workcell, the PlateCrane Ex is the ideal solution for labs working with liquid handling instruments and microplates.

PlateCrane EX & EX360 Applications

Automated microplate robots such as the PlateCrane are used widely in the drug discovery industry to increase the efficiency of numerous high throughput screens involving complex methods (FLIPR, Reporter, ELISA, and FRET assays). The PlateCrane, designed with an efficient built-in plate gripper and on-board controller, pioneered the idea of a compact microplate robot handling and being compatible with multiple instruments from different manufacturers.

PlateCranes are also used to track microplates in their assays by automating the application of barcode labels to microplates and automatically delivering batches of up to 450 microplates to barcode print-and-apply devices, such as the Computype LAP-4100.

The PlateCrane is also used to move microplates and filter plates in high throughput, automated DNA Plasmid Prep systems. Unlike systems offered by some plasmid prep kit manufacturers, Hudson’s wide array of automated dispensers, shaker nests, and automated vacuum nests make PlateCrane-based plasmid prep systems truly walk-away with no need for human intervention from start to finish, with throughput as high as 6 quantity of 96-well plates (576 samples) per hour.

Additional applications:
  • Moves plates with lids to-and-from stacks and can automatically remove the lid from the active plate
  • Creates flexible, scalable, easy to operate, and affordable customized microplate handling solutions
  • Flow cytometers—Automate and expand the process of moving plates to the Guava & Intellicyt instruments
  • qPCR—Move plates into-and-out of Roche’s Lightcycler, BioRad’s CFX, or ABI’s 7900 instruments
  • Liquid handlers—quickly and easily expand capabilities of existing liquid-handling systems with the PlateCrane
  • Plate readers—Remove lids, set up time point assays and create multiple instrument workcells

Diagram showing the movement and dimensions of the PlateCrane Ex cylindrical robot arm

Plate Capacity:
  • up to 450 plates without lids
  • up to 275 plates with lids
Plate Format: Portrait & Landscape (Rotary Gripper)
Plate Storage Device: 2 removable stacks (expandable up to 15)
Housing Material:
  • painted steel covering
  • cast aluminum housing
Gripper Material:
  • block anodized aluminum
  • textured neoprene rubber inserts
Arm Mechanism: ball bearing axis with high-speed screw rail; mechanical stops to prevent continuous rotation (345° maximum)
Arm Motion (Rotary Travel): PlateCrane EX with 345° horizontal rotation PlateCrane 360 model with 360°+ (unlimited) rotation
Horizontal Reach: 12"–18" radius from centerline
Vertical Reach:
  • minimum 4.25" from table
  • maximum 22.75" from table
  • 18" total vertical travel distance
Dimensions: 27"H x 19"W x 27"D
Weight: 45 lbs., without stacks
Operating Temperature: 15° to 40°C (59° to 104°F)
Operating Humidity: 0 to 85%, non-condensing
Computer Interface: RS232 serial cable
Power Input: 115/220V AC, 50/60Hz
