2809-53
Terra Part # 2809-53
$914
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 2809-53
80257

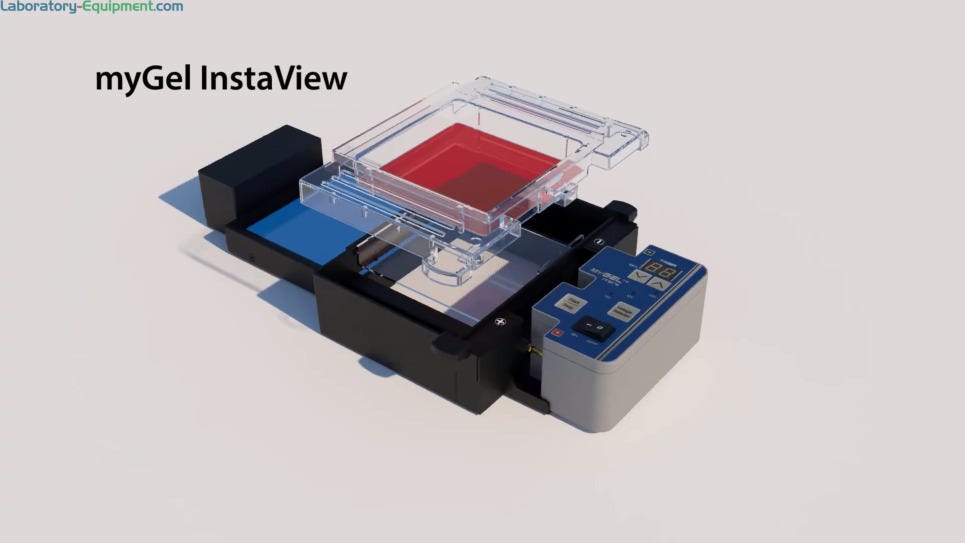

Gel Imaging System; myGel InstaView™, Complete Electrophoresis System, Blue LED Illuminator, 230 V, E1201-E, Accuris Instruments
Product Details
  • MyGel InstaView Complete Electrophoresis System with Blue LED Transilluminator and power supply, 230V
  • Provides real-time viewing of DNA migration and separations and captures high resolution images with a smart phone without removing gel from tank
  • Blue light illumination will not damage DNA
  • 465nm wavelength provides optimal excitation of green fluorescent stains
  • Horizontal electrophoresis system includes components and accessories needed for casting and running agarose gels
  • Compact all-in-one electrophoresis system streamlines running of gels, documentation and shares captured images via email, text or print
  • Magnetic interlock between gel tank and lid prevents current from running through the system in event lid is not properly placed
  • Included with MyGel InstaView Complete Electrophoresis System #E1201-E: Gel Tank, Mini Smart Blue Transilluminator, smart phone imaging enclosure, safety lid with integral orange viewing filter, E1200-CS1 Casting Set and direct connect power supply with AC transformer(eliminates leads)
  • Transilluminator compatible with green fluorescent stains such as Accuris SmartGlow PS, SmartGlow LD, SYBR® Green and fluorescent stains under 465nm blue light
  • Applications: nucleic acid separation in agarose gels
  • Adjustable output voltage: 35V, 50V or 100V
  • Run time set up: up to 99 minutes
  • Specifications:
  • Migration Tank:
  • Inner Dimension: 120mm×110mm×45mm
  • Buffer volume: 200ml-225ml
  • Electrodes: Platinum wire
  • Blue LED Transilluminator:
  • Viewing area dimension: 10.5cm x 10.5cm
  • Wavelength: 465nm
  • Input voltage 12VDC (Power Adapter included for 100VAC to 240VAC input)
  • Gel Casting Set:
  • Gel casting stand (leak-proof) accommodates 10.5cm x 11cm and 10.5cm×6cm trays (Divider included)
  • Comb specifications (Teeth width x Teeth thickness x Teeth no.): 3mm×1mm×22, 5.6mm×1mm×12
  • Gel trays: 10.5cm x 11cm and 10.5cm × 6cm
  • Accessories (sold separately):
  • E1200-OC Orange filter cover for mini LED Transilluminator
  • E1200-CS1 Extra casting set for 10.5x10cm and 10.5x6cm gels. Includes stand, trays, E1101-COMB1 double-sided combs
  • E1101-COMB1 Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set, pk of 2
  • E4000-VG1 SmartView Viewing Glasses

Brand: InstaView™

Wavelength: 465 nm

Manufacturer SKU: E1201-E

Unit of Measure: EA

Electrical Specifications: 230 V, 50 Hz

Weight, Product: 2.3 lb

Dimensions, Product: 10" W x 8.25" D x 5" H

Buy Accessories
  1. Additional casting set includes stand, trays, E1101-COMB1 double-sided combs
    $42
    Increase Down Increase Up
  2. Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set
    $8
    Increase Down Increase Up
  3. Orange filter cover for use separately from the gel tank
    $35
    Increase Down Increase Up
  4. SmartBlue Viewing Glasses ideal for precision cutting of bands from gels
    SmartBlue Viewing Glasses by Accuris Instruments Ships Free Free shipping in contiguous USA
    $45
    Increase Down Increase Up

Gel Transilluminators

  • InstaView™ Electrophoresis Systems for real time viewing of DNA separation InstaView™ Electrophoresis Systems
InstaView™ Electrophoresis Systems for real time viewing of DNA separation

Features and Benefits

Smart Phone Compatible

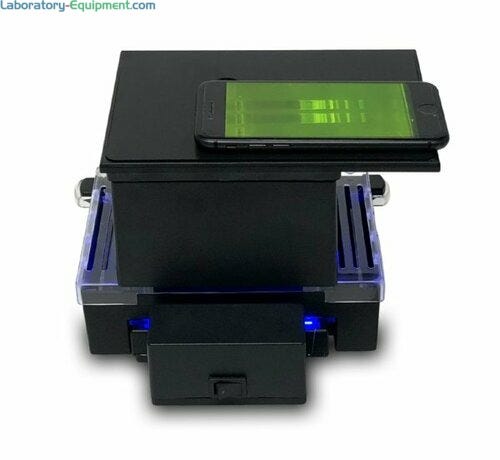

Captures hi-res images with a smart phone without removing the gel from the tank and enables data sharing by email, text or print
