Select Product
Voltage

Configuration

Capacity

Maximum Speed

Temperature Control

Model

Rotor Type

Manufacturer SKU

Terra Part #PriceShips in
120BenchtopMulti tube15200RefrigeratedMultifuge X4R Pro-MDSwing-Out75009516 1717-62 79614 $15,33110-14 Days2
120BenchtopMulti tube15200VentilatedMultifuge X4 Pro-MDSwing-Out75009501 1717-61 79613 $11,42510-14 Days3
Voltage
Configuration
Capacity
Maximum Speed
Temperature Control
Model
Rotor Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary
Product Details

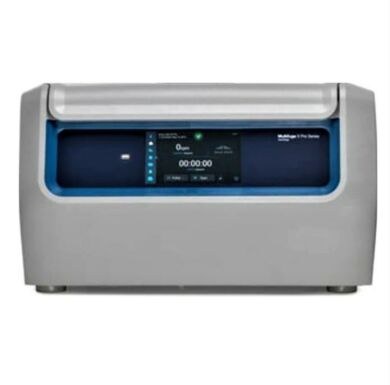

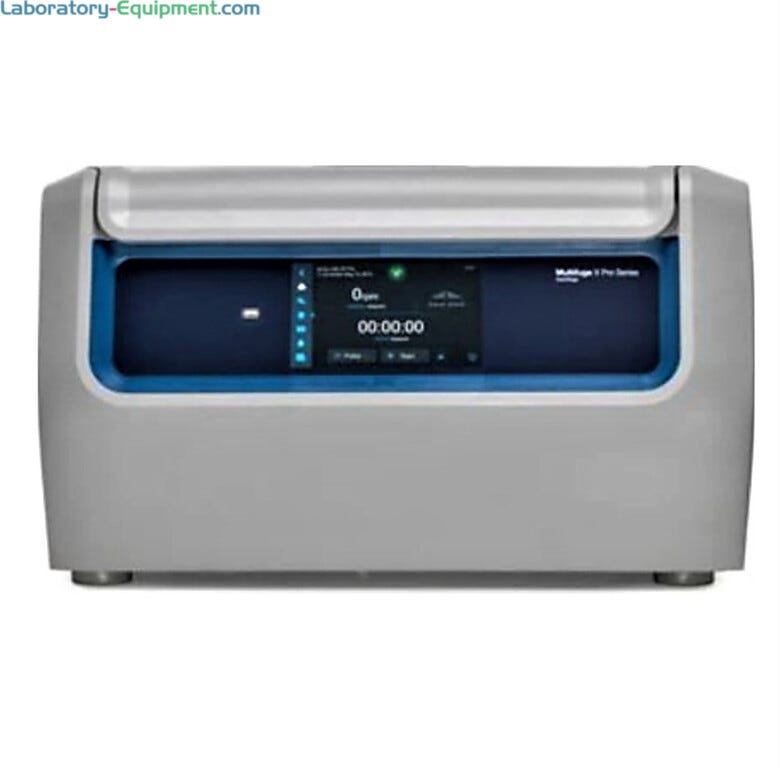

  • FDA-listed IVD Multifuge X4 and X4R Pro Centrifuges with 100-program memory and color LCD touchscreen display
  • Provides easier programming, tracking of runs and enables application flexibility
  • Temperature range for refrigerated Multifuge X4R: -10°C to +40°C
  • 4-liter benchtop model processes up to 196 blood tubes and 96 15mL conical tubes
  • Swinging and fixed-angle rotors sold separately
  • Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
  • Full color touch screen LCD display provides easy access to menus and programs
  • Double temperature management shows air and sample temperature during run
  • Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics
  • Push-button operation ideal for routine applications
  • Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM
  • Swinging bucket rotors specifications:
  • Maximum capacity: 4 x 1000 mL with TX-1000 rotor
  • Maximum speed: 6000 rpm with BIOShield 1000A rotor
  • Maximum RCF: 7164 x g with BIOShield 720 rotor
  • Fixed-angle rotors specifications:
  • Maximum capacity: 6 x 250 mL with F14-6x250LE rotor
  • Maximum Speed 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
  • Maximum RCF: 25830 x g with Microliter 30x2
  • Multifuge X4 and X4R Pro centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 100 programs, up to 9 hr. 59 minutes run time (max 99h, 59min, 59sec; also with continuous and customizable pulse), G-force increments in 1 x g, 1 rpm speed increment, time setting (hour/min and continuous mode), bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open and secure access mode
  • Motorized lid latch for one-finger downward motion (closing and locking of lid)
  • Easy-to-clean and access rotor chamber
  • System certified by CAMR™ in Porton Down, UK.
  • 40% energy savings on standard protocols:  blood separation or conical tubes processing
  • SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option
  • ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
  • Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15
  • Standards: ISO 14971, ISO 13485, ISO 9001
  • Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
  • Stainless steel centrifuge bowl
  • Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
  • List of optional rotors for Multifuge Pro Series:
  • TX-1000 Swinging Bucket Rotor #75003017
  • TX-750 Swinging Bucket Rotor #75003180
  • BIOShield 1000A Swinging Bucket Rotor #75003182
  • TX-400 Swinging Bucket Rotor #75003181
  • BIOShield 720 Swinging Bucket Rotor #75003183
  • TX-200 Swinging Bucket Rotor #75003658
  • HIGHPlate 6000 Swinging Bucket Rotor #75003606
  • Fiberlite H3-LV Swinging Bucket Rotor #75003665
  • M-20 Swinging Bucket Rotor #75003624
  • H-Flex 1 Swinging Bucket Rotor #75003300
  • H-Flex HS4 Swinging Bucket Rotor #75003330
  • Fiberlite F15-6x100y Fixed Angle Rotor #75003698
  • Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340
  • CLINIConic Fixed Angle Rotor #75003623
  • 8 x 50 Individually Sealed Fixed Angle Rotor #75003694
  • HIGHConic II Aluminum Fixed Angle Rotor #75003620
  • MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765
  • Fiberlite F21-48x2 Fixed Angle Rotor #75003664
  • Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652
Features & Benefits

Features and Benefits

Touchscreen Interface

Multifuge Pro centrifuges feature an LCD display and touchscreen user interface for easy menu access, quick spins and convenient programming

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Comprehensive Rotor Portfolio

Thermo Scientific clinical centrifuges are compatible with a variety of rotors from 120mL-4L that accommodate 1.5-50mL sample tubes, microplates and 10mL standard syringes
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • TX-1000 Swinging Bucket Rotor body; 4 x 100ml

    Spins up to 40x50ml conical tubes, 196 blood tubes or 24 microplates (adapters sold separately); compatible with Thermo Scientific centrifuges

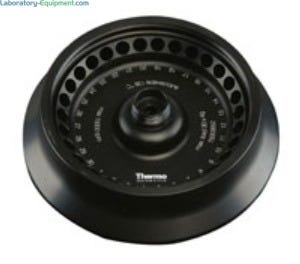

  • Rotor, Fixed Angle; 100mm, Microliter 30x2 Sealed Aluminum, 45, Rmax

  • Microliter 48 x 2mL Sealed Aluminum Fixed Angle Rotor by Thermo Fisher Scientific

    Compatible with Thermo Fisher Scientific Sorvall, Megafuge and Multifuge Series Centrifuges
