Select Product

Voltage

Configuration

Controls

Maximum Speed

Temperature Control

Manufacturer SKU

Terra Part #PriceShips in
120 V1.5/2.0mL and 0.5mL Tube RotorsDigital14800 rpmRefrigerated75002478 1108-13 55885 $6,38210-20 Days2

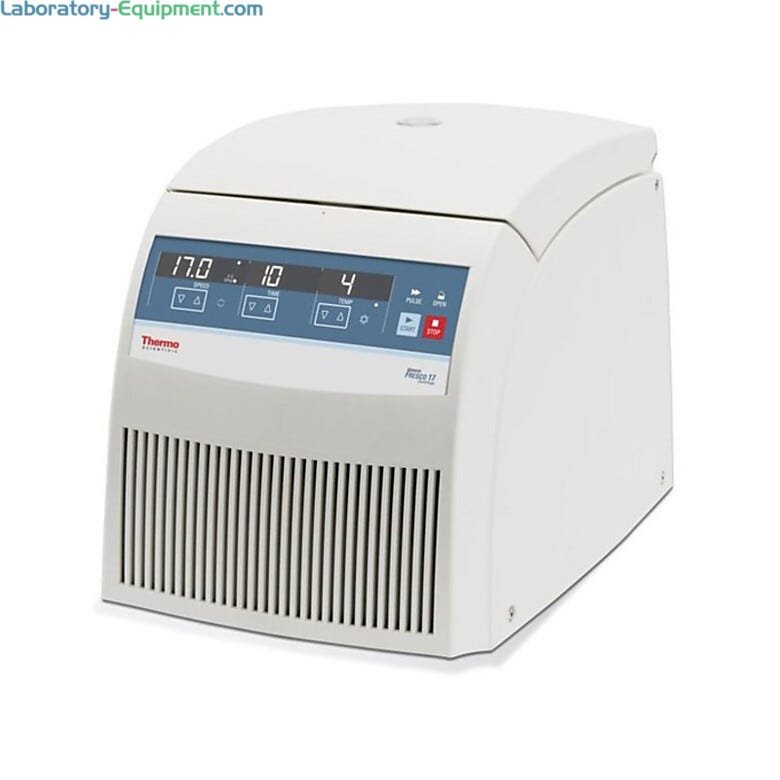

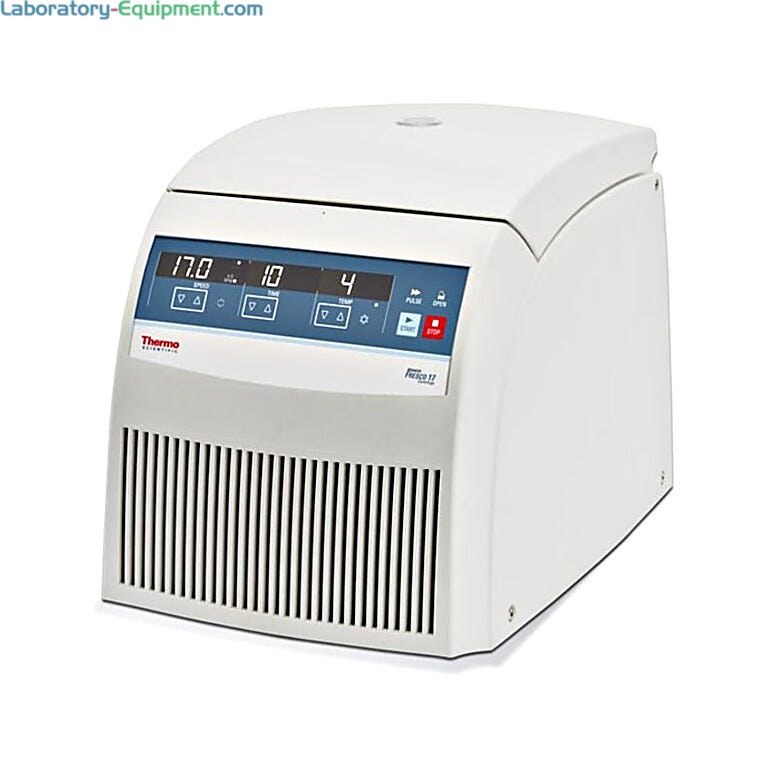

120 V1.5/2.0mL Tube RotorDigital13300 rpmRefrigerated75002421 1108-09 55874 $5,58110-20 Days3
120 V1.5/2.0mL Tube RotorDigital14800 rpmRefrigerated75002426 1108-11 55879 $6,09010-20 Days4
Voltage
Configuration
Controls
Maximum Speed
Temperature Control
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

• Maximum speed RCF: Centrifuge 1,180 x g; Wash 190 x g

• Maximum capacity: 24 tubes

• Tube Dimensions: 12 x 75 mm or 10 x 75 mm

• Cycle settings: 1 to 9

• Four-stage process display: wash, centrifuge decant, agitate

• Easy sample balancing with color-coded tubes

• Process Time Per Cycle: 60 seconds (Automatic centrifugation time: 35 seconds)

• Automatic timer: 1 to 99 seconds in 1-second increments

• Manual timer: 1 to 999 seconds in 1-second increments

• Material: stainless steel rotor body

• Set decanting speed for optimal corpuscle dryness

• Optional overflow method during centrifugation step improves corpuscle washing

• Ambient temperature: +2° to +35°C

Noise level: <53dbA

Features: removable catch basin, rotor and rotating bowl, top-mounted saline distribution reduces cross-contamination, easy-to change pump tubing

Safety Features: Door interlock, Dual over-speed detector, Saline level sensor

Applications: ABO compatibility, antibody screening, Antiglobulin tests, Rh testing and Cross matching

Certifications: UL listed, CSA certified, CE marked, FDA Class 2, IVD compliant

Standards: CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1, CAN/CSA-C22.2 No. 61010-2-020-09- Part 2-020, IEC 61010-2-020, IEC 61010-2-101

Compatible rotors: 75000020 24-place rotor assembly with distributor; 75000021 12-place rotor assembly with distributor

• Processes samples faster; all models accelerate up to 21,000 xg in just 12 seconds

• Fresco temperature range: -9° to 40°C, ±1°C (15.8°F to 104°F, ±33.8°F)

• Fresco 21 models designed for high-end research applications; reduce spin times by up to 20%

• Timing: 1 to 99 minutes, in 1 min. increments plus HOLD

• Refrigerated models offer cooling in just nine (9) minutes

• Strong transparent PPSU lids are more chemical-resistant than polycarbonate and metallic lids

• Compliance: IEC 61010-1, IEC 61010-2, IEC 61010-020

• All models include standard rotor

Centrifuges

  • Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges
  • Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge
  • Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge

Features & Benefits

Features & Benefits

Compare Pico and Fresco Models

Heraeus Pico and Fresco Microcentrifuges from Fisher Scientific

ModelPico 17 and 21 (Ventilated)Fresco 17 and 21 (Refrigerated)
Dimensions (W x L x H)9.6 x 13.8 x 8.9 in.
(244 x 351 x 226.5 mm)
11.6 x 17.5 x 12.9 in.
(295 x 444.5 x 328 mm)
Imbalance RecognitionElectronic in ventilated centrifuges
Noise Level<56 dBA<50 dBA
Temperature Range-9° to +40°C, ±1°C
Net Weight24.2 lbs. (11 kg)61.7 lbs. (28 kg)
Capacity24 x 1.5/2.0 mL
Timer1 to 99 min., 1 min. increments plus HOLD
Structure/HousingSheet metal with attached plastic housing and steel chamber
Rotor ChamberPlastic
Up to 48 ml of spilled liquid is retained in the chamber and cannot enter the instrument
DriveInduction drive without carbon brushes
Keys and DisplayEasy-to-clean keypad and display surface
ControlMicroprocessor-controlled
Internal MemorySaves most recent data
FunctionsRCF-selection, temperature control, pretemp
Door LockAutomatic door closing and locking starting from an initial hold position

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Thermo Scientific Heraeus Fixed-Angle 45 Degree Centrifuge Rotor
    Heraeus 36 x 0.5 mL fixed-angle 45° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges.
  • Thermo Scientific Heraeus PCR Strips Fixed-Angle 60 Degree Centrifuge Rotor
    Heraeus 8 x 8 PCR strips (0.2 ml tubes) fixed-angle 60° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges.
  • Thermo Scientific Heraeus ClickSeal Transparent Biocontainment Lid
    Heraeus ClickSeal Transparent Biocontainment Lid for Pico and Fresco Microcentrifuges from Thermo Fisher. One click secures it in place for safe sample containment.
