Terra Part # 1717-60
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1717-60

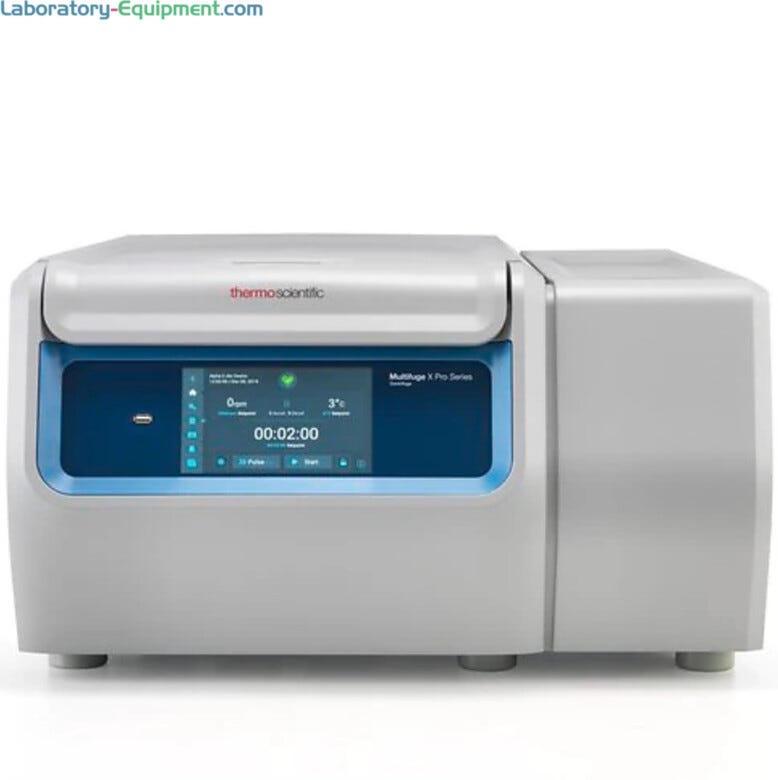

Centrifuge; Multifuge Pro X1R, Refrigerated, Benchtop, Swing-Out Rotor, Thermo Fisher, 120 V
  • Benchtop 1.6L Multifuge X1R Pro Refrigerated Centrifuge with a 100-program memory for protocol flexibility
  • IVD certified model features a full color touchscreen LCD display for efficient programming
  • Step programming ensures compatibility across multiple applications
  • Temperature range: -10°C to +40°C
  • Swinging bucket and fixed-angle rotors sold separately
  • Swinging bucket rotors specifications:
  • Maximum capacity: 4 x 400 mL with TX-400 rotor
  • Maximum speed: 6300 rpm with BIOShield 720 rotor
  • Maximum RCF: 188 x g with BIOShield 720 rotor
  • Fixed-angle rotors specifications:
  • Maximum capacity: 6x100 mL with F15 6x100y
  • Maximum Speed: 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
  • Maximum RCF: 25830 x g with Microliter 30x2
  • Certifications/Compliance: EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15
  • Standards: ISO 14971, ISO 13485, ISO 9001
  • Run time: max 99h, 59min, 59sec; also with continuous and customizable pulse
  • Timer: count up or down count down only
  • Program Storage up to 100 run programs
  • Programmability: via easy access touch screen menu
  • Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
  • Stainless steel centrifuge bowl
  • Energy-efficient Multfifuge X1R Pro centrifuge features: microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 6 programs, G-force increments in 1 x g, time setting (hour/min and continuous mode), bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open secure access mode
  • Motorized lid latch for one-finger downward motion (closing and locking of lid
  • Easy-to-clean and access rotor chamber
  • Certified by CAMR™ in Porton Down, UK.
  • 40% energy savings on standard protocols:  blood separation or conical tubes processing
  • SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option)
  • ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
  • Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
  • List of Compatible Rotors for Multifuge X1 Centrifuge:
  • TX-400 Swinging Bucket Rotor #75003181
  • TX-200 Swinging Bucket Rotor #75003658
  • M-20 Swinging Bucket Rotor #75003624
  • Fiberlite F15-6x100y Fixed Angle Rotor #75003698
  • CLINIConic Fixed Angle Rotor #75003623
  • 8 x 50 Individually Sealed Fixed Angle Rotor #75003694
  • HIGHConic II Aluminium Fixed Angle Rotor #75003620
  • Fiberlite F21-48x2 Fixed Angle Rotor #75003664
  • Microliter 48 x 2 Aluminum Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652
  • BIOShield 1000A Swinging Bucket Rotor #75003182
  • BIOShield 720 Swinging Bucket Rotor #75003183
  • Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340
  • MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765
  • Fiberlite F15-6x100y Fixed Angle Rotor, 25°, Rmax 98 mm
  • Fiberlite F13-14x50cy Fixed Angle Rotor, 34°, Rmax 153 mm
  • Fiberlite F15-8x50cy Fixed Angle Rotor, 25°, Rmax 104 mm

Temperature Control: Refrigerated

Maximum Speed: 15200 rpm

Manufactured by: Thermo Fisher

Model: Multifuge Pro X1R

Configuration: Benchtop

Manufacturer SKU: 75009251

Type: Centrifuge

Unit of Measure: EA

Marks & Listings: UL, EN,IEC,IVD

Electrical Specifications: 120 V, 50/60 Hz

Weight, Product: 207 lb

Dimensions, Product: 24.6" W x 26" D x 14.2" H

Buy Accessories
  1. The versatile TX-400 swinging bucket rotor from Heraeus accepts 32 to 76 blood tubes and up to 16 conical tubes in a single run | 1538-57 displayed
    Increase Down Increase Up
  2. Allows all of the samples to swing outwards as the centrifuge is spun. | 1538-56 displayed
    Increase Down Increase Up
  3. M-20 90° swinging-bucket centrifuge rotor holds standard or deep-well microplates; compatible with Thermo Scientific centrifuges | 1538-58 displayed
    Increase Down Increase Up
  4. Hereaus Fiberlite F15-6 x 100y fixed 25° angle centrifuge rotor accommodates six 85 ml Nalgene tubes | 1537-86 displayed
    Increase Down Increase Up
  5. Designed to hold the sample containers at a constant angle relative to the central axis. | 1538-62 displayed
    Increase Down Increase Up
  6. Hereaus Megafuge fixed-angle 8-position rotor from Thermo Fisher holds 8x50 ml individually sealed vessels at 45° | 1538-63 displayed
    Increase Down Increase Up
  7. Heraeus HIGHConic II aluminum 45° fixed-angle centrifuge rotor from Thermo Fisher has a maximum speed of 10,350 rpm | 1537-16 displayed
    Increase Down Increase Up
  8. Fiberlite F21-48 x 2 Fixed-Angle Rotor with a max 15200 rpm for Sorvall Legend, Multifuge Pro and Megafuge Plus centrifuges by Thermo Fisher Scientific
    Increase Down Increase Up
  9. Microliter 48 x 2mL Sealed Aluminum Fixed Angle Rotor with a max 15200 rpm compatible with Thermo Scientific Sorvall, Megafuge and Multifuge centrifuges
    Increase Down Increase Up
  10. Designed to hold the sample containers at a constant angle relative to the central axis. | 1717-13 displayed
    Increase Down Increase Up
  11. Performs high-speed separations at 15,200 rpm | 1538-64 displayed
    Increase Down Increase Up

Features and Benefits

Touchscreen Interface

Multifuge Pro centrifuges feature an LCD display and touchscreen user interface for easy menu access, quick spins and convenient programming

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Convenient Biocontainment

ClickSeal Biocontainment lids minimize contamination and are ergonomically designed for one-handed open/close operation with gloves

Comprehensive Rotor Portfolio

Thermo Scientific clinical centrifuges are compatible with a variety of rotors from 120mL-4L that accommodate 1.5-50mL sample tubes, microplates and 10mL standard syringes

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Thermo Fisher Heraeus TX-400 Swinging Bucket Rotor
    The versatile TX-400 swinging bucket rotor from Heraeus accepts 32 to 76 blood tubes and up to 16 conical tubes in a single run. It accommodates adapters from 400 to 1.5 ml (max. capacity: 4 x 400 mL).
