Select Product



Maximum Speed

Temperature Control

Manufacturer SKU

Terra Part #PriceShips in
120 VIVD4L15200 rpmRefrigerated75009519 1717-59 79583 $10,84410-14 Days2
120 VIVD4L15200 rpmVentilated75009504 1717-58 79582 $7,67710-14 Days3
Maximum Speed
Temperature Control
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

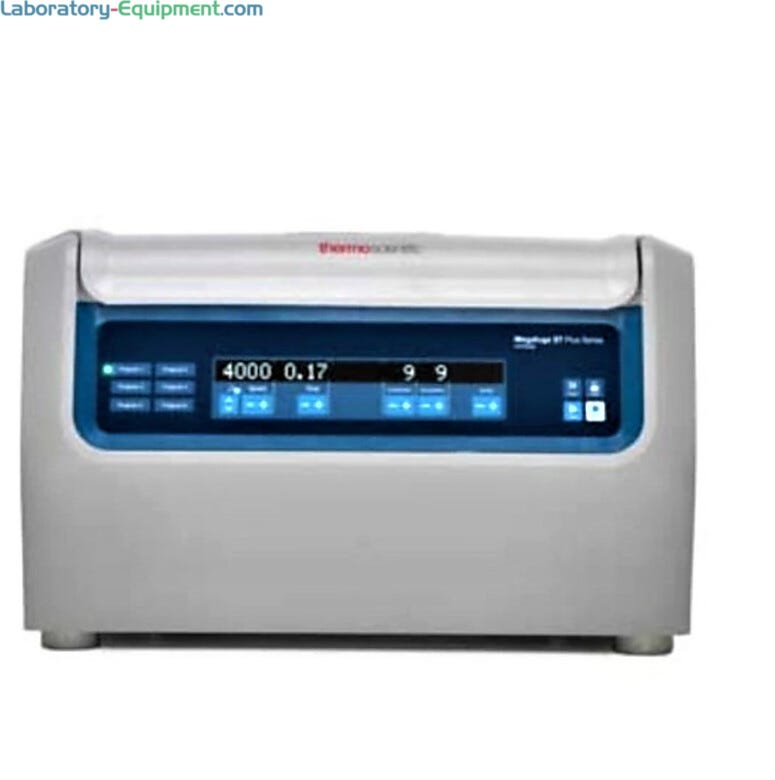

• FDA listed Megafuge ST4 and ST4R Plus 4-liter capacity clinical centrifuges in ventilated and refrigerated models

• AUTO-LOCK III Rotor Exchange for easy rotor change without tools and optional Certified ClickSeal™ biocontainment lids for operator safety

• Temperature range for refrigerated ST4 R model: -10°C to +40°C

• Processes up to 76x5/7 ml blood tubes and 16x50 ml conical tubes

• Swinging and fixed-angle rotors sold separately

• Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics

• Stores up to six saved programs and push-button operation ideal for routine applications

Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM

Safety features: SMARTSpin Imbalance detection, finger-pinch prevention, crash-proof construction

Swinging bucket rotors specifications:

• Maximum capacity: 4 x 1000 mL with TX-1000 rotor

• Maximum speed: 5300 rpm with BIOShield 1000A rotor

• Maximum RCF: 5590 x g with BIOShield 720 rotor

Fixed-angle rotors specifications:

• Maximum capacity: 6 x 100 mL with F15-6x100 or F10-6x100 rotor

• Maximum Speed 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2

• Maximum RCF: 25830 x g with Microliter 30x2

Megafuge ST4 and ST4R Plus centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 6 programs, up to 9 hr. 59 minutes run time, count-down timer, G-force increments in 100 x g, time setting (hour/min and continuous mode), fixed pulse button, bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open access mode

• Motorized lid latch for one-finger downward motion (closing and locking of lid)

• Easy-to-clean and access rotor chamber

• System certified by CAMR™ in Porton Down, UK.

• 40% energy savings on standard protocols: blood separation or conical tubes processing

• SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option

• ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation

• Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches

Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15

Standards: ISO 14971, ISO 13485, ISO 9001

Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet

• Stainless steel centrifuge bowl

Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity

List of optional rotors:

• TX-1000 Swinging Bucket Rotor #75003017

• TX-750 Swinging Bucket Rotor #75003180

• BIOShield 1000A Swinging Bucket Rotor #75003182

• TX-400 Swinging Bucket Rotor #75003181

• BIOShield 720 Swinging Bucket Rotor #75003183

• TX-200 Swinging Bucket Rotor #75003658

• HIGHPlate 6000 Swinging Bucket Rotor #75003606

• Fiberlite H3-LV Swinging Bucket Rotor #75003665

• M-20 Swinging Bucket Rotor #75003624

• H-Flex 1 Swinging Bucket Rotor #75003300

• H-Flex HS4 Swinging Bucket Rotor #75003330

• Fiberlite F15-6x100y Fixed Angle Rotor #75003698

• Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340

• CLINIConic Fixed Angle Rotor #75003623

• 8 x 50 Individually Sealed Fixed Angle Rotor #75003694

• HIGHConic II Aluminum Fixed Angle Rotor #75003620

• MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765

• Fiberlite F21-48x2 Fixed Angle Rotor #75003664

• Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602

• MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719

• Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652

Features & Benefits

Features and Benefits

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Convenient Biocontainment

ClickSeal Biocontainment lids minimize contamination and are ergonomically designed for one-handed open/close operation with gloves

Comprehensive Rotor Portfolio

Thermo Scientific clinical centrifuges are compatible with a variety of rotors from 120mL-4L that accommodate 1.5-50mL sample tubes, microplates and 10mL standard syringes
