Select Product
Voltage

Application

Exterior Material

Capacity

Temperature Range

Interior Material

Model

Manufacturer SKU

Terra Part # Price Ships in
230 V Environmental Testing Powder Coated Steel 8.7 cu. ft. Ambient to 70°C Stainless Steel KBF P 9020-0328 1410-14 75450 $20,001 15-21 Days 2
230 V Environmental Testing Powder Coated Steel 24.7 cu. ft. Ambient to 70°C Stainless Steel KBF P 9020-0330 1410-15 75453 $24,377 15-21 Days 3
Voltage
Application
Exterior Material
Capacity
Temperature Range
Interior Material
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Material: stainless steel inner chamber and racks; safety glass (ESG) tight-sealing inner door
  • Interior Volume cu. ft.: 8.7 (240 model) and 24.7 (720 model)
  • Temperature range: 0 °C to 70 °C
  • Temperature range with light: 10 °C to 60 °C
  • Humidity range: 10 % to 80 % RH
  • Access port with silicone plug: 30 mm (left)
  • Includes stable castors (with 2 brakes) and stainless steel racks
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Application: photostability tests
  • KBF P Humidity Test Chambers by BINDER feature an ICH-compliant UV/Vis light source for stable long-term test conditions
  • Complies with ICH Guideline Q1B, Option 2
  • Homogeneous lighting conditions (with patented Synergy Light system) with variable-position illumination cassettes
  • Features humidity regulation with capacitive humidity sensor and vapor humidification
  • Avoids glass corrosion with TIMELESS coating
  • Features: APT.line™ preheating chamber technology, self-test for comprehensive status analysis, touchscreen controller with time-segment and real-time programming, data logger (internal) reads measured values in via USB, door heating, Ethernet and door heating

Environmental Test Chambers

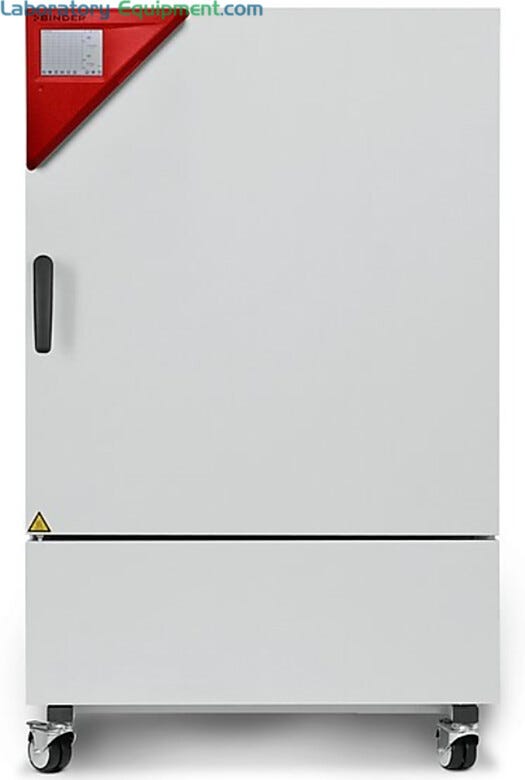

  • BINDER KBF P 240 Humidity Test Chamber with ICH-Compliant lighting for photostability testing; 8.7 cu. ft. capacity KBF P 240 Humidity Test Chamber with ICH-Compliant lighting by BINDER

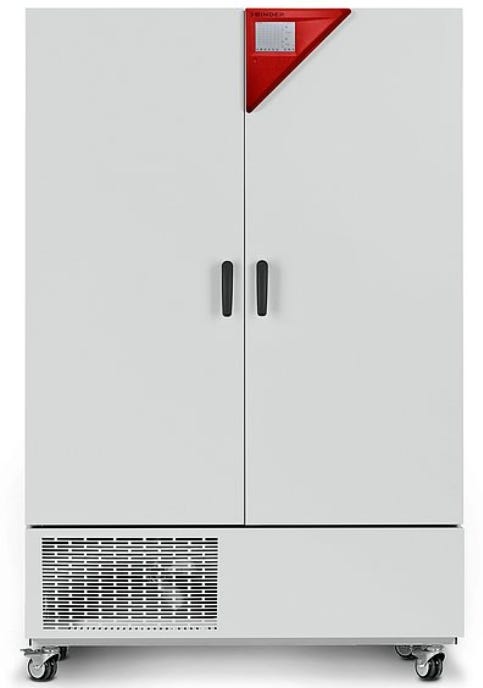

  • BINDER KBF P 720 Humidity Test Chamber for photostability testing KBF P 720 Humidity Test Chamber with ICH-Compliant lighting by BINDER
  • Light Bar Installation Video Light Bar Installation
  • Case Study of Leatherhead Food Research using Binder Chambers Case Study of Leatherhead Food Research using Binder Chambers
  • Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV
Light Bar Installation Video
Case Study of Leatherhead Food Research using Binder Chambers
Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV
Features & Benefits

Features and Benefits

Learn More: KBF Humidity Test Chambers

KBF Series Humidity Test Chambers

Light Cassettes, LQC and data logger with optional ambient sensor

Binder offers a wide variety of options for the KBF Series Humidity chambers from additional stainless steel shelves and access ports to Data Logger Kits and calibration certificates

Water Source Options for KBF Series Humidity Test Chambers

Binder offers water source options for the KBF Series to satisfy various water supply preferences when using house water or BINDER Pure Aqua; external water tanks are also available

BINDER Growth Chambers Options and Accessories
  • Access port with silicone plug (right, left or top from 30 mm to 100 mm)
  • Alarm output, zero-voltage
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Calibration certificate, temperature and humidity
  • Class 3.3 independent temperature safety device
  • Converter, voltage
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • Interface converter
  • Interface converter, USB / RS422
  • Interior socket
  • LED light bars
  • pH-neutral detergent
  • PT 100 temperature sensor
  • Rack accessories
  • Rack, reinforced
  • Stainless steel racks
  • Stainless steel perforated shelves
  • RS 422 interface
  • RS 422 interface, cable (15 m)
  • RS 422 interface, cable (50 m)
  • RS 485, 2- wire
  • Software (various versions of the APT-COM communications software)
  • Water supply set
Model KBF 115 KBF 240 KBF 720 KBF 1020
Internal Volume 3.6 cu. ft. (102L) 8.72 cu. ft. (247 L) 24.72 cu. ft. (700 L) 36 cu. ft. (1020L)
External Dimensions W" x D" x H" (mm) 34.7 x 25.6 x 41.3 in. (880 x 650 x 1050 mm 36.4 x 31.5 x 57.5 in. (925 x 800 x 1460 mm) 49.21 x 35.04 x 75.79 in. (1250 x 890 x 1925 mm) 49.21 x 45.1 x 75.79 in. (1250 x 1145 x 1925 mm)
Internal Dimensions W" x D" x H" (mm) 23.6 x 13.8 x 19.0 in. (600 x 351 x 483mm) 25.59 x 19.09 x 30.91 in. (650 x 485 x 785 mm) 38.31 x 22.68 x 49.21 in (973 x 576 x 1250 mm) 38.4 x 32.9 x 49.21 in. (976 x 836 x 1250 mm)
Temperature range [°C] 0-70 0-70 0-70 0-70
Temperature variation at 40 °C [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation [± K] 0.1 0.1 0.1 0.5
Max. heat compensation at 40 °C [W] 200 300 600 600
Temperature range [°C] 10-70 10-70 10-70 10-70
Temperature variation at 25 °C and 60 % RH [± K] 0.2 0.3 0.2 0.2
Temperature variation at 40 °C and 75 % RH [± K] 0.2 0.3 0.2 0.2
Temperature fluctuation at 25 °C and 60 % RH [± K] 0.1 0.1 0.1 0.1
Temperature fluctuation at 40 °C and 75 % RH [± K] 0.1 0.1 0.1 0.1
Humidity range [% RH] 10-80 10-80 10-80 10-80
Humidity fluctuation at 25 °C and 60 % RH ≤2 ± % RH 1.5 ± % RH 1.5 ± % RH 1.5 ± % RH
Humidity fluctuation at 40 °C and 75 % RH ≤2 ± % RH 1.5 ± % RH 1.5 ± % RH 1.5 ± % RH
Inner doors 1 1 2 2
Unit doors 1 1 2 2
permitted load [lbs.] 220 220 331 331
Load per rack [lbs.] 66 66 99 99
Energy consumption at 40 °C and 75 % RH [Wh/h] 470 650 620 650
Sound-pressure level [dB(A)] 52 52 53 56
Number of shelves (std./max.) 2/5 2/9 2/15 2/15
Electrical 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz 200-230v, 50/60Hz

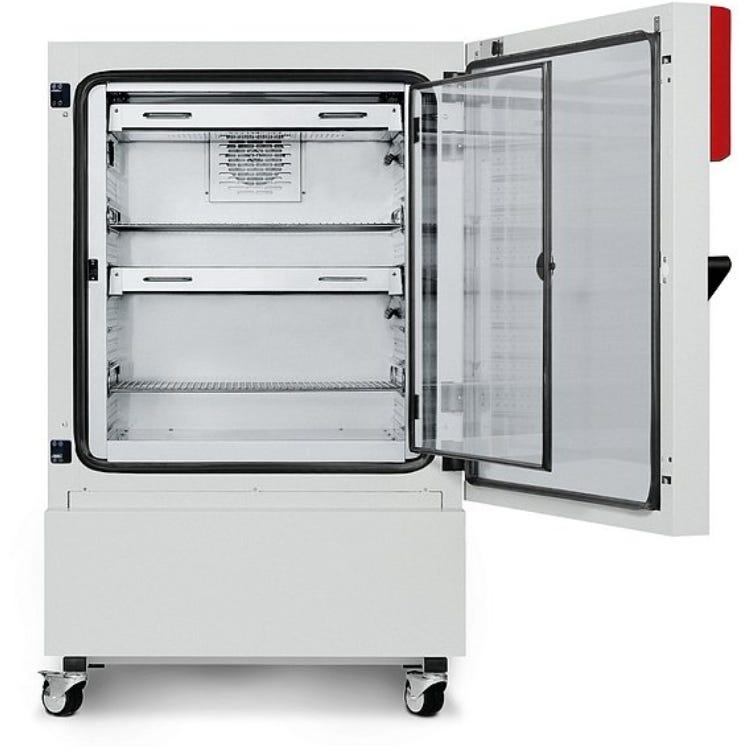

Stainless steel chamber and corrosion-resistant glass inner door

KBF P Humidity test chambers feature stainless steel inner chamber and racks; the tight-sealing inner door made of ESG safety glass is coated to resist corrosion

Double Sided Air Flow

Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.

Climate Diagram

Wide temperature and humidity range maintain maximum parameter uniformity for optimum conditions within the test chamber environment

ICH Check Points for BINDER KBF Series

Shows temperature and humidity ICH checkpoints for long-term testing, accelerated testing and stress testing of KBF Test Chambers.
