Environmental Test Chambers
1410-PP-06
1410-PP-06 72443

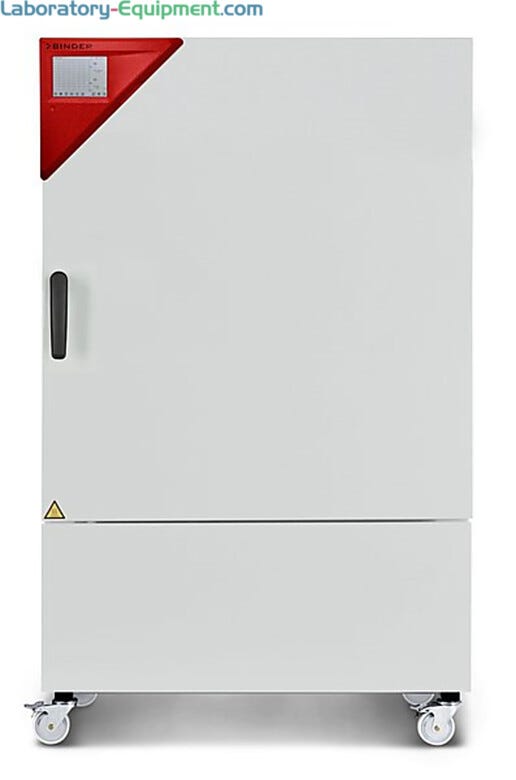

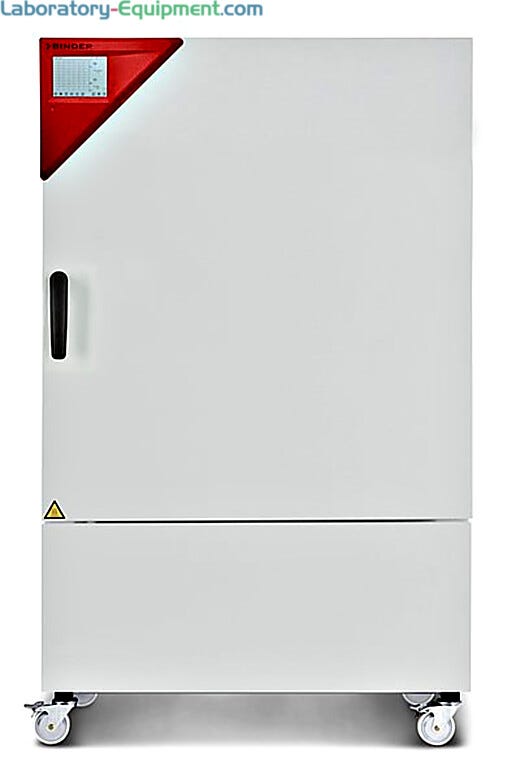

KBW Growth Chambers by BINDER Worldwide
Read more
Manufactured By: Binder
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
- Available in 8.72 cu.ft. (247 L) and 24.7 cu.ft. capacities
- Temperature range with light: 10 °C to 60 °C
- Temperature range: 0 °C to 70 °C
- Relative humidity range from 10 to 80%
- Patented lighting system ensures homogenous light distribution
- Includes illumination cassettes and stainless steel racks
Features & Benefits
Features and Benefits
Options, Features and Specs
These filters also remove aerosol-born pathogens—germs that literally hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter.
HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings. Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:
Print Copy Copied
Light Spectra of KBW Series Growth Chambers with Light
KBW models include daylight lamp. Arabidopsis and FLUORA® illumination cassettes are sold separately.
KBW Series Growth Chambers Options and Accessories
- Arabidopsis illumination cassette
- Calibration certificates
- Class 3.3 independent temperature safety device
- Data Logger Kit
- Data Logger Software
- Door lock
- FLUORA® illumination
- Interface converter, USB / RS422
- Interior electrical sockets
- Pt 100 temperature sensor
- Stainless steel racks
Additional Features
- KBW climate chambers feature tempered safety glass (ESG) inner door (tight sealing) with TIMELESS coating
- Integrated weekly program in real-time
- Adjustable fan speed
- Door heating
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Intuitive touchscreen controller with time-segment and real-time programming with internal data recording Access port with silicone plug, 30 mm left
These filters also remove aerosol-born pathogens—germs that literally hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter.
HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings. Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:
| Model | KBW 240 with 8.72 cu. ft. capacity includes 2 shelves | KBW 400 with 14.13 cu. ft. capacity includes 3 shelves | KBW 720 with 24.7 cu. ft. capacity includes 3 shelves |
|---|---|---|---|
| Electrical | 200-240v, 50/60Hz | 200-240v, 50/60Hz | 200-240v, 50/60Hz |
| Net weight of the unit (kg) | 430 lbs. (195kg) | 556 lbs. (252kg) | 831 lbs. (377kg) |
| External Dimensions W" x D" x H" (mm) | 36.4 x 31.5 x 57.7 in. (925 x 800 x 1465 mm) | 36.4 x 31.7 x 76.8 in. (925 x 805 x 1950 mm) | 49.2 x 35 x 75.8 in. (1250 x 890 x 1925 mm) |
| Internal Dimensions W" x D" x H" (mm) | 25.6 x 19.1 x 30.9 in. (650 x 485 x 785mm) | 25.6 x 19.1 x 50 in. (650 x 485 x 1270mm) | 38.2 x 22.7 x 49.2 in. (970 x 576 x 1250mm) |
| Internal Volume (L) | 8.72 cu.ft. (247 L) | 14.13 cu.ft. (400 L) | 24.7 cu.ft. (698 L) |
| Unit doors | 1 | 1 | 2 |
| Number of shelves (std./max.) | 2/7 | 3/12 | 3/12 |
| Permitted load | 220 lbs. (99.80 kg) | 265 lbs. (120.202 kg) | 331 lbs. (140.13 kg) |
| Load per rack | 66 lbs. (29.94 kg) | 66 lbs. (29.94 kg) | 66 lbs. (44.91 kg) |
| Illumination cassettes (std./max.) | 2/2 | 3/3 | 3/3 |
| Temperature range without illumination cassettes [°C] | 32-158 °F (0-70 °C) | 32-158 °F (0-70 °C) | 32-158 °F (0-70 °C) |
| Temperature range with 100% illumination [°C] | 41-140 °F (5-60 °C) | 41-140 °F (5-60 °C) | 41-140 °F (5-60 °C) |
| Temperature variation without illumination cassettes [± K] | 0.5 | 0.5 | 0.5 |
| Temperature variation with 100% illumination [± K] | 0.5 | 1.5 | 1 |
| Temperature fluctuation without illumination cassettes [± K] | 0.1 | 0.1 | 0.1 |
| Temperature fluctuation with 100% illumination [± K] | 0.2 | 0.2 | 0.1 |
| Illumination per cassette Daylight tubes [lx] | 9000 | 9000 | 13000 |
| Illumination per cassette Fluora® growth lamps [lx] | 7500 | 7500 | 10500 |
| Illumination per cassette Arabidopsis lamps [lx] | 11000 | 11000 | 14000 |
| Computer Interface | Ethernet | Ethernet | Ethernet |
Homogeneous Temperature Distribution
APT.line™ preheating chamber technology with dual-side air flow ensures long-term temperature uniformity even with a full load
