Terra Part # 1524-37
$5,950
Usually ships in 19-23 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1524-37
62988

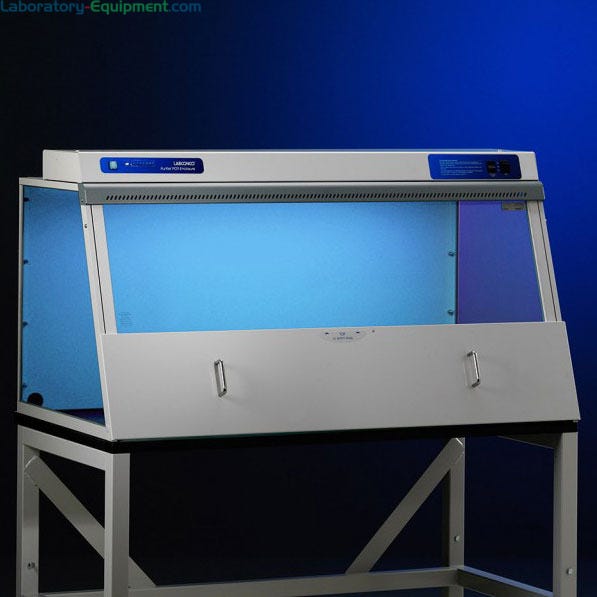

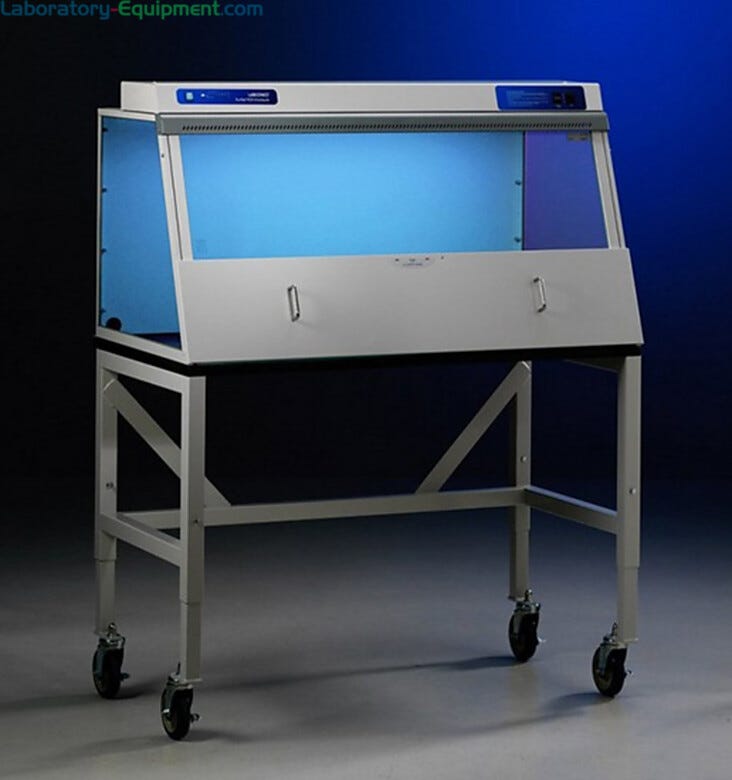

Purifier PCR, Non-Ventilated Enclosure, 48" W x 27" D x 26" H, Labconco, 115 V
  • UV opaque and resistant tempered safety glass sides and sash
  • Interlocked UV Protection Panel closes sash opening
  • Front-mounted 3-way light switch alternates between fluorescent, UV light, and off
  • 20° angled and hinged sash that pivots upward, locks to a loading height of 20”
  • Two utility ports with iris openings and plugs
  • Wiping seals reduce cross contamination
  • Variable digital LED timer with eight settings for UV exposure durations of 5, 10, 15, 30, 60, 120, 240, and continuous

Manufactured by: Labconco

Model: Purifier PCR

Sash Design: Manual/Tilt-Up

Width: 48"

Depth: 27"

Height: 26"

Sash Opening: 8"

Max Opening: 23" H

Sash Height: 13"

Manufacturer SKU: 3952400

Unit of Measure: EA

Electrical Specifications: 115 V

Dimensions, Product: 48" W x 26.7" D x 25.7" H

Weight, Shipping: 160 lb

Dimensions, Shipping: 54" W x 34" D x 42" H

Package Type: Crate

  • Purifier Non-Ventilated PCR Enclosure Purifier Non-Ventilated PCR Enclosure
  • Labconco Purifier Polymerase Chain Reaction Enclosure Polymerase Chain Reaction Enclosure
  • UV Light Cycle Timer UV Light Cycle Timer

Features and Benefits

Vertical vs Horizontal Laminar Flow

Vertical vs. Horizontal Laminar Flow Hoods: A Scorecard for Specifiers

Laminar is derived from the Latin lamina, a thin sheet of material. When used to describe a laboratory hood, the term "laminar flow" refers to air exiting a filter in parallel layers that move at the same speed and in the same direction, vertically or horizontally across the enclosure. Any particles introduced in a laminar flow of air during a work process are predictably swept in the direction of the flow and removed from the enclosure, downstream of critical processes.

Disruption to laminarity results in turbulence, a randomized flow that suspends particles in eddies rather than removing them. Because they can remain in the system, carried by “second-pass” air that swirls around the critical work area, contaminants are deposited unpredictably, often with disastrous results.

Consideration #1: Footprint

Vertical laminar flow (VLF) hoods position the fan filter unit on top of the hood, a space-efficient design that accommodates most facilities as long as overhead clearance isn’t a problem. Horizontal laminar flow (HLF) hoods position the fan on the back of the hood, necessitating as much as 18” or more additional floor or bench space for fan, filter and make-up air flow. In a cleanroom or lab where space is at a premium, that difference alone could determine your choice. Footprint Advantage: VLF Hood


Consideration #2: Air Sash

VLF hoods often have an adjustable sash at the front of the hood to maintain the downward laminar air flow. HLF hoods are generally open at the front of the hood to ensure unrestricted horizontal air flow. The larger opening of an HLF hood makes placement of large objects and instruments easier when compared to a VLF hood although, without a sash to serve as a shield, chemical fumes or powders inside the work area may blow into the operator's face. Sash Advantage: VLF Hood (operator safety); HLF Hood (transferring large materials)


Consideration #3: Laminar Flow

Although both hoods are effective at sweeping particles from the hood, air eventually encounters obstacles that disrupt laminar flow. In most VLF hoods, the work surface creates turbulence, so critical processes must be performed above the surface to avoid contact with “second-pass” air that could contaminate a sensitive operation. Some VLF designs include a perforated floor with sub-surface plenum to reduce this obstruction, but these measures add cost. HLF hoods generally minimize this airflow disruption. However, large objects placed on the work surface can cause swirling or contaminate downstream materials, so critical operations should take place adjacent to the filter face. Laminar Flow Advantage: HLF Hood

We end with a tie; your working conditions will help you determine which of these advantages matter most in your operation.

Safety Alert: Under no circumstances should laminar flow hoods be used in the presence of hazardous materials. Use a fume hood or biological safety cabinet for safe biohazard containment.

ModelHorizontal Laminar Flow (HLF) StationVertical Laminar Flow (VLF) StationValuLine™ VLF StationValuLine Whisperflow HoodPortable CleanBooth
FlowHorizontalVerticalVerticalVerticalVertical
Nominal Widths 7', 6', 4'
(2.1 m, 1.8 m, 1.2 m)
8', 6', 5', 4'
(2.4 m, 1.8 m, 1.5 m, 1.2 m)
8', 6', 5', 4'
(2.4 m, 1.8 m, 1.5 m, 1.2 m )
6', 5 ', 4', 3 ', 2 '
(1.8 m, 1.5 m, 1.2 m, .9 m, .6 m)
6', 4'
(1.8 m, 1.2 m)
Nominal Overall Depth and Height44"D x 63"H
(1118 mm x 1600 mm)
41"D x 90"H
(1041 mm x 2286 mm)
41"D x 90"H
(1041 mm x 2286 mm)
24”/30”D x 41”H
(610/762 mm x 2286 mm)
30"D x 82"H
(762 mm x 2083 mm)
Nominal Working Space30"D x 28"H
(762 mm x 711 mm)
27"D (686 mm); height depends on workbench used27"D (686 mm); height depends on workbench used24”/30”D x 23”H (610/762 mm x 584 mm)24"D (610 mm); height depends on workbench used
Construction Material / Options
  • Powder coated steel frame exterior
  • 304 Stainless steel interior
  • Powder coated steel
  • 304 stainless steel
  • Acrylic or SD PVC shield options
  • Powder coated steel
  • 304 stainless steel
  • Acrylic or SD PVC shield options
  • 304 stainless steel frame
  • 304 SS, acrylic or SD PVC panels
  • Powder Coated Steel Frame
    Work Surface Options
  • Stainless steel work area
  • Optional electropolished finish.
  • Workbench sold separately; many top materials available. 2-piece frame isolates fan vibration.304 Stainless Steel work surface includedPlaced on user-furnished bench (stands available)Workbench sold separately; many top materials available. 2-piece frame isolates fan vibration.
    Blower TypeIntegrated Fan/Filter UnitIntegrated Fan/Filter UnitIntegrated Fan/Filter UnitIntegrated Fan/Filter UnitIntegrated Fan/Filter Unit
    Air Flow,7' (2.1 m)
    6' (1.8 m)
    4' (1.2 m)
    8' (2.4 m)
    6' (1.8 m)
    5' (1.5 m)
    4' (1.2 m)
    8' (2.4 m)
    6' (1.8 m)
    5' (1.5 m)
    4' (1.2 m)
    6'(1.8 m)
    5'(1.5 m)
    4' (1.2 m)
    3 ' (.9 m)
    6' (1.8 m)
    4' (1.2 m)
    CFM (m³/hr)1130 (1920)
    960 (1632)
    650 (1104)
    1300 (2209)
    960 (1632)
    840 (1427)
    650 (1104)
    1300 (2209)
    960 (1631)
    840 (1427)
    650 (1104)
    960 (1632)
    840 (1427)
    650 (1104)
    558 (948)
    960 (1632)
    650 (1104)
    Filter TypesHEPA or ULPAHEPA or ULPAHEPA or ULPAHEPA or ULPAHEPA or ULPA
    PrefilterWashable Polyurethane FoamWashable polyurethane FoamWashable polyurethane FoamWashable polyurethane FoamWashable polyurethane Foam
    Portability / Installation AccessNot portableNot portable.
    Wider than standard door frame
    Not portable.
    Wider than standard door frame
    PortablePortable: CleanBooth frame uses casters.
    Front Sash Configuration OptionsTake-up air slots and plenums on three sides of the work area
  • Motorized sliding shield (allows simplified disassembly and transport)
  • Strip shield curtains
  • Or no shield
  • Counterweighted sliding shield (disassembly requires technical capabilities)
  • Strip shield curtains
  • Or no shield
  • Tilt-UpUses softwall panel kits: vinyl, anti-static vinyl, or
    non-outgassing polyurethane
    LightingLEDLEDLEDLEDOptional fluorescent lighting
    Noise Level, Measured 30" (762mm) from filter face at 90 FPM (.46m/s)<50 dBA<50 dBA<50 dBA<50 dBA<50 dBA
    Airflow Monitor OptionsMinihelic gauge monitors backpressure across filterIncludes touch screen controls with backpressure indicatorOptional: air velocity meter and differential pressure gauge for filter backpressureOptional swing-vane anemometerOptional: air velocity meter and differential pressure gauge for filter backpressure
    Power Requirements120 VAC, 50/60 Hz
    or 220VAC, 50 Hz
    110 VAC, 50/60 Hz
    or 220VAC, 50 Hz
    110 VAC, 50/60 Hz
    or 220VAC, 50 Hz
    110 VAC, 50/60 Hz
    or 220VAC, 50 Hz
    120 VAC, 50/60 Hz
    or 220VAC, 50 Hz
    Price Range$9,300 – $14,300+$6,000 - $14,000+$5,000 - $10,000+$1500$2,000 - $4,500+
    Application Synopsis
  • Large working space
  • Airflow design reduces turbullence
  • Quiet, reliable fan/filter modules
  • Differential pressure gauge monitors filters
  • Clean, easy-to-sterilize internal surfaces
  • Large working space and overhead clearance
  • Economical
  • Quiet, reliable fan/filter modules
  • Optional counterweighted shield requires overhead clearance for disassembly
  • Large working space and overhead clearance
  • Economical
  • Quiet, reliable fan/filter modules
  • Optional counterweighted shield requires overhead clearance for disassembly
  • Portable
  • Economical, variety of panel materials
  • Quiet, reliable fan/filter modules
  • Easy cleaning
  • Large working space and overhead clearance
  • Economical
  • Quiet, reliable fan/filter modules
  • Portability
  • Popular Accessories

    For a full list of accessories, select a product then click Choose Accessories on that product page.
    • Telescoping Base Stand with Fixed Feet
      Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1” increments from 27.5" to 34.5”; used with Labconco BSCs, hoods and enclosures
    • Pipettor Stand
      Polymerase Chain Reaction Laminar Flow Hood is designed to meet your RNA- and DNA-amplification and sequencing needs. Portable, economical turnkey hood converts any benchtop surface into a controlled PCR workstation.
    • Labconco Solid Work Surface
      Solid black epoxy work surfaces are chemical resistant and feature a "dished" surface to contain spills. 304-grade stainless steel work surfaces with 1"-deep front spill trough are also available.
