TC 9639 Thermal Cycler by Benchmark Scientific with an intuitive, icon-driven interface, a large color touchscreen and multi-format blocks for tubes and PCR str |
Thermal Cyclers
Product Group:
2829-PP-12
2829-PP-12 71589

TC 9639 and T5000 Thermal Cycler by Benchmark Scientific

  • Intuitive touch screen controls
  • Easy-to-use program wizard
  • Unique multi-block format: 0.2 ml tubes or strips, 0.5 ml tubes, 96-well plate
  • Fully adjustable heated lid prevents sample evaporation
  • Optional 384-well microplate adapter
Read more
Stocked CE Mark Logo
Manufactured By: Benchmark
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Amplification Method

Sort Order:
Plate Capacity

Sort Order:
Plug Type

Sort Order:
Block Capacity

Sort Order:
Table with qPCRSoft

Sort Order:
Gradient Function

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
100/240 V Standard PCR 1 x 384 EU Plug 384 Well No No T5000-384-E 2829-42 56039 $5,816 5-7 Days 2
In stock
100/240 V Standard PCR 1 x 384 US Plug 384 Well No No T5000-384 2829-41 56038 $5,816 5-7 Days 3
In stock
100/240 V Standard PCR 1 x 96 EU Plug 96 Well No No T5000-96-E 2829-39 56035 $5,082 5-7 Days 4
In stock
120/240 V Standard PCR 1 x 96 US Plug 96 Well No No T5000-96 2829-38 56034 $5,082 5-7 Days 5
In stock
Voltage
Amplification Method
Plate Capacity
Plug Type
Block Capacity
Table with qPCRSoft
Gradient Function
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Intuitive touch screen controls
  • Easy-to-use program wizard
  • Unique multi-block format: 0.2 ml tubes or strips, 0.5 ml tubes, 96-well plate
  • Fully adjustable heated lid prevents sample evaporation
  • Optional 384-well microplate adapter
  • Features multi-use block instead of numerous interchangeable blocks
  • Intuitive, icon-driven interface provides quick access to stored programs
  • Programmable adjustable lid prevents condensation and evaporation of samples by delivering precise heating and cooling
  • Ideal for medium- and high-throughput labs
  • Large, color touchscreen with full virtual keyboard for alphanumeric naming of programs and folders
  • Programming wizard provided for easy protocol setup
  • Aluminum block with Peltier heating/cooling element
  • 10 pre-installed programs can be stored in public folders, in private (password-protected) folders, or on a flash drive (not included)
  • Automatic lid shutoff when block temperature is below 35°C
  • Temperature accuracy of ±0.2°C
  • Heating and cooling rates of 4°C/second (maximum)
  • Multi-format block format: 0.2ml tubes or strips (96), 0.2ml tubes or strips (96), 0.2ml tubes or strips (96)
  • Programmable heated lid automatically shuts off when block temperature reaches below 35°
  • In-situ adapter for 4 slides sold separately
Show more

Show more

Thermal Cyclers

  • TC 9639 Thermal Cycler by Benchmark Scientific TC 9639 Thermal Cycler
  • In-Situ Adapter for Thermal Cycler TC 9639
  • Thermal Cycler TC 9639, with multi-format block, universal power, with US plug

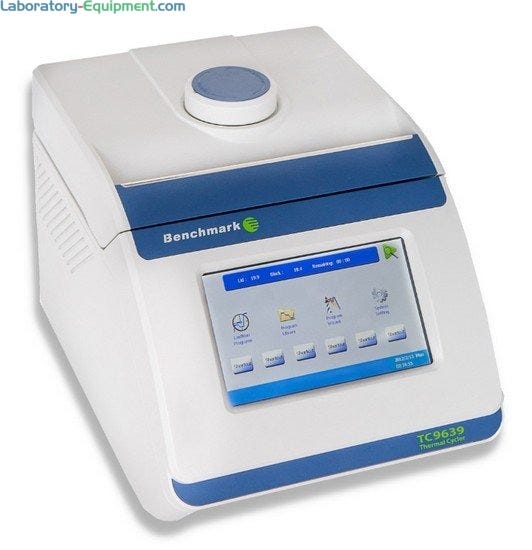

TC 9639 Thermal Cycler by Benchmark Scientific
TC 9639 Thermal Cycler by Benchmark Scientific with an intuitive, icon-driven interface, a large color touchscreen and multi-format blocks for tubes and PCR str | 2829-38 displayed TC 9639 Thermal Cycler Provides consistent and reliable results for laboratories with medium to high throughput; features an intuitive interface for quick access to stored programs

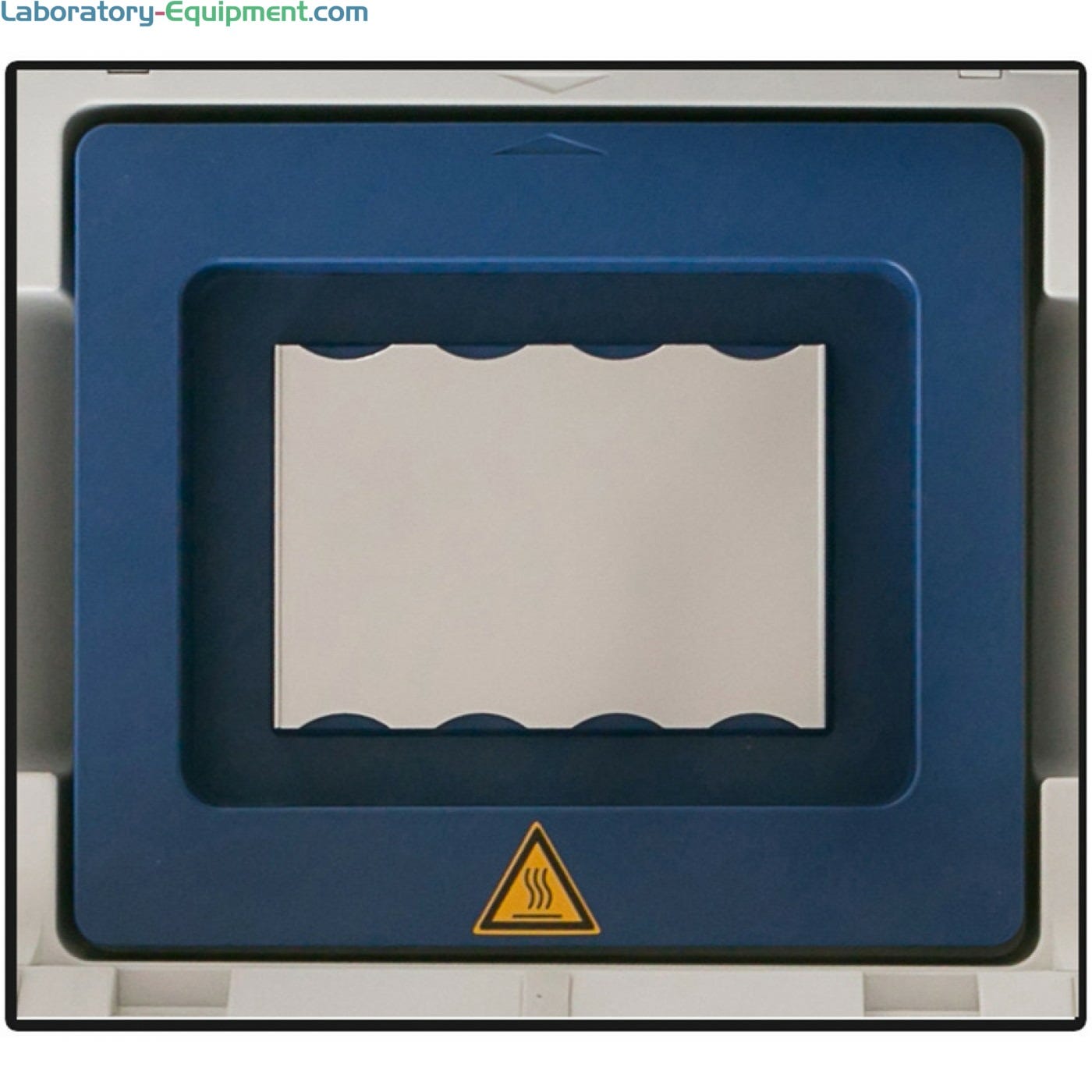

Holds four slides. | 2829-40 displayed In-Situ Adapter for Thermal Cycler TC 9639

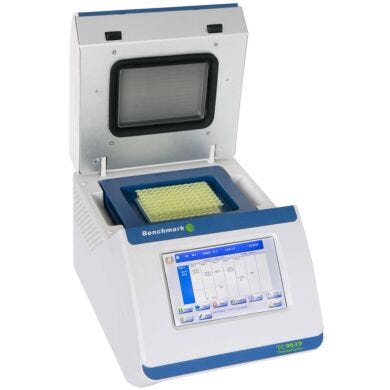

Provides consistent, reliable results for laboratories with medium to high throughput. | 2829-38 displayed Thermal Cycler TC 9639, with multi-format block, universal power, with US plug
Features & Benefits

Features and Benefits

Learn More: TC 9639 PCR Thermal Cycler
Print Copy Copied

Specifications and Additional Features of TC 9639 Thermal Cycler

  • Aluminum block with Peltier heating/cooling element
  • 10 pre-installed programs
  • Programs can be stored in public folders, in private (password-protected) folders, or on a flash drive (not included)
  • Programs are shown graphically and are easily edited
  • Unlimited storage capacity (with flash drive, not included)
  • Full virtual keyboard is available for alphanumeric naming of programs and folders
  • Automatic lid shutoff when block temperature is below 35°C
  • Temperature accuracy of ±0.2°C
  • Heating and cooling rates of 4°C/second (maximum)
  • CE-marked
TC 9639 Thermal Cycler Specifications:
  • Temperature Control Range: 0°C to 100°C
  • Temperature Control Modes: Block control or simulated sample control
  • Temperature Accuracy: ±0.2°C
  • Temperature Uniformity: ±0.2°C
  • Heating Rate (Ramping Rate): 4°C/second (maximum)
  • Cooling Rate: 4°C/second (maximum)
  • Increments/Decrements: Yes, both time and temperature
  • Lid Temperature: 30°C to 112°C, user adjustable
  • Program Memory: Unlimited with flash drive
  • Multiuser Login: Yes, with password protection
  • Communication: USB, LAN, and RS232
  • Power Supply: Universal, 75 to 275 V, 50 to 60 Hz
  • Power Restart Feature: Yes
  • CE-marked: Yes
  • Product Dimensions W x D x H in. (mm): 70% humidity
  • Shipping Weight: Max. 2000 m (6561 ft.) above sea level
  • Product Weight: 16 lbs. (7.3 kg)
  • Product Dimensions W x D x H in. (mm): 10.2 x 14.2 x 9.9 in. (260 x 360 x 250 mm)
  • Shipping Weight: 21.6 lbs. (9.8 kg)
  • Shipping Dimensions W x D x H in. (mm): 17 x 13.5 x 13.5 in. (25.4 x 343 x 343 mm)
  • Warranty: 2 years on parts and labor

TC 9639 (Thermal Cycler)

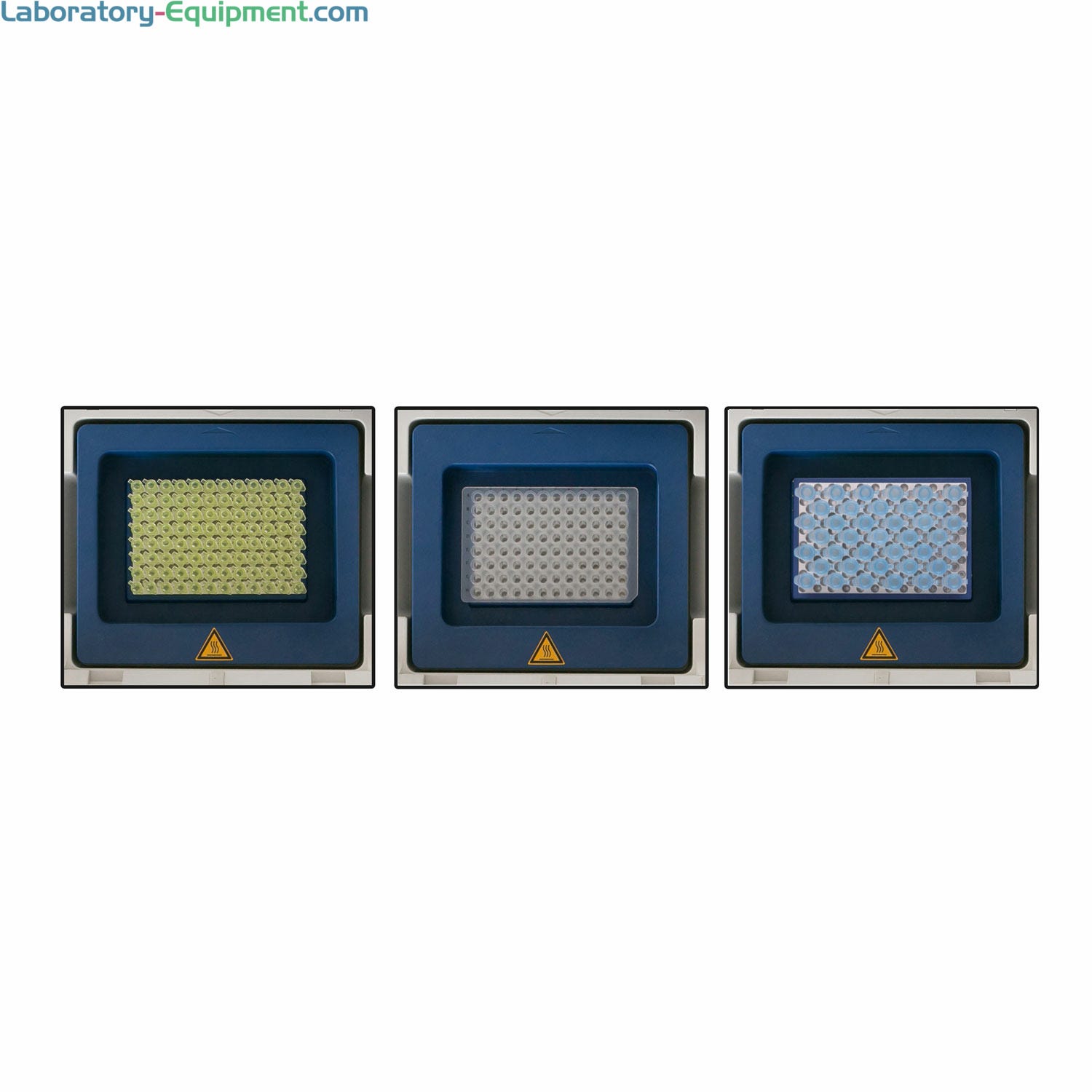

The Multi-Format Block on the TC 9639 Thermal Cycler can accept: 96 x 0.2 ml tubes/strips (left), 1 x 96-well unskirted PCR plate (middle) and 39 x 0.5 ml tubes (right).

Special Benchmark Pricing & Promotions

Terra offers special pricing and promotions on Benchmark products. Ask your sales specialist for more information.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

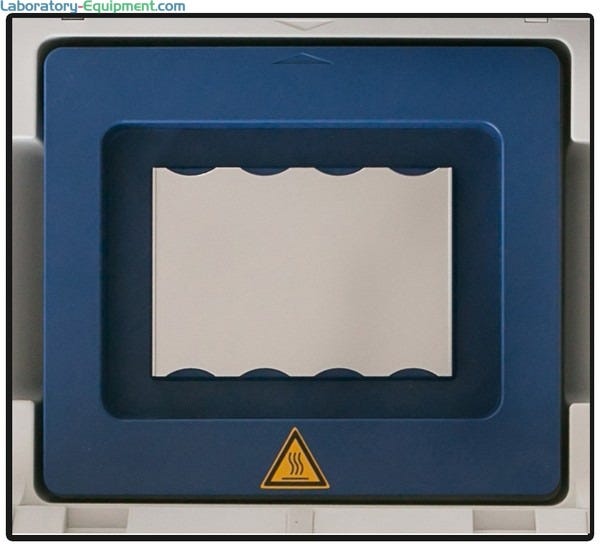

  • In-Situ Adapter for TC 9639 Thermal Cycler

    In-Situ Adapter

    Thermal Cycler adapter kit holds four slides of the block to prevent movement during the scanning process
