Select Product
Voltage

Weighing Capacity

Readability

Balance Type

Pan Size

Model

Draft Shield

Draft Shield Type

Manufacturer SKU

Terra Part # Price Ships in
120/240 V 120 g 0.01 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCE125SU-S00 5704-54 75802 $11,768 5-7 Days 2
Ships Free In stock
120/240 V 120 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Automatic + Ionizer MCA124SI-S00 5704-56 75804 $15,142 5-7 Days 3
Ships Free In stock
120/240 V 120 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCA124SU-S00 5704-57 75809 $10,832 5-7 Days 4
Ships Free In stock
120/240 V 120 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCE124SU-S00 5704-53 75801 $7,264 5-7 Days 5
Ships Free In stock
120/240 V 220 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Automatic + Ionizer MCA224SI-S00 5704-49 75796 $16,400 5-7 Days 6
Ships Free In stock
120/240 V 220 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCA224SU-S00 5704-50 75797 $12,090 5-7 Days 7
Ships Free In stock
120/240 V 220 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCE224SU-S00 5704-58 75810 $8,522 5-7 Days 8
Ships Free In stock
120/240 V 320 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Automatic + Ionizer MCA324SI-S00 5704-51 75798 $17,726 5-7 Days 9
Ships Free In stock
120/240 V 320 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCA324SU-S00 5704-52 75799 $13,416 5-7 Days 10
Ships Free In stock
120/240 V 320 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCE324SU-S00 5704-55 75803 $9,848 5-7 Days 11
Ships Free In stock
120/240 V 520 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Automatic + Ionizer MCA524SI-S00 5704-93 76514 $20,828 5-7 Days 12
Ships Free In stock
120/240 V 520 g 0.1 mg Analytical 85 mm Cubis II Yes Glass/ Manual MCA524SU-S00 5704-94 76515 $16,174 5-7 Days 13
Ships Free In stock
Voltage
Weighing Capacity
Readability
Balance Type
Pan Size
Model
Draft Shield
Draft Shield Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

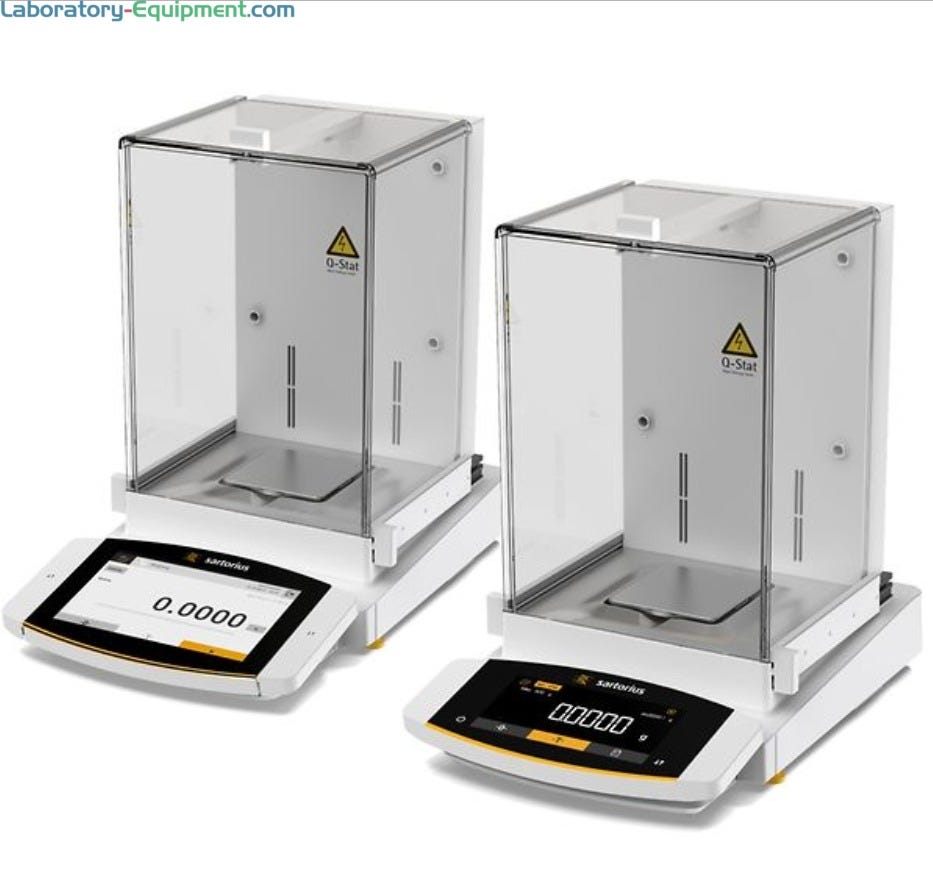

  • Configured models available with MCA or MCE control units
  • Weighing Capacity: 80g to 520g
  • Readability: 0.01 mg to 0.1 mg
  • Weighing Pan Size: 85 x 85 mm
  • Integrated ionizer in select glass draft shield eliminates electrostatic charges
  • Minimum Sample Weight per USP:  82 mg
  • Cubis II features: end-to-end data integrity, gesture sensor, automatic leveling, safe data transfer, electronic signatures, audit trail and alibi memory, user management
  • Optional interfaces: Ethernet (MCA control unit only), RS-232 9 Pin, USB A, USB B, USB C, peripheral connector (for Sartorius accessories)
  • MCA Advanced Interface: 7" color touch display, swipe, factory installed weighing applications, QApp software package, climate monitoring and status center notifications, easy to use and navigate, ideal for complex lab weighing applications
  • MCE Essential User Interface: high-contrast touch display, factory-installed weighing applications, ideal for simple lab weighing applications
  • Compliance: 21 CFR part 11 and EU Annex 11 compliance, traceability, submission-ready data, integration of SOPs and governance
  • Modularity: 45 weighing modules available, choice of MCA or MCE user interface, 7 draft shields
  • Software: Pre-installed and modifiable QApp software packages are available to satisfy many weighing applications; cost-effective, all-inclusive QP99 package recommended
  • Regulatory requirements: ISO, FDA/USP, GxP, verified
Features & Benefits

Features and Benefits

Cubis II Balances Gesture Control

Gesture control feature enables touch-free operation; user can start, open and close the draft shield and send documents to a remote device

MCA Advanced User Interface

Features a 7” TFT touchscreen display in 16:9 format with an intuitive user interface and factory installed basic set of weighing applications

MCE Display and Control for Basic Weighing

TFT touch screen with factory installed weighing applications, enables configuration of automated draft shield and built-in ionizer; after purchase upgrade not available

Efficient Connectivity

Cubis II balances with an MCA interface feature USB A, B and C ports enabling efficient data transfer with external software systems

Neutralizes Electrostatic Charges

Select Cubis II Lab Balances feature an integrated ionizer and conductive glass panels that neutralize electrostatic charges

Automatic Motorized Leveling

Models with a ≤ 8.2 kg weighing capacity feature built-in motors for automatic leveling and alerts when re-leveling is required
