7902-00
Terra Part # 7902-00
$670
Usually ships in 5-9 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Terra Part # 7902-00
19892
$670
Usually ships in 5-9 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

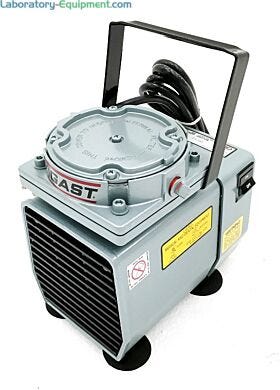

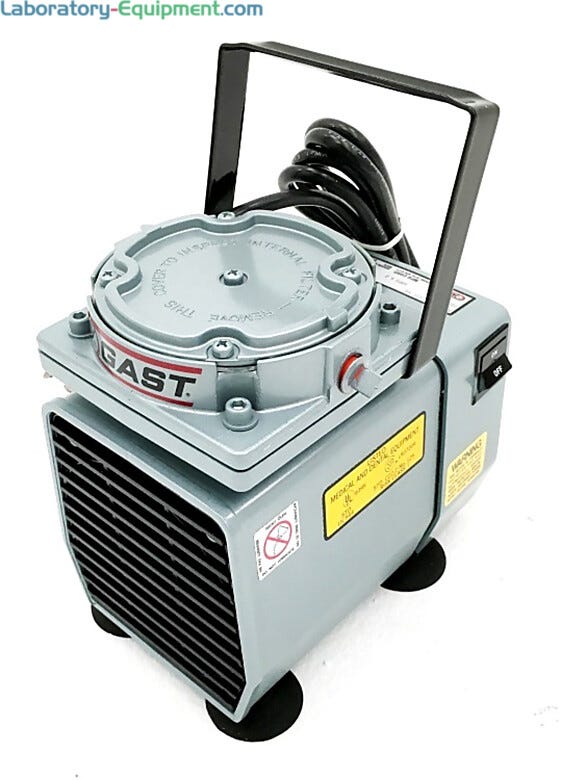

Product Details
  • •  Available ISO Ratings: ISO 8
  • Oil-less design for low maintenance, clean operation
  • Spec: CFM; 1.10, Vacuum; 24"hg, pressure; 60 psi

Pump Type: Diaphragm

Oil-less: Yes

Maximum Pumping Speed: 31 L/min

Manufactured by: Gast

Ultimate Pressure: 200 mbar

Unit of Measure: EA

Electrical Specifications: 115 V, 1 Ph, 60 Hz

Weight, Product: 18 Lbs

Dimensions, Product: 7.9" W x 5.4" D x 7.7" H

Weight, Shipping: 38 Lbs

Dimensions, Shipping: 10" W x 8" D x 10" H

Package Type: Box

Features and Benefits

Learn More: Oil-Free (Dry) Pumps

More Information

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
  • Two-stage pumps for quicker and more efficient vacuum pump-down
  • ON/OFF Switch and internal protective thermal switch for the motor
  • Vibration isolating feet
  • High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
  • Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
  • Continuous oil-free pumping
  • Non-Corrosive
  • Vacuum to 9Torr (29.6” Hg)
  • As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
  • Features Advanced Vapor Management (AVM) for adjustable vacuum control
  • Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
  • Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
  • Used for filtration, drying and degassing
  • Standard and chemically resistant models
  • Low vibration and noise with twin head design
  • Plug and play wide-range power adaptor
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
  • Ultimate vacuum is <45 mbar
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
  • Great for aspirating liquids
  • 115/230V wide-range motor
Diaphragm Pumps
  • Available in standard and chemically resistant versions
  • Compact, practical solution for vacuum range 1000 to 1 mbar
Model MP901Z MP1801Z
Numbers of heads/stages 4/2 8/2
Free Air Displacement CFM (l/min.) @ 60H z4.42 (125) 7.84 (222)
Free Air Displacementm3/h (l/min.) @ 50Hz 6.8 (113) 12 (201)
Ultimate Pressure, Torr (mbar) 8 (6) 8(6)
Maximum Vacuum, in.Hg 29.7 29.7
Motor Power, watts (HP) 370 (0.5) 370/440 (0.5/0.6)
Model 2562B-01
Free Air Displacement CFM (l/min.) @ 60Hz 2.3 (65)
Free Air Displacement m3/h (l/min.) @ 50Hz 3.4 (57)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Motor Horsepower, watts 1/3 (250)
Intake/Exhaust thread NPT 1/4
Model 2034B-01
Free Air Displacement CFM (l/min.) @ 60Hz 0.9(25)
Free Air Displacement m3/h (l/min.) @ 50Hz 1.25(21)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Adjustable Vac./Gas Ballast Yes
Motor Power, watts (HP) 1/5 (150)
Intake/Exhaust thread NPT 1/4
Model MP 060 E MPR 060 E MP 104E MPC 104E
Final Vacuum, mbar <60 <60 <45 <45
Flow Rate, l/min 10 10 15-16 15-16
Head Material Aluminum PPS Aluminum PTFE Compound
Diaphragm Material PTFE PTFE PTFE PTFE
Valve Material PEEK PEEK PEEK PEEK
Connections 6-8 mm 6-8 mm 8mm 8mm
Noise Level, dBA <42 <42 <45 <45
Model MP101Z MP301Zp MP201T MP601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
Model MPC101Z MPC301Zp MPC201T MPC601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
