Shown with optional vacuum gauge and metering valves. | 5235-02B displayed

Vacuum Chamber; Benchtop, Acrylic, 7" W x 7" D x 7.5" H ID x 1"Thk, Removable Top Lid

Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8
Inside Dimensions: 7" W x 7" D x 7.687" H
Maximum Vacuum: 29.9" Hg
Fabricated of transparent acrylic
O-ring inlaid in precision-routed channel, helps ensure uniform and ultra-low leak rate
Stainless steel draw latches and inlaid O-ring provide clean, leak-tight operation

• Type: Benchtop

• Material: Acrylic

• Width: 9"

• Depth: 9"

• Height: 9.5"

• Maximum Vacuum: 29.9" Hg

• Chamber Dimensions: 7" W x 7" D x 7.5" H

• Chamber Width: 7"

• Chamber Depth: 7"

• Chamber Height: 7.5"

• Wall Thickness: 1"

• Lid Type: Removable Top

• Chamber Type: Rectangle

• Unit of Measure: EA

Terra Part #: 5235-02B

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 5235-02B

$1,191

Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part #

Vacuum Chamber; Benchtop, Acrylic, 7" W x 7" D x 7.5" H ID x 1"Thk, Removable Top Lid

View Shopping Cart View Quote Cart

Details & Specs

Features and Benefits

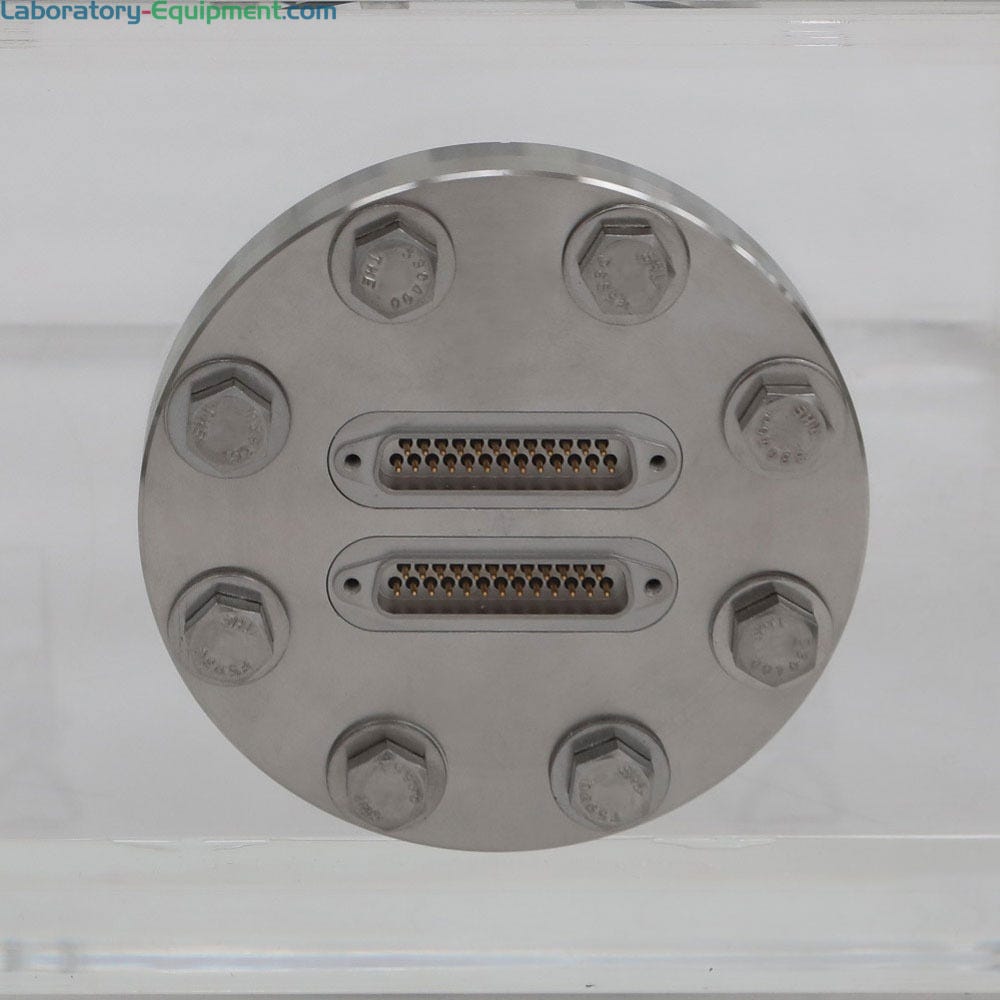

Multi-pin Feedthrough

Optional 25-pin connector can be used to monitor conditions within the vacuum chamber.

Coaxial SMA Feedthrough

Double-ended, 50-ohm connectors allow small electronics to operate within the chamber.

Optional Vacuum Relief Valve

Adjustable pressure relief valve limits vacuum levels within the chamber, allowing pressure to be maintained at user-configured point. (NOTE: Vacuum pump must remain in operation to maintain desired vacuum level).

Precision Vacuum Gauge and Needle Valves

Vacuum chambers can be customized to include precision needle valves for exact application, monitoring, backfill, and bleeding of vacuum pressure in increments of ~1" Hg (~3% vacuum). The hardware is mounted over an extra layer of acrylic to prevent damage to the lid while the chamber is under maximum vacuum.

Inlaid O-Ring

Precision-routed channel ensures uniform seal along chamber perimeter to provide an ultra-low leak rate.

Tested to Hold Full Vacuum for 72 hours

Terra's acrylic vacuum chambers are tested to hold 29.9"Hg (99.9% vacuum) with no detectable change over a 72 hour duration. Heavy-duty one-inch-thick walls ensure chamber integrity and protect against cracking.

Learn More

Vacuum Chamber on Electric Height Adjusting Table

Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.

Glass Top Lid for Vacuum Chamber

Glass Top Lid for vacuum chamber enhances precision and visibility for component testing within the vacuum chamber.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Learn More
Universal Base Stands Offer Excellent Versatility

Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Universal Stand Adjusts to Fit a Wide Range of Equipment

Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Learn More
Laboratory Nitrogen Generator

Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
Ionizing Gun: LED Power Indicator

LED indicates when the Cleanroom Ionizing Blow-Off Gun is discharging ions and emitting clean air or nitrogen; low-voltage power source is intrinscially safe and meets static decay requirements
Small Nitrogen Generator for Single Glovebox or Desiccator Cabinet

Compact membrane nitrogen generator allows set-up wherever there's a compressed air supply. This small configuration provides output suitable for a single laboratory glovebox or 3-4 chamber desiccator.

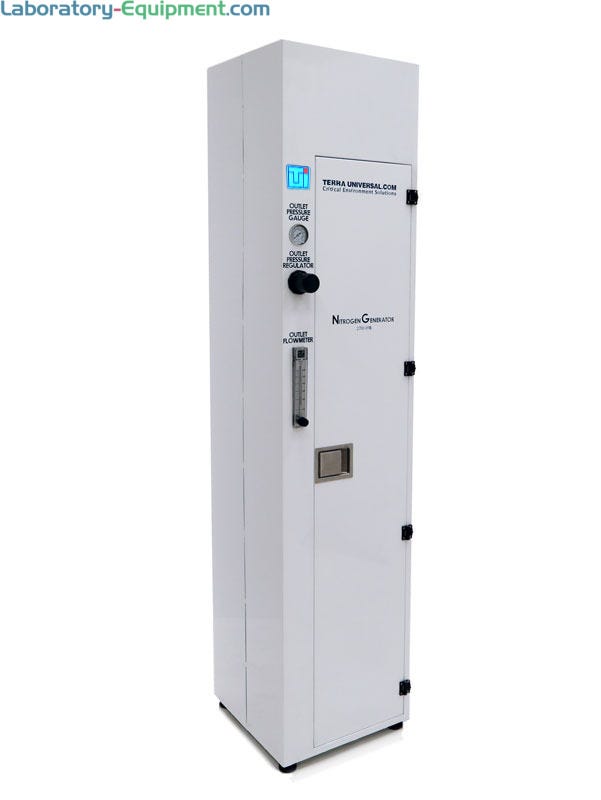

Compact Nitrogen Generator, Large Size for Multiple Large Desiccator Cabinets or Gloveboxes

Compact nitrogen generator produces 99.5% pure N2 gas on demand, eliminating the need for costly nitrogen tanks. This large size N2 generator provides output suitable for six 10-chamber desiccators or six 4-port gloveboxes.
Multipin Feed-Through

Subminiature D-Type Multipin Feedthrough. 2x25 Pins, 500 Volts, 5 Amps per Pin, 4.50" Conflat Flange.
2 Pin Feed-Through

SMA Coaxial Feedthrough, 50 Ohm matched impedance, 2 pins, grounded shield, double-ended, 2.75" conflat flange, without air-side connector
Electrode Feedthrough

Optional cord/cable feed-throughs for power cords, sensor cables, data lines and thermocouple connectors.
Learn More
Welch Rotary Vane Vacuum Pump

This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
Learn More
PC-Based Vacuum Control with Data Logging

The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
Liquid/Gas Feed-Through

Liquid/Gas Feed-throughs are constructed to easily allow the passage of fluids into a vacuum environment for open or closed loop systems. These feed-throughs offer an additional tube section which acts as an extended thermal path, reducing ice build up or condensation that can occur on the side of the flange.
Electrical Power Feed-Through

Electrical power feed-throughs come in a wide variety of terminations, maximum voltages, and current carrying capacities. Weldable, CF and KF flanged, and baseplated mounted versions are available.
Thermocouple Feed-Through

Thermocouple feed-throughs are designed to transfer signals through the vacuum wall via multiple thermocouple material pairs. Weldable, CF and KF flanged, baseplate and NPT mounted versions are available.
Vacuum Chamber Viewports

A comprehensive range of viewports with various optic materials and surface treatments to allow for optimal transmission of specified wavelengths. These viewports offer a hermetically-sealed lens with different upgrades and applications.
