Product Details

  • Economical and easy-to-use absorbance reader ideal for COVID-19 ELISA assays
  • 96-well plate capacity
  • Touchscreen and integrated plate shaker
  • Functions as a standalone reader or attached to a PC
  • Features USB port (PC, printer, mouse and flash drive) for convenient data management
  • Applications: ELISA, protein and nucleic acid assays
  • Menu interface: wavelength filter, shaking parameters, plate layout details, reading protocol and data calculations
  • Features: stores 200 programs and 100,000 test records, integrated filter wheel accepts 8 filters at once, kinetic calculations, plate layout interface for easy set-up of plate’s well contents, performs calculated comparisons with 2 filters for 2 measurements of sample plate, allows filter selection during programming and an integrated plate shaker (multispeed)
  • Accessories: Thermal printer and filters (from 340 nm to 750 nm)
  • Includes 405, 450, 492 and 530 nm filters and software
  • ELISA assays available to detect IgG and IgM antibodies for COVID-19 testing
  • Wavelength Range 340-750nm (405, 450, 492 and 630 nm filters included)
  • Half-Bandwidth of Filter: 3~9nm
  • Control and Display: 7 inch touch screen (800 x 480 pixels)
  • Light Source: Quartz-halogen lamp 6V/10W
  • Readout Range: 0~4.000 Abs
  • Linearity (405nm): 0~2.000 Abs <+1%, 0~4.000 Abs <+2%
  • Precision: CV</= 0.2% (0-3) Abs, CV</= 01.0% (3-4) Abs
  • Test Speed: <6 sec. for 96 well plate
  • Shaking Modes: Slow, medium, fast
  • Ports: USB ports for PC, printer, mouse and flash drive

Plate Capacity: [xxx]

Unit of Measure: of 1

Microplate Equipment

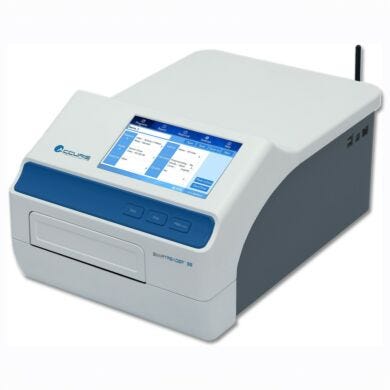

  • SmartReader 96 Microplate Absorbance Reader by Accuris SmartReader 96 Microplate Absorbance Reader by Accuris
  • Vibrant and Intuitive Touchscreen of SmartReader 96 Vibrant and Intuitive Touchscreen of SmartReader 96

Features & Benefits

Features & Benefits

SmartReader 96 Interface

Interface of SmartReader 96 Microplate Absorbance Reader

The SmartReader 96 Microplate Absorbance Reader features a vibrant 7” touchscreen display and the included software provides an intuitive plate layout interface that promotes efficient set up of a plate’s well contents.

The first image displays a 96-well plate layout screen. Each well can be labeled by the user for:

  • Known standard
  • Unknown sample
  • Blank well
  • QC control well
  • Negative control
  • Positive control
  • Empty

Users can also streamline the labeling process by highlighting multiple wells.

The second screen shows a graphical interpretation of the absorbance and the linear range. The three icons on the right shows: filter size, linear and print icons.

The third image shows the reading results screen. SmartReader 96 immediately displays after a reading: measurement data, interpretation, calculated analysis and curve fittings.
