5103-00
Terra Part # 5103-00
$18,170
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 5103-00
63300

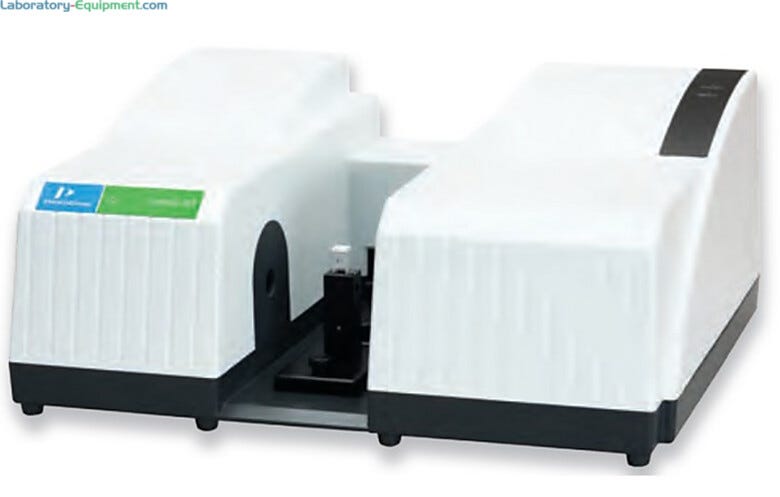

Lambda 465 UV/Vis Spectrophotometer with UV Lab Software
Product Details
  • Requires connection to PC for operation
  • Dimensions: 21.3 x 17.7 x 9.1 in (541 x 450 x 232 mm)
  • Source Lamp: Tungsten/Deuterium
  • Detector: Diode Array 1024 Channel
  • Photometric System: Single Beam Array
  • Wavelength Range: 190‐1100 nm
  • Spectral Bandwidth: 0.95 nm (Spectral Resolution)
  • Wavelength Reproducibility: < 0.02 nm
  • Photometric Range: +/- 3 AU
  • Photometric Reproducibility: <0.001AU @ 0.5 and 1.0 AU, <0.002AU(60 mg/L Potassium Dichromate)
  • Stray Light: <1.0% (198 nm KCL), <0.05% (220 nm Nal), <0.03% (340 nm NaNO2)
  • Interface: USB
  • For high-end and routine UV/Vis Spectrophotometric analysis
  • Photodiode Array detector with a spectral resolution of 1 nm meets many pharmacopeia standards
  • Extremely high signal to noise ratio
  • Modular design and a large number of accessories provide maximum usability
  • Optional security software for 21 CFR Part 11 compliance
  • Ideal for use in dissolution, fast kinetics, method development, sample analysis and applications requiring high-speed scanning and high resolution
  • Includes: UV Lab Software #N4108001

Wavelength Range: 190-1100 nm

Samples per Run: 8 Samples

21 CFR Part 11: Yes

Spectral Resolution: 1 nm

Manufacturer SKU: N4100030

Type: Manual

Unit of Measure: EA

Electrical Specifications: 100/240 V, 1 Ph, 50/60 Hz

Weight, Product: 35.1 lb

Dimensions, Product: 21" W x 18" D x 9" H

Weight, Shipping: 60 lb

Dimensions, Shipping: 24" W x 21" D x 11" H

Package Type: Box

Buy Accessories
  1. Accommodates standard 10 mm cells  |  5103-01 displayed
    Request Quote
    Increase Down Increase Up

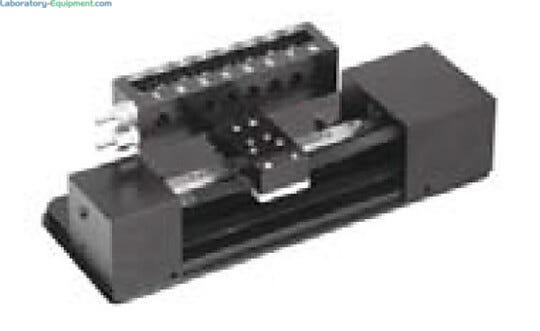

  2. Accommodates any standard 10 mm cells  |  5103-02 displayed
    Request Quote
    Increase Down Increase Up
  3. Water Jacketed Single Cell Holder
    Request Quote
    Increase Down Increase Up
  4. Variable Pathlength Cell Holder, Single Cell
    Request Quote
    Increase Down Increase Up

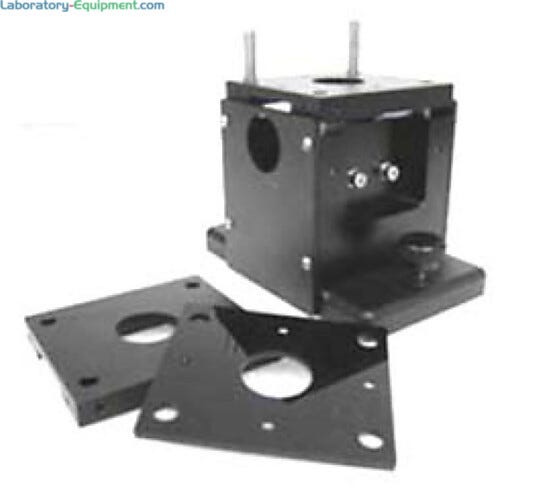

  5. Measures specular reflectance spectra at a fixed angle  |  5103-05 displayed
    Request Quote
    Increase Down Increase Up
  6. Advanced Transmission Holder, Fixed Angle
    Request Quote
    Increase Down Increase Up

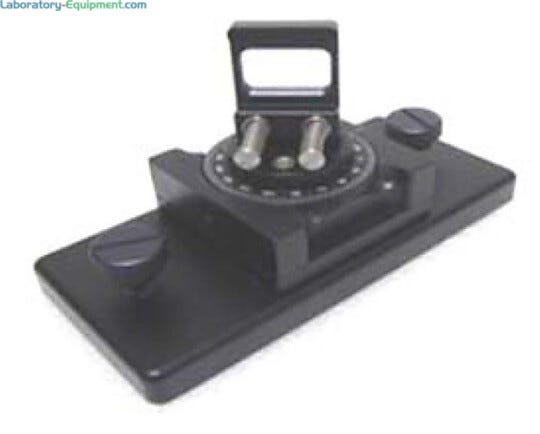

  7. Accommodates large samples of various thickness  |  5103-07 displayed
    Request Quote
    Increase Down Increase Up
  8. Magnetic Film Holder
    Request Quote
    Increase Down Increase Up
  9. Diffuse Reflectance Accessory
    Request Quote
    Increase Down Increase Up
  10. Measures hazardous liquid samples  |  5103-10 displayed
    Request Quote
    Increase Down Increase Up
  11. Monitors kinetic reactions  |  5103-11 displayed
    Request Quote
    Increase Down Increase Up
  12. Monitors kinetic reactions in solution by stopped-flow technique  |  5103-12 displayed
    Request Quote
    Increase Down Increase Up
  13. Included pneumatic drive offers superior zero time point measurement  |  5103-13 displayed
    Request Quote
    Increase Down Increase Up
  14. Peltier Controlled Single Cell, with Peltier Controller for LAMBDA 365
    Request Quote
    Increase Down Increase Up

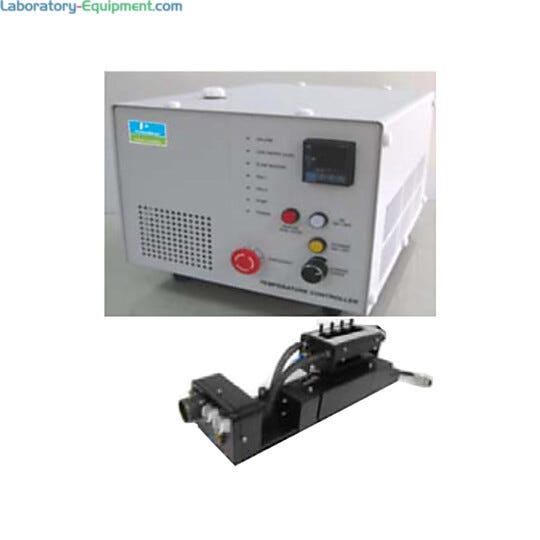

  15. For thermal denaturation, kinetics and precise temperature control applications  |  5102-61 displayed
    Request Quote
    Increase Down Increase Up
  16. For thermal denaturation, kinetics and precise temperature control applications  |  5102-15 displayed
    Request Quote
    Increase Down Increase Up
  17. Measures color value and color difference  |  5102-16 displayed
    Request Quote
    Increase Down Increase Up
  18. Multi-Component Analysis Software for Lambda 265/465
    Request Quote
    Increase Down Increase Up
  19.  |  5102-04 displayed
    Request Quote
    Increase Down Increase Up
  20. UV Lab Ultra Kinetics Software for Lambda 465
    Request Quote
    Increase Down Increase Up
  21. System Performance Validation Software for Lambda 465
    Request Quote
    Increase Down Increase Up
  22. UV Lab Security Software for Lambda 465
    Request Quote
    Increase Down Increase Up
  23. 12 Month Extended Warranty  Lambda 465 with Software
    Request Quote
    Increase Down Increase Up
  24. 12 Month Extended Warranty + 1 Preventative Maintenance - Lambda 465 with Software
    Request Quote
    Increase Down Increase Up
  25. 12 Month Extended Warranty + 2 Preventative Maintenance  Lambda 465 with Software
    Request Quote
    Increase Down Increase Up
  26. Nano Stick-D, Z 15, Black
    Request Quote
    Increase Down Increase Up
  27. Nano Stick-D, Z 15, Blue
    Request Quote
    Increase Down Increase Up
  28. Nano Stick-D, Z 15, Red
    Request Quote
    Increase Down Increase Up
  29. Nano Stick-D, Z 15, Gold
    Request Quote
    Increase Down Increase Up
  30. Nano Stick-D, Z 15, Silver
    Request Quote
    Increase Down Increase Up
  31. ASX-260 Autosampler 110/220V 50/60 Hz
    Request Quote
    Increase Down Increase Up
  32. Automate sample analysis and automatically deliver samples to cuvette  |  5102-25 displayed
    Request Quote
    Increase Down Increase Up
  33. Auto Sipper Accessory
    Request Quote
    Increase Down Increase Up
  34. Equipment Testing
    Request Quote
    Increase Down Increase Up
  35. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Applications and Specifications

Applications for LAMBDA 465 Spectrophotometer

Able to capture a full spectrum of light in 20 seconds, the LAMBDA 465 is designed to provide reliable results in high-end and high-throughput measurements. Features such as the dual light source, photodiode array (PDA) technology and a 1nm resolution make the LAMBDA 465 an ideal spectrophotometer in pharma and other regulated lab environments.
Ideal for dissolution, fast kinetics, method development, routing nucleic acid analysis, material science research, pharmaceutical, nutraceutical, biology, sample analysis and processes requiring high-speed scanning and high resolution.
Source Lamp Tungsten/Deuterium
Monochromator N/A
Detector Diode Array 1024 Channel
Photometric System Single Beam Array
Wavelength Range 190-1100 nm
Spectral Bandwidth 0.95 nm (Spectral Resolution)
Data Interval N/A
Wavelength Accuracy ± 0.5 nm (Holmium Oxide Solution NIST 2034)
± 0.2 nm (D2 peak, 486.0 nm and 656.1 nm)
Wavelength Reproducibility < 0.02 nm
Photometric Range ± 3 AU
Photometric Accuracy ± 0.005AU @ 440.0, 465.0, 546.1
590.0 and 635 nm, 1.0 AU (Nist 930e)
± 0.01 AU (60 ppm Potassium Dichromate)
Photometric Reproducibility < 0.001 AU @ 0.5 and 1.0 AU
< 0.002 AU (60 mg/L Potassium Dichromate)
Stray Light < 1.0% (198 nm KCL)
< 0.05% (220 nm Nal)
< 0.03% (340 nm NaNO2)
Baseline Stability N/A
Baseline Flatness < 0.0005 AU
Photometric Noise < 0.0001 AU @ 300 nm
Photometric Stability < 0.001 AU/h @ 0 AU, 300 nm
Maximum Scan Rate N/A
Maximum Slew Rate N/A
Interface USB
Dimensions 21.3"W x 17.7"D x 9.1"H (541 x 450 x 232 mm)
Electrical 100-240 V 50/60 Hz
Environmental Requirements Temperature: 5-40°C
Humidity: Up to 80% Non-condensing
