Select Product

Wavelength Range


Manufacturer SKU

Terra Part # Price Ships in
90/250 V 190-1100 nm Printer Included 29061712 5103-43 80032 $7,941 10-15 Days 2
Ships Free Free shipping in contiguous USA
90/250 V 190-1100 nm Without Printer 29061711 5103-42 80031 $7,474 10-15 Days 3
Ships Free Free shipping in contiguous USA
Wavelength Range
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

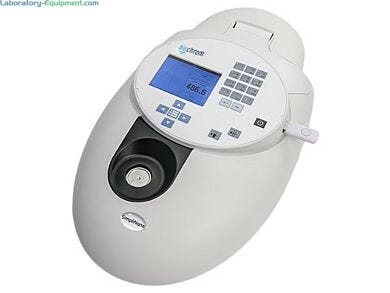

  • Easy-to-use SimpliNano Spectrophotometers with a built-in sample port and a fixed pathlength eliminates the need for calibration
  • Enables straightforward concentration and purity measurements of nucleic acids and proteins
  • Designed with no moving parts for excellent reproducibility
  • Low sample volume capacity of 1 to 5 μl reduces sample loss and eliminates the need for dilution
  • Built-in preprogrammed life science methods and data output via PC, USB or with integrated printer (#29061712 only)
  • Simplifies measurements of nucleic acid and protein samples
  • Built-in sample port features: eliminates need for cuvettes and other sampling tools, enables direct application of volumes 1 μl to 5μl, eliminates the need for pathlength calibration, accepts a wide variety of common lab chemicals
  • Nucleic acid measurements in units: µg/µl, ng/µl, and µg/ µl
  • Displays absorbance values and absorbance ratios: 260/280 and 260/230
  • UV spectrum examination from 220 to 320 nm for hybridization, PCR, and sequencing studies or for quantitation of minipreps
  • Excellent linearity with double-stranded DNA (dsDNA) from 4 to 2500 µg/µl
  • Determines sample concentration of protein samples in the near UV spectrum at 280 nm
  • Built-in extinction coefficients for BSA, IgG, and lysozyme, allowing you to select the most appropriate values for your protein sample
  • Option of background correction at 320 nm with pre-stored method
  • Options: Datrys software for PC operation
  • SimpliNano Specifications:
  • Wavelength range: 190 to 1100 nm
  • Pathlength: 0.5 mm
  • Minimum sample size: 1 µl to 5 nm
  • Absorbance range: -0.3 to 2.5 Abs. units (10 mm equivalent to 50 Abs. units)
  • Spectral bandwidth: 5 nm
  • Xenon Light source
  • Detector type: CCD array
  • Data output to PC Via USB cable (standard); USB memory stick (standard); integrated printer #29061712 (sold separately)


  • SimpliNano Micro Volume Spectrophotometers by Biochrom SimpliNano Micro Volume Spectrophotometers by Biochrom
Features & Benefits

Features and Benefits

Built-In Sample Port

Sample port with a fixed pathlength simplifies the process by eliminating calibration, the need for cuvettes, and allows direct application of 1 to 5 µl volumes of samples

Integrated Printer

On-board printer with model #29061712 allows immediate data output of displayed absorbance values, absorbance ratios and concentration values
