RapidVap Vacuum Dry Evaporators by Labconco with a 1000-watt dry block heating system; select models include a Lid Heater to eliminate sample condensation | 6922-PP-01 displayed
Laboratory Evaporators & Concentrators

RapidVap Vacuum Dry Evaporator, Labconco, 115V, 7900000

  • 115V RapidVap Vacuum Dry Evaporator combine vortex action, heat and vacuum for faster evaporation rates
  • Accepts 12 different interchangeable sample blocks
  • Features: 1000-watt dry block heating system, LCD display, microprocessor-controlled vortex and vacuum level
  • Features: 1000-watt dry block heating system, LCD display, microprocessor-controlled vortex and vacuum level
  • Required accessories (sold separately): vacuum pump, sample blocks, glassware, secondary trap

• Maximum Sample Volume: 450 mL

• Type: Evaporator

• Model: RapidVap

• Manufactured by: Labconco

• Maximum Sample Quantity: 110

• Chamber Material: Aluminum

• Evaporator Configuration: Standard

• Manufacturer SKU: 7900000

• Format: Benchtop

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 7900000
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6922-60
Terra Part # 6922-60
$12,382
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 25-29 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 6922-60
59814
RapidVap Vacuum Dry Evaporator, Labconco, 115V, 7900000
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • 115V RapidVap Vacuum Dry Evaporator combine vortex action, heat and vacuum for faster evaporation rates
  • Accepts 12 different interchangeable sample blocks
  • Features: 1000-watt dry block heating system, LCD display, microprocessor-controlled vortex and vacuum level
  • Features: 1000-watt dry block heating system, LCD display, microprocessor-controlled vortex and vacuum level
  • Required accessories (sold separately): vacuum pump, sample blocks, glassware, secondary trap
  • Conformance: ETL
  • Applications: drug discovery, agrichemistry, mycology testing and environmental analysis
  • Features of RapidVap #7900000 multi-sample dry evaporator:
  • 1000-watt dry block heating system supplies controlled amount of heat from ambient up to a maximum of 100° C to the sample block; provides efficient heat transfer with tandem movement of heater and block, removes potential source of contamination
  • Microprocessor controlled vortex motion and vacuum for faster evaporation
  • Easy-to-Read LCD display: program from 1 to 9, R for run or S for stop, vortex speed from 0 to 100%,h eat from OFF to 99 (° C) or HI (100° C), vacuum level from 0 to 999 mBar, returns vacuum to preset level upon release of button
  • Material: PTFE-coated aluminum chamber for chemical compatibility, glass lid with polycarbonate shield, epoxy-coated cast aluminum cabinet base, acrylic/PVC thermoplastic upper housing
  • Phenol-free gasket for complete sealing under vacuum
  • Fast evaporation rates: Methylene chloride evaporation rate up to
  • Maximum Sample Quantity Load: 110 each of 12mm or 13 mm tubes
  • Maximum Sample Volume: 450 milliliters
  • 4.8 ml/minute/tube; water evaporation rate up to 0.75 ml/minute/tube
  • Maintenance-free, microprocessor-controlled motor provides smooth variable-speed power to drive the vortex motion up to 1000 rpm
  • Designed for chemical resistance and compatibility
  • Dual lid clamps
  • Rear-mounted 1/2" OD vacuum port attaches to a vacuum pump(sold separately)
  • Alarms: audible and visual alarms signal run completion and enable samples to evaporate to desired end point while unattended
  • Alternative to traditional centrifugal evaporation methods
  • For aqueous/solvent samples
  • Optional Accessories:
  • Traps and Other Vacuum Pump Accessories
  • Laboratory Carts and Benches
Show more

• Maximum Sample Volume: 450 mL

• Type: Evaporator

• Model: RapidVap

• Manufactured by: Labconco

• Maximum Sample Quantity: 110

• Chamber Material: Aluminum

• Evaporator Configuration: Standard

• Manufacturer SKU: 7900000

• Format: Benchtop

• Unit of Measure: EA

• Marks & Listings: UL, ETL

• Electrical Specifications: 115 V, 7 A, 50/60 Hz

• Weight, Product: 100 lb

• Dimensions, Product: 21.7" W x 19" D x 13" H

• Weight, Shipping: 109 lb

• Dimensions, Shipping: 26" W x 26" D x 24" H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. XStream Labconco fume hood shown with clean-sweep sash handle and rear downflow dual baffle system | 1538-32 displayed
    Group of 16 products
    Protector XStream Laboratory Fume Hoods by Labconco From
    As low as $8,871
    Some ship in 25 - 29 days
  2. Four foot Protector Premier laboratory fume hoods by Labconco shown with optional storage cabinets | 3649-00 displayed
    Group of 34 products
    Protector Premier Laboratory Fume Hoods by Labconco From
    As low as $7,805
    Some ship in 5 - 7 days
  3. Protector XL Benchtop Laboratory fume hood by Labconco shown with optional storage cabinets | 3649-41 displayed
    Group of 9 products
    Protector XL Benchtop Laboratory Fume Hoods by Labconco From
    As low as $15,401
    Some ship in 40 - 44 days
  4. Fiberglass 30 Laboratory Fume Hoods are compact and provide ventilated work spaces | 3646-48 displayed
    Group of 4 products
    Fiberglass 30 Laboratory Fume Hood from Labconco From
    As low as $5,224
    Some ship in 5 - 7 days
  5. Basic 47 Hood from Labconco (shown with optional base cabinet and work surface) | 3646-00 displayed
    Group of 8 products
    Basic Laboratory Fume Hoods from Labconco From
    As low as $6,033
    Some ship in 5 - 7 days
Buy Accessories
  1. Ideal for preparation of samples in drug discovery, agrichemistry, mycology testing, etc | 6922-89 displayed
    Vacuum Pump; Vacuubrand, Diaphragm, Labconco, 115 V In stock
    $3,736
    Increase Down Increase Up
  2. Ideal for preparation of samples in drug discovery, agrichemistry, mycology testing, etc | 6922-89 displayed
    Vacuum Pump; Vacuubrand, Diaphragm, Labconco, 240 V
    $3,736
    Increase Down Increase Up
  3. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    RapidVap; Aluminum Block; 12mm x 6mL OD tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,233
    Increase Down Increase Up
  4. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    PTFE-Coated Aluminum Block; 13mm x 10mL OD tubes Ships Free Free shipping in contiguous USA In stock
    $1,233
    Increase Down Increase Up
  5. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    RapidVap; PTFE-Coated Aluminum Block; 16mm x 23ml OD tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,655
    Increase Down Increase Up
  6. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    RapidVap; Aluminum Block; 15mm x 15ml monical centrifuge tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,655
    Increase Down Increase Up
  7. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    RapidVap; PTFE-Coated Aluminum Block; 28mm x 50mL scintillation tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,655
    Increase Down Increase Up
  8. Blocks fit inside RapidVap Evaporation Systems | 6922-75 displayed
    RapidVap, Aluminum Block; 170mL glass tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,655
    Increase Down Increase Up
  9. Used to prevent contaminants from migrating into the vacuum pump | 6922-71 displayed
    Vacuum Trap, Secondary; 200mL capacity, 1/2"OD, for RapidVap, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,141
    Increase Down Increase Up
  10. Used to prevent contaminants from migrating into the vacuum pump | 6922-71 displayed
    Vacuum Trap, Secondary; 1L capacity, 1/2"OD, for RapidVap, Labconco Ships Free Free shipping in contiguous USA In stock
    $1,304
    Increase Down Increase Up
  11. Used to prevent contaminants from migrating into the vacuum pump | 6922-71 displayed
    Vacuum Trap, Secondary; 900mL capacity, 3/4"OD, for RapidVap Ships Free Free shipping in contiguous USA In stock
    $1,172
    Increase Down Increase Up
  12. Liquid Trap prevent liquid from entering the pump | 6922-65 displayed
    RapidVap, Liquid Trap; 2550 mL Ships Free Free shipping in contiguous USA
    $650
    Increase Down Increase Up
  13. Liquid Trap prevent liquid from entering the pump | 6922-65 displayed
    RapidVap; Liquid Trap Kit; 240 mL Ships Free Free shipping in contiguous USA
    $452
    Increase Down Increase Up
  14. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Trap Insert, Acid, for Labconco Gloveboxes, Concentrators and Evaporators, 7814800 Ships Free Free shipping in contiguous USA
    $125
    Increase Down Increase Up
  15. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Trap Insert, Moisture and Solvent for Labconco Gloveboxes, Evaporators and Concentrators, 7815200 Ships Free Free shipping in contiguous USA
    $125
    Increase Down Increase Up
  16. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Moisture Trap Insert; for RapidVap, Labconco Ships Free Free shipping in contiguous USA In stock
    $125
    Increase Down Increase Up
  17. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Trap Insert, Radioisotope, for Labconco Gloveboxes Ships Free Free shipping in contiguous USA
    $144
    Increase Down Increase Up
  18. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Trap Insert, Moisture and Solvent for Labconco Gloveboxes, Evaporators and Concentrators, 7815200 Ships Free Free shipping in contiguous USA
    $125
    Increase Down Increase Up
  19. A chemical trap to remove organic solvents, acids, ammonia, radioisotopes or moisture. | 3643-82 displayed
    Clear Polypropylene Canister with Stand; for RapidVap, Labconco Ships Free Free shipping in contiguous USA In stock
    $441
    Increase Down Increase Up
  20. Vacuum Tubing Kit; for RapidVap, Labconco
    Vacuum Tubing Kit; for RapidVap, Labconco Ships Free Free shipping in contiguous USA In stock
    $189
    Increase Down Increase Up
  21. Open top allows intorduction or removal of material and allows easy cleaning | 6922-82 displayed
    Tubes, Flat-bottom; 600 x 450 mL, qty. 1, Labconco Ships Free Free shipping in contiguous USA In stock
    $128
    Increase Down Increase Up
  22. Open top allows intorduction or removal of material and allows easy cleaning | 6922-82 displayed
    Tubes, Flat-bottom; 600 x 450 mL, qty. 8, Labconco In stock
    $931
    Increase Down Increase Up
  23. Open top allows intorduction or removal of material and allows easy cleaning | 6922-82 displayed
    Tubes, Flat-bottom; 170 x 125 mL, qty. 1, Labconco Ships Free Free shipping in contiguous USA In stock
    $158
    Increase Down Increase Up
  24. Open top allows intorduction or removal of material and allows easy cleaning | 6922-82 displayed
    Tubes, Flat-bottom; 170 x 125 mL, qty. 8, Labconco In stock
    $1,241
    Increase Down Increase Up
  25. Stainless steel racks hold RapidVap tubes upright | 6922-86 displayed
    Rack; SS, 8 x 600 mL tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $227
    Increase Down Increase Up
  26. Stainless steel racks hold RapidVap tubes upright | 6922-86 displayed
    Rack; SS, 8 x 170 mL tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $227
    Increase Down Increase Up
  27. RapidVap; Glass Lid with Heater, for Labconco
    RapidVap; Glass Lid with Heater, for Labconco Ships Free Free shipping in contiguous USA
    $1,673
    Increase Down Increase Up
  28. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Laboratory Evaporators & Concentrators

  • How to Install and Set Up a RapidVap Vacuum Dry Evaporator by Labconco How to Install and Set Up a RapidVap Vacuum Dry Evaporator by Labconco
How to Install and Set Up a RapidVap Vacuum Dry Evaporator by Labconco
Video shows how to install and set up the Labconco RapidVap Vacuum Dry Evaporator How to Install and Set Up a RapidVap Vacuum Dry Evaporator by Labconco RapidVap Vacuum Dry Evaporator installation video shows component features and sample block installation

Features and Benefits

LCD Display

RapidVap Dry Evaporators feature an LCD display with push button control for 1-9 set-ups, vortex speed, heat, time, and shows number of samples selected to receive nitrogen blow down
Products similar to this one
  1. RapidVap N2 Dry Evaporators with an 8-place sample block combines nitrogen blow down, dry heat and vortex motion for faster evaporation; available with RS-232 L | 6921-PP-01 displayed
    Group of 8 products
    RapidVap® N2 and N2/48 Dry Evaporation Systems by Labconco From
    As low as $13,898
    Some ship in 25 - 29 days
  2. CentriVap Benchtop Complete Vacuum Concentrators with Glass Lid by Labconco in acid-resistant and standard models with heat boost in select models | 3648-PP-01 displayed
    Group of 8 products
    CentriVap Complete Vacuum Concentrators by Labconco From
    As low as $17,031
    Some ship in 20 - 22 days

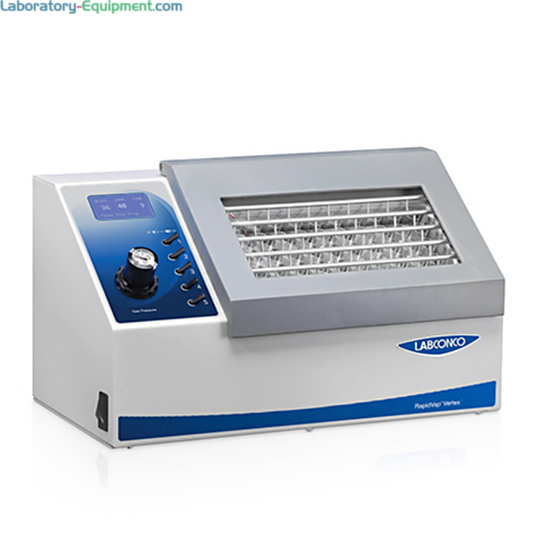

  3. Portable RapidVap Vertex Dry Evaporators by Labconco speed evaporation of up to 50 samples at the same time and stores up to 10 programs;115V and 230V models | 6922-PP-02 displayed
    Group of 2 products
    RapidVap Vertex Dry Evaporation Systems by Labconco From
    As low as $7,538
    Some ship in 5 - 7 days
Other products you may find relevant
  1. XStream Labconco fume hood shown with clean-sweep sash handle and rear downflow dual baffle system | 1538-32 displayed
    Group of 16 products
    Protector XStream Laboratory Fume Hoods by Labconco From
    As low as $8,871
    Some ship in 25 - 29 days
  2. Four foot Protector Premier laboratory fume hoods by Labconco shown with optional storage cabinets | 3649-00 displayed
    Group of 34 products
    Protector Premier Laboratory Fume Hoods by Labconco From
    As low as $7,805
    Some ship in 5 - 7 days
  3. Protector XL Benchtop Laboratory fume hood by Labconco shown with optional storage cabinets | 3649-41 displayed
    Group of 9 products
    Protector XL Benchtop Laboratory Fume Hoods by Labconco From
    As low as $15,401
    Some ship in 40 - 44 days
  4. Fiberglass 30 Laboratory Fume Hoods are compact and provide ventilated work spaces | 3646-48 displayed
    Group of 4 products
    Fiberglass 30 Laboratory Fume Hood from Labconco From
    As low as $5,224
    Some ship in 5 - 7 days
  5. Basic 47 Hood from Labconco (shown with optional base cabinet and work surface) | 3646-00 displayed
    Group of 8 products
    Basic Laboratory Fume Hoods from Labconco From
    As low as $6,033
    Some ship in 5 - 7 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
