6923-22-220
Terra Part # 6923-22-220
$16,466*
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 25-29 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 6923-22-220
60069

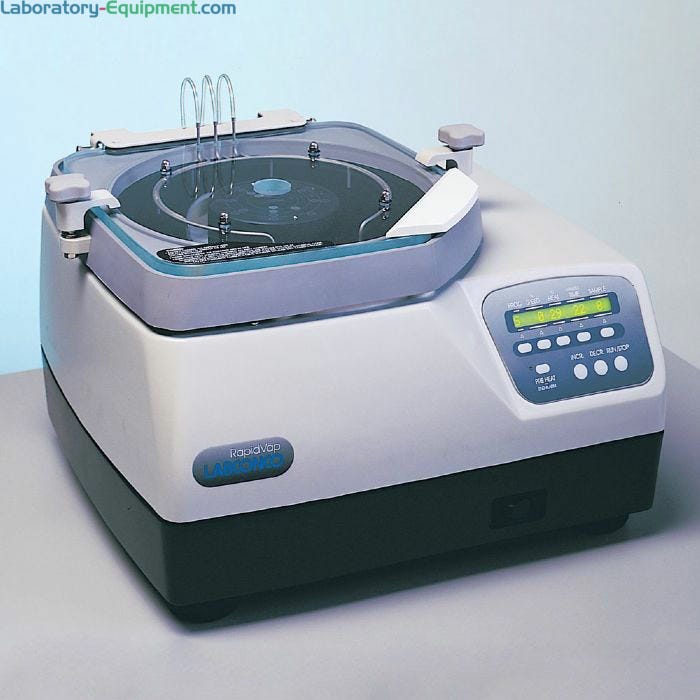

RapidVap N2 Dry Evaporator, RS-232 Link, 8-place sample block, Labconco, 230V, 7910011
Product Details
  • 230V Multi-sample RapidVap N2 Dry Evaporator with two-way RS-232 Link, an 8-sample capacity end-point determination
  • Enables remote control of functions from a computer
  • Microprocessor-controlled nitrogen blow down programmable to 2, 4, 6 or all 8 tube locations
  • Introduces nitrogen to tubes in sets of two
  • Included 8-sample block holds up to 450 mm of samples in each block ideal for environmental and residue testing
  • RS-232 port, located on the rear of the unit, for two-way communication at 4800 baud, no parity, 8 bit word, 1 stop bit and 3-wire interface
  • Included PTFE-coated aluminum sample block holds  8 each 600 ml tubes (Glassware sold separately)
  • Includes 8 polyethylene glassware caps, 6' of 2" dia. exhaust tubing, 78" of tubing for nitrogen supply and one tubing clamp
  • Unique Cool-Zone™ in RapidVap N2 insulates samples remaining in glassware
  • 1000-watt dry block heating system: speeds evaporation and heater and block move in tandem for efficient heat transfer
  • Material: powder-coated aluminum base with acrylic/PVC thermoplastic, glass lid, Phenol-free gasket, PTFE-coated aluminum chamber
  • 1000-watt dry block heating system
  • Dual lid clamps
  • Microprocessor-controlled: programming for vortex speed, heat, time, nitrogen and memory:
  • Vortex speed: 0 to 100%; heat from OFF to 100° C; time from 1 to 999 minutes
  • Heat from  OFF to 100° C
  • Time: from 1 to 999 minutes
  • Active nitrogen positions of 2, 4, 6 or 8
  • Memory: stores 1 to 9 programs
  • LCD Display: program number, actual and set point vortex, speed, actual and set point temperature, time and number of active nitrogen position
  • Memory storage: 1 to 9
  • Control Panel: RUN/STOP button, PREHEAT/END ALARM button and indicator light, set point selection buttons, and increase/decrease programming buttons
  • Brushless DC motor: belt-driven, non-sparking, smooth variable-speed power drives vortex motion up to 500 rpm
  • Alarms: audible alarm with automatic shut down for timed end point, audible/visual alarm for end point detected by temperature sensors at heater block
  • Mechanical components isolated from chemical fumes and vapors
  • Nitrogen inlet hose, 1/4" ID
  • Electrical:
  • 230V models include 6.5', three-wire electrical cord with 15A plug. Requires 8A minimum circuit breaker

Maximum Sample Volume: 450 mL

Included Accessories: Glass Lid, RS-232

Model: RapidVap N2

Manufactured by: Labconco

Maximum Sample Quantity: 8

Manufacturer SKU: 7910011

Format: Benchtop

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 230 V, 4.5 A, 50/60 Hz

Weight, Product: 107 lb

Dimensions, Product: 21.7" W x 19" D x 13.5" H

Weight, Shipping: 114 lb

Dimensions, Shipping: 26" W x 26" D x 23" H

Package Type: Vendor

Buy Accessories
  1. Blocks fit inside RapidVap Evaporation Systems.  |  6923-04 displayed
    RapidVap; Aluminum Block; 48 tube, 12 x 75 mm tubes, 4.5 mL, Labconco Ships Free Free shipping in contiguous USA In stock
    $2,460
    Increase Down Increase Up
  2. Blocks fit inside RapidVap Evaporation Systems.  |  6923-04 displayed
    RapidVap; Aluminum Block; 48 tube, 13 x 100 mm Tubes 7.5 mL, Labconco Ships Free Free shipping in contiguous USA In stock
    $2,387
    Increase Down Increase Up
  3. Blocks fit inside RapidVap Evaporation Systems.  |  6923-06 displayed
    RapidVap; Aluminum Block; 48 tube, 16 x 150 mm OD Tubes, 17 mL Labconco Ships Free Free shipping in contiguous USA In stock
    $2,460
    Increase Down Increase Up
  4. Blocks fit inside RapidVap Evaporation Systems.  |  6923-06 displayed
    RapidVap; Aluminum Block; 48 tube, 20 x 150 mm Tubes, 26 mL, Labconco Ships Free Free shipping in contiguous USA In stock
    $2,460
    Increase Down Increase Up
  5. Stainless steel racks hold RapidVap tubes upright  |  6922-86 displayed
    Rack; SS, 8 x 600 mL tubes, Labconco Ships Free Free shipping in contiguous USA In stock
    $235
    Increase Down Increase Up
  6. Caps helps prevent cross-contamination and moisture from condensing when using low boiling point solvents.  |  6923-19 displayed
    $1
    Increase Down Increase Up
  7. Caps helps prevent cross-contamination and moisture from condensing when using low boiling point solvents.  |  6923-19 displayed
    $874
    Increase Down Increase Up
  8. Caps helps prevent cross-contamination and moisture from condensing when using low boiling point solvents.  |  6923-19 displayed
    $589
    Increase Down Increase Up
  9. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Laboratory Evaporators & Concentrators

  • Labconco CentriVap micro IR Vacuum Concentrators, 115V and 230V Labconco CentriVap micro IR Vacuum Concentrators
  • Centrifugal Evaporators Centrifugal Evaporators
  • N2 Dry Evaporators N2 Dry Evaporators
  • IKA RV 8 Rotary Evaporators Rotary Evaporators
Labconco CentriVap micro IR Vacuum Concentrators, 115V and 230V

Features and Benefits

Learn More: RapidVap Evaporators

LCD Display

RapidVap Dry Evaporators feature an LCD display with push button control for 1-9 set-ups, vortex speed, heat, time, and shows number of samples selected to receive nitrogen blow down

Extra Large Tubes

RapidVap N2 Dry Evaporators include an 8-place sample block that accommodate up to 450 mL each, and nitrogen blow down can be programmed for 2, 4, 6, or all 8 tube locations
