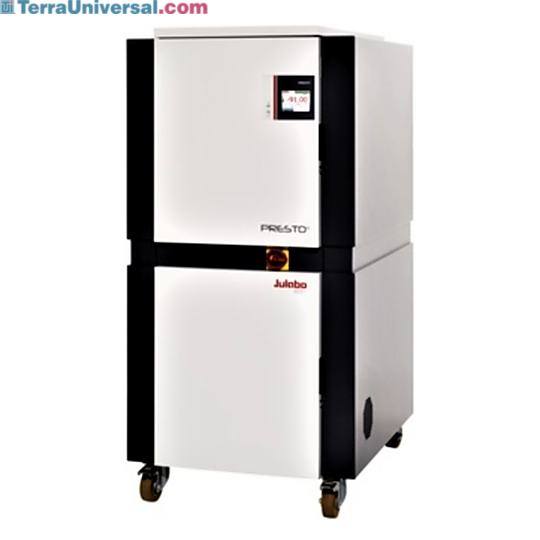

PRESTO W91, W91t, W91tt and W91x Temperature Control Process Systems with a temperature range of -91°C to 250°C provide heating, cooling and pumping performance | 2541-PP-06 displayed
Circulators

PRESTO W91ttx Dynamic Temperature Control Process System, Julabo, 9421913.17.TT, 480 V

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.
  • PRESTO W91ttx Process System delivers dynamic high-precision temperature control and quickly compensates exothermic and endothermic reactions
  • Features an 11 kW cooling capacity for dynamic temperature changes down to -91 °C, and 5.5 bar pumping pressure
  • Extraordinary heating, cooling and pumping performances
  • Applications: ready to embed into pilot plants; ideal for use in material and component testing
  • Integrated: external PT100 sensor connection, 5.7" TFT touchscreen interface, programmer (8 x 60 steps)

• Manufacturer SKU: 9421913.17.TT

• Heating Capacity: 36 kW

• Model: PRESTO W91ttx

• PSI: 1.5 to 79.8

• Pump Capacity Flowrate: 0-70 I/min

• Unit of Measure: EA

Read more
Manufacturer SKU: 9421913.17.TT
Manufactured By: Julabo
Warranty: One-Year Manufacturer Warranty (One-Year Additional Warranty with Product Registration)
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
2541-57
Terra Part # 2541-57
Request Quote
Terra Part # 2541-57
82639
Request Quote
Save For Later
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Usually ships in 20-30 business days

Want it faster ? Read about FasTrak

Usually ships in 20-30 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • PRESTO W91ttx Process System delivers dynamic high-precision temperature control and quickly compensates exothermic and endothermic reactions
  • Features an 11 kW cooling capacity for dynamic temperature changes down to -91 °C, and 5.5 bar pumping pressure
  • Extraordinary heating, cooling and pumping performances
  • •  Applications: ready to embed into pilot plants; ideal for use in material and component testing
  • •  Integrated: external PT100 sensor connection, 5.7" TFT touchscreen interface, programmer (8 x 60 steps)
  • Features and specifications for 480V model #9421913.17
  • Long-life span with permanent internal monitoring and self-lubricating pumps
  • Interfaces enable various remote control across networks enabling integration into higher-level control systems
  • Integrated 5.7" industrial color touchscreen displays for simple control of essential settings
  • Heating capacity kW: 36
  • Pump capacity flow rate (L/min): 0-70
  • Pump capacity flow pressure (PSI): 1.5 to 79.8
  • Pump pressure: 5.5 bar
  • Cooling:
  • 2-stage water cooling of compressor
  • Cooling water temperature max.: 35 °C
  • Cooling water pressure max. PSI: 87
  • Cooling water difference pressure PSI: 7.3
  • Cooling capacity: up to 11 kW
  • Cooling water consumption l/min: 16 to 43
  • Temperature
  • Temperature display resolution setting: 0.01 °C
  • Working temperature range: -91 ºC to +250 ºC
  • Temperature stability: ±0.05 °C to ±0.2 °C
  • Ambient temperature range: +5 °C to +40 °C
  • Temperature display resolution: 0.01 °C
  • Absolute temperature calibration: 3-point calibration
  • Volumes
  • Internal usable expansion volume: 40
  • Minimal process volume: 28
  • Active heat exchanger volume: 16
  • Cooling Water Connection: G¾ in.
  • Additional features: alarm output, interface for SD memory card, M38x1.5 male (pump connection), 74 dBA sound, gear pump, one magnetically coupled pump
  • Classification III (FL), IP 21
  • Optional Accessories:
  • Analog connections, RS485, Profibus DP
  • Second external Pt100 sensor connection

• Manufacturer SKU: 9421913.17.TT

• Heating Capacity: 36 kW

• Model: PRESTO W91ttx

• PSI: 1.5 to 79.8

• Pump Capacity Flowrate: 0-70 I/min

• Unit of Measure: EA

• Electrical Specifications: 480 V, 3P(N), 60 Hz

• Weight, Product: 1,918 lb

• Dimensions, Product: 37.4" W x 50" D x 74.8" H

• Dimensions, Shipping: 43.4" W x 56" D x 80.8" H

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts
  5. Air-Cooled recirculating coolers by Julabo are environmental-friendly cooling and water conservative | 2540-13 displayed
    Group of 20 products
    Recirculating Coolers by Julabo From
    As low as $7,075
    Some ship in 12 - 18 days
  6. KMF 115 Humidity Test Chamber with Expanded Temperature and Humidity Range by BINDER provides uniform climate conditions for stress testing; 3.6 cu. ft. | 1410-26 displayed
    Group of 3 products
    KMF Humidity Test Chambers by BINDER Worldwide From
    As low as $20,490
    Some ship in 15 - 21 days

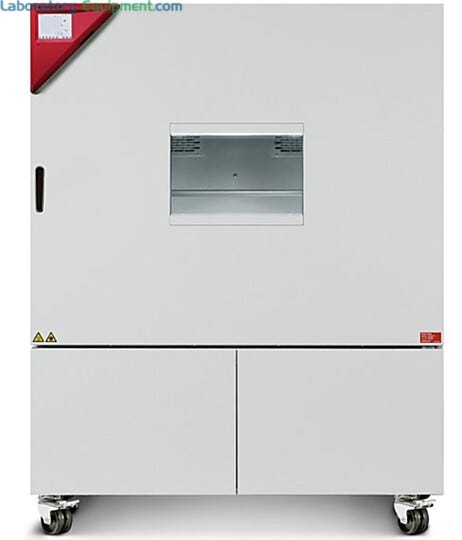

  7. BINDER MKF 720 Dynamic Climate Chamber with Humidity Control and a 20L integrated water tank for cold and heat testing methods per DIN and IEC standards | 1410-25 displayed
