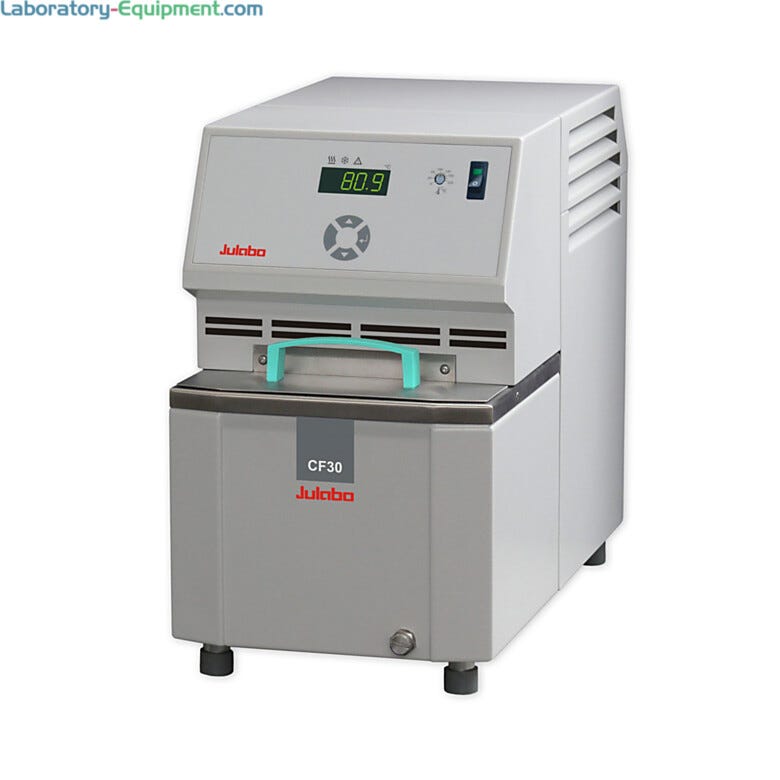

CF30 Cryo-Compact Circulator by Julabo with a -30°C to +150°C temperature range, a 3.5L capacity, RS232 interface, and a 15L/min flow rate for routine applicati | 2540-04 displayed
Circulators
Product Group:
2540-PP-03
2540-PP-03 71975

CF Series Cryo-Compact Circulators by Julabo

  • CF Series Cryo-Compact Circulators fits into crowded, complex systems such as distillation apparatus or mini-plant setups
  • Delivers precise temperature control, 2kw heating capacity, pump connections, and a bath opening for temperature control of small objects
  • Compatible with flammable bath liquids (Class III (FL) according to DIN 12876-1)
  • Economy CF30 and CF40: RS232 interface, precise PID temperature control and LED display
  • High-Tech CF31 and CF41: RS232/RS485 interface, ICC cascade temperature control, SMART PUMP, integrated programmer (6 X 60 steps), temperature control features, interactive LCF dialog display and VFD display
Read more
Manufactured By: Julabo
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Tank Capacity

Sort Order:
Temperature Range

Sort Order:
Heated

Sort Order:
Power

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #Price Ships in
3.5 L -30 to 150°C Yes 320W CF30 9400330 2540-04 47510 $8,517 12-18 Days2
3.5 L -30 to 200°C Yes 320W CF31 9400331.2 2540-06 47512 $10,013 12-18 Days3
20.8 L -40 to 150°C Yes 470W CF40 9400340.2 2540-05 47511 $9,545 12-18 Days4
20.8 L -40 to 200°C Yes 470W CF41 9400341 2540-07 47513 $10,979 12-18 Days5
Tank Capacity
Temperature Range
Heated
Power
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Product Details
Product Details
  • CF Series Cryo-Compact Circulators fits into crowded, complex systems  such as distillation apparatus or mini-plant setups
  • Delivers precise temperature control, 2kw heating capacity, pump connections, and a bath opening for temperature control of small objects
  • Compatible with flammable bath liquids (Class III (FL) according to DIN 12876-1)
  • •  Economy CF30 and CF40: RS232 interface, precise PID temperature control and LED display
  • •  High-Tech CF31 and CF41: RS232/RS485 interface, ICC cascade temperature control, SMART PUMP, integrated programmer (6 X 60 steps), temperature control features, interactive LCF dialog display and VFD display
  • Includes: 2 Barbed fittings for tubing 8 and 12 mm ID. (Pump connections M16x1 male)
  • Applications: external temperature control, distillation apparatuses, mini-plant installations and fume hoods
  • Specifications:
  • Heating capacity: 2 kW (230V) 1 kW (115V)
  • CF30 and CF40: PID Temperature control with set control parameters, temperature stability ±0.02...±0.2 °C
  • CF31 and CF41: Intelligent cascade control - automatic and self-optimizing adaptation of the PID control parameters with external stability of +/- 0.05 °C.
  • Pump capacity: 15L/min (CF30 and CF40), 22 to 26l/min (CF31 and CF41)
  • Working temperature: -30°C to +150°C (CF30 and CF40), -30°C to +200°C (CF31 and CF40)
  • Temperature stability: ±0.03°C (CF30 and CF40), ±0.02°C (CF31 and CF41)
  • Bath opening W" x L": 16 x 3 (CF30 and CF31), 19 x 3 (CF40 and CF41)
  • CF30 and CF31 fill volume: 3.5 liters
  • CF40 and CF41 fill volume: 5.5 liters
  • Features of all CF Series Models:
  • Stainless steel bath tank and integrated bath cover
  • Compact and ergonomic design for easy operation
  • Cooling capacity: up to 470W
  • Permissible ambient temperature up to +40 °C
  • ATC3 3-Point-Calibration
  • Unique early warning system for low liquid level
  • Made with environmentally friendly materials
  • Thorough quality testing of circulators
  • Splash-proof keypad, front drain, bright displays visible from a distance, pump connections for external temperature applications
  • Adjustable high temperature cut-out, visible via display
  • Bath opening for temperature control of small objects in the bath
Show more

Show more

Circulators

  • Absolute Temperature Calibration (ATC) - HL/SL, Cryo-Compact Series by Julabo Absolute Temperature Calibration (ATC) - HL/SL, Cryo-Compact Series
  • Downloading Black Box Data - TopTech, HighTech, Cryo-Compact, FL & Semichill product lines by Julabo Downloading Black Box Data - TopTech, HighTech, Cryo-Compact, FL & Semichill product lines by Julabo
  • Julabo Analog Connections Overview Julabo Analog Connections Overview
Absolute Temperature Calibration (ATC) - HL/SL, Cryo-Compact Series by Julabo
Video shows how to perform temperature calibration on HL/SL, Cryo-Compact Series Circulators by Julabo Absolute Temperature Calibration (ATC) - HL/SL, Cryo-Compact Series Step-by-step instruction on how to navigate the Absolute Temperature Calibration (ATC) feature of HL/SL, Cryo-Compact Series Circulators by Julabo
Features & Benefits

Features & Benefits

Connections

High-tech CF31 and CF41 models are built with rear pump connections, RS232/RS485 interface, and an external Pt100 sensor connection

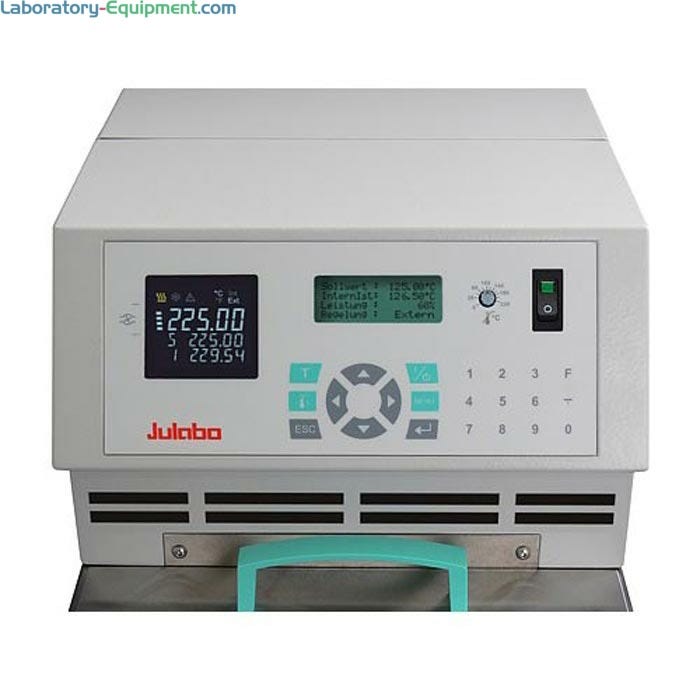

Interface

High-tech CF31 and CF41 models feature an RS232/RS485 interface for PC connection, a bright VFD display and, interactive LCD dialog display
Products similar to this one
Other products you may find relevant
  1. Basic 47 Hood from Labconco (shown with optional base cabinet and work surface) | 3646-00 displayed
    Group of 8 products
    Basic Laboratory Fume Hoods from Labconco From
    As low as $6,033
    Some ship in 5 - 7 days
  2. XStream Labconco fume hood shown with clean-sweep sash handle and rear downflow dual baffle system | 1538-32 displayed
    Group of 16 products
    Protector XStream Laboratory Fume Hoods by Labconco From
    As low as $8,871
    Some ship in 25 - 29 days

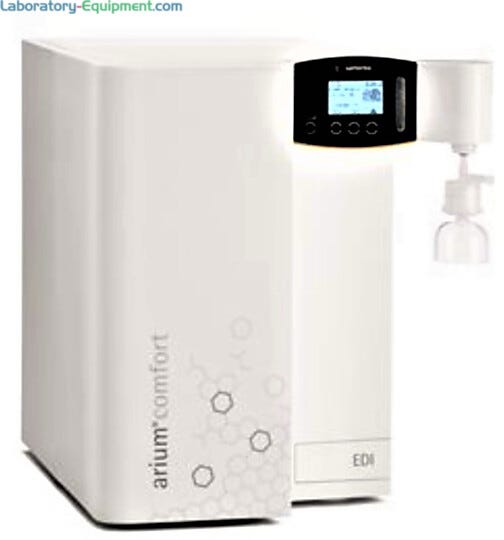

  3. Arium Comfort II produces ASTM Type 1 and Type 2 water in a single system available with a UV lamp and a TOC monitor in select models | 9510-PP-01 displayed
