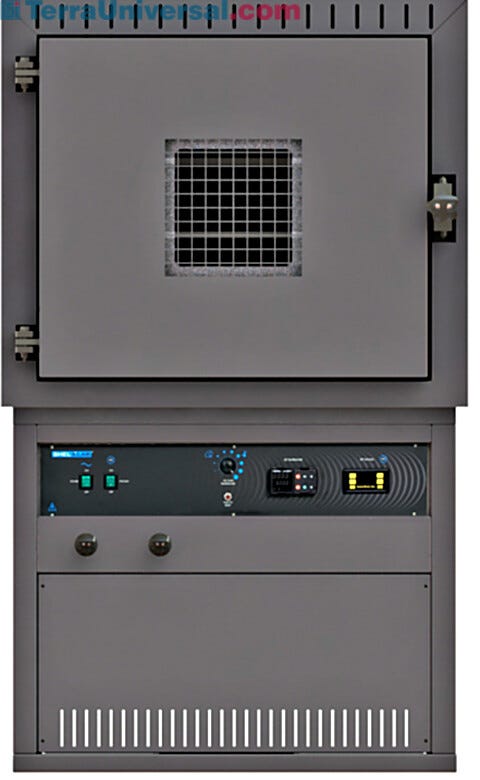

#SVAC9-2 Secured to mobile stand and includes three shelves; SS exterior option | 3900-80 displayed
Ovens

Oven; 9.3 cu. ft., Large Capacity, SVAC, Stainless Steel, 240 V

  • Maximum Temperature: 220°C
  • Secured to mobile stand; cross ventilation for fast and gentle drying of heat sensitive material
  • Programmable Watlow temperature control, Overtemperature safety and digital vacuum gauge
  • Stainless steel interior with three shelves and a double plenum design
  • Two-Year Manufacturer Warranty

• Type: Large Capacity

• Maximum Temperature: 220°C

• Material: Stainless Steel

• Capacity: 9.3 cu. ft.

• Convection Type: Forced Air

• Controls: Digital

• Model: SVAC

• Manufacturer SKU: SVAC9-2

• Capacity Range: 9 to 15 cubic feet

• Unit of Measure: EA

Read more
Manufacturer SKU: SVAC9-2
Manufactured By: Shel Labs
Warranty: 2 years parts and labor
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
3900-80
Terra Part # 3900-80
$15,974
Accessories related to Terra Part # 3900-80
65372
Oven; 9.3 cu. ft., Large Capacity, SVAC, Stainless Steel, 240 V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 18-24 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Maximum Temperature: 220°C
  • Secured to mobile stand; cross ventilation for fast and gentle drying of heat sensitive material
  • Programmable Watlow temperature control, Overtemperature safety and digital vacuum gauge
  • Stainless steel interior with three shelves and a double plenum design
  • Two-Year Manufacturer Warranty
  • Internal Dimensions (WxDxH) : 28 x 24 x 24 in. (711 x 609 x 609 mm)
  • Temperature Range: Ambient +5°C to 220°C
  • Temperature Uniformity: +/- 7.0ºC at 150ºC
  • Temperature Increments: 0.1°C
  • Number of Shelves: 3
  • Material: Stainless steel interior and tempered glass viewing window (SS exterior option)
  • Vacuum Range: -101 to -1010 mbar
  • Heat-up Time: 90 minutes to 150°C
  • Max. Energy Consumption: not available
  • Airflow Design: Cross ventilation
  • Agency Approval: N/A
  • Secured to mobile stand
  • Equipped with Viton gasket for excellent high-temperature performance and chemical resistance
  • Positive latch door handle and spring-loaded glass for excellent vacuum seal
  • Digital features:
  • Fully Programmable Watlow Temperature Control
  • Capable of 40 Step Ramp and Soak Profiles or 4
  • Files With 10 Steps Per File
  • Digital Vacuum Gauge
  • RS485 Communication
  • Note: Silicone gaskets (use Buna gaskets for solvent applications and Fluorosilicone or Viton for acidic applications)

• Type: Large Capacity

• Maximum Temperature: 220°C

• Material: Stainless Steel

• Capacity: 9.3 cu. ft.

• Convection Type: Forced Air

• Controls: Digital

• Model: SVAC

• Manufacturer SKU: SVAC9-2

• Capacity Range: 9 to 15 cubic feet

• Unit of Measure: EA

• Marks & Listings: TUV - CUE

• Electrical Specifications: 240 V, 50/60 Hz

• Weight, Product: 492 Lbs

• Dimensions, Product: 36"W x 46.5"D x 62"H

• Weight, Shipping: 984 Lbs

• Dimensions, Shipping: 43"W x 51"D x 80"H

• Package Type: Palletized

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts
  5. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  6. Ilmvac MP Series Standard Duty Membrane Vacuum Pumps are dry and oil-free for minimized maintenance | 7906-29 displayed
    Group of 18 products
    Diaphragm Vacuum pumps From
    As low as $368
    Some ship in 0 - 2 days
Buy Accessories
  1. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up

  • Shel Lab Large Capacity Vacuum Oven Shel Lab Large Capacity Vacuum Oven
  • Shel Lab Analog Economy Model Oven Shel Lab Analog Economy Model Oven
  • Shel Lab Digital Standard Model Vacuum Oven Shel Lab Digital Standard Model Vacuum Oven
Shel Lab Large Capacity Vacuum Oven
Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed Shel Lab Large Capacity Vacuum Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.
Shel Lab Analog Economy Model Oven
Shellab Analog Model Ovens come with an analog temperature controller and dial vacuum gauge | 3900-12 displayed Shel Lab Analog Economy Model Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.
Shel Lab Digital Standard Model Vacuum Oven
Shellab Digital Model Ovens includes Watlow temperature control, digital vacuum gauge, built in over temperature safety and a double plenum | 3900-33 displayed Shel Lab Digital Standard Model Vacuum Oven Shellab Vacuum Ovens have a rugged construction and cross ventilation airflow feature that distributes inert gas throughout the chamber. The spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity.

Features and Benefits

Learn More: Shel Lab Vacuum Ovens
Print Copy Copied

Additional Features of Shel Lab Vacuum Ovens

Complete list of Applications
  • Aging Tests
  • Chemical Resistance Studies
  • Desiccating
  • Drying of Paper
  • Dry Sterilization
  • Electronic Process Control
  • Moisture Determination
  • Out Gassing Liquids
  • Out Gassing Solids
  • Plating
  • Rubber and Textiles
  • Vacuum Storage
Model SVAC1 SVAC1E SVAC2 SVAC2E SVAC4 SVAC9-2
External Dimensions (WxDxH) 17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm) 15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm) 20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm) 18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm) 26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm) 36 x 46.5 x 62 in. (915 x 1182 x 1575 mm)
Internal Dimensions (WxDxH) 9 x 12 x 9 in. (228 x 304 x 228 mm) 9 x 12 x 9 in. (228 x 304 x 228 mm) 12 x 20 x 12 (304 x 508 x 304 mm) 12 x 20 x 12 (304 x 508 x 304 mm) 18 x 24 x 18 in. (457 x 609 x 457 mm ) 28 x 24 x 24 in. (711 x 609 x 609 mm)
Electrical 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 220 - 230 volts
Capacity 0.6 Cu. Ft.(16L) 0.6 Cu. Ft. (16L) 1.7. (47 L) 1.7. (47 L) 4.5. (127 L) 9.3. (264 L)
Temperature Range Ambient +10°C to 220°C Ambient +15°C to 210°C Ambient +10°C to 220°C Ambient +15°C to 210°C Ambient +10°C to 220°C Ambient +5°C to 220°C
Temperature Uniformity +/-6% of set point +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C +/-6% of set point +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C +/-6% of set point +/- 7.0ºC at 150ºC
Temperature Increments 0.1°C Analog Control 0.1°C Analog Control 0.1°C 0.1°C
Number of Shelves 3 2 3 2 3 3
Material SS Interior SS Interior SS Interior SS Interior SS Interior SS interior with option for SS exterior
Max. Energy Consumption 840/1080 W 600/575 W 1200/1320 W 1200/1150 W 1560/1680 W Not Available
Airflow Design Cross Ventilation Cross Ventilation -- Cross Ventilation Cross Ventilation --
Agency Approval TUV - CUE -- TUV - CUE -- TUV- CUE --
Heat-up Time 90 minutes to 150°C
Vacuum Range -101 to -1010 mbar
Warranty Two-Year Manufacturer Warranty
