1510-61
Terra Part # 1510-61
$4,139
Usually ships in 5-10 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 1510-61
77855

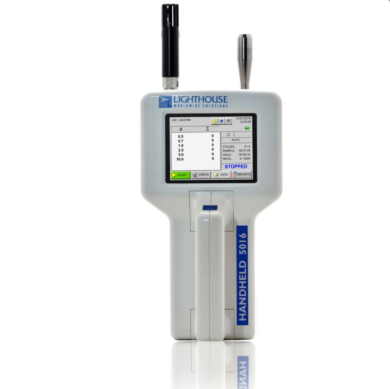

Particle Counter; 5016 Handheld Airborne, Lighthouse
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 6-ch model displays cumulative and particle count data, and temperature/relative humidity data
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Holds 3,000 records of particle data and 50 sampling/report recipes
  • Standard - 6 channels: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
  • Optional channels: 0.5, 1.0., 3.0, 5.0, 10.0, 25.0 μm
  • Includes: removable battery, direct mount isokinetic sample probe, purge filter, temperature/relative humidity probe, power supply; power chord; international support, Operating manual on CD
  • Bright 3.5" TFT color touchscreen display
  • Lightweight and ergonomic models  feature an easily configurable interface with Zoom capability
  • Air Particle Counter Features: simultaneous viewing of six particle sizes, user-friendly interface, removable / rechargeable Li-Ion battery, removable probes, internal audible alarm, 50-record Configurable Recipe Database, 3,000 record data storage, alphanumeric location labels, Open Architecture Connectivity with OPC Server
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage:14°F to 122°F (-10°C to 50°C) / Up to 98%non-condensing
  • Meets ISO 21501-4 calibration using NIST traceable PSL spheres
  • Compliance: ISO 21501-4
  • Concentration limits: 8,000,000 particles /ft3 @ 10% coincidence loss
  • Laser Source: Extreme Life Laser Diode with > 20 years MTTF
  • Unit-to-Unit Accuracy and Repeatability
  • Test Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1 or EU GMP Annex 1
  • Supporting software (sold separately): LMS Express, LMS Express RT, LMS Pharma, LMS Pro
  • Options: Carry Case, isokinetic sample probe with 6ft tubing, Li-I

• Detection Channels: 6 Channels

• Detection Range: 0.5- 25.0 μm

• Counting Efficiency: 50% @ 0.5 µm, 100% > 0.75 µm

• Unit of Measure: EA of 1

• Marks & Listings: UL

• Electrical Specifications: 100/240 V, 1.25 A, 50/60 Hz

• Weight, Product: 2.2 lb

• Dimensions, Product: 5" W x 2.5" D x 8.75" H

Buy Accessories
  1. Provides 247 real time cleanroom monitoring of parameters and centrally locates data; use with Lighthouse particle counters and viable air samplers
    $3,014
    Increase Down Increase Up

  • Video of Lighthouse Handheld Particle Counters by LWS Video of Lighthouse Handheld Particle Counters by LWS
  • Operating Instruction Video of Handheld Particle Counters by LWS Video Tutorial of Handheld Particle Counters by LWS
Video of Lighthouse Handheld Particle Counters by LWS
Operating Instruction Video of Handheld Particle Counters by LWS

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Intuitive User Interface

Easy-to-use TFT color touchscreen interface enables convenient setting of parameters

Rechargeable Battery

Enables easy removal of rechargeable battery; additional battery and charger for maximum uptime sold separately

Removable Probes

Temp / RH and isokinetic probes can be removed for easy cleaning
