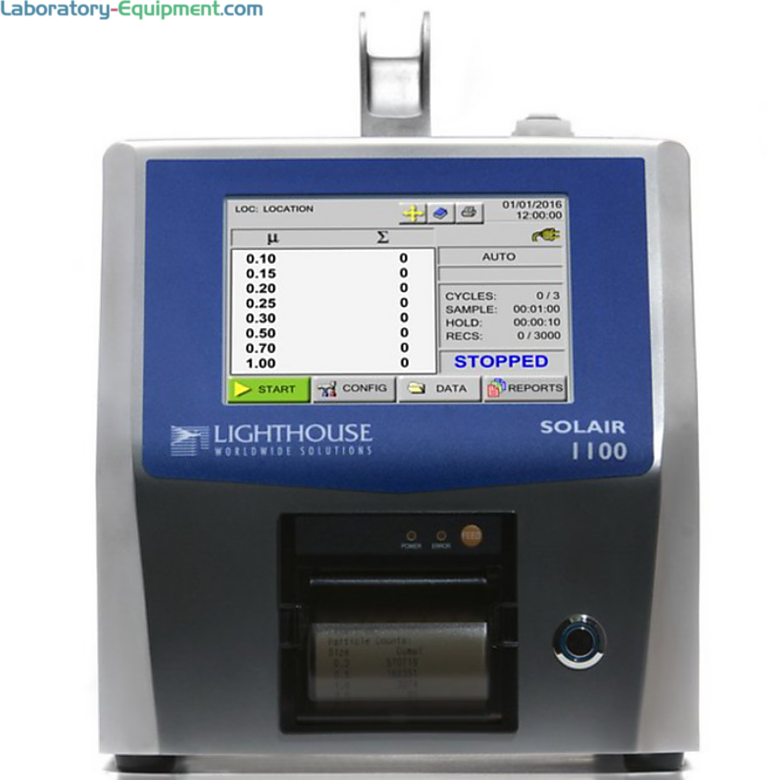

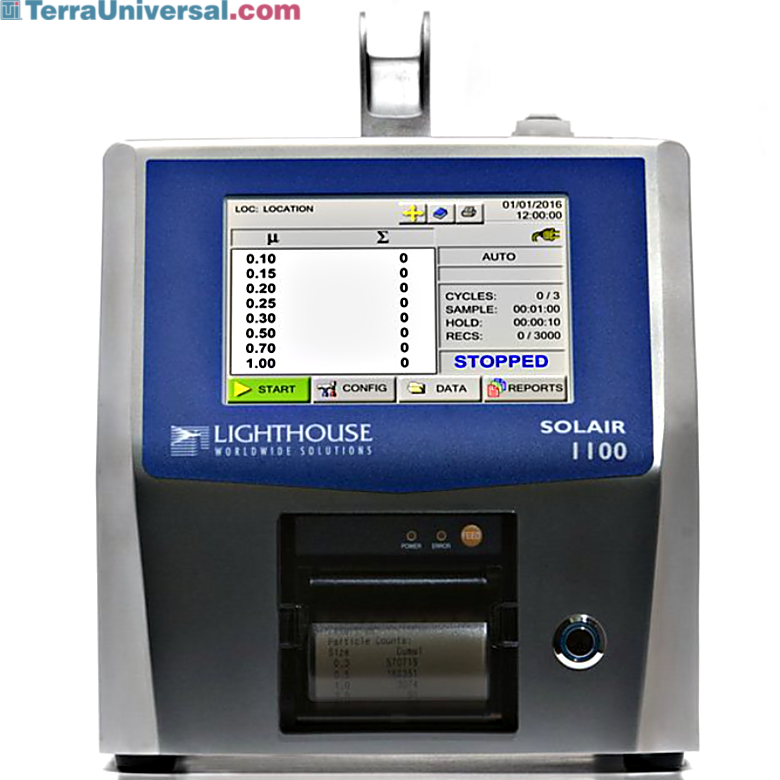

ISO 21501-4 compliant unit with a 0.1 - 1.0 μm sensitivity, a 1.0 CFM (28.3 LPM) flow rate and a Long Life Laser Diode; monitors ISO class 1-7 cleanrooms |

Solair Airborne Particle Counters by Lighthouse Worldwide Solutions

Available ISO Ratings: ISO 7, ISO 8
Solair particle counters in 6-ch and 8-ch models for cleanroom particle monitoring
Cleanroom certification ISO 21501-4 Compliant on Solair 1100ld, 3100 and 5100 models
Pass/fail report wizard for ISO-14644-1, EU GMP Annex 1, and FS-209E report formats
Light source: Laser Diode or Extreme Life Laser Diode
Size range: from 0.1 um to 100.0 um

Warranty: Two-Year Manufacturer Warranty

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Detection Channels All 6 and 8 Channels 6 Channels 8 Channels Sort Order: Descending Ascending	Detection Range All 0.1 - 1.0 μm 0.3 - 25 µm 5 - 100 μm Sort Order: Descending Ascending	Counting Efficiency All 50% @ 0.1 µm; 100% for particles > 0.15 µm per ISO 21501-4 50% @ 0.3 µm, 100% > 0.45 µm 50% @ 0.5 µm, 100% > 0.75 µm 50% @ 5.0 µm Sort Order: Descending Ascending	Manufacturer SKU All Solair Boulder Solair 3350 Solair 5100 Solair 3100 Solair 1100LD Sort Order: Descending Ascending	ISO Class All ISO 7 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
6 and 8 Channels	0.3 - 25 µm	50% @ 0.3 µm, 100% > 0.45 µm	Solair 3100	ISO 7	1510-42 77819	$10,294	15-20 Days	2
6 and 8 Channels	0.3 - 25 µm	50% @ 0.5 µm, 100% > 0.75 µm	Solair 5100	ISO 7	1510-43 77820	$10,294	60-70 Days	3
6 Channels	0.3 - 25 µm	50% @ 0.3 µm, 100% > 0.45 µm	Solair 3350	ISO 7	1510-44 77821	$13,888	60-70 Days	4
6 Channels	5 - 100 μm	50% @ 5.0 µm	Solair Boulder	ISO 7	1510-45 77822	$9,677	60-70 Days	5
8 Channels	0.1 - 1.0 μm	50% @ 0.1 µm; 100% for particles > 0.15 µm per ISO 21501-4	Solair 1100LD	ISO 7	1510-41 77818	$23,984	60-70 Days	6

Detection Channels

Detection Range

Counting Efficiency

Manufacturer SKU

ISO Class

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

• Available ISO Ratings: ISO 7, ISO 8
Solair particle counters in 6-ch and 8-ch models for cleanroom particle monitoring
Cleanroom certification ISO 21501-4 Compliant on Solair 1100ld, 3100 and 5100 models
Pass/fail report wizard for ISO-14644-1, EU GMP Annex 1, and FS-209E report formats
• Light source: Laser Diode or Extreme Life Laser Diode
Size range: from 0.1 um to 100.0 um

Solair 1100LD model features: 8-channels, sensitivity range from 0.1 - 1.0 μm, a 1.0 CFM (28.3 LPM) flow rate, designed for ISO Class 1 to Class 7 cleanrooms

Solair 3100 model features: 6-channels, sensitivity range from 0.3 - 25.0μm, a 1.0 CFM (28.3 LPM) flow rate; designed for ISO classes 1-8 cleanrooms

Solair 3350 model features: 6-channels, sensitivity range from 0.3 - 25.0 µm, a 100 LPM flow rate; designed for ISO classes 1-8 cleanrooms

Solair 5100 model features: 6-channels, sensitivity range from 0.5 - 25.0μm, a 1.0 CFM (28.3 LPM) flow rate; designed for ISO classes 1-8 cleanrooms

Solair Boulder model features: 6-channels, sensitivity range from 5.0 - 100.0 um and a 28.3 LPM flow rate

Light source: Long Life Laser Diode (1100LD), Extreme Life Laser Diode Technology with >20-year Mean Time To Failure (MTTF)

All models include: Operating Manual on CD; Isokinetic Sample Probe with Tripod and Tubing; Purge Filter; Power Cable and Spare Fuse; LMS XChange and Express Software; Printer; Printer Paper

Applications: cleanroom certification, troubleshooting, routine testing, compressed gas testing, HEPA filter scanning, HEPA filter challenge testing, environmental testing

Zero Count Level<1 count / 5 minutes (per JIS B 9921) on 3100, 3350, 5100 and Boulder models

Flow Rate: 1.0 CFM (28.3 LPM) (1100LD, 3100, 5100); 100 LPM (3350); 28.3 LPM (Boulder)

Calibration Meets ISO 21501-4 calibration using NIST traceable PSL spheres, DMA and condensation Particle Counter Security: Integrated alarm buzzer and external alarm connector, alarms on counts, low battery, sensor failure

Sample Output

1100LD Model: Internally filtered to 100% @ 0.1 μm, optional HEPA filtration for cooling system exhaust

All other models: Internally filtered to HEPA standards (>99.97% @ 0.3 μm)

Features on all models: stainless steel enclosure; icon-driven 5.7 - inch (14.47 cm) color TFT touch screen display; USB, Ethernet, RS-485, Secure Data Transfer to and Storage on USB Flash Drive; automatic, manual, beep, concentration, cumulative/differential count modes; rotating buffer (includes particle and environmental data, location and time); Languages English (U.S.), French, German, Italian, Spanish, Chinese, Russian, Japanese, Korean

Vacuum Source: Internal closed-loop controlled pump. Allows the use of 3/8" ID sample tubing of up to 12 meters (40 feet) @ 50 & 100L

Optional Environmental Sensors(up to 4) temperature/relative humidity, air velocity, differential pressure or others

Supporting Software (sold separately): LMS Express, LMS Express RT, LMS Pharma

Optional channels available on all Solair Airborne Particle Counter models

Solair Airborne Particle Counter Tutorial on Sample Settings by LWS
Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS
Solair Airborne Particle Counter Tutorial on Security Settings by LWS
Solair Airborne Particle Counter Tutorial on Training Reports Function by LWS
Solair Airborne Particle Counter Tutorial on Locations Function by LWS

Solair Airborne Particle Counter Tutorial on Sample Settings by LWS

How to configure sample settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Sample Settings by LWS Provides detailed instructions on configuring sample settings on Solair model

Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS

How to configure alarm settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS Provides detailed instructions on configuring alarm settings on touchscreen display on Solair models

How to configure security settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Security Settings by LWS Provides detailed instructions on configuring security and password settings on touchscreen display on Solair models

Configure training reports for ISO compliance on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Training Reports Function by LWS Provides detailed instructions on steps to configure training reports on Solair models

Solair Airborne Particle Counter Tutorial on location function by LWS

Shows how to configure locations function on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Locations Function by LWS Provides detailed instructions on location functions settings on touchscreen display on Solair models
