Applications: GMP regulated industries, VHP room sterilization, bio-decontamination, pharmaceutical production, manufacturing vaccines and other drugs

Transfers particle count data with RJ45 Cat6 cable

MODBUS communication version available by request

1/8" inlet and outlet fitting

Self-Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health

Provides risk mitigation and environmental compatibility

Sloped front face and optional sealed connection

Versatile mounting option when used with an external vacuum source ideal in small environments

Features: Ethernet communication, 3,000 data storage, validation mode, alarm light, 304 stainless steel enclosure, additional channel sizes available

External Vacuum Requirements;: Nominal 1.0 CFM 18" (45.72 cm) of Hg

Light Source: Laser Diode

Calibration: Designed for ISO 21501-4 Compliance

Zero Count Level: <1count/5 minutes per ISO 21501-4

Counting Efficiency: 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size

Concentration Limits 1.0 CFM: 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms

Concentration Limits 0.1 CFM: 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms

Software: LMS Express, LMS Express RT, LMS Pharma

Smart Bracket: Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall

Power input requirements: 24VDC ±5% @ 250mA via LMS 485 Gateway for ApexRemote Serial, PoEswitch for ApexRemote PoE (IEEE 802.3af compliant) or optional AC/DC supply for ApexRemote PoE

Power supply specifications: Optional Listed LPS Power Supply, Output 20-26VDC 400mA (10W) min, ApexRemote PoE only

• Detection Channels: 2 Channels

• Detection Range: 0.2 - 2.0 μm

• Counting Efficiency: 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size

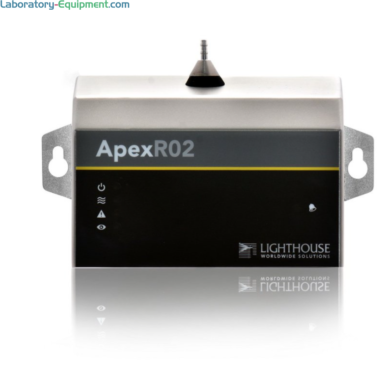

• Manufacturer SKU: ApexR02

• Marks & Listings: CE

• Electrical Specifications: 100/120 V, 18 W, 50/60 Hz

• Weight, Product: 1.4 lb

• Dimensions, Product: 6.38" W x 2.94" D x 4.59" H

Manuals & Resources

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
