Cimarec™ Ceramic-Top Hot Plates
by Thermo Fisher Scientific

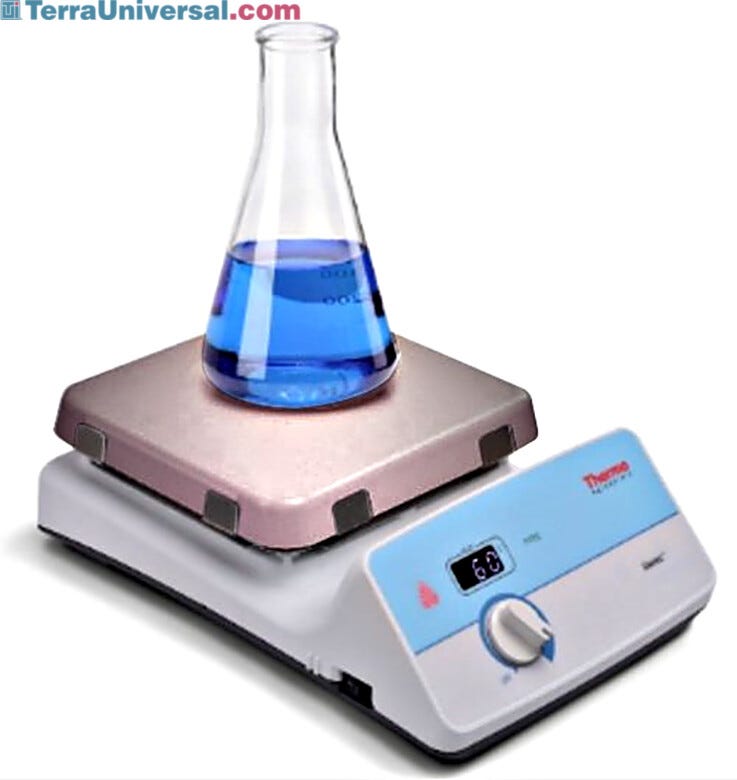

Cimarec™ Ceramic Top Hot Plate
CSR logo


  • Feature Cimarec® solid top formed of pure, performance-engineered ceramic material
  • Percentage input controller provides infinite temperature selection
  • Reach a maximum operating temperature of 540°C (1004°F) in just 8 minutes
  • Choose from three sizes

These Cimarec® ceramic top plates offer high impact strength and acid and alkali resistance. Their unsurpassed flatness ensures maximum heat transfer, and the reflective bright white color enhances visibility. A rugged cast-aluminum body provides stability and durability, and a power indicator light is illuminated whenever power is applied to the control.

Choose from three distinct sizes:
Cimarec 1 provides 4.25" x 4.25" (108 mm x 108 mm) of heating surface;
Cimarec 2 provides 7.25" x 7.25" (184 mm x 184 mm) of heating surface;
Cimarec 3 provides 10.25" x 10.25" (260 mm x 260 mm) of heating surface.
All units come complete with 3-wire cord and 15A plug, except No. 4000-90, which features a 20A plug for a 20A receptacle.


Electrical
(50/60 Hz)
Top Plate Temperature
Range
Thermo Scientific
Part #
Cat. # Price
Volts Amps Watts °C °F
Cimarec
1 (ceramic)
120 3.4 410 5 to 540 41 to 1004 HP88854100 4000-86A $ 179
240 1.9 460 5 to 540 41 to 1004 HP88854105 4000-86A-220 $ 179
Cimarec
2 (ceramic)
120 8.6 1040 5 to 540 41 to 1004 HP88857104 4100-03A $ 254
240 5.0 1200 5 to 540 41 to 1004 HP88857105 4100-03A-220 $ 196
Cimarec
3 (ceramic)
120 12.0 1440 5 to 300 41 to 572 HP88850100 4000-90A $ 321
240 6.6 1600 5 to 300 41 to 572 HP88850105 4000-90A-220 $ 330
Specifications
  Heating Surface
Dimensions (W x D)
Overall Dimensions
(W x D x H)
Shipping
Weight
Inches mm Inches mm lbs. g
Cimarec 1
(ceramic)
4.25 x 4.25 108 x 108 5 x 10 x 3.6 127 x 254 x 91 5.2 2359
Cimarec 2
(ceramic)
7.25 x 7.25 184 x 184 8.2 x 13 x 3.8 208 x 330 x 97 9.2 4173
Cimarec 3
(ceramic)
10.25 x 10.25 260 x 260 11.3 x 16.2 x 4 287 x 411 x 102 15.2 6895

File Type File Name Publication Date
Brochure (PDF) Cimarec Digital Aluminum and Ceramic Top Hot Plates and Stirrers
Provides a brief introduction to features and available accessories for the Cimerec Hot Plates by Thermo Fisher Scientific. Product specifications included.
04/13/2016
