• Maximum Speed: 1400 rpm
• Maximum Viscosity: 5000 mPas
• Application: General Purpose
• Controls: Digital

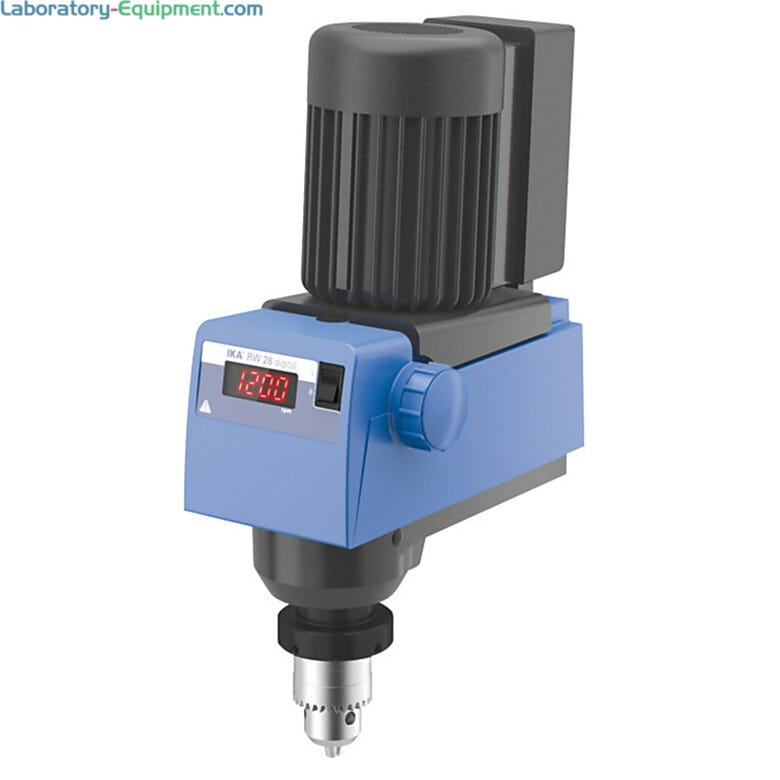

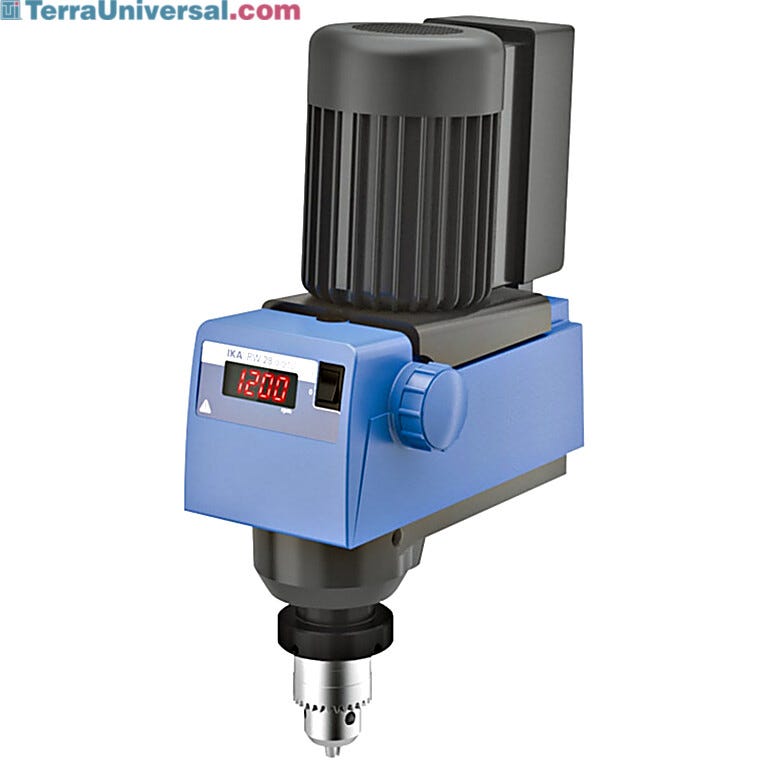

• Model: RW 28
• Capacity: 80 L
• Reversible Stirring: No
• Wireless Controller: No
• Manufacturer SKU: 5040001
• Shaft Length: [xxx] mm
• Immersion Depth: [xxx] mm
• Unit of Measure: EA
Want it faster ? Read about FasTrak
• Stirring quantity max. (H2O): 80 l
• Motor rating input: 220 W
• Motor rating output: 94 W
• Speed display: LED
• Speed range: 60 - 1400 rpm
• Viscosity max: 50000 mPas
• Output max. At stirring shaft: 90 W
• Torque max. At stirring shaft: 900 Ncm
• Torque max. At stirring shaft at 60 1/min (overload): 1144 Ncm
• Torque max. At stirring shaft at 100 1/min: 900 Ncm
• Torque max. At stirring shaft at 1.000 1/min: 86 Ncm
• Torque I max.: 900 Ncm
• Torque II max.: 300 Ncm
• Speed range I (60 Hz): 72 - 480 rpm
• Speed range II (60 Hz): 288 - 1680 rpm
• Speed control: stepless
• Setting accuracy speed: 1 ±rpm
• Deviation of speed measurement: 10 ±rpm
• Stirring element fastening: chuck
• Torque display: no
• Nominal torque: 9 Nm
• Noise without element: 62.5 dB(A)
• Not available with: RS 232 and USB interface, analog output
• Digital speed display
• Infinitely adjustable speed with two speed ranges
• Push-through agitator shafts
• Motor overload protection for increased safety
• Self-locking temperature limiter
• Error code display; robust and ergonomic design
• Quiet operation
• Constant power-drive
• Maximum Speed: 1400 rpm
• Maximum Viscosity: 5000 mPas
• Application: General Purpose
• Controls: Digital
• Model: RW 28
• Capacity: 80 L
• Reversible Stirring: No
• Wireless Controller: No
• Manufacturer SKU: 5040001
• Shaft Length: [xxx] mm
• Immersion Depth: [xxx] mm
• Unit of Measure: EA
• Electrical Specifications: 120 V, 200 W, 1 Ph, 60 Hz
• Weight, Product: 16.5 lb
• Dimensions, Product: 4.8" W x 9.9" D x 14.3" H
• Weight, Shipping: 24 lb
• Dimensions, Shipping: 8" W x 12" D x 16" H
