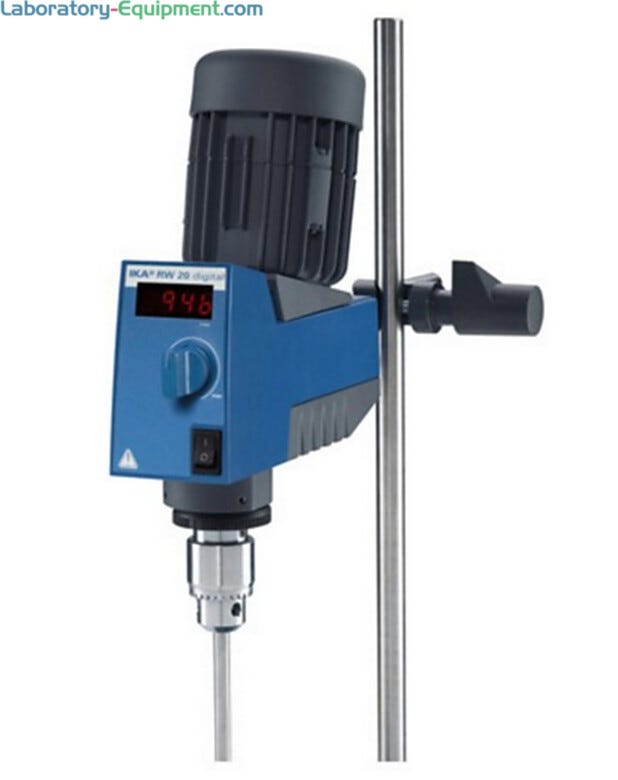

Two-speed mechanical motor for a wide range of liquid viscosities | 6927-17 displayed
Overhead Stirrers

Overhead Stirrer; RW 20, Digital, 120 V

• Maximum Speed: 2000 rpm

• Maximum Viscosity: 10000 mPas

• Application: General Purpose

• Controls: Digital

• Model: RW 20

• Capacity: 20 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 3593001

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

Read more
Manufacturer SKU: 3593001
Manufactured By: IKA
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6927-17
Terra Part # 6927-17
$1,177
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6927-17
64004
Overhead Stirrer; RW 20, Digital, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Stirring quantity max.  (H2O): 20 l
  • Motor rating input: 85 W
  • Motor rating output: 35 W
  • Speed display: LED
  • Speed range: 60 - 2000 rpm
  • Viscosity max.: 10000 mPas
  • Output max.  At stirring shaft: 26 W
  • Torque max.  At stirring shaft: 150 Ncm
  • Torque max.  At stirring shaft at 60 1/min (overload): 300 Ncm
  • Torque max.  At stirring shaft at 100 1/min: 150 Ncm
  • Torque max.  At stirring shaft at 1.000 1/min: 24 Ncm
  • Speed range I (60 Hz): 72 - 600 rpm
  • Speed range II (60 Hz): 288 - 2400 rpm
  • Speed control: stepless
  • Stirring element fastening: chuck
  • Temperature display: no
  • Extension arm diameter: 13 mm
  • Extension arm length: 160 mm
  • Torque display: no
  • Nominal torque: 1.5 Nm
  • Timer: no
  • RS 232 interface: no
  • USB interface: no
  • Analog output: no
  • Two-speed mechanical motor for a wide range of liquid viscosities
  • Adjustable speed range from 60-2,000 rpm
  • Push-through agitator shafts when device is stationary
  • Constant power-drive and digital LED speed display
  • Slim-line, ergonomic and robust design
  • Overhead Stirring Elements sold separately
  • Two-Year Manufacturer Warranty; plus One-Year Warranty after product registration
Show more

• Maximum Speed: 2000 rpm

• Maximum Viscosity: 10000 mPas

• Application: General Purpose

• Controls: Digital

• Model: RW 20

• Capacity: 20 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 3593001

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

• Electrical Specifications: 120 V, 1 A, 200 W, 1 Ph, 50/60 Hz

• Weight, Product: 6.8 lb

• Dimensions, Product: 3.5" W x 8.4" D x 11.6" H

• Weight, Shipping: 10 lb

• Dimensions, Shipping: 6" W x 11" D x 13" H

• Package Type: Box

Show more
Other products you may find relevant
  1. Thermo Scientific RT2 Basic Hot Plate/Stirrer; Analog model shown | 3618-26 displayed
    Group of 2 products
    RT2 Basic and RT2 Advanced Hotplate Stirrers by Thermo Fisher Scientific From
    As low as $651
    Some ship in 5 - 7 days
  2. Cimarec hot plates designed with ceramic top to supply maximum heat transfer evenly | 4000-86A displayed
    Group of 2 products
    Cimarec™ Ceramic-Top Hot Plates by Thermo Fisher Scientific From
    As low as $258
    Some ship in 5 - 7 days
  3. Cimarec hot plates designed with ceramic top to supply maximum heat transfer evenly | 4000-86A displayed
    Group of 3 products
    Cimarec™ Digital Aluminum-Top Hot Plate and Stirring Hot Plates by Thermo Fisher Scientific From
    As low as $364
    Some ship in 5 - 7 days
  4. Hot Plates and Stirrers | 2813-00 displayed
    Group of 6 products
    Hot Plates, Stirring Hot Plates, and Magnetic Stirrers by Benchmark Scientific From
    As low as $250
    Some ship in 5 - 7 days
  5. Shown: Benchmark Scientific #S1005 | 2829-65 displayed
    Stirrer; MiniMag, Magnetic, Benchmark, 120/240 V
    $113
    Usually Ships in 5 - 7 days
  6. Cimarec i Telesystem Multipoint Stirrers are designed for laboratory applications that require stirrers to be submerged in water baths | 3618-34 displayed
    Group of 5 products
    Cimarec i Telesystem Multipoint Stirrers by Thermo Fisher Scientific From
    As low as $2,421
    Some ship in 5 - 7 days

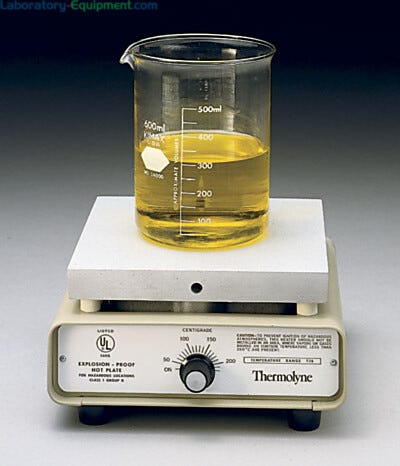

  7. Designed to ensure safe heating in potentially explosive situations | 4000-92 displayed
    Hot Plate, Explosion Proof, 220°C, Aluminum, Thermo Fisher, 120 V
    $1,590
    Usually Ships in 10 - 20 days
  8. Remote Control Hot Plates | 4000-99 displayed
    Group of 2 products
    Remote Control Hot Plates by Thermo Fisher Scientific From
    As low as $1,570
    Some ship in 10 - 20 days
  9. Nuova™ Hot Plate Ceramic-coated stainless steel provides excellent corrosion resistance and thermal shock protection
    Group of 2 products
    Nuova™ and Super-Nuova™ Hot Plates and Stirring Hot Plates by Thermo Fisher Scientific From
    As low as $1,044
    Some ship in 5 - 7 days
  10. Aluminum-Top Micro Hot Plate from Thermo Fisher Scientific features infinitely adjustable temperature control from 38 to 220°C | 4000-77 displayed
    Group of 2 products
    Aluminum-Top Micro Hot Plates by Thermo Fisher Scientific From
    As low as $284
    Some ship in 10 - 20 days
  11. General Purpose Hot Plates from Thermo Scientific have an aluminum top and stainless steel housing for durability | 4000-70 displayed
    Group of 2 products
    General Purpose Aluminum-Top Hot Plates by Thermo Fisher Scientific From
    As low as $368
    Some ship in 10 - 20 days

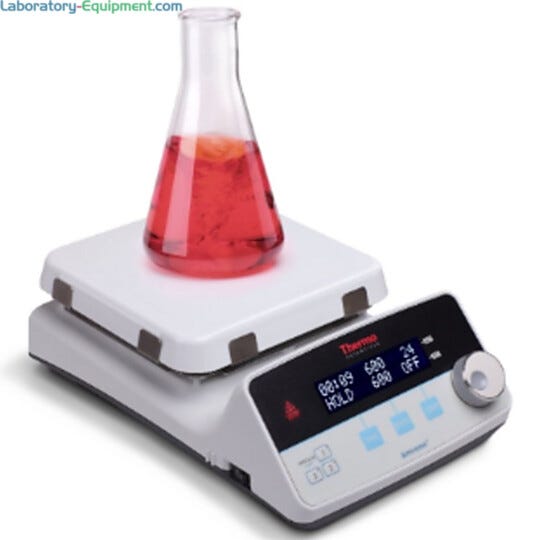

  12. Super Nuova™ Digital Stirring Hot Plate with 7" x 7" aluminum top provides precise digital control of top plate and solution temperatures | 4100-07-220 displayed
    Hot Plate Stirrer, General Purpose, 300°C, Aluminum, Thermo Fisher Scientific, 120 V
    $1,217
    Usually Ships in 5 - 7 days
  13. Super-Nuova™ designed with a sturdy ceramic top and aluminum body with 4 independently controlled stirring positions | 4100-10 displayed
    Group of 2 products
    Super-Nuova™ Multi-Position Digital Stirring Hotplates and Stirrers by Thermo Fisher Scientific From
    As low as $1,987
    Some ship in 5 - 7 days
  14. RT Touch Series Magnetic Stirrers are ideal for routine stirring applications or for processes requiring visible stir speed | 5319-03 displayed
    Group of 10 products
    RT Basic and RT Touch Series Magnetic Stirrers by Thermo Fisher Scientific From
    As low as $175
    Some ship in 5 - 7 days
Buy Accessories

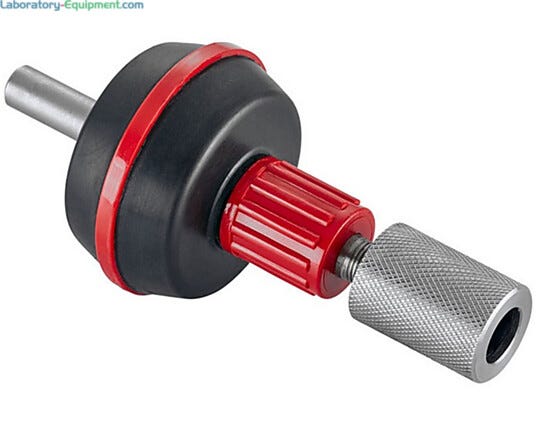

  1. IKA FK 1 Flexible coupling required for stirring applications using glass stirring rods; compatible with EUROSTAR and RW Series Overhead Stirrers | 6926-21 displayed
