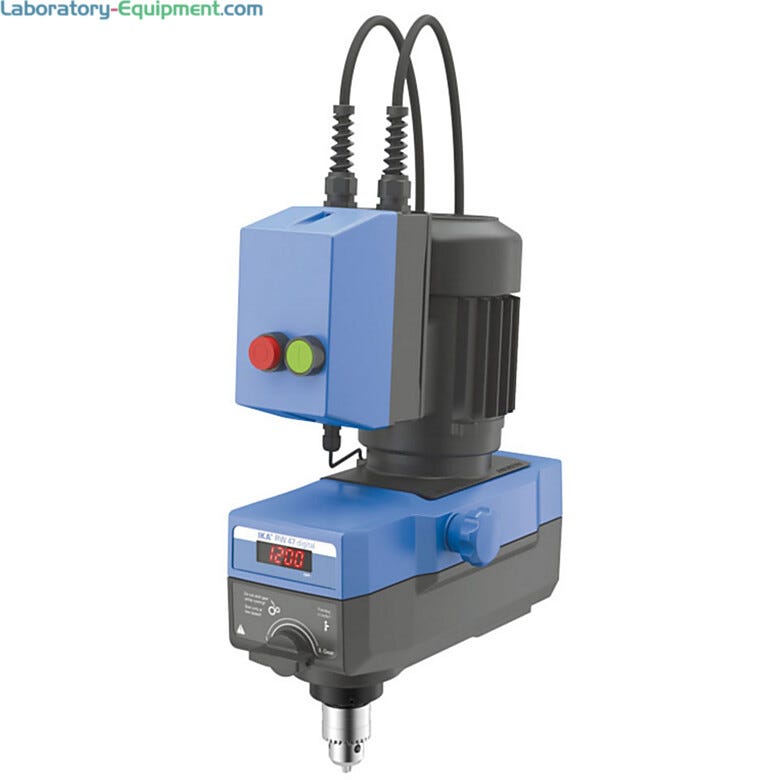

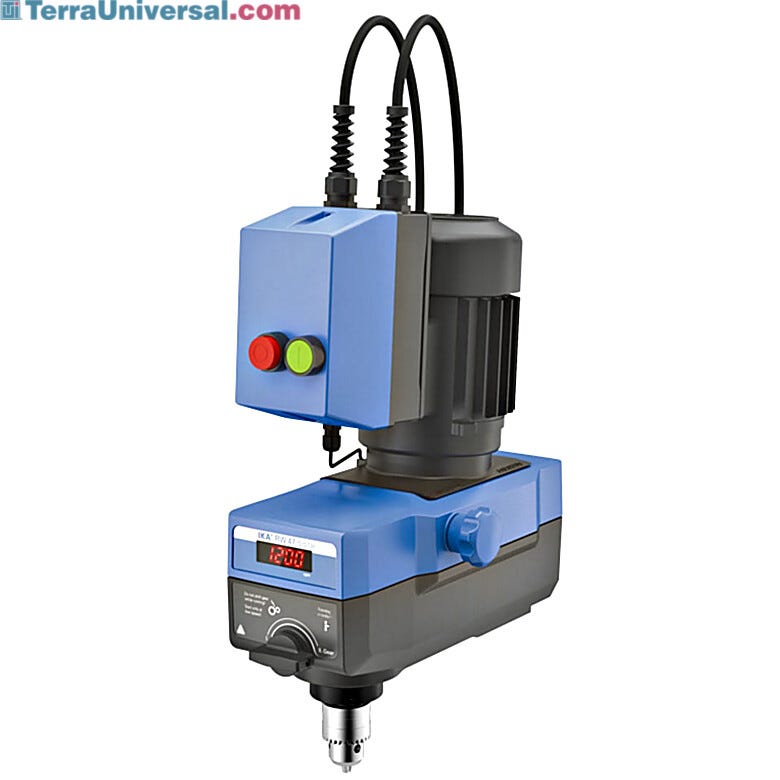

The RW 47 Digital Overhead Stirrer offrs 200 liter capacity and high torque with motor overload protection for highly viscous applications |
Overhead Stirrers

Overhead Stirrer; RW 47, Digital, IKA Products, 230 V

• Maximum Speed: 1560 rpm

• Maximum Viscosity: 100000 mPas

• Application: High Viscosity Liquids

• Controls: Digital

• Model: RW 47

• Capacity: 200 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 4050010

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

Read more
Manufacturer SKU: 4050010
Manufactured By: IKA
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6927-23
Terra Part # 6927-23
$12,031
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6927-23
64040
Overhead Stirrer; RW 47, Digital, IKA Products, 230 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Stirring quantity max.  (H2O): 200 l
  • Material: Alu-casting coating/thermoplastic polymer
  • Motor rating input/output: 490 W/370 W
  • Motor principle: three-phase current
  • Speed display: LED
  • Speed range: 69 - 1560 rpm
  • Viscosity max.: 100,000 mPas
  • Permissible ON time: 100%
  • Output max.  At stirring shaft: 300 W
  • Torque max.  At stirring shaft: 3000 Ncm
  • Torque max.  At stirring shaft at 60 1/min (overload): 4642 Ncm
  • Torque max.  At stirring shaft at 100 1/min: 3000 Ncm
  • Torque max.  At stirring shaft at 1.000 1/min: 285 Ncm
  • Torque I max.: 3000 Ncm
  • Torque II max.: 620 Ncm
  • Speed range I (60 Hz): 69 - 330 rpm
  • Speed range II (60 Hz): 330 - 1560 rpm
  • Speed control: stepless
  • Setting accuracy speed: 1 ±rpm
  • Deviation of speed measurement: 10 ±rpm
  • Stirring element fastening: chuck
  • Chuck range min/max diameter: 3/16 mm
  • Hollow shaft, inner diameter: 13 mm
  • Hollow shaft (push-through when stopped): no
  • Fastening on stand: flange
  • Torque display: no
  • Nominal torque: 30 Nm
  • Permissible ambient temperature: 5 - 40 °C
  • Permissible relative humidity: 80 %
  • Protection class according to DIN EN 60529: IP 54
  • Designed for high volume operations
  • Digital speed display
  • Infinitely adjustable speed with two speed ranges
  • Processing of liquids with viscosities up to 100,000 mPas
  • Motor overload protection for increased safety
  • Error code display for easy troubleshooting
  • Quiet operation
  • Constant power-drive
  • Not available with RS 232 and USB interface
  • DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])
Show more

• Maximum Speed: 1560 rpm

• Maximum Viscosity: 100000 mPas

• Application: High Viscosity Liquids

• Controls: Digital

• Model: RW 47

• Capacity: 200 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 4050010

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

• Electrical Specifications: 230 V, 60 Hz

• Weight, Product: 35.3 lb

• Dimensions, Product: 5.7" W x 14.1" D x 18.3" H

• Weight, Shipping: 45 lb

• Dimensions, Shipping: 6" W x 12" D x 15" H

• Package Type: Box

Show more
Other products you may find relevant
  1. Thermo Scientific RT2 Basic Hot Plate/Stirrer; Analog model shown | 3618-26 displayed
    Group of 2 products
    RT2 Basic and RT2 Advanced Hotplate Stirrers by Thermo Fisher Scientific From
    As low as $651
    Some ship in 5 - 7 days
  2. Cimarec hot plates designed with ceramic top to supply maximum heat transfer evenly | 4000-86A displayed
    Group of 2 products
    Cimarec™ Ceramic-Top Hot Plates by Thermo Fisher Scientific From
    As low as $258
    Some ship in 5 - 7 days
  3. Cimarec hot plates designed with ceramic top to supply maximum heat transfer evenly | 4000-86A displayed
    Group of 3 products
    Cimarec™ Digital Aluminum-Top Hot Plate and Stirring Hot Plates by Thermo Fisher Scientific From
    As low as $364
    Some ship in 5 - 7 days
  4. Hot Plates and Stirrers | 2813-00 displayed
    Group of 6 products
    Hot Plates, Stirring Hot Plates, and Magnetic Stirrers by Benchmark Scientific From
    As low as $250
    Some ship in 5 - 7 days
  5. Shown: Benchmark Scientific #S1005 | 2829-65 displayed
    Stirrer; MiniMag, Magnetic, Benchmark, 120/240 V
    $113
    Usually Ships in 5 - 7 days
  6. Cimarec i Telesystem Multipoint Stirrers are designed for laboratory applications that require stirrers to be submerged in water baths | 3618-34 displayed
    Group of 5 products
    Cimarec i Telesystem Multipoint Stirrers by Thermo Fisher Scientific From
    As low as $2,421
    Some ship in 5 - 7 days
  7. Designed to ensure safe heating in potentially explosive situations | 4000-92 displayed
    Hot Plate, Explosion Proof, 220°C, Aluminum, Thermo Fisher, 120 V
    $1,590
    Usually Ships in 10 - 20 days
  8. Remote Control Hot Plates | 4000-99 displayed
    Group of 2 products
    Remote Control Hot Plates by Thermo Fisher Scientific From
    As low as $1,570
    Some ship in 10 - 20 days
  9. Nuova™ Hot Plate Ceramic-coated stainless steel provides excellent corrosion resistance and thermal shock protection
    Group of 2 products
    Nuova™ and Super-Nuova™ Hot Plates and Stirring Hot Plates by Thermo Fisher Scientific From
    As low as $1,044
    Some ship in 5 - 7 days
  10. Aluminum-Top Micro Hot Plate from Thermo Fisher Scientific features infinitely adjustable temperature control from 38 to 220°C | 4000-77 displayed
    Group of 2 products
    Aluminum-Top Micro Hot Plates by Thermo Fisher Scientific From
    As low as $284
    Some ship in 10 - 20 days
  11. General Purpose Hot Plates from Thermo Scientific have an aluminum top and stainless steel housing for durability | 4000-70 displayed
    Group of 2 products
    General Purpose Aluminum-Top Hot Plates by Thermo Fisher Scientific From
    As low as $368
    Some ship in 10 - 20 days
  12. Super Nuova™ Digital Stirring Hot Plate with 7" x 7" aluminum top provides precise digital control of top plate and solution temperatures | 4100-07-220 displayed
    Hot Plate Stirrer, General Purpose, 300°C, Aluminum, Thermo Fisher Scientific, 120 V
    $1,217
    Usually Ships in 5 - 7 days
  13. Super-Nuova™ designed with a sturdy ceramic top and aluminum body with 4 independently controlled stirring positions | 4100-10 displayed
    Group of 2 products
    Super-Nuova™ Multi-Position Digital Stirring Hotplates and Stirrers by Thermo Fisher Scientific From
    As low as $1,987
    Some ship in 5 - 7 days
  14. RT Touch Series Magnetic Stirrers are ideal for routine stirring applications or for processes requiring visible stir speed | 5319-03 displayed
    Group of 10 products
    RT Basic and RT Touch Series Magnetic Stirrers by Thermo Fisher Scientific From
    As low as $175
    Some ship in 5 - 7 days
Buy Accessories
  1. For drawing the material to be mixed from the top to the bottom | 6926-28 displayed
    R 2302 Propeller Stirrer, 4 bladed In stock
    $1,380
    Increase Down Increase Up

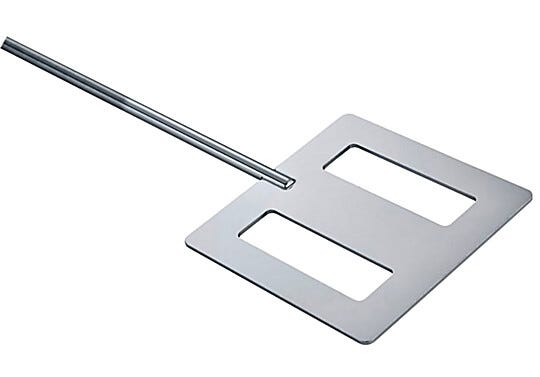

  2. Ideal for use with samples that require gentle mixing | 6926-86 displayed
    R 2311 Paddle Stirrer In stock
    $1,039
    Increase Down Increase Up

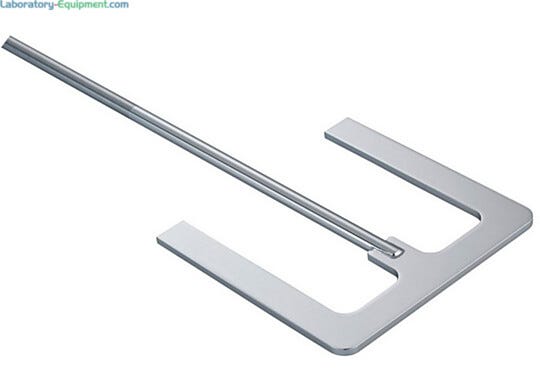

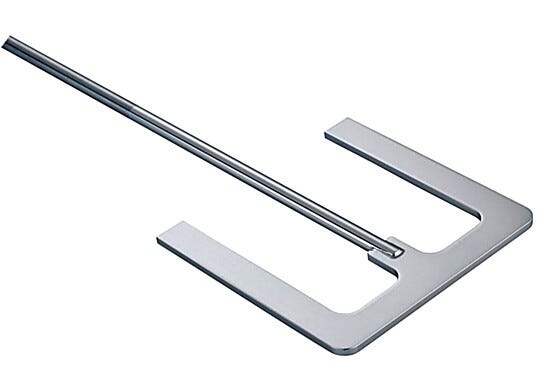

  3. Excellent for use in polymer reactions due to the tangential flow created. | 6926-89 displayed
    R 1333 Anchor Stirrer In stock
    $949
    Increase Down Increase Up

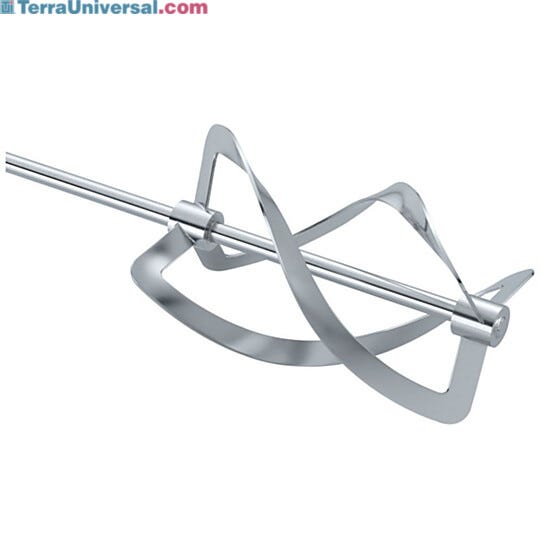

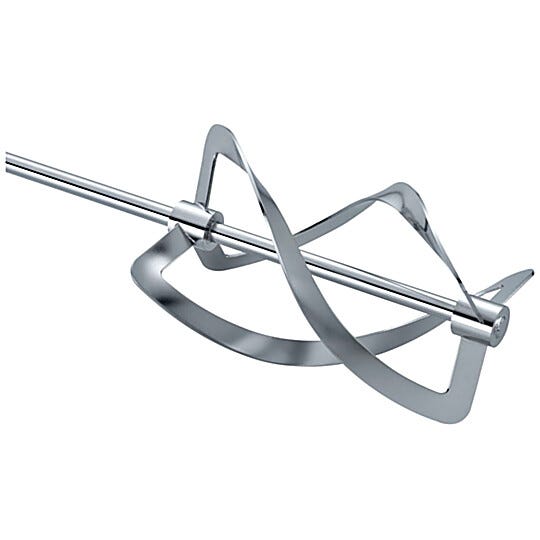

  4. Generates axial flow | 6927-29 displayed
    Spiral Stirrer, R 3003.1 In stock
    $776
    Increase Down Increase Up

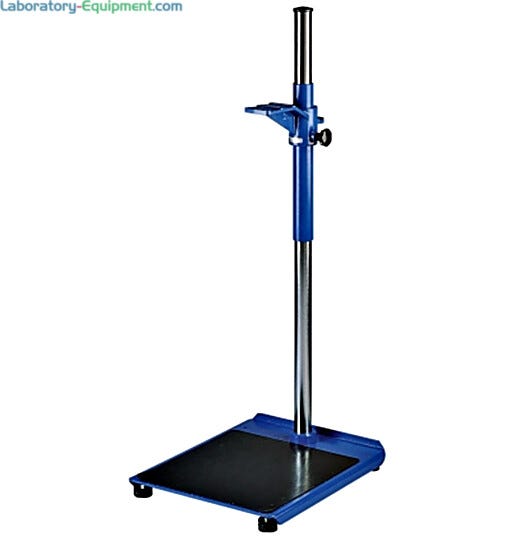

  5. Wide base for maximum stability during intense stirring operations | 6927-26 displayed
    Telescopic Stand, R 474 In stock
    $6,032
    Increase Down Increase Up
  6. Adaptable for use with other instruments | 6927-25 displayed
    Floor Stand, R 472 In stock
    $8,605
    Increase Down Increase Up

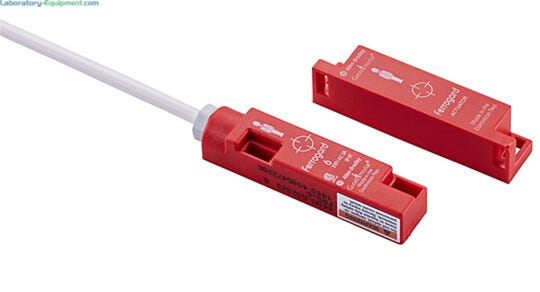

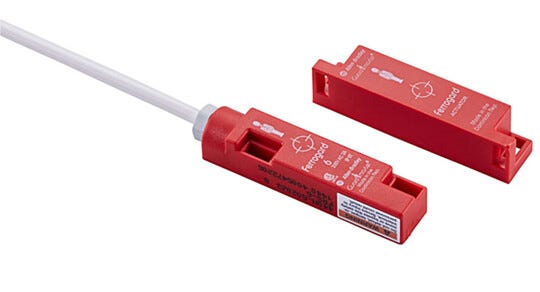

  7. Automatically shuts-off if the unit islifted or moved from user designated height | 6925-35 displayed
    Switch, Safety, SI 4000 In stock
    $2,483
    Increase Down Increase Up

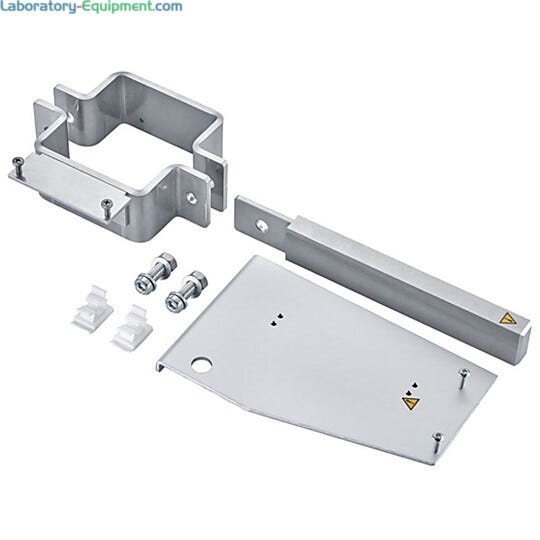

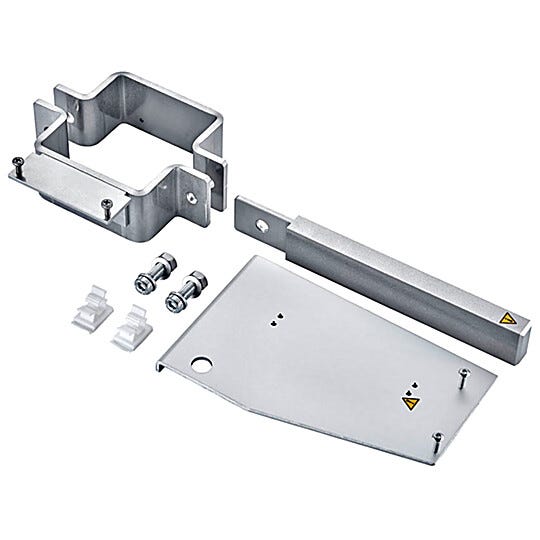

  8. Attaches safety switch SI 400 to the floor stand R 472 | 6927-28 displayed
    Fixing Device, SI 472 In stock
    $2,296
    Increase Down Increase Up

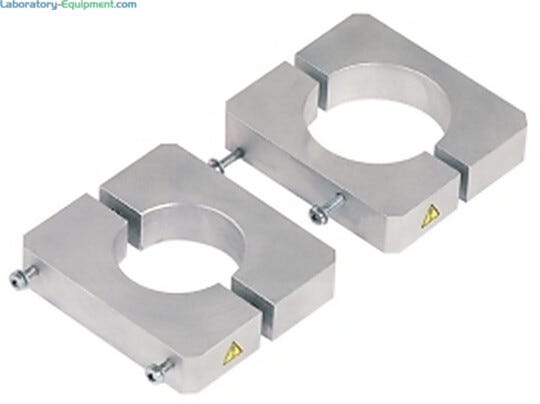

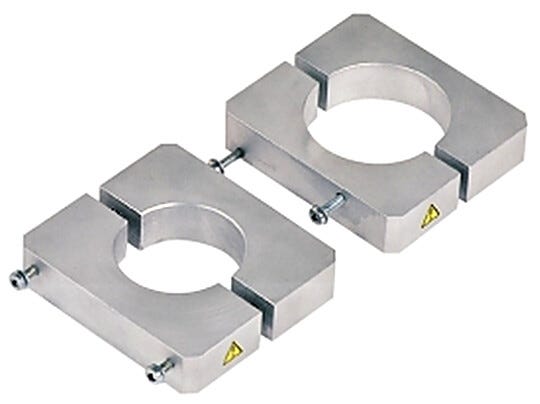

  9. Attaches safety switch to telescopic stand | 6925-36 displayed
    Device, Fixing, SI 474 In stock
    $2,296
    Increase Down Increase Up

Features and Benefits

RW 47 Specifications
Print Copy Copied

More Information

Stirring quantity max. (H2O) 200 L
Motor rating input 490 W
Motor rating output 370 W
Motor principle Three-phase current
Speed display LED
Speed range 69 - 1560 rpm
Viscosity max. 100000 mPas
Output max. at stirring shaft 300 W
Torque max. at stirring shaft 3000 Ncm
Torque max. at stirring shaft
at 60 1/min (overload)		 4642 Ncm
Torque max. at stirring shaft
at 100 1/min		 3000 Ncm
Torque max. at stirring shaft
at 1.000 1/min		 285 Ncm
Torque I max. 3000 Ncm
Torque II max. 620 Ncm
Speed range I (60 Hz) 69 - 330 rpm
Speed range II (60 Hz) 330 - 1560 rpm
Speed control Step-less
Setting accuracy speed ±1 rpm
Deviation of speed measurement ±10 rpm
Torque display No
Nominal torque 30 Nm
Dimensions (W x H x D) 5.7 x 18.3 x 14.1 in (145 x 465 x 358 mm)
Weight 35.3 lbs. (16 kg)
Voltage 3 x 400 / 3 x 230 V
Frequency 60 Hz
Power input 490 W
