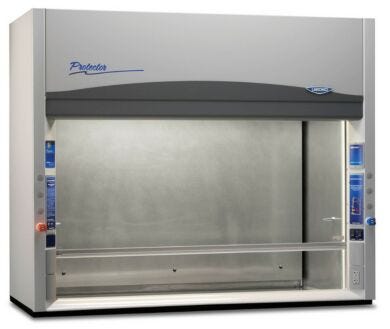

Shown: 4' Protector Radioisotope Fume Hood with optional service fixtures | 3648-02 displayed

Labconco Fume Hoods

Hood; Protector Radioisotope, 72" W x 38" D x 59" H, Service Fixtures, Duplex Outlet, Labconco, 115 V

By-pass airflow design and by-pass block
Coved stainless steel interior and one-piece liner prevents build-up of residue
Clean-Sweep pulls inflow air from under curved air foil and away from operator
Front and side panels are removable for easy cleaning and access to plumbing and wiring
Cord-Keeper slots on left and right side of air foil keeps cord organized

• Depth: 38"

• Hood Design: Benchtop

• Frame Material: Powder-Coated Steel

• Height: 59"

• Manufactured by: Labconco

• Manufacturer SKU: 120610002

• Max Opening: 28" H

• Model: Protector Radioisotope

• Side Panels: Tempered Glass

• Sash Design: Manual/Tilt-Up

• Sash Height: 28"

• Width: 72"

• Special Application: Radioisotope

• Unit of Measure: EA

Manufacturer SKU: 120610002+CRATESKL

Manufactured By: Labconco

Warranty: 1 Year

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Print Copy Copied

Protector Stainless Steel Radioisotope Laboratory Fume Hoods

Seamless 304 stainless steel baffle and liner
By-pass air flow and by-pass block
Clean-Sweep™ sash handle and tracks, Eco-Foil™ air foil and Cord-Keeper™ slots
37.5" obstruction free sightline
Performance tested to ASHRAE 110-1995
Required Accessories: Remote Blowers, Base Cabinets, Ductwork (See Available Accessories Below)
One-Year Manufacturer Warranty for Parts and Labor from date of Installation or Two-Year Warranty from Date of Shipment

Material	Corrosion-resistant 304 stainless steel interior; glacier white, dry powder epoxy-coated steel exterior; black enamel-coated hardboard surface; tempered safety glass vertical-rising sash with frame of epoxy-coated aluminum and PVC
Electrical	115 volts, 50/60 Hz, 10 amps
Conformance and Listings	Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL Listings: ETL-listed certified to UL 61010-1, UL 1805 and CAN/CSA C22.2 No. 61010.1 ASHRAE 110-1995 Performance tested
Type	Benchtop
Required Remote Blower	Not included (sold separately)
Required Accessories	Remote Blowers, Base Cabinets, Ductwork
Optional Accessories	Airflow Monitors, Sash Stops, Rear Finish Panel Kits, Three-Sided Ceiling Enclosure Kits
Airflow	By-pass airflow for stable face velocities By-pass block controls and reduces minimum air volume demanded by obstructing the by-pass opening above the sash Eco-Foil air foil saves energy by 7-10% compared to flat air foil; curved air foil maximizes containment by sweeping work surface with air Clean-Sweep sash handle and tracks bleeds air into hood chamber and away from breathing zone of operator; saves energy by 7-10% compared to flat air foils
Construction	Corrosion-resistant 304 stainless steel baffle and liner Tempered safety glass sash Seamless interior with coved corners Removable front and side panels for easy lamp replacement and access to plumbing and electrical connections 37.5" sightline provides unobstructed view from work surface to header panel; ideal for taller operators Cord-Keeper slot on left and right side of air foil keeps electrical cords away from operator and allows for complete sash closure when cords are plugged into receptacles on corner posts Access to plumbing from front of hood through service access panels Pre-wired electrical components: factory wired fluorescent lights and switches at single point junction; each hood factory prepared for up to 4 electrical duplexes and an airflow monitor; models with one electrical duplex with right side receptacle; 8 ft. models with one duplex with receptacles mounted on each side Hardboard surface supports integral work surface 11" OD Type 304 stainless steel exhaust connection(s) Remote control optional color-coded service fixtures for gas, air water, vacuum and other services; can be used regardless of sash position; select models have two pre-plumbed service fixtures; each corner post factory prepared for up to 4 service fixtures (8 fixtures per hood). Talk to a Terra product specialist about additional service fixtures
Lighting	Two high-efficiency T8 fluorescent lights outside hood interior for easy replacement and corrosion protection

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 3648-11

$23,134

Accessories related to Terra Part #

Hood; Protector Radioisotope, 72" W x 38" D x 59" H, Service Fixtures, Duplex Outlet, Labconco, 115 V

View Shopping Cart View Quote Cart

Usually ships in 40-44 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Features and Benefits

Learn More: Radioisotope Fume Hoods

Print Copy Copied

Protector Stainless Steel Radioisotope Laboratory Fume Hoods

Seamless 304 stainless steel baffle and liner
By-pass air flow and by-pass block
Clean-Sweep™ sash handle and tracks, Eco-Foil™ air foil and Cord-Keeper™ slots
37.5" obstruction free sightline
Performance tested to ASHRAE 110-1995
Required Accessories: Remote Blowers, Base Cabinets, Ductwork (See Available Accessories Below)
One-Year Manufacturer Warranty for Parts and Labor from date of Installation or Two-Year Warranty from Date of Shipment

Material	Corrosion-resistant 304 stainless steel interior; glacier white, dry powder epoxy-coated steel exterior; black enamel-coated hardboard surface; tempered safety glass vertical-rising sash with frame of epoxy-coated aluminum and PVC
Electrical	115 volts, 50/60 Hz, 10 amps
Conformance and Listings	Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL Listings: ETL-listed certified to UL 61010-1, UL 1805 and CAN/CSA C22.2 No. 61010.1 ASHRAE 110-1995 Performance tested
Type	Benchtop
Required Remote Blower	Not included (sold separately)
Required Accessories	Remote Blowers, Base Cabinets, Ductwork
Optional Accessories	Airflow Monitors, Sash Stops, Rear Finish Panel Kits, Three-Sided Ceiling Enclosure Kits
Airflow	By-pass airflow for stable face velocities By-pass block controls and reduces minimum air volume demanded by obstructing the by-pass opening above the sash Eco-Foil air foil saves energy by 7-10% compared to flat air foil; curved air foil maximizes containment by sweeping work surface with air Clean-Sweep sash handle and tracks bleeds air into hood chamber and away from breathing zone of operator; saves energy by 7-10% compared to flat air foils
Construction	Corrosion-resistant 304 stainless steel baffle and liner Tempered safety glass sash Seamless interior with coved corners Removable front and side panels for easy lamp replacement and access to plumbing and electrical connections 37.5" sightline provides unobstructed view from work surface to header panel; ideal for taller operators Cord-Keeper slot on left and right side of air foil keeps electrical cords away from operator and allows for complete sash closure when cords are plugged into receptacles on corner posts Access to plumbing from front of hood through service access panels Pre-wired electrical components: factory wired fluorescent lights and switches at single point junction; each hood factory prepared for up to 4 electrical duplexes and an airflow monitor; models with one electrical duplex with right side receptacle; 8 ft. models with one duplex with receptacles mounted on each side Hardboard surface supports integral work surface 11" OD Type 304 stainless steel exhaust connection(s) Remote control optional color-coded service fixtures for gas, air water, vacuum and other services; can be used regardless of sash position; select models have two pre-plumbed service fixtures; each corner post factory prepared for up to 4 service fixtures (8 fixtures per hood). Talk to a Terra product specialist about additional service fixtures
Lighting	Two high-efficiency T8 fluorescent lights outside hood interior for easy replacement and corrosion protection

Labconco Radioisotope Laboratory Fume Hood

Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.

Labconco Corrosive Resistant Remote Blower

Labconco supplies coated steel blowers designed specifically for connection to Class I containment enclosures, including XPert, RXPert, Protector XVS, and Purifier HEPA Filtered Safety Enclosures. Explosion-proof versions also available

Sash Stop Kit for Labconco Fume Hoods

Restricts opening of vertical-rising sash; easily installed on fixture panel of Protector hood.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Labconco Digital Airflow Monitor

The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
Labconco Standard Base Storage Cabinet

Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Labconco Acid Storage Cabinet

Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
Labconco Solvent Storage Cabinet

Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
Labconco Fiberglass Blower

Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Remote Blower

Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
