Terra Part # 3802-72
$2,466
Usually ships in 20-30 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3802-72
77513
Surgical Suit; GoLift 700 lbs. Kit for Patient Lift Pendant by Amico

• Lightweight, portable and easy to install patient transfer system weighs just 10 lbs.

• Integrates with Amico Patient Lift Pendants (PLP); patient lift slings sold separately

• Capacity load: 700 lbs.

• For use in medical and healthcare environments

• Includes: GoLift, charger, trolley, manual and capacitive touch hand control

GoLift Features: bright LED lights, quick magnetic hand control connection, capacitive touch hand control, durable all metal gears, emergency lowering stop feature and easy-to-clean rubber emergency strap

• GoLift Benefits: integrates with Amico Patient Lift Pendant (PLP), reduces risk of injury to patients, nurses and caregivers

• Material: metal gears, solid steel handle and flame retardant ABS lift case

• Designed to efficiently and safely lift and transfer patients in hospital and healthcare environments

• Easy-to-clean smooth edges and rounded corners minimize transfer of microorganisms

• Ideal for home health use

• Lifts up to 1000 lbs. when two GoLift 700-lb. models are used

• Strap length: 84” (sold separately)

Max lifting speed: No load: 2 inches (50.8 mm)/second; 150 lbs. (68 kg): 1.3 inches (33.02 mm)/second; 400 lbs. (181 kg): 1 inch (25.4 mm)/second;700 lbs. (317 kg): 1 inch (25.4 mm)/second; 1000 lbs. (453 kg): 1 inch (25.4 mm)/second

• Service life: 10 years or 22,500 cycles

Lifts per charge(25% of strap at midrange): 375 with 185 lbs. (83 kg), 170 with 400 lbs. (181 kg), 102 with 700 lbs. (317 kg)

• Charging time: 2-4 Hours (Calculated using 5Ah Packs)

Areas of usage: intensive care units, emergency departments, patient rooms, treatment rooms, operating rooms, physiotherapy, rehabilitation rooms, hygiene rooms, long term care, private homes, swimming pools

• Material: flame retardant ABS lift case, metal gears,

• Hand control: capacitive touch, Protection Class: IPX4

• Service life: 10 years or 22,500 cycles

Max sound level: <55 dB

Safety features: Emergency Stop, Emergency Lowering Device, Upper Limit and lower limit Detection, Slack Tape Sensor, Overload Protection, Emergency Manual Lowering, Free Fall Brake (Over Speed Governor), Low Battery and Dead Battery Alarms, Soft Start and Stop

Standard(s): CAN/CSA-C22.2 No. 60601-1:08 Medical Electrical Equipment – Part 1: General requirements for basic safety and essential performance. ISO10535:2006 Hoists for the transfer of disables persons – Requirements and Test Methods

• Available patient lift slings: GoBasic, GoLong, GoComfort, GoTurn, GoLimb, GoHygiene, GoActive, GoCustom

Approvals: Can/CSA-C22.2 No 60601-1:08, UL 60601-1:08

• Tested to: ISO 10535-06, CE

Manufacturer SKU: NS-GO-LIFT-700-KIT-PLP

Unit of Measure: EA

Electrical Specifications: 100/240 V, 40 W

Weight, Product: 10 lb

Dimensions, Product: 7.75" W x 7.75" D x 4.25" H

Buy Accessories
  1. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings with or without head support safely transfers hospital or home health patients
    $118
    Increase Down Increase Up
  2. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings with or without head support safely transfers hospital or home health patients
    $118
    Increase Down Increase Up
  3. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings with or without head support safely transfers hospital or home health patients
    $118
    Increase Down Increase Up
  4. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings with or without head support safely transfers hospital or home health patients
    $118
    Increase Down Increase Up
  5. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings reposition patients on the bed or transfer patients from stretchers
    $190
    Increase Down Increase Up
  6. Compatible with GoLift patient handling systems, S-XL polyester and mesh slings reposition patients on the bed or transfer patients from stretchers
    $190
    Increase Down Increase Up
  7. Compatible with GoLift patient handling, S-XL models ideal for repositioning patients on hospital beds
    $90
    Increase Down Increase Up
  8. Compatible with GoLift patient handling, S-XL models ideal for repositioning patients on hospital beds
    $90
    Increase Down Increase Up
  9. Compatible with GoLift patient handling, S-XL models ideal for repositioning patients on hospital beds
    $90
    Increase Down Increase Up
  10. Compatible with GoLift patient handling, S-XL models ideal for repositioning patients on hospital beds
    $90
    Increase Down Increase Up
  11. Customized on demand patient lift slings compatible with GoLift patient handling systems; polyester and mesh slings in S-XL sizes
    Request Quote
    Increase Down Increase Up

  • GoLift Patient Lift Video by Amico GoLift Patient Lift Video by Amico
  • GoLift Single Limb Lift Video by Amico GoLift Single Limb Lift Video by Amico
  • GoLift double Limb Lift Video by Amico GoLift Double Limb Lift Video by Amico
  • Amico GoLift from Wheelchair to Bed Video Amico GoLift from Wheelchair to Bed Video
  • Video of Amico GoLift transferring a patient from hospital bed to wheelchair Amico GoLift from Bed to Wheelchair Video Demonstration
  • Amico GoLift Moving a Patient from Supine to Side Lateral Amico GoLift Moving a Patient from Supine to Side Lateral Position
GoLift Patient Lift Video by Amico
GoLift Single Limb Lift Video by Amico
GoLift double Limb Lift Video by Amico
Amico GoLift from Wheelchair to Bed Video
Video of Amico GoLift transferring a patient from hospital bed to wheelchair
Amico GoLift Moving a Patient from Supine to Side Lateral

Features and Benefits

Built-In Regulator

Battery charger with a built-in regulator enables the GoLift to be connected to the charger without overcharging

Magnetic Capacitive Touch Hand Control

Streamlined design of the magnetic capacitive touch hand control enables easy connection to the carry bar, wall plate or booms

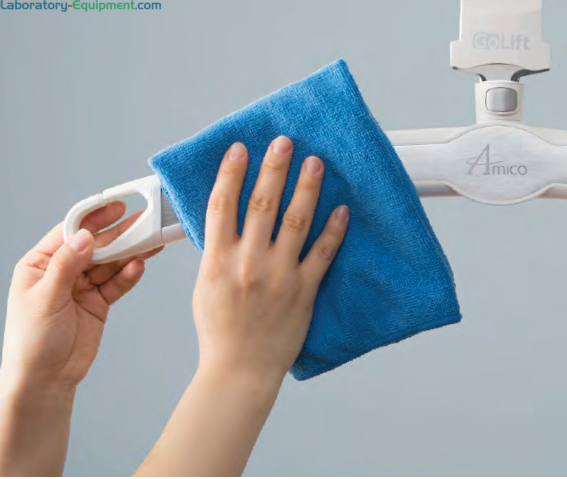

Infection Control

Smooth-edge design decreases the build-up of microorganisms

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • GoCustom Patient Sling by Amico, 1000 lb. load capacity
    All Amico patient slings can be customized to suit specific needs of patients; S-XL polyester and mesh models integrate with GoLift Patient Lift Systems
  • GoBasic Patient Lift Slings by Amico, 1000 lb. load capacity
    Amico patient lift slings for GoLift Systems available in various models to satisfy the diverse needs of clinicians to safely move and transfer patients
  • GoLong Patient Slings by Amico, 1000 lb. load capacity
    Safely and smoothly moves patients from various hospital and ICU surfaces; S-XL polyester and mesh models compatible with GoLift Patient Lift Systems
  • GoHygiene Patient Sling by Amico, 1000 lb. load capacity
    S-XL polyester and mesh patient slings feature a large bottom opening for patients being transferred from bed or wheelchair to the toilet
  • GoComfort Patient Slings by Amico, 1000 lb. load capacity
    Ideal for transferring hospital patients requiring more support around the hips and thighs; mesh and polyester patient sling available in S-XL sizes
  • Go Active Patient Lift Sling by Amico, 600 lb. load capacity
    Polyester and mesh patient lift slings in S-XL sizes provide upper body support for patients requiring physical therapy rehabilitation
  • GoLimb Patient Lift Sling by Amico, 400 lb. load capacity
    Safely and smoothly lifts legs and arms ideal for heavy limbed patients; available in S-XL polyester and mesh models
  • GoTurn Patient Sling by Amico
    S-XL hospital slings help to easily and smoothly reposition bed bound patients

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
