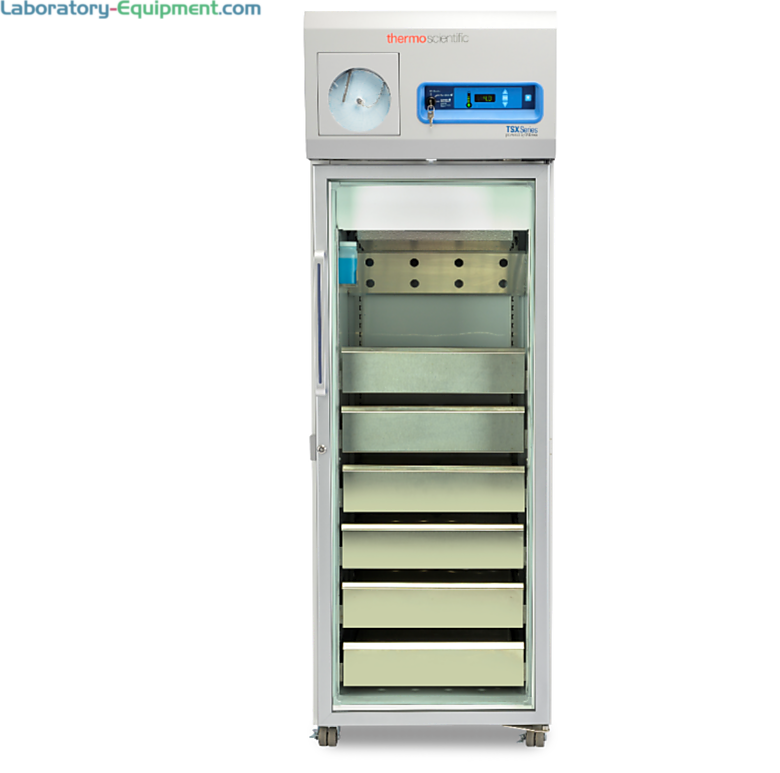

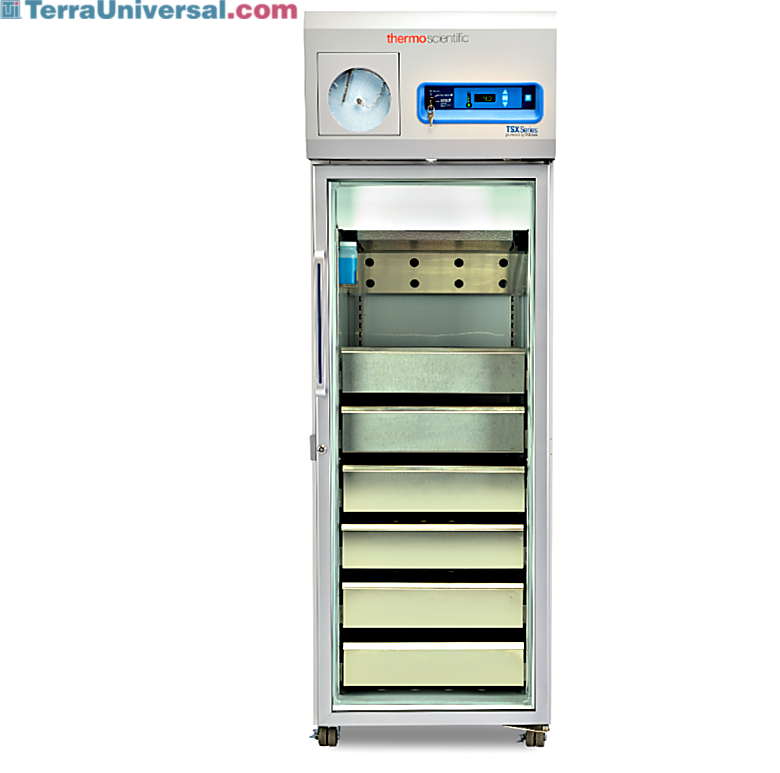

ENERGYSTAR, FDA and UL 11.5 cu. ft. TSX HP blood bank refrigerator stores 192 blood bags, meets AABB requirements and V-drive detects usage patterns | 1621-16 displayed
Refrigerators (4°C)
Product Group:
1620-PP-06
1620-PP-06 77902

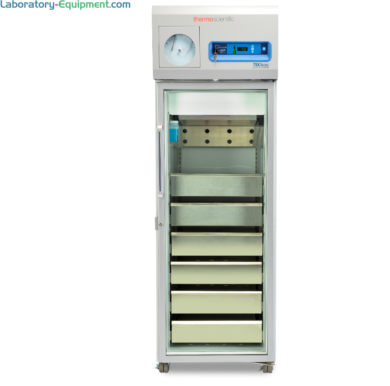

TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific

  • EnergyStar models provide sample protection and sustainability objectives for blood storage
  • Meets strict AABB requirements and is GMP Clean Room Class A compatible
  • V-Drive variable compressor with adaptive user patterns provides temperature uniformity
  • High performance single and double glass door refrigerators available in four capacity sizes
  • Includes: standard chart recorder, stainless steel drawers and four 2” casters (two lockable)
Read more
cULus Logo ULus Logo Energy Star AABB Standards Compliant
Manufactured By: Thermo Fisher
Warranty: 2-Years for parts and labor; 8-Years for V-Drive Compressor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Refrigerator Temperature Range

Sort Order:
Capacity Range

Sort Order:

 Terra Part # Price Ships in
3°C - 7°C 18 to 24 cubic feet 1621-17 77904 $12,119 10-16 Days 2
3°C - 7°C 9 - 15 cubic feet 1621-16 77903 $9,281 10-16 Days 3
3°C - 7°C >24 cubic feet 1621-18 77905 $13,653 10-16 Days 4
3°C - 7°C >24 cubic feet 1621-19 77906 $17,104 10-16 Days 5
Refrigerator Temperature Range
Capacity Range
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • EnergyStar models provide sample protection and sustainability objectives for blood storage
  • Meets strict AABB requirements and is GMP Clean Room Class A compatible
  • V-Drive variable compressor with adaptive user patterns provides temperature uniformity
  • High performance single and double glass door refrigerators available in four capacity sizes
  • •  Includes: standard chart recorder, stainless steel drawers and four 2” casters (two lockable)
  • 450 ml Blood bag capacity: 192 (11.5 cu. ft.), 385 (23.0 cu. ft.), 426 (29.2 cu. ft.), 770 (51.1 cu. ft.)
  • Features: intuitive microprocessor control with setpoint security and alarms, stainless steel, fully extendable and adjustable drawers, ergonomic door handle, door lock, standard built-in chart recorder, bright LED interior lighting, self-closing door with 90° stop and manufactured in an award-winning zero-waste to landfill facility
  • Setpoint: 4°C meets blood storage guidelines
  • Temperature range: 2° to 8°C,
  • V-Drive technology saves energy and provides maximum protection by detecting door opening and other usage patterns requiring variance of compressor speed for temperature stability
  • Certifications/Compliance: UL,cUL, SNAP, EnergyStar
  • FDA listed Class II Medical Device, 510K exempt
  • Heat-free defrost for maximum temperature uniformity
  • SNAP Compliant Refrigerants: Natural, R290 refrigerant and water-blown foam
  • GMP Clean Room Class A / ISO 6 (ISO EN 14644-1) compatible with appropriate pre-install preparation
  • Whisper quiet operation: 52 dBA
  • Energy-efficient model uses up to 40% less energy usage compared to other models
  • Lower HVAC costs due to less heat emission into the environment*
  • Options: alarm and recorder monitoring, Smart-Vue
Show more

Show more

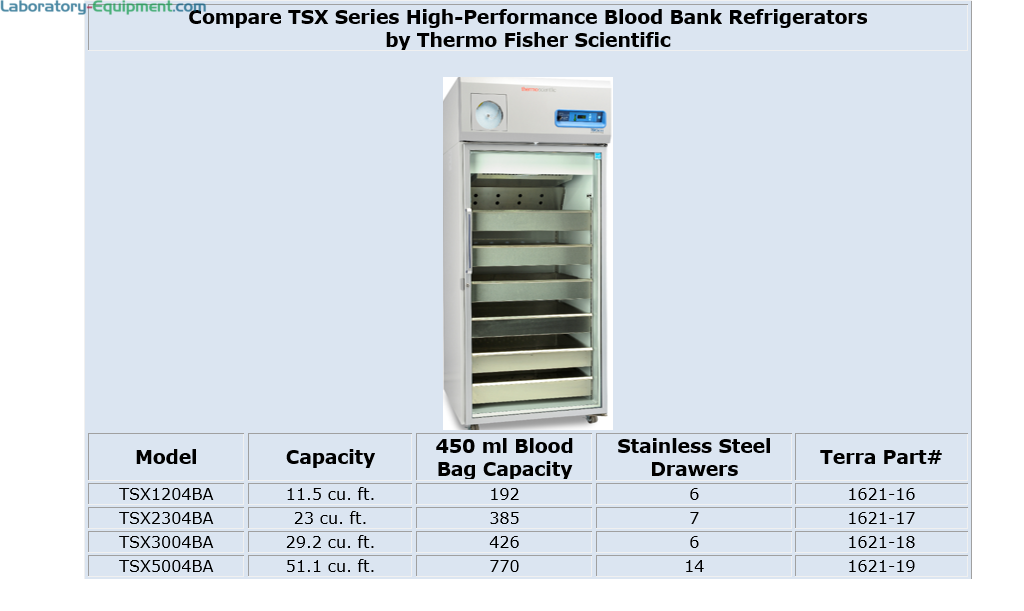

  • Comparison chart for TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific Comparison chart for TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific
Comparison chart for TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific
Compare capacity, storage and included steel drawers for TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific | 1620-PP-06 displayed Comparison chart for TSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific
Features & Benefits

Features and Benefits

Ergonomic Usage

Ergonomic door handle designed with a soft touch grip

V-Drive Technology

Quick temperature recovery and energy efficient cold storage for pharmaceutical, vaccines and medical samples

Meets AABB Requirements

EnergyStar and FDA approved models meet AABB strict standards and requirements for blood components and whole blood storage
