Ultra-Low Temperature freezers (-80°C)

Freezer Features and Benefits

Print Copy Copied

More Information

i.Series Freezers feature the i.C3 User Interface with a 7” full-color touchscreen monitor that provides constant temperature monitoring and control. This user interface also has multiple information logs with historical data that users can download and save as well as security features to keep your information safe.

System status console offers a snapshot of current storage conditions: temperature, alarm conditions, alerts, unacknowledged alarms, historical temperature data and backup system status
Guardian Plus Protection limits user access on every ultra-low freezer, ensures sample protection and integrity. The access control log tracks door openings by user, recording the date, time, duration and method of access.
Temperature, event, and access data are exported via the USB port of the i.C3 Information Center and can be opened in a spreadsheet program.
Device Status Console delivers diagnostic support by displaying the current and historic status of the refrigeration system on the Device Status and History screen.
7” (177mm) full-color, door-mounted touchscreen
Automatic high/low alarm testing (Peltier based)

USB ports (2) for download/upload/upgrade
Optional RS-232 data port
Dry contact alarm connection
Password protected settings
Digital display of upper and lower chamber temperatures
Event log displays date, time, and temperature
Compressor log displays compressor temperature performance
Interactive temperature graph
Digital calibration
Rechargeable battery backup
RJ45 hub*
Alarms: Dual alarm probes, Door ajar alarm, Power failure alarm, Condenser temperature alarm, Four alarm tones, High and low temperature alarms, Adjustable alarm volume, Alarm mute with adjustable ring-back interval

Model	iUF116	iUF118	iUF124	iUF126
Storage Volume	16 cu. ft. (453L)	18 cu. ft. (510L)	24 cu. ft. (680L)	26 cu. ft. (736L)
2" (51mm) Vial Box Capacity	320	352	480	528
Internal Dims(WxDxH)	23.1 x 23.3 x 49.5 in. (587 x 592 x 1257 mm)	23.1 x 23.3 x 54.1 in. (587 x 592 x 1374 mm)	34.4 x 23.3 x 49.5 in. (874 x 592 x 1257 mm)	34.4 x 23.3 x 54.1 in. (874 x 592 x 1374 mm)
External Dims(WxDxH)	33.8 x 34.8 78.2 in. 859 x 884 x 1986 mm)	28.9 x 34.8 x 78.2 in. (734 x 884 x 1986 mm)	45.1 x 34.8 x 78.2 in. (1146 x 884 x 1986 mm)	40.2 x 34.8 x 78.2 in. (1021 x 884 x 1986 mm)
Overall Dims(WxDxH)	37.1 x 37.5x 78.2 in. (942 x 953x 1986 mm)	32.5 x 37.5x 78.2 in. (826 x 953 x 1986 mm)	48.4 x 37.5 x 78.2 in. (1229 x 953x 1986 mm)	43.8 x 37.5 x 78.2 in. (1113 x 953x 1986 mm)
Insulation	5” foam wall	Premium Vacuum Insulated Panels	5” foam wall	Premium Vacuum Insulated Panels
Compartments and Inner Door	4	5	4	5
Stainless Steel Shelves	3 adjustable (60 lb/73 kg) max load)	4 adjustable (60 lb/73 kg) max load)	3 adjustable (60 lb/73 kg) max load)	4 adjustable (60 lb/73 kg) max load)
Temp. Range	-50ºC to -86ºC @ 32ºC (90ºF) Ambient
Temp. Uniformity	+/-5°C at -80°C Setpoint
Controller Type	Microprocessor with touchscreen input and display. Includes USB hub for data retrieval.
Security	Lockable door, PIN access control, password setpoints, padlock hasp
Battery Backup	20 hour display and alarm battery backup for i.C³® touchscreen (12V, lead acid battery)
Communication Ports	(1) RS232 Port (rear) and (1) USB Port (side of door-mounted user interface)
Display	i.C3®, eye-level, color touchscreen
Shelf Load	160 lbs. (73 kg) max. cap
Certifications	Certified to applicable UL and CSA standards by a NRTL
Electrical	208/230V 60Hz, 1 Phase
Additional Features	Adjustable hinges prevent door sag Washable filter keeps dirt and other particles out for increased refrigeration performance USB port for downloading temperature, event, and access data or to upload software updates Guardian Plus™ Access Control Ergonomic one-hand operation
Warranty	5 years compressor, 2 years parts and labor

Learn More

3.5 cu. ft. Undercounter -86ºC Ultra-Low Temperature Freezer by Haier Biomedical

Energy-efficient and stackable -86ºC ULT Undercounter Freezer with an ergonomic design, manual defrost and double SS inner door for superior thermal insulation

-150ºC Cryogenic Chest Freezer with open door by Haier Biomedical

-150ºC Cryo Freezer by Haier Biomedical

TXS Series Upright Freezer Internal Doors

Internal Doors and Security Features

Padlock-compatible doors, ergonomic door handle, eye-level touchscreen, alarm settings and an optional access card entry

Thermo Scientific TXS Series Freezer Touchscreen Interface

Capacitive Touch Interface

Touchscreen display can be used with latex gloves and features a set-up wizard, event log, temperature mapping and a USB port

Security and Data Management

i.Series Upright ULT Freezers feature the i.C3 User Interface that provides constant temperature monitoring and control, security and multi-information logs

Heat Barrier System Reduces Frost

Heat Barrier System features a fortified outer door and a reinforced insulated inner door that prevents frost build-up by minimizing temperature fluctuations

Ice-Resistant Sealing Surface

An ice-resistant sealing surface features an energy-efficient hot gas loop for a frost-free door frame and composite panels reduce heat transfer

Polygonal Gaskets on Outer Door Create a Tight Seal

Frost Reduction

Polygonal gaskets on the outer door compresses against the frame and forms a tight seal that prevents migration of moisture and reduces frost build-up

Dual Blade Gaskets on Inner Door Eliminate Frost

Dual Blade Gaskets Eliminate Frost

Dual-blade gaskets between the swing-out inner doors (with a positive latch) stop warm air from entering the storage chamber for ensured temperature uniformity

Optimum Oil Management

Models feature an oil separator that protects the compressor and an optimized mixed refrigerant that ensures proper flow rate at extremely low temperatures

Ergonomic Single-handed Door Handle with Key Lock

Ergonomic Door Handle with Key Lock

An easy-to-open door handle made with heavy-duty, cast aluminum and hardened steel includes a key lock and a padlock hasp for security

Freezer Images

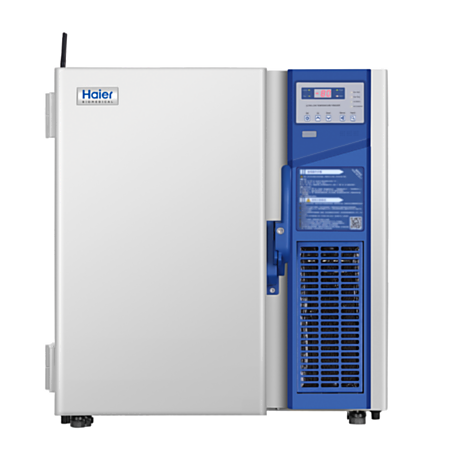

3.5 cu. ft. Undercounter -86ºC Ultra-Low Temperature Freezer by Haier Biomedical
-150ºC Cryo Freezer by Haier Biomedical
TLE Series Ultra-Low Freezers

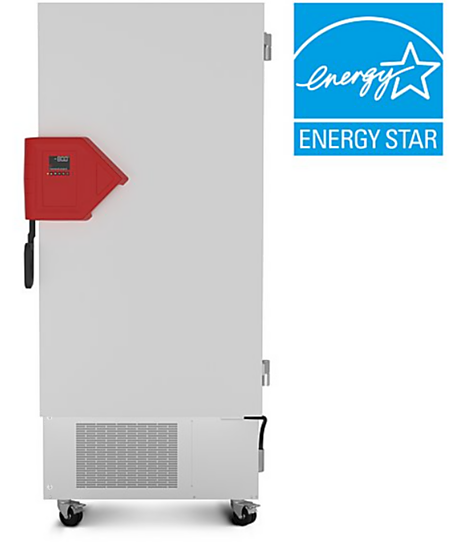

UFV Ultra-Low Temperature Freezers by BINDER
