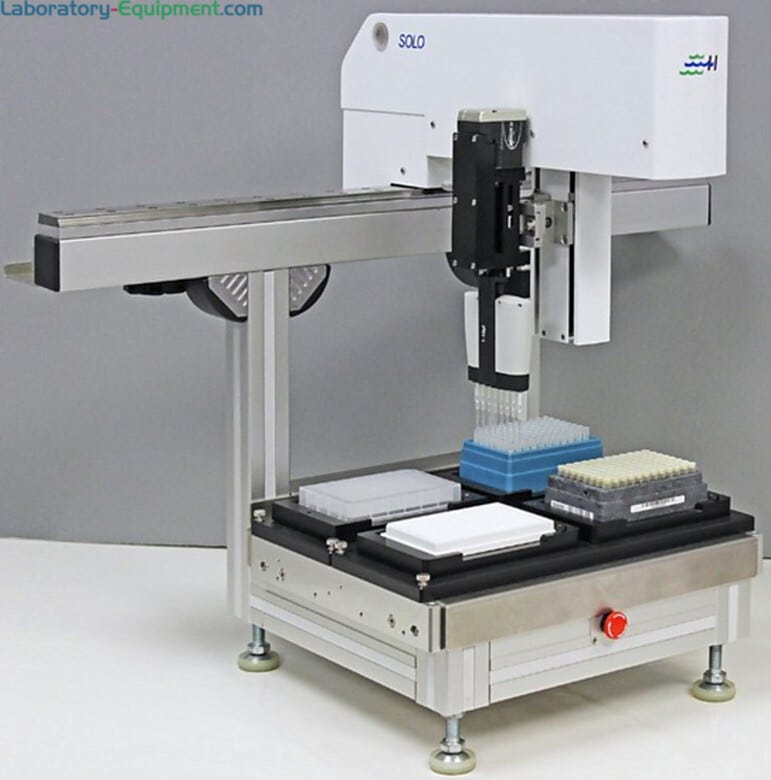

Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed

Liquid Handlers & Robotics,Vaccine Cold Storage Equipment

Automated Pipettor; SOLO Plus, Multi Channel/Integrated Dispenser, Hudson Robotics

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.

• Type: Automated Pipettor

• Model: SOLO Plus

• Manufactured by: Hudson Robotics

• Sample Type: Microplates

• Priming Trough Included: No

• Configuration: Multi Channel/Integrated Dispenser

• Manufacturer SKU: 800240

• Capacity: [xxx]

• Unit of Measure: EA

Read more

Manufacturer SKU: 800240

Manufactured By: Husdon Robotics

Need Help?

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 3030-03

Request Quote

Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Terra Part #

Request Quote

Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Related Products

Details & Specs

Product Details

SOLO Plus Robotic Pipettor/Dispenser includes:
1 x 3-axis robotic platform with all encoded stepper drives, single piece 316 stainless instrument deck on aluminum frame with leveling feet
Integrated Micro10x Dispenser
Selection of basic SOLO model (800201, 800206, 800230)
Micro10x aligntment bracket
Add options required with SOLO model selected
Add Micro10x manifold (8-channel, 12-channel, or other)

• Type: Automated Pipettor

• Model: SOLO Plus

• Manufactured by: Hudson Robotics

• Sample Type: Microplates

• Priming Trough Included: No

• Configuration: Multi Channel/Integrated Dispenser

• Manufacturer SKU: 800240

• Capacity: [xxx]

• Unit of Measure: EA

• Marks & Listings: CE, CSA

• Electrical Specifications: 120 V, 60 Hz

• Weight, Product: 40 lb

• Dimensions, Product: 22" W x 18" D x 28" H

• Weight, Shipping: 65 lb

• Dimensions, Shipping: 26" W x 24" D x 34" H

• Package Type: Vendor

Manuals & Resources

Related Products

Other products you may find relevant

Liquid Handlers & Robotics

COVID-19 Contamination Control Products by Terra Universal

Terra Universal offers an extensive portfolio of COVID-19 contamination control products for employee protection, surface disinfection and product sterilization COVID-19 Contamination Control Products by Terra Universal As personal and professional lives shift dramatically in response to the COVID-19 pandemic, businesses are searching for methods to reduce the transmission risk of COVID-19 in the workplace. Terra Universal offers an extensive product portfolio to support employee protection, surface disinfection and product sterilization. Let’s take a closer look at two products designed to control the spread of COVID-19.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Print Copy Copied

Additional Features of SOLO Automated Pipettor

The SOLO is capable of handling broad volume capacities and reactions within a sterile environment and the wide range of available pipette channels make the SOLO a scalable automated pipettor that will meet low and high throughput needs of pharmaceutical and clinical research labs.

The SOLO provides quick sample transfers from plate-to-plate, serial dilutions across the plate and easily adapts without any tools to both heads. Use the 12-tip head to finish plate-to-plate transfers 50% faster than the 8-tip head; remove the head and add the 8-position head for easy serial dilutions.

Users who wish to cherry-pick from individual wells can use either the single-tip SOLO or the multi-tip configuration. The SOLO multi-tip (both 8-channel and 12-channel) can work with just 1 tip, several tips, or all the tips without any issues. There is no need to switch to a single-tip pipette head.

The mechanical drive and software controls of the pipette head allow the SOLO to push the boundaries of pipetting performance. With CVs of less than 3% across the entire pipetting range, users can save valuable time and expense by using a single pipette head for both multi-tip and single-tip operations. Small-volume pipette heads are available for working between 0.5 µL and 20 µL.

Single-, 8-, and 12-channel pipetting heads are available
The 8- and 12-channel SOLO instruments can use only 1 tip without compromising performance, saving valuable time and expense
Features email functionality in the software that alerts the user when a run is completed or that an error has occurred
Customizable for unique or specialized applications

Liquid Handling Applications for SOLO Automated Pipettor

The SOLO automatic pipettor can be adapted to any research activity that requires the accurate addition, removal, and mixing of liquid samples and reagents – including those containing live cells. The SOLO can be integrated with other automated instruments for seamless process control and flexibility and has many uses in applications involving:

qPCR – The Hudson Robotics SOLO is the ideal pipettor for building the most complex sample set for your qPCR pipeline. Whether you are building a few qPCR reactions from 1.5 mL source tubes or running serial dilutions on thousands of samples per day, there is a SOLO configuration to get the job done.

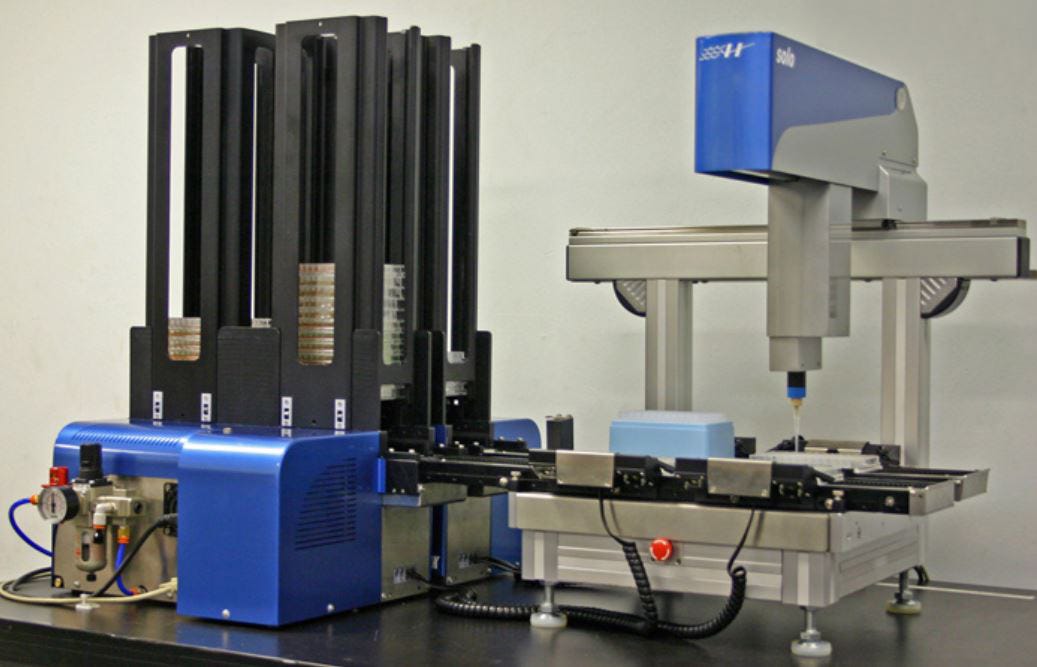

High-Throughput Cherry Picking – A compact, self-contained system that allows users to obtain assay plates comprised of the actual hits detected in a primary screen using the same compound source plates that provided the primary screen.

Rapid Serial Dilutions – The SOLO adds the required amount of sample to the first column of each row. The Micro10x then adds solvent to the remaining columns and the SOLO then transfers a fixed amount of the mixture from column 1 to column 2, mixes it, and then continues through the remaining columns.

ELISA Assays – The SOLO forms the core element in a very simple, low-cost, yet powerful ELISA preparation workcell with Hudson's Micro10x reagent dispenser and Hudson's new RapidWash plate washer.

The SOLO forms the core element in a very simple, low-cost, yet powerful ELISA preparation workcell with Hudson's Micro10x reagent dispenser and Hudson's new RapidWash plate washer.

Bioreactor Sampling and Feeding – Using a 24-chamber microplate bioreactor vessel with the footprint of a standard microplate, the AutoReact™ system automatically loads samples and feeds cells growing under 24 independent reaction conditions simultaneously.

Automated High-Speed pH Determination – Accurate and reliable method for High Speed pH measurement in microplates with a proprietary technique.

Other applications: DNA extraction, DNA and RNA normalization, microbiome/microbiota research, oligo pooling, oligo purification, gene assembly, synthetic biology, plasmid preparation, colony picking (fungal, yeast, stem cell and bacterial, colony plating, protein binding, protein expression & purification, handling non-standard samples plates.

Other Available Accessories for SOLO Automated Pipettor

LabLinx Plate Stacker

Feeds plates on track mounted directly to SOLO deck
Up to 4 Stackers per SOLO, 480-plate capacity
Easy integration using SoftLinx
Multiple plates handled simultaneously
Easy combination with SOLOSoft methods
Access to any SOLO plate nest

VaryVac Vacuum Filtration Nest

Feeds plates on track mounted directly to SOLO deck
Up to 4 Stackers per SOLO, 480-plate capacity
Easy integration using SoftLinx
Multiple plates handled simultaneously
Easy combination with SOLOSoft methods
Access to any SOLO plate nest

Heating/Cooling Nest

Electrical: 100 – 260VAC; 50-60Hz; 0.5W
RS-232 interface through SOLOSoft
Temp. Range: -10°C to 110°C
Logs actual nest temperature during run
Easy integration into SOLOSoft pipetting
Flexible user options

Shaker Nest

Electrical: 115 – 230VAC; 50-60Hz; 3W
RS-232 interface through SOLOSoft
Shaking Speed: 100 to 2000 RPM
Up to 4 independently-controlled shaker nests per SOLO
Easy integration into SOLOSoft pipetting methods
Control of Shake Speed, Shake Time, Acceleration and Shaking Pattern:
